XZU675-TQMMX3 (2019)
Toyota Dyna/Toyoace
(1905- )XZC675,XZU675,685,695..DCRWD
RE50F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-37160 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 31111A - BOLT(FOR CLUTCH HOUSING & TRANSMISSION CASE SETTING) | ||||
| 91612-61045 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) |
14 | ||
| 31111A - BOLT(FOR CLUTCH HOUSING & TRANSMISSION CASE SETTING) | ||||
| 91612-61045 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) |
14 | ||
| 31111F - BOLT(FOR CLUTCH HOUSING & ENGINE SETTING) | ||||
| 90119-10898 |
XZC675,XZU675,685,695..DCRWD |
13 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) |
1 | ||
| 33101Q - PLUG, NO.1(FOR TRANSMISSION CASE) | ||||
| 90341-42001 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 33101Q - PLUG, NO.1(FOR TRANSMISSION CASE) | ||||
| 90341-42001 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 33101Q - PLUG, NO.1(FOR TRANSMISSION CASE) | ||||
| 90341-42001 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03090 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-37090 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10232 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) 長さ=15,外径=8 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10232 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) 長さ=15,外径=8 |
6 | ||
| 33111Q - SEAL, OIL(FOR TRANSMISSION CASE) | ||||
| 90311-56032 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11021 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) 長さ=8,外径=11 |
2 | ||
| 33112G - CASE, TRANSMISSION, REAR | ||||
| 33102-37010 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-37070 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-37080 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) |
1 | ||
| 33124L - PIPE, OIL RECEIVER, N0.3(MTM) | ||||
| 33124-37090 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-37070 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-35023 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| 33161-37060 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) |
1 | ||
| 33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER | ||||
| 33162-37060 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) |
1 | ||
| Common parts | ||||
| 90119-08333 | ||||
| 90119-10970 | ||||
| 90301-13023 | ||||
| 91511-J0820 | ||||
| 91612-61035 | ||||

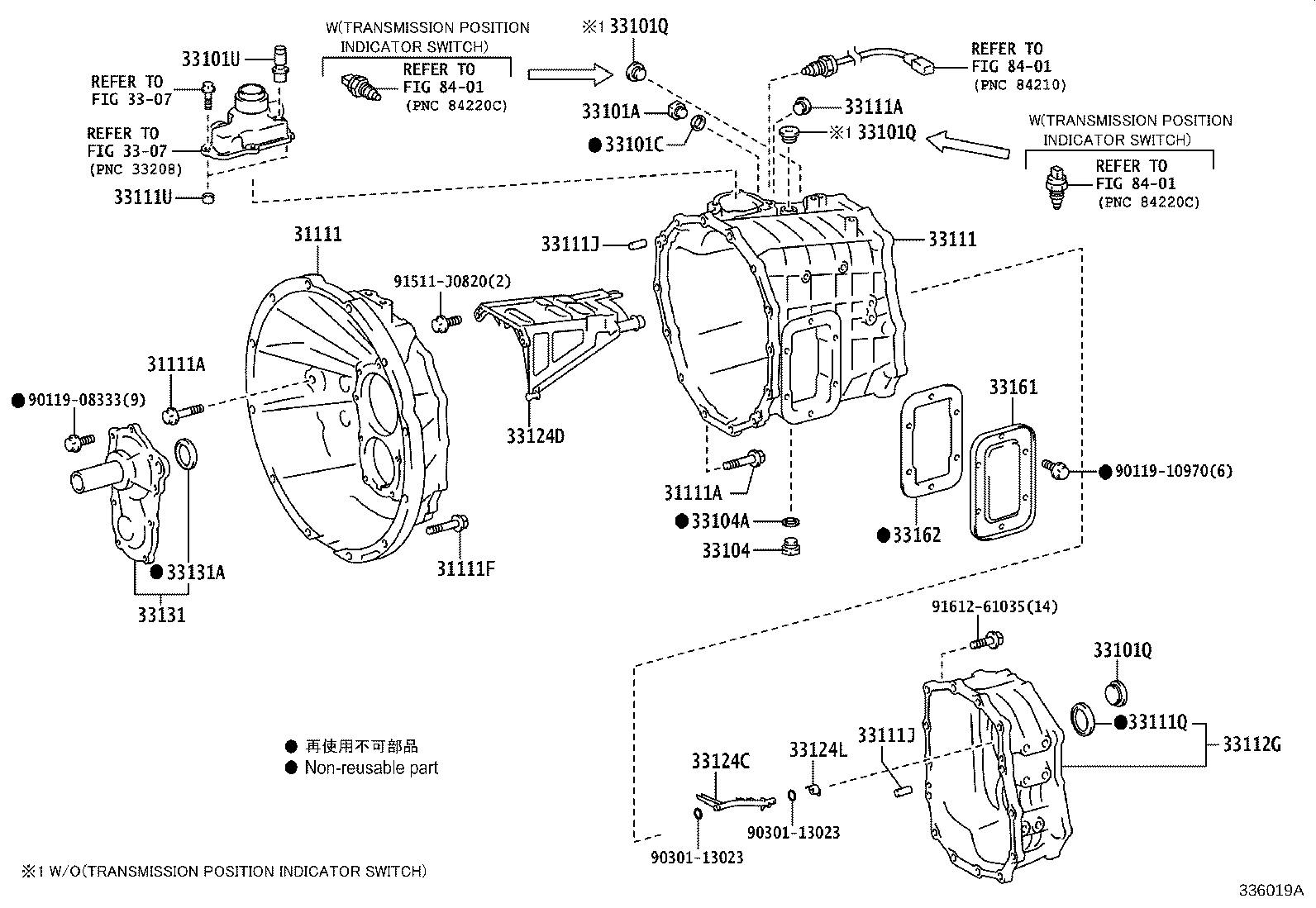

| Linked diagrams | ||||
| 3307 | ||||
| 8401 | ||||
