XZU675-TQMMC (2011)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(1107- )MTM..DCRTH,DCRTJ,DCRTK,DCRVT,EFI,LPG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-37280 |
XZC600..5F..ST;XZC675,XZU60#,610,630,645,65#,675,685,695..20T |
1 | ||
| 44730B - CLAMP, VACUUM HOSE | ||||
| 44597-37021 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 44730B - CLAMP, VACUUM HOSE | ||||
| 44597-37021 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 44730J - WAY(FOR BOOSTER VACUUM) | ||||
| 90414-10043 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC675,XZU60#,610,620,630,645,655,675,685,695..20T,30T |
1 | ||
| 44734B - BRACKET, BOOSTER SUPPORT | ||||
| 44734-37020 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC675,XZU60#,610,620,630,645,655,675,685,695..20T,30T |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44764-37870 |
XZC675,XZU675,685,695..CBU,IV3,IV6 |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44764-37870 |
XZC675,XZU675,685,695..CBU,IV3,IV6 |
1 | ||
| 44764A - HOSE, BOOSTER VACUUM | ||||
| 44776-37330 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC675,XZU60#,610,620,630,645,655,675,685,695..20T,30T |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-37250 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 44775C - HOSE, CONNECTOR TO WAY | ||||
| 44775-37030 |
XZC600..5F..ST;XZU640..MTM..DCRTK;XZU640..T4..5F..IV3;XZU650..MTM..(20T,35T);XZU650..T3..5F..30T..DCRTJ..CBU;XZC675,XZU60#,610,620,630,645,655,675,685,695..MTM |
1 | ||
| 44775E - HOSE, WAY TO CONNECTOR | ||||
| 44776-37340 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC675,XZU60#,610,620,630,645,655,675,685,695..20T,30T |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37350 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC675,XZU60#,610,620,630,645,655,675,685,695..20T,30T |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37350 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC675,XZU60#,610,620,630,645,655,675,685,695..20T,30T |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-37170 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE | ||||
| 44778-37250 |
BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..MTM |
1 | ||
| 44778-37251 |
XZU640..MTM..DCRTK;XZU640..T4..5F..IV3;XZU650..MTM..(20T,35T);XZU650..T3..5F..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..MTM |
1 | ||
| 44781 - BRACKET, HOSE | ||||
| 44781-37150 |
XZC675,XZU675,685,695 |
1 | ||
| 44781 - BRACKET, HOSE | ||||
| 44781-37150 |
XZC675,XZU675,685,695 |
1 | ||
| 44799 - WAY, BRAKE VACUUM HOSE | ||||
| 44799-37030 |
BZU600,TRC600;TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..MTM..(DCRTH,DCRTJ,DCRTK,EFI) |
1 | ||
| 47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK | ||||
| 90179-10065 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC675,XZU60#,610,620,630,645,655,675,685,695..20T,30T |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC675,XZU60#,610,620,630,645,655,675,685,695..20T,30T |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90179-08038 | ||||
| 90466-15003 | ||||
| 90480-22022 | ||||
| 91551-80814 | ||||
| 91551-80825 | ||||
| 91611-B0816 | ||||
| 94151-80800 | ||||
| 96132-40700 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 8414 | ||||
ILLUST NO. 2 OF 2(1107- )XZU600..DCRTK,DCRVT..IV6 ; (1107-)XZC655..T3..6FC..DCRTJ..IV3 ; (110
ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾎﾞﾄﾙｶｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19971F - PIPE, VACUUM | ||||
| 19971-78280 |
N04C..XZC675,XZU675,685,695 |
1 | ||
| 19971-78280 |
N04C..XZC675,XZU675,685,695 |
1 | ||
| 19971-78280 |
N04C..XZC675,XZU675,685,695 |
1 | ||
| 19971-78281 |
N04C..XZC675,XZU675,685,695 |
1 | ||
| 19971-78281 |
N04C..XZC675,XZU675,685,695 |
1 | ||
| 19971-78281 |
N04C..XZC675,XZU675,685,695 |
1 | ||
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78130 |
N04C..XZU685..SCB;N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,695..SCB..WT..(CBU,IV3,IV7) |
1 | ||
| 27690-78130 |
N04C..XZU685..SCB;N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,695..SCB..WT..(CBU,IV3,IV7) |
1 | ||
| 27690-78130 |
N04C..XZU685..SCB;N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,695..SCB..WT..(CBU,IV3,IV7) |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37191 |
XZU685..SCB;XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,695..SCB..WT..(CBU,IV3,IV7) |
1 | ||
| 44704-37191 |
XZU685..SCB;XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,695..SCB..WT..(CBU,IV3,IV7) |
1 | ||
| 44704-37191 |
XZU685..SCB;XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,695..SCB..WT..(CBU,IV3,IV7) |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 44730-60050 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 44730-60050 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37540 |
XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU600..MTM..(CBU,IV3,IV5,IV6);XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 44761-37540 |
XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU600..MTM..(CBU,IV3,IV5,IV6);XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 44761-37540 |
XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU600..MTM..(CBU,IV3,IV5,IV6);XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 44761-37580 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6 |
1 | ||
| 44761-37580 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6 |
1 | ||
| 44761-37580 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6 |
1 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44702-37510 |
XZC675,XZU675,685,695..SCB |
1 | ||
| 44702-37510 |
XZC675,XZU675,685,695..SCB |
1 | ||
| 44702-37510 |
XZC675,XZU675,685,695..SCB |
1 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44702-37510 |
XZC675,XZU675,685,695..SCB |
1 | ||
| 44702-37510 |
XZC675,XZU675,685,695..SCB |
1 | ||
| 44702-37510 |
XZC675,XZU675,685,695..SCB |
1 | ||
| 44764H - HOSE(FOR CONNECTOR TO BRAKE BOOSTER TUBE) | ||||
| 95446-09120 |
XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU600..MTM..(CBU,IV3,IV5,IV6);XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 95446-09120 |
XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU600..MTM..(CBU,IV3,IV5,IV6);XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 95446-09120 |
XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU600..MTM..(CBU,IV3,IV5,IV6);XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-37540 |
XZC675,XZU675,685,695..SCB |
2 | ||
| 44771-37540 |
XZC675,XZU675,685,695..SCB |
2 | ||
| 44771-37540 |
XZC675,XZU675,685,695..SCB |
2 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-37540 |
XZC675,XZU675,685,695..SCB |
2 | ||
| 44771-37540 |
XZC675,XZU675,685,695..SCB |
2 | ||
| 44771-37540 |
XZC675,XZU675,685,695..SCB |
2 | ||
| 44771D - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-37A60 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT |
1 | ||
| 44771-37A60 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT |
1 | ||
| 44771-37A60 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT |
1 | ||
| 44771-37A61 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5 |
1 | ||
| 44771-37A61 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5 |
1 | ||
| 44771-37A61 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5 |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37A20 |
XZC675,XZU675,685,695..CBU,IV3,IV6 |
1 | ||
| 44771-37A20 |
XZC675,XZU675,685,695..CBU,IV3,IV6 |
1 | ||
| 44771-37A20 |
XZC675,XZU675,685,695..CBU,IV3,IV6 |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 96133-41500 |
XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU600..MTM..(CBU,IV3,IV5,IV6);XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 96133-41500 |
XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU600..MTM..(CBU,IV3,IV5,IV6);XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 96133-41500 |
XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU600..MTM..(CBU,IV3,IV5,IV6);XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) | ||||
| 90466-16004 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6 |
1 | ||
| 90466-16004 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6 |
1 | ||
| 90466-16004 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6 |
1 | ||
| 96133-41500 |
XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU600..MTM..(CBU,IV3,IV5,IV6);XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 96133-41500 |
XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU600..MTM..(CBU,IV3,IV5,IV6);XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 96133-41500 |
XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU600..MTM..(CBU,IV3,IV5,IV6);XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44773-37450 |
XZC675,XZU675,685,695 |
1 | ||
| 44773-37450 |
XZC675,XZU675,685,695 |
1 | ||
| 44773-37450 |
XZC675,XZU675,685,695 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-37321 |
XZC600..5F..ST;XZU650..20T,35T;XZU600..SCB..MTM;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..SCB..WT |
1 | ||
| 44774-37321 |
XZC600..5F..ST;XZU650..20T,35T;XZU600..SCB..MTM;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..SCB..WT |
1 | ||
| 44774-37321 |
XZC600..5F..ST;XZU650..20T,35T;XZU600..SCB..MTM;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..SCB..WT |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
XZC600..5F..ST;XZU650..20T,35T;XZU600..SCB..MTM;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(DCB,SCB)..WT..(CBU,IV3,IV6) |
1 | ||
| 44778-37060 |
XZC600..5F..ST;XZU650..20T,35T;XZU600..SCB..MTM;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(DCB,SCB)..WT..(CBU,IV3,IV6) |
1 | ||
| 44778-37060 |
XZC600..5F..ST;XZU650..20T,35T;XZU600..SCB..MTM;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(DCB,SCB)..WT..(CBU,IV3,IV6) |
1 | ||
| 44783 - CLAMP, VACUUM HOSE | ||||
| 44783-37020 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5 |
2 | ||
| 44783-37020 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5 |
2 | ||
| 44783-37020 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5 |
2 | ||
| 44783 - CLAMP, VACUUM HOSE | ||||
| 44783-37020 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5 |
2 | ||
| 44783-37020 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5 |
2 | ||
| 44783-37020 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5 |
2 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90466-16004 | ||||
| 91551-80816 | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 91641-80835 | ||||
| 94151-80800 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 1905 | ||||
| 4711 | ||||
| 8401 | ||||

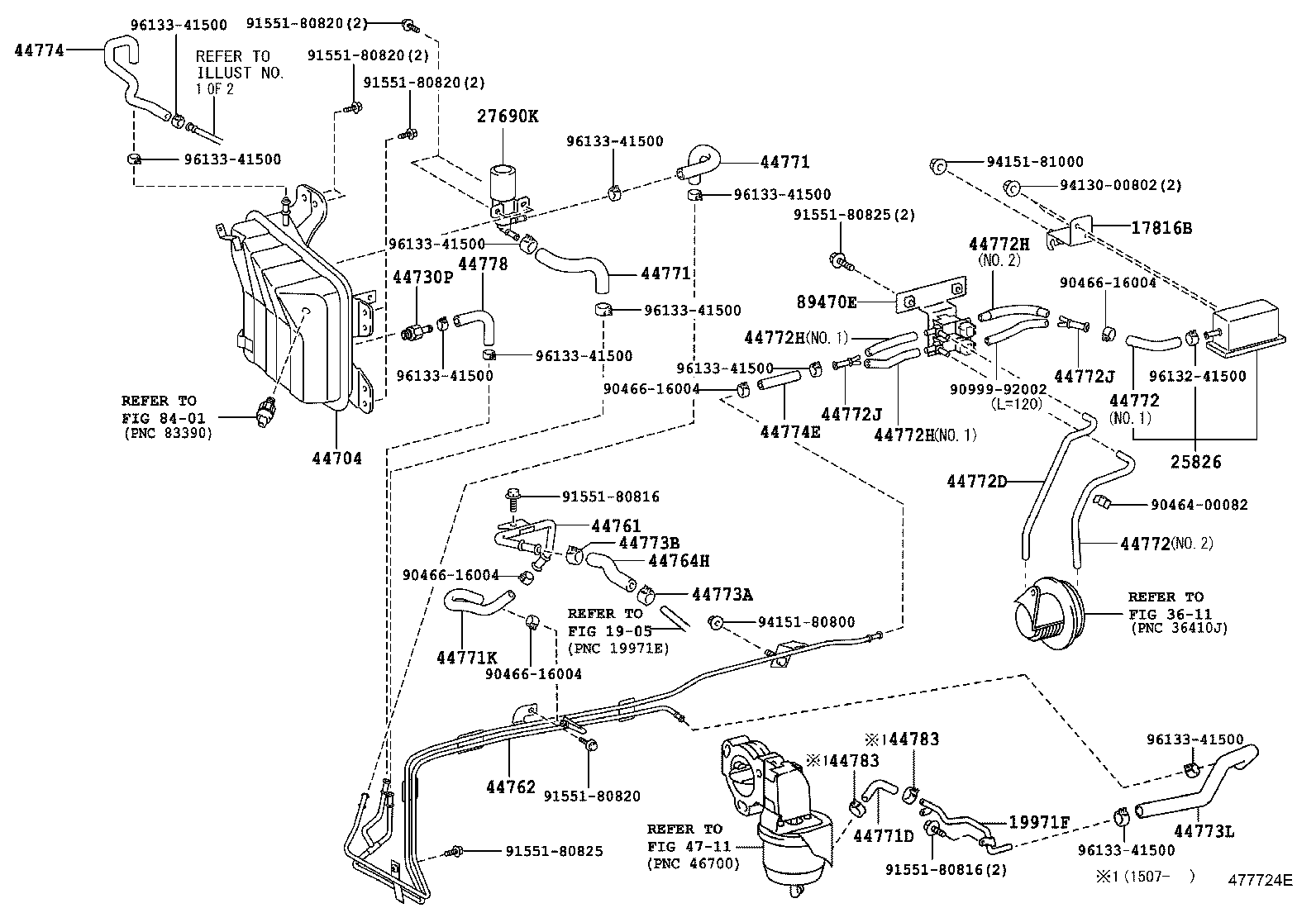

ILLUST NO. 2 OF 2(1107- )XZC675,XZU675,685,695..SCB..DCRTJ,DCRTK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17816B - BRACKET, AIR FILTER, NO.1 | ||||
| 17816-78011 |
N04C..XZC675,XZU675,685,695 |
1 | ||
| 19971F - PIPE, VACUUM | ||||
| 19971-78280 |
N04C..XZC675,XZU675,685,695 |
1 | ||
| 19971-78281 |
N04C..XZC675,XZU675,685,695 |
1 | ||
| 25826 - FILTER, NO.1 | ||||
| 25826-78011 |
N04C..XZC675,XZU675,685,695 |
1 | ||
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78130 |
N04C..XZU685..SCB;N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,695..SCB..WT..(CBU,IV3,IV7) |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37191 |
XZU685..SCB;XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,695..SCB..WT..(CBU,IV3,IV7) |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37540 |
XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU600..MTM..(CBU,IV3,IV5,IV6);XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 44761-37580 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6 |
1 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44702-37510 |
XZC675,XZU675,685,695..SCB |
1 | ||
| 44764H - HOSE(FOR CONNECTOR TO BRAKE BOOSTER TUBE) | ||||
| 95446-09120 |
XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU600..MTM..(CBU,IV3,IV5,IV6);XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-37540 |
XZC675,XZU675,685,695..SCB |
2 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-37540 |
XZC675,XZU675,685,695..SCB |
2 | ||
| 44771D - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-37A60 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT |
1 | ||
| 44771-37A61 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5 |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37A20 |
XZC675,XZU675,685,695..CBU,IV3,IV6 |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-37080 |
XZC675,XZU675,685,695 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 44772-37120 |
XZC675,XZU675,685,695 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-37080 |
XZC675,XZU675,685,695 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 44772-37120 |
XZC675,XZU675,685,695 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 44772D - HOSE, CHECK VALVE TO ACTUATOR | ||||
| 44772-37130 |
XZC675,XZU675,685,695 |
1 | ||
| 44772H - HOSE, CHECK VALVE TO 3 WAY | ||||
| 44772-37140 |
XZC675,XZU675,685,695 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 44772-37160 |
XZC675,XZU675,685,695 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 44772H - HOSE, CHECK VALVE TO 3 WAY | ||||
| 44772-37140 |
XZC675,XZU675,685,695 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 44772-37160 |
XZC675,XZU675,685,695 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 44772H - HOSE, CHECK VALVE TO 3 WAY | ||||
| 44772-37140 |
XZC675,XZU675,685,695 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 44772-37160 |
XZC675,XZU675,685,695 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 44772J - WAY, 3(FOR VACUUM CHECK VALVE TO 3 WAY HOSE) | ||||
| 90413-05007 |
XZC675,XZU675,685,695 |
2 | ||
| 44772J - WAY, 3(FOR VACUUM CHECK VALVE TO 3 WAY HOSE) | ||||
| 90413-05007 |
XZC675,XZU675,685,695 |
2 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 96133-41500 |
XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU600..MTM..(CBU,IV3,IV5,IV6);XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) | ||||
| 90466-16004 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6 |
1 | ||
| 96133-41500 |
XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU600..MTM..(CBU,IV3,IV5,IV6);XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44773-37450 |
XZC675,XZU675,685,695 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-37321 |
XZC600..5F..ST;XZU650..20T,35T;XZU600..SCB..MTM;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..SCB..WT |
1 | ||
| 44774E - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44771-37730 |
XZC675,XZU675,685,695 |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
XZC600..5F..ST;XZU650..20T,35T;XZU600..SCB..MTM;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(DCB,SCB)..WT..(CBU,IV3,IV6) |
1 | ||
| 44783 - CLAMP, VACUUM HOSE | ||||
| 44783-37020 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5 |
2 | ||
| 44783 - CLAMP, VACUUM HOSE | ||||
| 44783-37020 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5 |
2 | ||
| 89470E - VALVE ASSY, VACUUM SWITCHING W/BRACKET, NO.1 | ||||
| 89470-37092 |
XZC675,XZU675,685,695 |
1 | ||
| Common parts | ||||
| 90464-00082 | ||||
| 90466-16004 | ||||
| 90999-92002 | ||||
| 91551-80816 | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 94130-00802 | ||||
| 94151-80800 | ||||
| 94151-81000 | ||||
| 96132-41500 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 1905 | ||||
| 3611 | ||||
| 4711 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
