XZU655-TQMQB3 (2017)

Toyota Dyna/Toyoace

Production May 2017 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

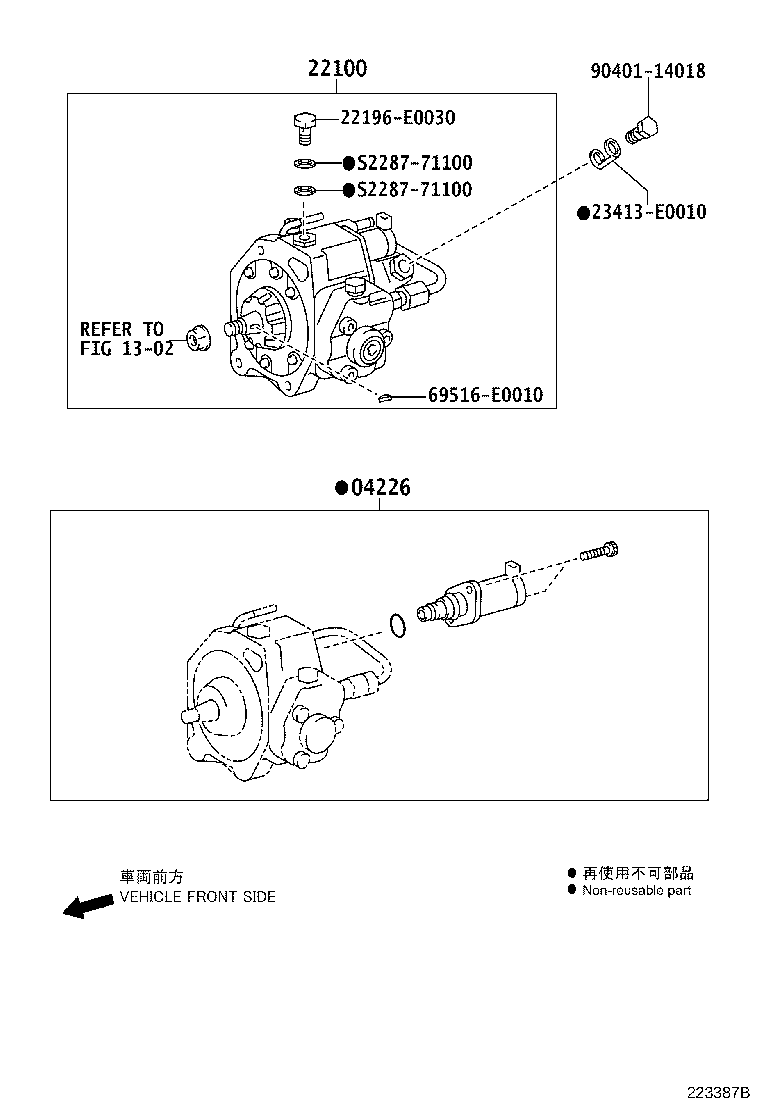

ILLUST NO. 2 OF 3(1705- )N04C..XZU642..DCRWD ; (1705- )N04C..XZC60#,630,645,655,675,XZU60#,630

Click highlighted areas on diagram

diagram 04226 1302 22100 22196E0030 23413E0010 69516E0010 9040114018 S228771100 S228771100
Part # Description Qty Price
04226 - VALVE KIT, SUCTION CONTROL
04226-E0110

N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT

 1
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-E0541

N04C..XZU642..DCRTK,DCRVT;N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,640,645,65#,675,685,695..DCRTH,DCRTJ,DCRTK

 1
Common parts
22196-E0030
23413-E0010
69516-E0010
90401-14018
S2287-71100
Linked diagrams
1302
