Toyota Dyna/toyoace XZU655 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU655-TQMMB3 (2011)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

XZU655-TQMMB3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2017

Engine N04C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

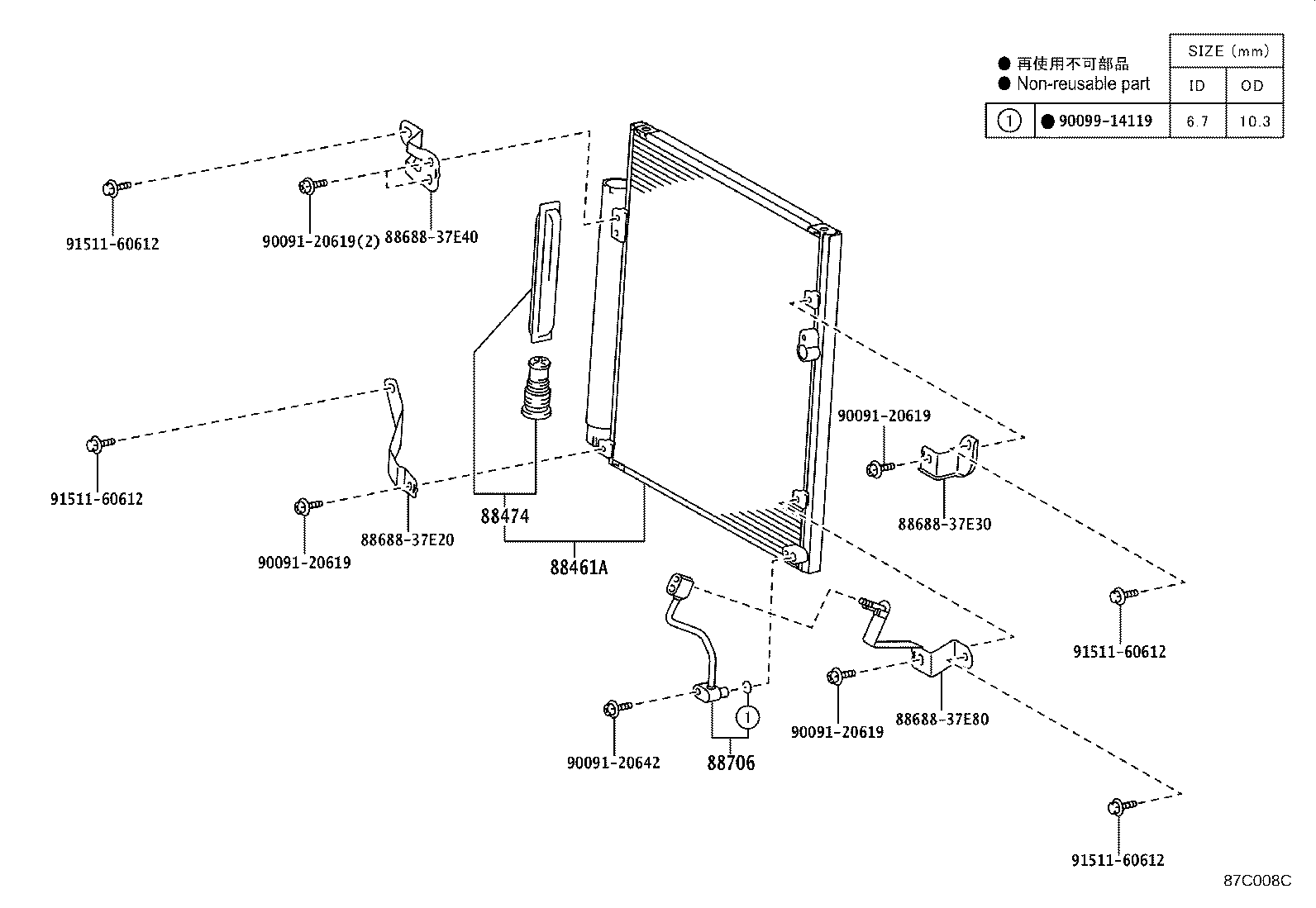

ILLUST NO. 1 OF 4(1107- )XZC600,610,630,645,655,XZU600,605,610,620,630,640,645,650,655..SCB..5F..

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ(ﾒｲﾝ)

Part #	Description	Period	Qty
88461A - CORE, COOLER CONDENSER
88461-37190	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3)	07/2011 - 05/2017	1
88461-37190	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3)	07/2011 - 05/2017	1
88461-37080	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88461-37080	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88461-37080	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF)	07/2011 - 05/2017	1
88461-37080	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF)	07/2011 - 05/2017	1
88474 - DRYER, COOLER
88474-12030	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3)	10/2014 - 05/2017	1
88474-12030	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3)	10/2014 - 05/2017	1
88474-17010	XZC600..DCRTH;XZC605..SCB..5F;XZC605..SCB..6FC..DCRTH;XZC600,610,630,645,655,XZU60#,610,620,630,64#,65#..SCB..5F..DCRTJ..(CBU,IV3)	07/2011 - 10/2014	1
88474-17010	XZC600..DCRTH;XZC605..SCB..5F;XZC605..SCB..6FC..DCRTH;XZC600,610,630,645,655,XZU60#,610,620,630,64#,65#..SCB..5F..DCRTJ..(CBU,IV3)	07/2011 - 10/2014	1
88706 - PIPE SUB-ASSY, LIQUID
88706-37280	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF)	07/2011 - 05/2017	1
88706-37280	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF)	07/2011 - 05/2017	1
88706-37280	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88706-37280	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88716-37D30	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3)	07/2011 - 05/2017	1
88716-37D30	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3)	07/2011 - 05/2017	1
Common parts
88688-37E20
88688-37E30
88688-37E40
88688-37E80
90091-20619
90091-20642
90099-14119
91511-60612

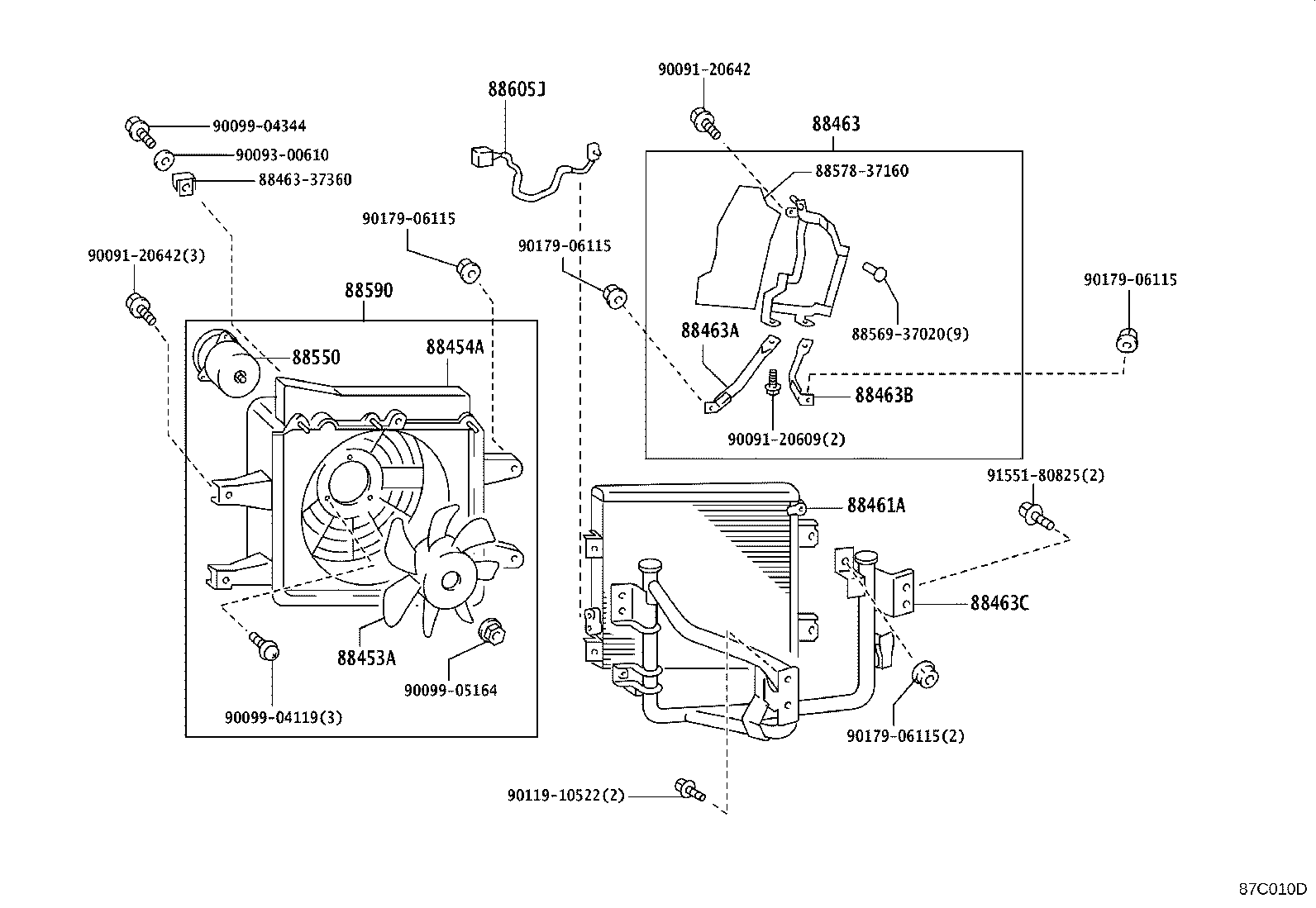

ILLUST NO. 1 OF 4(1107- )XZC605,645,655,675,XZU605,645,655,675,685,695..DCRTH,DCRTJ,DCRTK

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ(ﾒｲﾝ),ｱﾘ(*CEF)

Part #	Description	Period	Qty
88453A - FAN, COOLING
88453-37030	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF)	07/2011 - 05/2017	1
88453-37030	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88454A - SHROUD, FAN
88454-37090	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF)	07/2011 - 05/2017	1
88454-37090	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88461A - CORE, COOLER CONDENSER
88461-37190	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3)	07/2011 - 05/2017	1
88461-37080	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88461-37080	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF)	07/2011 - 05/2017	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37410	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88463-37410	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF)	07/2011 - 05/2017	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37400	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88463-37400	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF)	07/2011 - 05/2017	1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-37420	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88463-37420	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF)	07/2011 - 05/2017	1
88463C - BRACKET, COOLER CONDENSER, NO.4
88463-37540	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF)	07/2011 - 05/2017	1
88463-37540	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37120	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF)	07/2011 - 05/2017	1
88550-37120	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88590 - BLOWER ASSY, W/SHROUD
88590-37180	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88590-37180	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF)	07/2011 - 05/2017	1
88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-37270	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88605-37270	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF)	07/2011 - 05/2017	1
Common parts
88463-37360
88569-37020
88578-37160
90091-20609
90091-20642
90093-00610
90099-04119
90099-04344
90099-05164
90119-10522
90179-06115
91551-80825

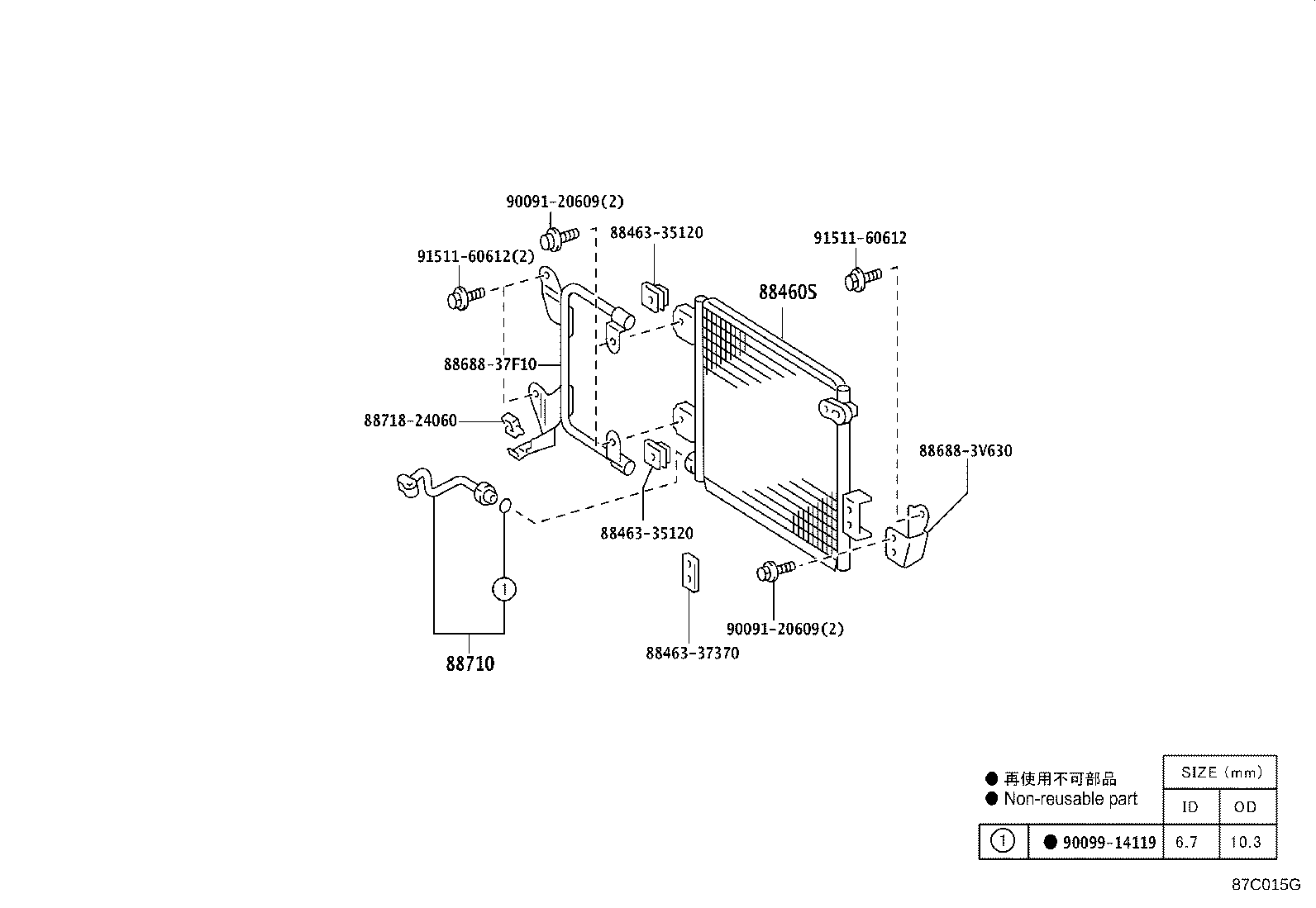

ILLUST NO. 2 OF 4(1107- )TRC600,XZU645,655..20T..DCRTJ,DCRTK,EFI

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ(ｻﾌﾞ)

Part #	Description	Period	Qty	Price
Common parts
88463-35120
88463-37370
88688-37F10
88688-3V630
88718-24060
90091-20609
90099-14119
91511-60612

ILLUST NO. 2 OF 4(1107- )TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,640,642,650,652,675

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ(ｻﾌﾞ)

Part #	Description	Period	Qty	Price
Common parts
88463-35120
88463-37370
88688-37F10
88688-3V630
88718-24060
90091-20609
90099-14119
91511-60612

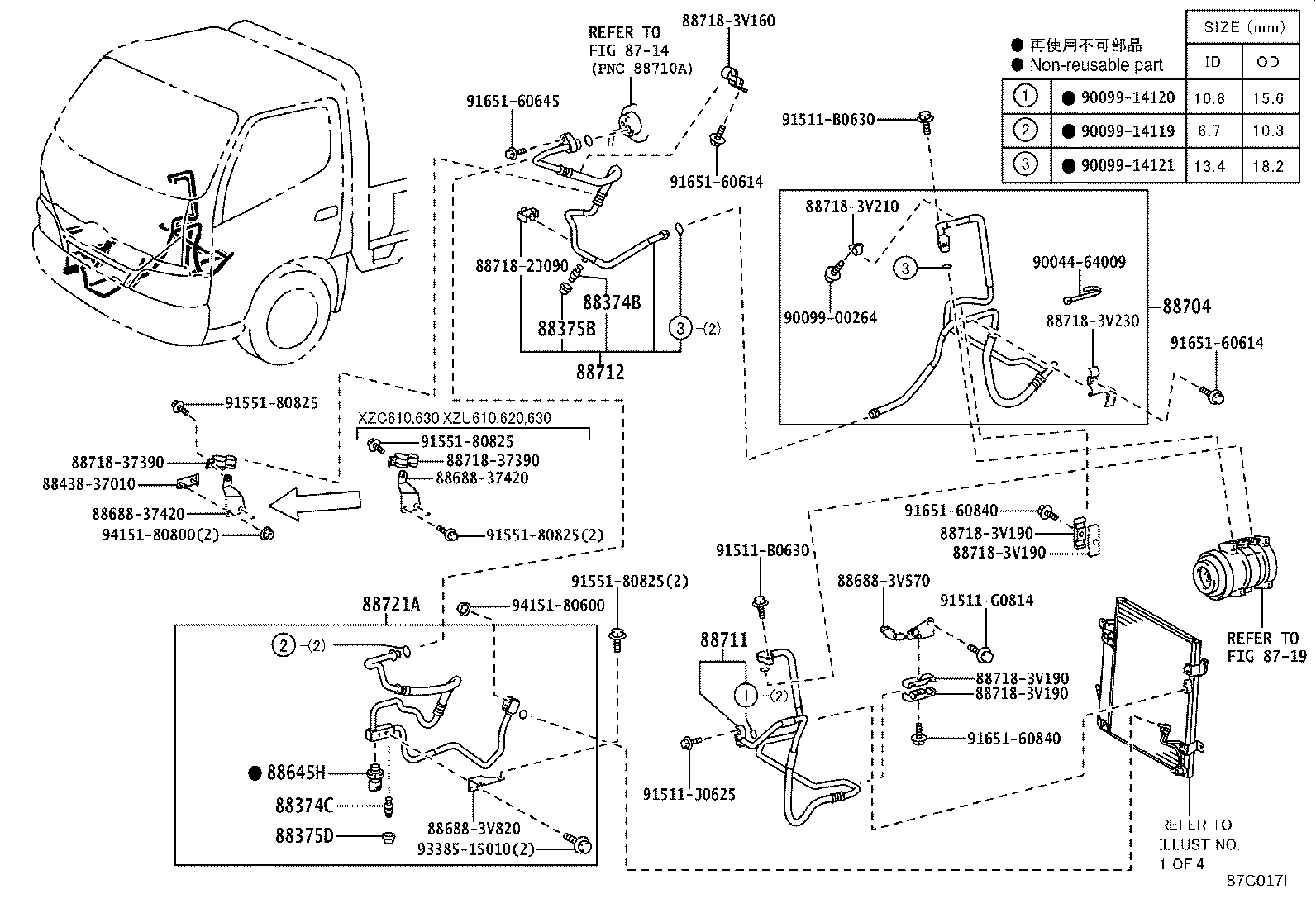

ILLUST NO. 3 OF 4(1107- )XZC600,610,630,645,655,XZU600,605,610,620,630,640,645,650,655..SCB..5F..

Click highlighted areas on diagram

ｸｰﾗﾊｲｶﾝ

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
88374-30010	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
88374C - VALVE, SERVICE, NO.2
88374-30010	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
88374-30010	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
88375-30290	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
88375-30280	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
88645H - SWITCH, PRESSURE NO.1
88645-34010	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
88645-34010	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
88704 - HOSE SUB-ASSY, SUCTION
88704-37110	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
88704-37110	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37A40	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3)	07/2011 - 05/2017	1
88711-37A40	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3)	07/2011 - 05/2017	1
88711-3V060	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF)	07/2011 - 05/2017	1
88711-3V060	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF)	07/2011 - 05/2017	1
88711-3V060	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88711-3V060	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37A90	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
88712-37A90	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
88721A - HOSE, LIQUID, A
88721-37B10	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3)	07/2011 - 05/2017	1
88721-37B10	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3)	07/2011 - 05/2017	1
88721-37B20	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF)	07/2011 - 05/2017	1
88721-37B20	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF)	07/2011 - 05/2017	1
88721-37B20	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88721-37B20	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
Common parts
88438-37010
88688-37420
88688-3V570
88688-3V820
88718-2J090
88718-37390
88718-3V160
88718-3V190
88718-3V210
88718-3V230
90044-64009
90099-00264
90099-14119
90099-14120
90099-14121
91511-B0630
91511-G0814
91511-J0625
91551-80825
91651-60614
91651-60645
91651-60840
93385-15010
94151-80600
94151-80800
Linked diagrams
8714
8719

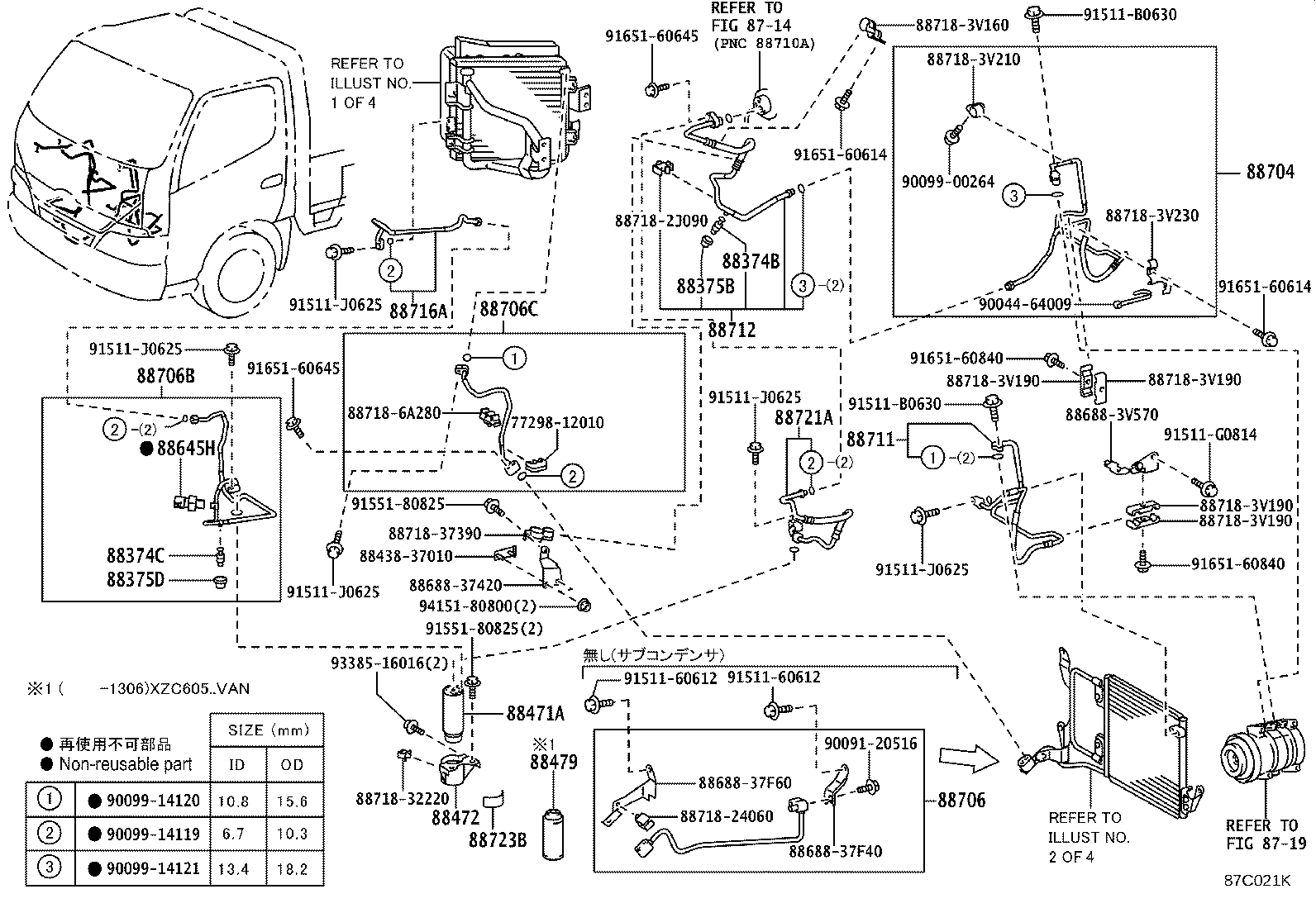

ILLUST NO. 3 OF 4(1107- )XZC605,645,655,XZU605,645,655..DCRTH,DCRTJ,DCRTK

Click highlighted areas on diagram

ｸｰﾗﾊｲｶﾝ,ｱﾘ(*CEF)

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
88374C - VALVE, SERVICE, NO.2
88374-30010	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
88471A - TANK, RECEIVER
88471-34010	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF)	07/2011 - 05/2017	1
88471-34010	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-37260	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF)	07/2011 - 05/2017	1
88472-37260	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88645H - SWITCH, PRESSURE NO.1
88645-34010	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
88704 - HOSE SUB-ASSY, SUCTION
88704-37110	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
88706 - PIPE SUB-ASSY, LIQUID
88706-37280	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF)	07/2011 - 05/2017	1
88706-37280	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88716-37D30	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3)	07/2011 - 05/2017	1
88706B - TUBE SUB-ASSY, LIQUID, B
88706-37290	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88706-37290	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF)	07/2011 - 05/2017	1
88706C - TUBE SUB-ASSY, LIQUID, C
88706-37320	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88706-37320	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF)	07/2011 - 05/2017	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37A40	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3)	07/2011 - 05/2017	1
88711-3V060	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF)	07/2011 - 05/2017	1
88711-3V060	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37A90	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-3V651	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF)	07/2011 - 05/2017	1
88716-3V651	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88721A - HOSE, LIQUID, A
88721-37B10	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3)	07/2011 - 05/2017	1
88721-37B20	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF)	07/2011 - 05/2017	1
88721-37B20	XZC600..WT;XZC600..5F..ST;XZU650..5F..20T;XZU640..T4..5F..IV3;XZC605..SCB..6FC..DCRTH;XZU650..T3..5F..30T..DCRTJ..CBU;XZC605,610,630,645,655,XZU60#,610,620,630,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 05/2017	1
88723B - LABEL, COOLER SERVICE CAUTION
88733-22040	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF)	07/2011 - 01/2016	1
88733-22040	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	07/2011 - 01/2016	1
88733-37040	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF)	02/2016 - 05/2017	1
88733-37040	XZC605..SCB..6FC..DCRTH;XZC605,645,655,XZU605,645,655..SCB..5F..(DCRTH,DCRTJ)..(CBU,IV3) ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) + POF	02/2016 - 05/2017	1
Common parts
77298-12010
88438-37010
88688-37420
88688-37F40
88688-37F60
88688-3V570
88718-24060
88718-2J090
88718-32220
88718-37390
88718-3V160
88718-3V190
88718-3V210
88718-3V230
88718-6A280
90044-64009
90091-20516
90099-00264
90099-14119
90099-14120
90099-14121
91511-60612
91511-B0630
91511-G0814
91511-J0625
91551-80825
91651-60614
91651-60645
91651-60840
93385-16016
94151-80800
Linked diagrams
8714
8719

(7708- )RU2#,3#

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
88714-14010
88714-95401
88714-95402
88714-95403
88718-22170
88718-95400
88718-95402
88718-95403
88718-95404
88718-95406
88899-95405
90950-01060
93315-14012
93315-16016
93315-40616
93385-18016
93385-18020
93385-40820
94110-40800
94612-10601
94612-10800

XZU655-TQMMB3 (2011)

ILLUST NO. 1 OF 4(1107- )XZC600,610,630,645,655,XZU600,605,610,620,630,640,645,650,655..SCB..5F..

ILLUST NO. 1 OF 4(1107- )XZC605,645,655,675,XZU605,645,655,675,685,695..DCRTH,DCRTJ,DCRTK

ILLUST NO. 2 OF 4(1107- )TRC600,XZU645,655..20T..DCRTJ,DCRTK,EFI

ILLUST NO. 2 OF 4(1107- )TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,640,642,650,652,675

ILLUST NO. 3 OF 4(1107- )XZC600,610,630,645,655,XZU600,605,610,620,630,640,645,650,655..SCB..5F..

ILLUST NO. 3 OF 4(1107- )XZC605,645,655,XZU605,645,655..DCRTH,DCRTJ,DCRTK

(7708- )RU2#,3#

Part Price Details
