XZU655-TQMMB3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

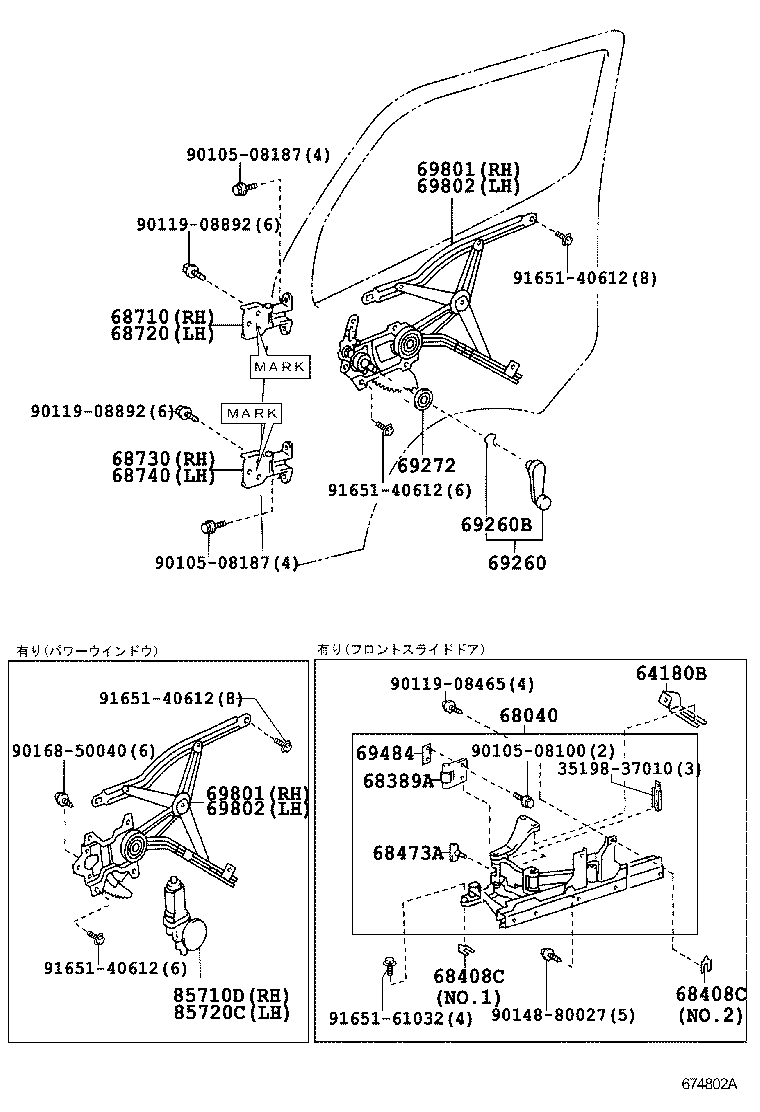

(0610- )

Click highlighted areas on diagram

diagram 3519837010 64180B 68040 68389A 68408C 68408C 68473A 68710 68720 68730 68740 69260 69260B 69272 69484 69801 69801 69802 69802 85710D 85720C 9010508100 9010508187 9010508187 9011908465 9011908892 9011908892 9014880027 9016850040 9165140612 9165140612 9165140612 9165140612 9165161032
Part # Description Qty Price
Common parts
35198-37010
90105-08100
90105-08187
90119-08465
90119-08892
90148-80027
90168-50040
91651-40612
91651-61032

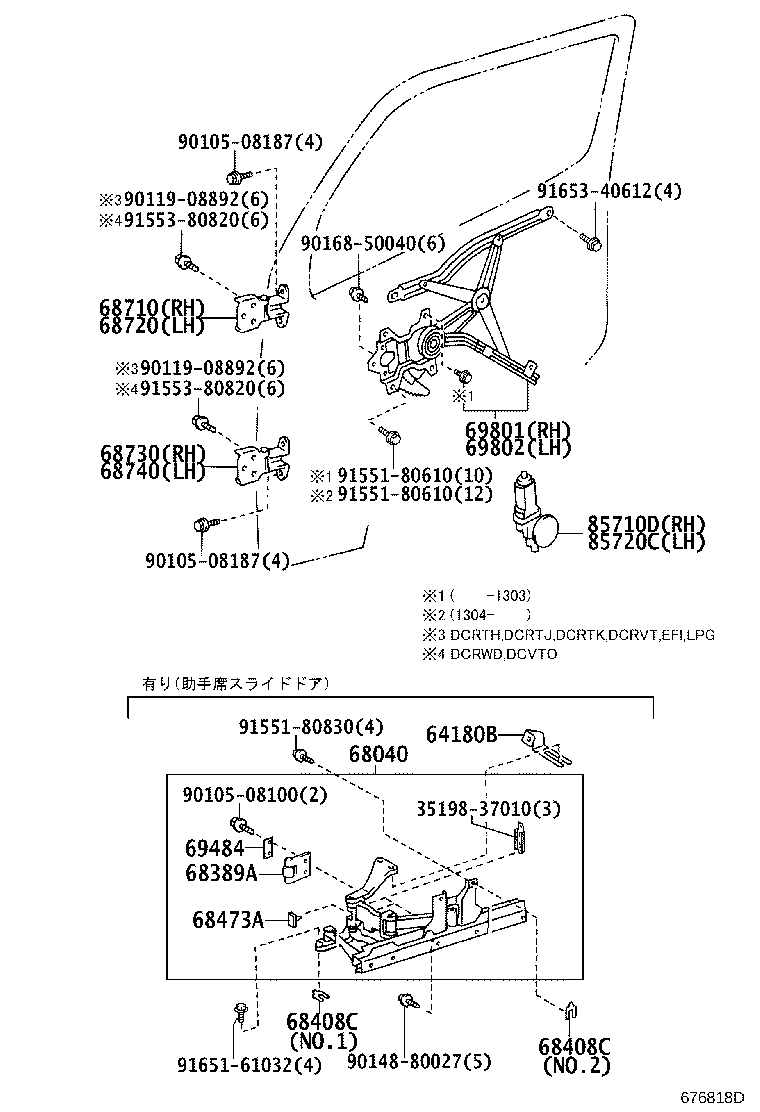

(1107- )

Click highlighted areas on diagram

diagram 3519837010 64180B 68040 68389A 68408C 68408C 68473A 68710 68720 68730 68740 69484 69801 69802 85710D 85720C 9010508100 9010508187 9010508187 9011908892 9011908892 9014880027 9016850040 9155180610 9155180610 9155180830 9155380820 9155380820 9165161032 9165340612
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-37031

XZC605..T5..6FC..IV3;XZU600,650,685..MTM..IV6;XZU600,650..T4..20T..IV3;XZU605..T4..5F..30T..IV3;XZU600..6FC..(20T,30T)..IV6;XZU655..SCB..T4..DCRTJ..IV3;XZU655,675..30T..DCRTK..IV3;XZC655,XZU695..SCB..5F..20T..DCRTJ..IV3;XZU605..SCB..(T4,T5)..20T..DCRTJ..(IV3,IV6);XZC60#,675,XZU64#,675,685..SCB..(T3,T4)..(20T,40T)..(IV3,IV6)

ｽﾀｰﾀ−24V 4.5KW OR 5.0KW(宅配仕様)

 1
68710-37020

XZU600..6F;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT..(CBU,IV3,IV4,IV6,IV7)

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68730-37031

XZC605..T5..6FC..IV3;XZU600,650,685..MTM..IV6;XZU600,650..T4..20T..IV3;XZU605..T4..5F..30T..IV3;XZU600..6FC..(20T,30T)..IV6;XZU655..SCB..T4..DCRTJ..IV3;XZU655,675..30T..DCRTK..IV3;XZC655,XZU695..SCB..5F..20T..DCRTJ..IV3;XZU605..SCB..(T4,T5)..20T..DCRTJ..(IV3,IV6);XZC60#,675,XZU64#,675,685..SCB..(T3,T4)..(20T,40T)..(IV3,IV6)

ｽﾀｰﾀ−24V 4.5KW OR 5.0KW(宅配仕様)

 1
68730-37010

XZU600..6F;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT..(CBU,IV3,IV4,IV6,IV7)

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-37010

XZU600..6F;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT..(CBU,IV3,IV4,IV6,IV7)

 1
68730-37031

XZC605..T5..6FC..IV3;XZU600,650,685..MTM..IV6;XZU600,650..T4..20T..IV3;XZU605..T4..5F..30T..IV3;XZU600..6FC..(20T,30T)..IV6;XZU655..SCB..T4..DCRTJ..IV3;XZU655,675..30T..DCRTK..IV3;XZC655,XZU695..SCB..5F..20T..DCRTJ..IV3;XZU605..SCB..(T4,T5)..20T..DCRTJ..(IV3,IV6);XZC60#,675,XZU64#,675,685..SCB..(T3,T4)..(20T,40T)..(IV3,IV6)

ｽﾀｰﾀ−24V 4.5KW OR 5.0KW(宅配仕様)

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-37031

XZC605..T5..6FC..IV3;XZU600,650,685..MTM..IV6;XZU600,650..T4..20T..IV3;XZU605..T4..5F..30T..IV3;XZU600..6FC..(20T,30T)..IV6;XZU655..SCB..T4..DCRTJ..IV3;XZU655,675..30T..DCRTK..IV3;XZC655,XZU695..SCB..5F..20T..DCRTJ..IV3;XZU605..SCB..(T4,T5)..20T..DCRTJ..(IV3,IV6);XZC60#,675,XZU64#,675,685..SCB..(T3,T4)..(20T,40T)..(IV3,IV6)

ｽﾀｰﾀ−24V 4.5KW OR 5.0KW(宅配仕様)

 1
68710-37020

XZU600..6F;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT..(CBU,IV3,IV4,IV6,IV7)

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-37062

BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695

 1
69801-37063

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-37062

BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695

 1
69802-37063

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

 1
85710D - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-37080

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

 1
85720C - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-37110

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

 1
Common parts
35198-37010
90105-08100
90105-08187
90119-08892
90148-80027
90168-50040
91551-80610
91551-80830
91553-80820
91651-61032
91653-40612

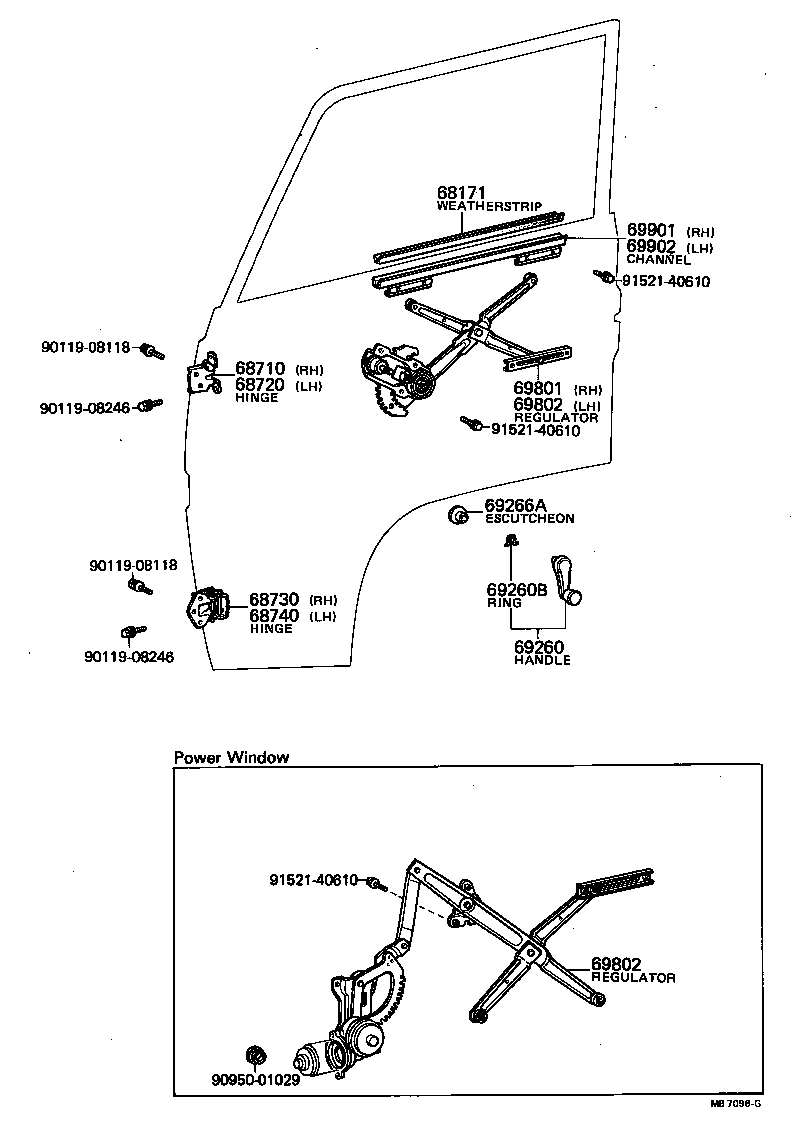

(7708- )

Click highlighted areas on diagram

diagram 68171 68710 68720 68730 68740 69260 69260B 69266A 69801 69802 69802 69901 69902 9011908118 9011908118 9011908246 9011908246 9095001029 9152140610 9152140610 9152140610
Part # Description Qty Price
Common parts
90119-08118
90119-08246
90950-01029
91521-40610
