XZU655-TKTQB3 (2015)
Toyota Dyna/Toyoace
ILLUST NO. 3 OF 3(0610- )
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 1 OF 2(1107- )XZC655,XZU650,655,685,695..20T,30T,40T ; (1107- )BZU600,TRU600,XZU602
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 48042-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-37180 |
XZU600..6F;XZU600,645..30T;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU655,685,695..T3,T4;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
1 | ||
| 48473-37180 |
XZU600..6F;XZU600,645..30T;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU655,685,695..T3,T4;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16024 |
XZU630..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU600,645,655..30T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU 長さ=310 |
4 | ||
| 90117-16024 |
XZU630..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU600,645,655..30T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU 長さ=310 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16024 |
XZU630..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU600,645,655..30T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU 長さ=310 |
4 | ||
| 90117-16024 |
XZU630..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU600,645,655..30T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU 長さ=310 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-37180 |
XZU600..6F;XZU600,645..30T;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU655,685,695..T3,T4;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
1 | ||
| 48473-37180 |
XZU600..6F;XZU600,645..30T;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU655,685,695..T3,T4;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 90389-16026 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 90389-16026 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37200 |
XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU600,645,655..30T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU |
2 | ||
| 48344-37200 |
XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU600,645,655..30T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-37010 |
XZU645..30T;BZU600,TRU600,XZU600..T3..30T;XZC655,XZU640,650,655,685,695..20T,30T |
2 | ||
| 48422-37010 |
XZU645..30T;BZU600,TRU600,XZU600..T3..30T;XZC655,XZU640,650,655,685,695..20T,30T |
2 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
XZU600..6F;XZU600,645..30T;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC655,XZU655,685,695;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
4 | ||
| 48435-36050 |
XZU600..6F;XZU600,645..30T;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC655,XZU655,685,695;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
XZU600..6F;XZU600,645..30T;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC655,XZU655,685,695;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
4 | ||
| 48435-36050 |
XZU600..6F;XZU600,645..30T;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC655,XZU655,685,695;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
4 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37081 |
XZU645..30T..DCRTJ;XZU640,650,655,685,695..(T3,T4)..(DCRTJ,DCRTK);BZU600,TRU600,XZU600..T3..(DCRTJ,DCRTK,EFI,LPG) |
2 | ||
| 48481-37081 |
XZU645..30T..DCRTJ;XZU640,650,655,685,695..(T3,T4)..(DCRTJ,DCRTK);BZU600,TRU600,XZU600..T3..(DCRTJ,DCRTK,EFI,LPG) |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80673 |
XZU645..30T;BZU600,TRU600,XZU600..T3..30T;XZC655,XZU640,65#,685,695..20T,30T ﾏｰｸ 48531−37010 |
1 | ||
| 48531-80673 |
XZU645..30T;BZU600,TRU600,XZU600..T3..30T;XZC655,XZU640,65#,685,695..20T,30T ﾏｰｸ 48531−37010 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 90385-19011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 90385-19011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 90948-03011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 90948-03011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80673 |
XZU645..30T;BZU600,TRU600,XZU600..T3..30T;XZC655,XZU640,65#,685,695..20T,30T ﾏｰｸ 48531−37010 |
1 | ||
| 48531-80673 |
XZU645..30T;BZU600,TRU600,XZU600..T3..30T;XZC655,XZU640,65#,685,695..20T,30T ﾏｰｸ 48531−37010 |
1 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-37010 |
XZU605,645;XZU655..SCB;XZC60#,645,655,XZU600..(03S,T2,T3,T4,T5)..20T..WT ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48802-37010 |
XZU605,645;XZU655..SCB;XZC60#,645,655,XZU600..(03S,T2,T3,T4,T5)..20T..WT ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48802D - BUSH, STABILIZER LINK | ||||
| 90385-13009 |
XZU605,645;XZU655..SCB;XZC60#,645,655,XZU600..(03S,T2,T3,T4,T5)..20T..WT ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 90385-13009 |
XZU605,645;XZU655..SCB;XZC60#,645,655,XZU600..(03S,T2,T3,T4,T5)..20T..WT ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48802E - SPACER(FOR REAR STABILIZER BAR) | ||||
| 90560-10044 |
XZU605,645;XZU655..SCB;XZC60#,645,655,XZU600..(03S,T2,T3,T4,T5)..20T..WT ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 90560-10044 |
XZU605,645;XZU655..SCB;XZC60#,645,655,XZU600..(03S,T2,T3,T4,T5)..20T..WT ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-37040 |
XZU645..30T;XZC655,XZU655..SCB ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 48805-37040 |
XZU645..30T;XZC655,XZU655..SCB ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 48805A - BUSH(FOR REAR STABILIZER BAR) | ||||
| 90385-13009 |
XZU605,645;XZU655..SCB;XZC60#,645,655,XZU600..(03S,T2,T3,T4,T5)..20T..WT ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 90385-13009 |
XZU605,645;XZU655..SCB;XZC60#,645,655,XZU600..(03S,T2,T3,T4,T5)..20T..WT ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48815-37060 |
XZU605,645;XZU655..SCB;XZC60#,645,655,XZU600..(03S,T2,T3,T4,T5)..20T..WT ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48815-37060 |
XZU605,645;XZU655..SCB;XZC60#,645,655,XZU600..(03S,T2,T3,T4,T5)..20T..WT ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48823R - COVER, STABILIZER LINK(FOR REAR) | ||||
| 48823-37011 |
XZU605,645;XZU655..SCB;XZC60#,645,655,XZU600..(03S,T2,T3,T4,T5)..20T..WT ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48823-37011 |
XZU605,645;XZU655..SCB;XZC60#,645,655,XZU600..(03S,T2,T3,T4,T5)..20T..WT ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48830C - SPACER(FOR REAR STABILIZER LINK) | ||||
| 90560-10044 |
XZU605,645;XZU655..SCB;XZC60#,645,655,XZU600..(03S,T2,T3,T4,T5)..20T..WT ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 90560-10044 |
XZU605,645;XZU655..SCB;XZC60#,645,655,XZU600..(03S,T2,T3,T4,T5)..20T..WT ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-37010 |
XZU605,645;XZU655..SCB;XZC60#,645,655,XZU600..(03S,T2,T3,T4,T5)..20T..WT ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 48830-37010 |
XZU605,645;XZU655..SCB;XZC60#,645,655,XZU600..(03S,T2,T3,T4,T5)..20T..WT ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-37010 |
XZU645..30T;XZC655,XZU655..SCB ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48832-37010 |
XZU645..30T;XZC655,XZU655..SCB ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-37010 |
XZU605,645;XZU655..SCB;XZC60#,645,655,XZU600..(03S,T2,T3,T4,T5)..20T..WT ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 48830-37010 |
XZU605,645;XZU655..SCB;XZC60#,645,655,XZU600..(03S,T2,T3,T4,T5)..20T..WT ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| Common parts | ||||
| 90105-16021 | ||||
| 90105-16067 | ||||
| 90105-16070 | ||||
| 90119-10740 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90178-16007 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91552-81030 | ||||
| 91552-81045 | ||||
| 91651-B0820 | ||||
| 94151-81000 | ||||
| 94184-01001 | ||||

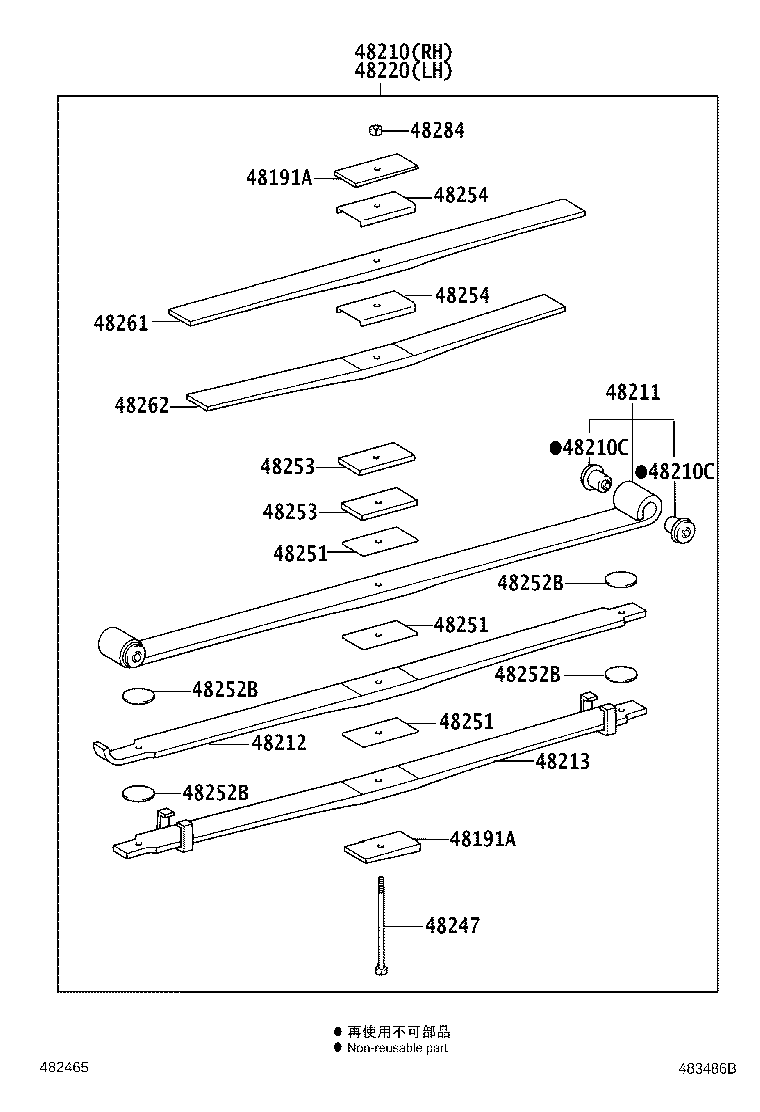

ILLUST NO. 2 OF 2(1107- )XZU640,645,650,655..30T..DCRTJ,DCRTK; (1107- )BZU600,TRU600,XZU600..
MAIN 3+HELPER 2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37030 |
XZU650..20T;XZC655,XZU655;XZU600,645..30T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU |
4 | ||
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37030 |
XZU650..20T;XZC655,XZU655;XZU600,645..30T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU |
4 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37710 |
XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU600,645,655..30T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37830 |
XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZU600,645,655..30T..(CBU,IV3) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU650..20T;XZU600,645..30T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC655,XZU655,685,695;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU650..20T;XZU600,645..30T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC655,XZU655,685,695;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37570 |
XZU685..SCB..30T;XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZU600,645,655,695..30T..(CBU,IV3) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48201-37710 |
XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU600,645,655,685,695..30T;XZU650..T3..30T..DCRTJ..CBU |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-37710 |
XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU600,645,655,685,695..30T;XZU650..T3..30T..DCRTJ..CBU |
2 | ||
| 48212-37570 |
XZU685..SCB..30T;XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZU600,645,655,695..30T..(CBU,IV3) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48204-37570 |
XZU685..SCB..30T;XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZU600,645,655,695..30T..(CBU,IV3) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48204-37710 |
XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU600,645,655,685,695..30T;XZU650..T3..30T..DCRTJ..CBU |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37710 |
XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU600,645,655..30T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37830 |
XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZU600,645,655..30T..(CBU,IV3) ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37570 |
XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU600,645,655..30T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37570 |
XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU600,645,655,685,695..30T;XZU650..T3..30T..DCRTJ..CBU |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37570 |
XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU600,645,655,685,695..30T;XZU650..T3..30T..DCRTJ..CBU |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37570 |
XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU600,645,655,685,695..30T;XZU650..T3..30T..DCRTJ..CBU |
6 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37570 |
XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU600,645,655,685,695..30T;XZU650..T3..30T..DCRTJ..CBU |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37570 |
XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU600,645,655,685,695..30T;XZU650..T3..30T..DCRTJ..CBU |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37570 |
XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU600,645,655,685,695..30T;XZU650..T3..30T..DCRTJ..CBU |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37570 |
XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU600,645,655,685,695..30T;XZU650..T3..30T..DCRTJ..CBU |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48263-37710 |
XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU600,645,655..30T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48263-37710 |
XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU600,645,655..30T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48282-37711 |
XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU600,645,655,685,695..30T;XZU650..T3..30T..DCRTJ..CBU |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48282-37711 |
XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU600,645,655,685,695..30T;XZU650..T3..30T..DCRTJ..CBU |
4 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-37710 |
XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU600,645,655,685,695..30T;XZU650..T3..30T..DCRTJ..CBU |
2 | ||
| 48261-37830 |
XZU685..SCB..30T;XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZU600,645,655,695..30T..(CBU,IV3) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-37830 |
XZU685..SCB..30T;XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZU600,645,655,695..30T..(CBU,IV3) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48262-37710 |
XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU600,645,655,685,695..30T;XZU650..T3..30T..DCRTJ..CBU |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48155-3B470 |
XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZU650..T3..30T..DCRTJ..CBU;XZU600,645,655..30T..(CBU,IV3) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48284-0W060 |
XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU600,645,655..30T;XZU650..T3..30T..DCRTJ..CBU;XZU620,640..(DM5,T3)..6FC..(IV3,IV4) |
2 | ||
ILLUST NO. 2 OF 2(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94110-41000 | ||||
| 95111-00816 | ||||
| 95111-00818 | ||||
| 95111-00820 | ||||
| 95111-00822 | ||||
ILLUST NO. 2 OF 2(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94110-41000 | ||||
| 95111-00816 | ||||
| 95111-00818 | ||||
| 95111-00822 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
