XZU655-TKTQB3 (2015)
Toyota Dyna/Toyoace
(1107- )XZC605,645,655

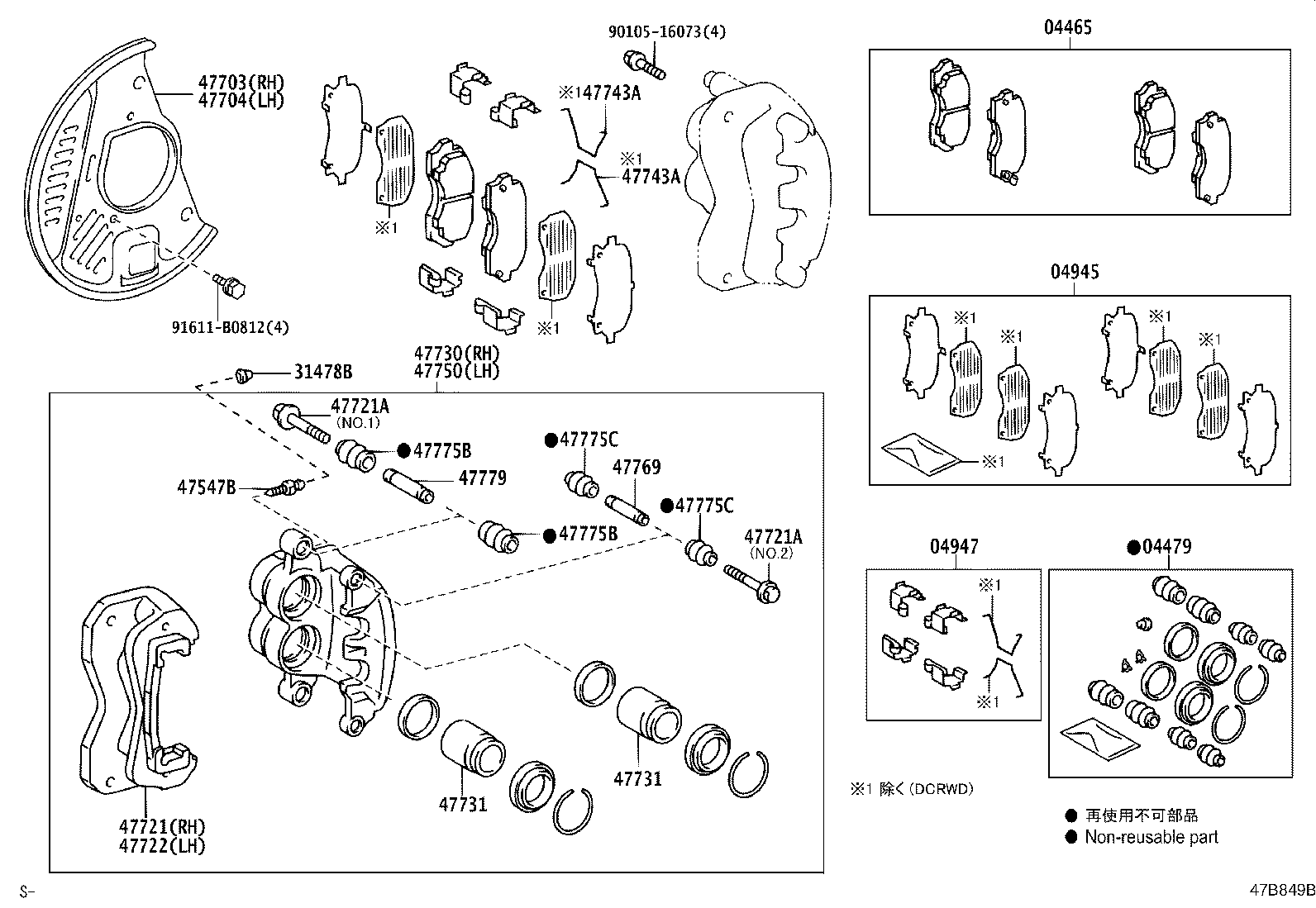

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-37220 |
XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT ﾏｰｸ ADVICS VC035 |
1 | ||
| 04465-37250 |
XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..20T..IV3;XZU655..(T2,T3)..20T;XZU650..T3..DCRTJ..CBU;XZU640..T3..6FC..(IV3,IV4);XZU605,645,655..(T3,T4)..30T;XZC675,XZU620,630,675,685,695;XZU60#..(DM3,DM6,T2,T3,T5)..(20T,30T) ﾏｰｸ AK NS265 |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 0447B-37010 |
XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
2 | ||
| 0447B-37021 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC675,XZU60#,610,620,630,645,655,675,685,695..20T,30T |
2 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-37150 |
XZC60#,610,630,645,655..WT |
1 | ||
| 04945-37030 |
XZU650,655..(T2,T3)..20T;BZU600,XZC600,XZU605..DM6,T2,T5;XZU600..(DM3,DM6,T3,T5)..(20T,30T);BZU600,XZU605,645,650,655..(T3,T4)..30T;TRU600,XZC675,XZU620,630,640,675,685,695..20T,30T |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 0494A-37010 |
XZC60#,610,630,645,655..WT |
2 | ||
| 0494A-37020 |
XZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..20T,30T |
2 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
BZU600,TRC600,TRU600;XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK) |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
2 | ||
| 47547-12030 |
XZC60#,610,630,645,655..WT |
2 | ||
| 47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH | ||||
| 47703-37041 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| 47703-37042 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| 47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH | ||||
| 47704-37042 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| 47704-37041 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-37260 |
XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-37260 |
XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-37180 |
XZU605..T2,T5;XZU655..(T2,T3)..20T;XZC675,XZU675,685,695;XZU605,645,655..(T3,T4)..30T |
1 | ||
| 47721-37260 |
XZC605,645,655 |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90015-AA601 |
XZC60#,610,630,645,655..WT *10−1.00PX20−9 |
4 | ||
| 90119-12256 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *12−1.25PX75−30,NO.1 |
4 | ||
| 90119-08B87 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *8−1.25PX59−27,NO.2 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90015-AA601 |
XZC60#,610,630,645,655..WT *10−1.00PX20−9 |
4 | ||
| 90119-12256 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *12−1.25PX75−30,NO.1 |
4 | ||
| 90119-08B87 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *8−1.25PX59−27,NO.2 |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47721-37260 |
XZC605,645,655 |
1 | ||
| 47721-37180 |
XZU605..T2,T5;XZU655..(T2,T3)..20T;XZC675,XZU675,685,695;XZU605,645,655..(T3,T4)..30T |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-37180 |
XZU605..T2,T5;XZU655..(T2,T3)..20T;XZC675,XZU675,685,695;XZU605,645,655..(T3,T4)..30T |
1 | ||
| 47730-37262 |
XZC605,645,655 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-60070 |
XZC60#,610,630,645,655..WT |
4 | ||
| 47731-37010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-60070 |
XZC60#,610,630,645,655..WT |
4 | ||
| 47731-37010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-37262 |
XZC605,645,655 |
1 | ||
| 47750-37180 |
XZU605..T2,T5;XZU655..(T2,T3)..20T;XZC675,XZU675,685,695;XZU605,645,655..(T3,T4)..30T |
1 | ||
| Common parts | ||||
| 90105-16072 | ||||
| 90105-16073 | ||||
| 91611-B0812 | ||||
(1107- )XZU605,645,655..T3,T4..30T..DCRTJ,DCRTK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-37220 |
XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT ﾏｰｸ ADVICS VC035 |
1 | ||
| 04465-37220 |
XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT ﾏｰｸ ADVICS VC035 |
1 | ||
| 04465-37250 |
XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..20T..IV3;XZU655..(T2,T3)..20T;XZU650..T3..DCRTJ..CBU;XZU640..T3..6FC..(IV3,IV4);XZU605,645,655..(T3,T4)..30T;XZC675,XZU620,630,675,685,695;XZU60#..(DM3,DM6,T2,T3,T5)..(20T,30T) ﾏｰｸ AK NS265 |
1 | ||
| 04465-37250 |
XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..20T..IV3;XZU655..(T2,T3)..20T;XZU650..T3..DCRTJ..CBU;XZU640..T3..6FC..(IV3,IV4);XZU605,645,655..(T3,T4)..30T;XZC675,XZU620,630,675,685,695;XZU60#..(DM3,DM6,T2,T3,T5)..(20T,30T) ﾏｰｸ AK NS265 |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 0447B-37010 |
XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
2 | ||
| 0447B-37010 |
XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
2 | ||
| 0447B-37021 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC675,XZU60#,610,620,630,645,655,675,685,695..20T,30T |
2 | ||
| 0447B-37021 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC675,XZU60#,610,620,630,645,655,675,685,695..20T,30T |
2 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-37150 |
XZC60#,610,630,645,655..WT |
1 | ||
| 04945-37150 |
XZC60#,610,630,645,655..WT |
1 | ||
| 04945-37030 |
XZU650,655..(T2,T3)..20T;BZU600,XZC600,XZU605..DM6,T2,T5;XZU600..(DM3,DM6,T3,T5)..(20T,30T);BZU600,XZU605,645,650,655..(T3,T4)..30T;TRU600,XZC675,XZU620,630,640,675,685,695..20T,30T |
1 | ||
| 04945-37030 |
XZU650,655..(T2,T3)..20T;BZU600,XZC600,XZU605..DM6,T2,T5;XZU600..(DM3,DM6,T3,T5)..(20T,30T);BZU600,XZU605,645,650,655..(T3,T4)..30T;TRU600,XZC675,XZU620,630,640,675,685,695..20T,30T |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 0494A-37010 |
XZC60#,610,630,645,655..WT |
2 | ||
| 0494A-37010 |
XZC60#,610,630,645,655..WT |
2 | ||
| 0494A-37020 |
XZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..20T,30T |
2 | ||
| 0494A-37020 |
XZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..20T,30T |
2 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
BZU600,TRC600,TRU600;XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK) |
2 | ||
| 31478-30010 |
BZU600,TRC600,TRU600;XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK) |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
2 | ||
| 47547-12010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
2 | ||
| 47547-12030 |
XZC60#,610,630,645,655..WT |
2 | ||
| 47547-12030 |
XZC60#,610,630,645,655..WT |
2 | ||
| 47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH | ||||
| 47703-37041 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| 47703-37041 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| 47703-37042 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| 47703-37042 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| 47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH | ||||
| 47704-37042 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| 47704-37042 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| 47704-37041 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| 47704-37041 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-37180 |
XZU605..T2,T5;XZU655..(T2,T3)..20T;XZC675,XZU675,685,695;XZU605,645,655..(T3,T4)..30T |
1 | ||
| 47721-37180 |
XZU605..T2,T5;XZU655..(T2,T3)..20T;XZC675,XZU675,685,695;XZU605,645,655..(T3,T4)..30T |
1 | ||
| 47721-37260 |
XZC605,645,655 |
1 | ||
| 47721-37260 |
XZC605,645,655 |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90015-AA601 |
XZC60#,610,630,645,655..WT *10−1.00PX20−9 |
4 | ||
| 90015-AA601 |
XZC60#,610,630,645,655..WT *10−1.00PX20−9 |
4 | ||
| 90119-12256 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *12−1.25PX75−30,NO.1 |
4 | ||
| 90119-12256 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *12−1.25PX75−30,NO.1 |
4 | ||
| 90119-08B87 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *8−1.25PX59−27,NO.2 |
4 | ||
| 90119-08B87 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *8−1.25PX59−27,NO.2 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90015-AA601 |
XZC60#,610,630,645,655..WT *10−1.00PX20−9 |
4 | ||
| 90015-AA601 |
XZC60#,610,630,645,655..WT *10−1.00PX20−9 |
4 | ||
| 90119-12256 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *12−1.25PX75−30,NO.1 |
4 | ||
| 90119-12256 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *12−1.25PX75−30,NO.1 |
4 | ||
| 90119-08B87 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *8−1.25PX59−27,NO.2 |
4 | ||
| 90119-08B87 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) *8−1.25PX59−27,NO.2 |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47721-37260 |
XZC605,645,655 |
1 | ||
| 47721-37260 |
XZC605,645,655 |
1 | ||
| 47721-37180 |
XZU605..T2,T5;XZU655..(T2,T3)..20T;XZC675,XZU675,685,695;XZU605,645,655..(T3,T4)..30T |
1 | ||
| 47721-37180 |
XZU605..T2,T5;XZU655..(T2,T3)..20T;XZC675,XZU675,685,695;XZU605,645,655..(T3,T4)..30T |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-37180 |
XZU605..T2,T5;XZU655..(T2,T3)..20T;XZC675,XZU675,685,695;XZU605,645,655..(T3,T4)..30T |
1 | ||
| 47730-37180 |
XZU605..T2,T5;XZU655..(T2,T3)..20T;XZC675,XZU675,685,695;XZU605,645,655..(T3,T4)..30T |
1 | ||
| 47730-37262 |
XZC605,645,655 |
1 | ||
| 47730-37262 |
XZC605,645,655 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-60070 |
XZC60#,610,630,645,655..WT |
4 | ||
| 47731-60070 |
XZC60#,610,630,645,655..WT |
4 | ||
| 47731-37010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| 47731-37010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-60070 |
XZC60#,610,630,645,655..WT |
4 | ||
| 47731-60070 |
XZC60#,610,630,645,655..WT |
4 | ||
| 47731-37010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| 47731-37010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-36020 |
XZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..20T,30T |
4 | ||
| 47743-36020 |
XZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..20T,30T |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-36020 |
XZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..20T,30T |
4 | ||
| 47743-36020 |
XZC600..ST;BZU600,TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..20T,30T |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-37262 |
XZC605,645,655 |
1 | ||
| 47750-37262 |
XZC605,645,655 |
1 | ||
| 47750-37180 |
XZU605..T2,T5;XZU655..(T2,T3)..20T;XZC675,XZU675,685,695;XZU605,645,655..(T3,T4)..30T |
1 | ||
| 47750-37180 |
XZU605..T2,T5;XZU655..(T2,T3)..20T;XZC675,XZU675,685,695;XZU605,645,655..(T3,T4)..30T |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-36030 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| 47769-36030 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-36050 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
8 | ||
| 47775-36050 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
8 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-36050 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
8 | ||
| 47775-36050 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
8 | ||
| 47775C - BOOT, BUSH DUST, NO.2 | ||||
| 47775-36040 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
8 | ||
| 47775-36040 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
8 | ||
| 47775C - BOOT, BUSH DUST, NO.2 | ||||
| 47775-36040 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
8 | ||
| 47775-36040 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
8 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-36010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| 47779-36010 |
BZU600;XZC600..ST;TRC600,TRU600,XZC675,XZU600,605,610,620,630,640,645,650,655,675,685,695..(20T,30T)..(DCRTH,DCRTJ,DCRTK,EFI) |
4 | ||
| Common parts | ||||
| 90105-16073 | ||||
| 91611-B0812 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
