XZU655-TKTQB3 (2015)
Toyota Dyna/Toyoace
(0610- )6FC..DCRTH,DCRTJ
A860E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-05153 | ||||
| 90466-16004 | ||||
| 90467-16022 | ||||
| 90949-01993 | ||||
| 91611-B0616 | ||||
| 91611-B0816 | ||||
| 91612-B1020 | ||||
| Linked diagrams | ||||
| 8718 | ||||

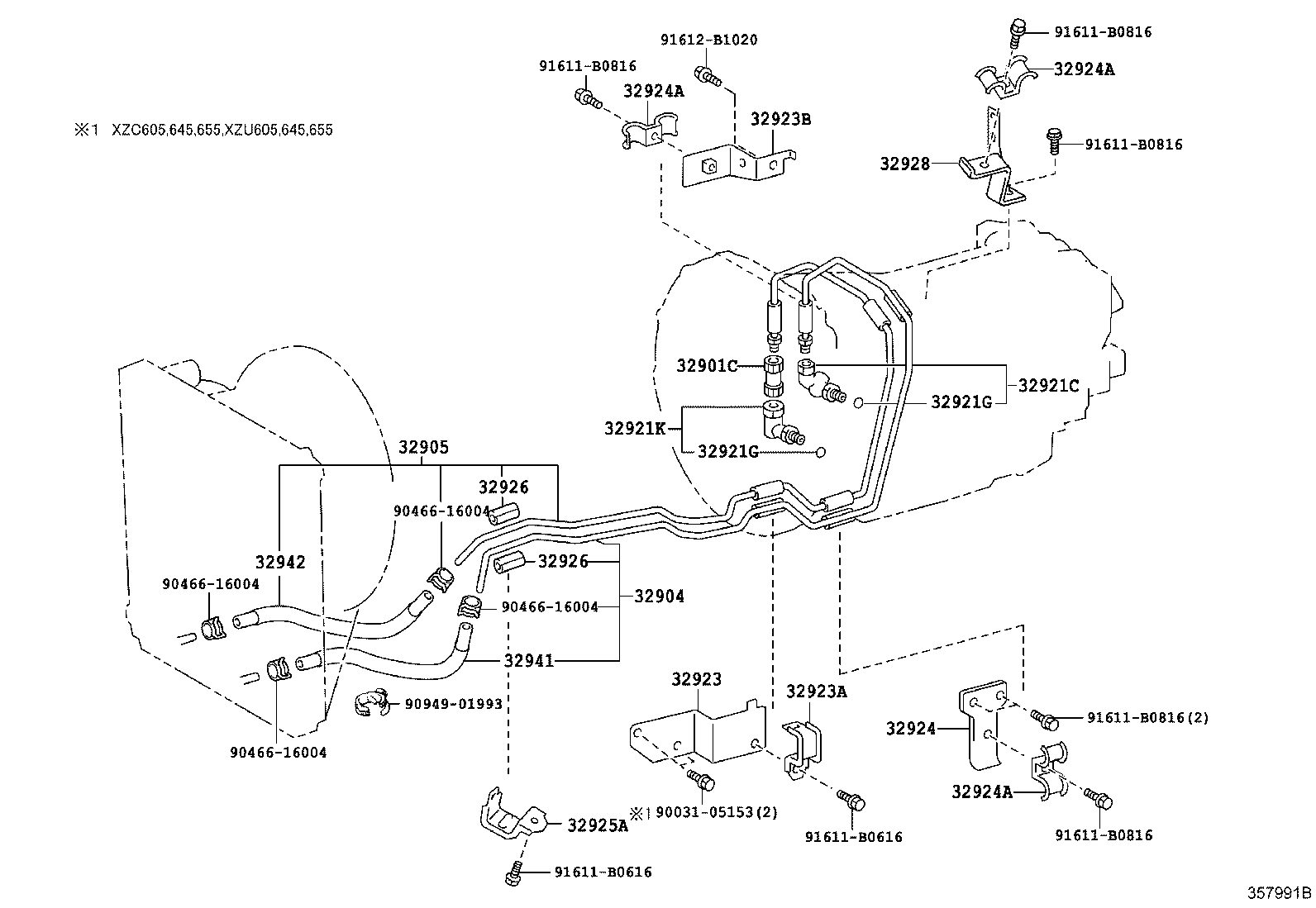

(1107- )6FC..CBU,IV3,IV5,IV6
A860E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32901C - UNION SUB-ASSY, OIL COOLER | ||||
| 32901-37030 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
1 | ||
| 32904 - TUBE SUB-ASSY, OIL COOLER INLET, NO.1 | ||||
| 32904-37191 |
XZU650..6FC..20T;XZU640..T3..6FC..IV3;XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT..(CBU,IV3,IV5,IV6) |
1 | ||
| 32905 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1 | ||||
| 32905-37191 |
XZU650..6FC..20T;XZU640..T3..6FC..IV3;XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT..(CBU,IV3,IV5,IV6) |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-20010 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
2 | ||
| 32921K - UNION, NO.2(FOR OIL COOLER TUBE) | ||||
| 90407-20009 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32927-37021 |
XZU650..6FC..20T;XZU640..T3..6FC..IV3;XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT..(CBU,IV3,IV5,IV6) |
1 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32929-25020 |
XZU650..6FC..20T;XZU640..T3..6FC..IV3;XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT..(CBU,IV3,IV5,IV6) |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-37011 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-37010 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
1 | ||
| 32924A - CLAMP(FOR OIL COOLER TUBE, NO.2) | ||||
| 90462-12076 |
XZU650..6FC..20T;XZU640..T3..6FC..IV3;XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT..(CBU,IV3,IV5,IV6) |
3 | ||
| 32924A - CLAMP(FOR OIL COOLER TUBE, NO.2) | ||||
| 90462-12076 |
XZU650..6FC..20T;XZU640..T3..6FC..IV3;XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT..(CBU,IV3,IV5,IV6) |
3 | ||
| 32924A - CLAMP(FOR OIL COOLER TUBE, NO.2) | ||||
| 90462-12076 |
XZU650..6FC..20T;XZU640..T3..6FC..IV3;XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT..(CBU,IV3,IV5,IV6) |
3 | ||
| 32925A - CLAMP, FLEXIBLE HOSE, NO.2 | ||||
| 32929-25020 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-60010 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT 長さ=45,内径=12 |
10 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-60010 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT 長さ=45,内径=12 |
10 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32928-37041 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
1 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-37150 |
XZU650..6FC..20T;XZU640..T3..6FC..IV3;XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT..(CBU,IV3,IV5,IV6) |
1 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32942-37120 |
XZU650..6FC..20T;XZU640..T3..6FC..IV3;XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT..(CBU,IV3,IV5,IV6) |
1 | ||
| Common parts | ||||
| 90031-05153 | ||||
| 90466-16004 | ||||
| 90949-01993 | ||||
| 91611-B0616 | ||||
| 91611-B0816 | ||||
| 91612-B1020 | ||||
