XZU655-TKTQB3 (2015)

Toyota Dyna/Toyoace

Production May 2015 - May 2017
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

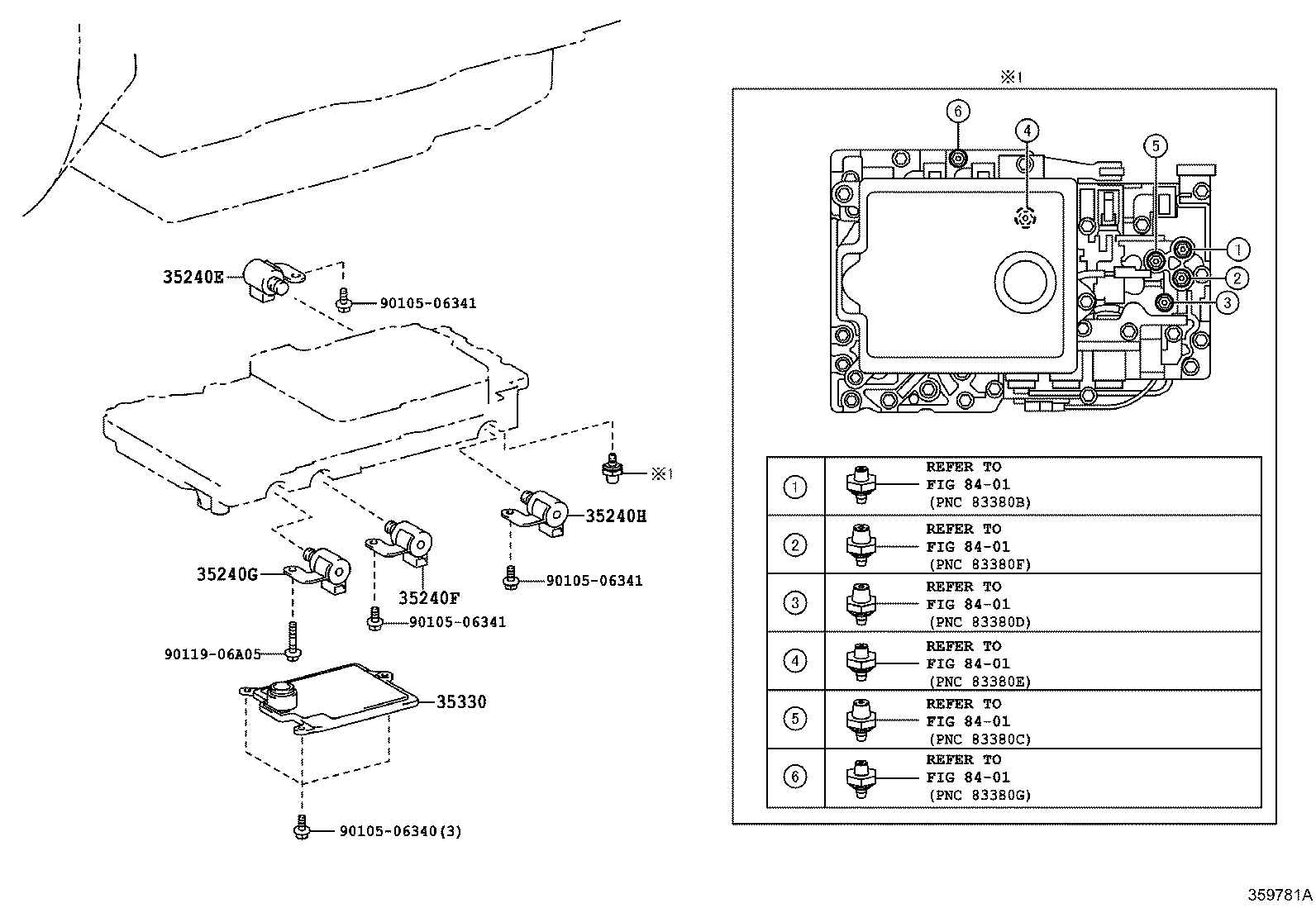

ILLUST NO. 1 OF 2(0610- )6FC

Click highlighted areas on diagram

A860E,ｿﾚﾉｲﾄﾞﾊﾞﾙﾌﾞ & ｵｲﾙｽﾄﾚｰﾅ

diagram 35240E 35240F 35240G 35240H 35330 8401 8401 8401 8401 8401 8401 9010506340 9010506341 9010506341 9010506341 9011906A05
Part # Description Qty Price
Common parts
90105-06340
90105-06341
90119-06A05
Linked diagrams
8401

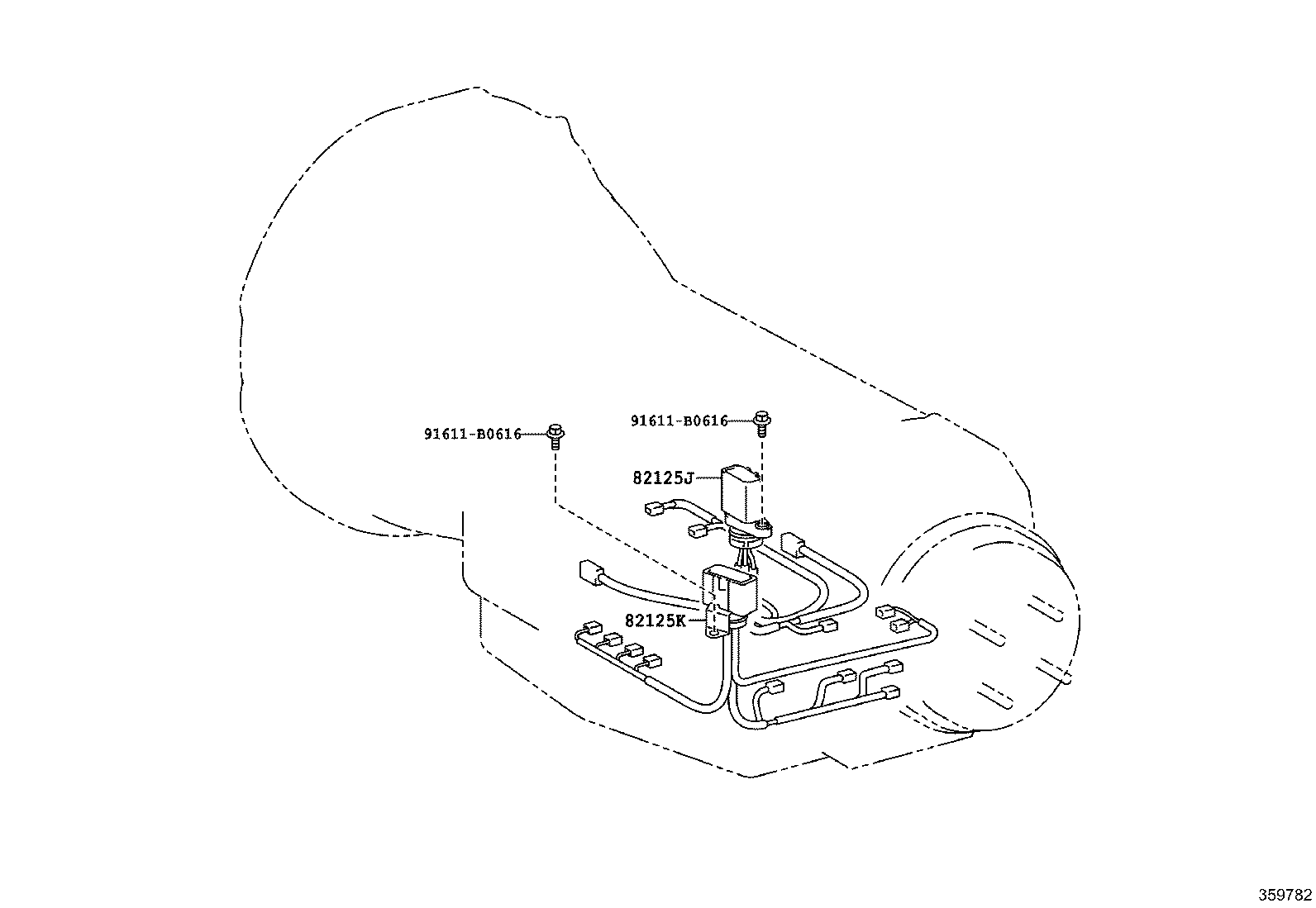

ILLUST NO. 2 OF 2(0610- )6FC

Click highlighted areas on diagram

A860E,ﾄﾗﾝｽﾐｯｼｮﾝﾜｲﾔ

diagram 82125J 82125K 91611B0616 91611B0616
Part # Description Qty Price
Common parts
91611-B0616

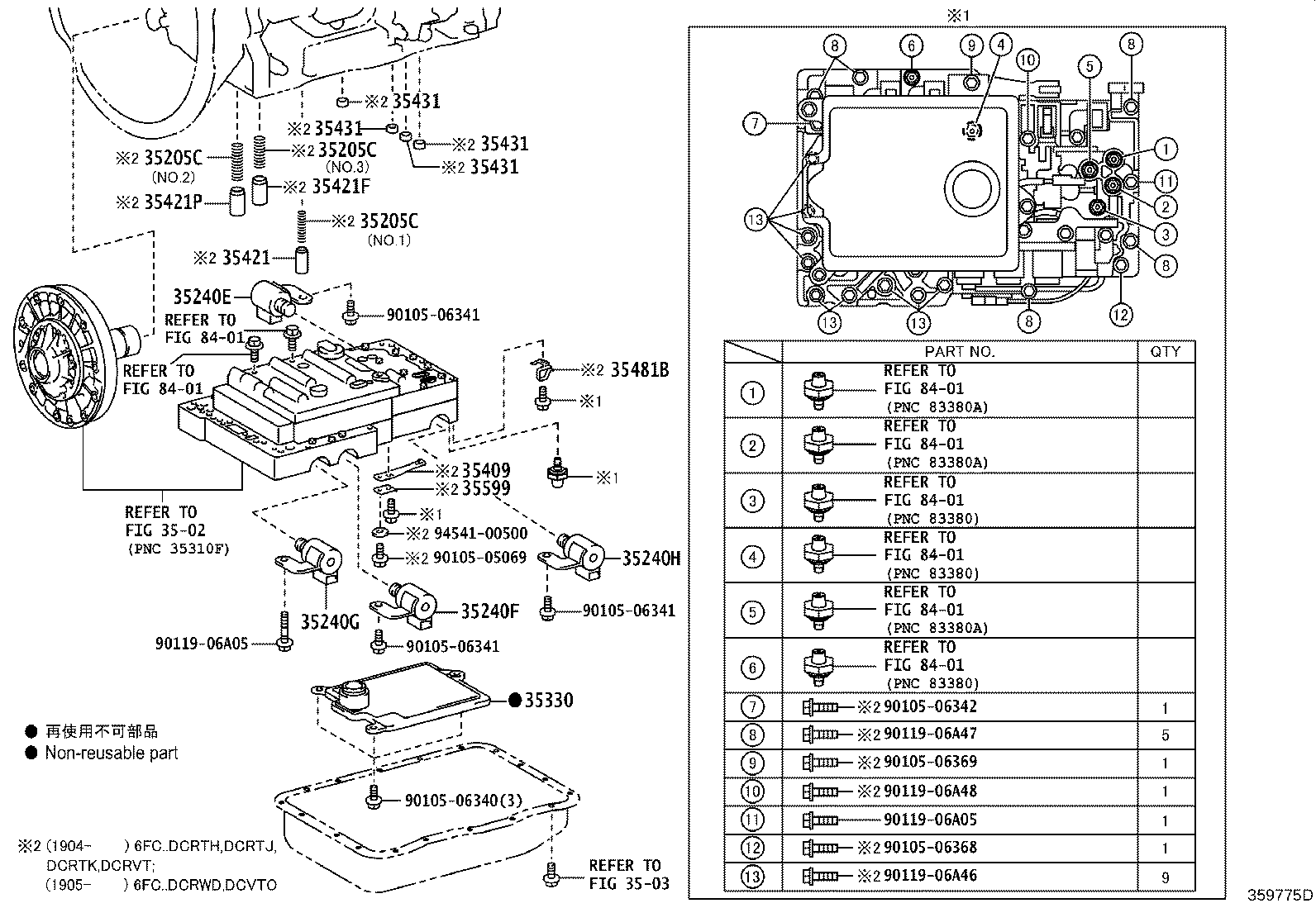

ILLUST NO. 1 OF 2(1107- )6FC

Click highlighted areas on diagram

A860E,ｿﾚﾉｲﾄﾞﾊﾞﾙﾌﾞ & ｵｲﾙｽﾄﾚｰﾅ

diagram 3502 3503 35205C 35205C 35205C 35240E 35240F 35240G 35240H 35330 35409 35421 35421F 35421P 35431 35431 35431 35431 35481B 35599 8401 8401 8401 8401 8401 8401 8401 8401 9010505069 9010506340 9010506341 9010506341 9010506341 9010506342 9010506368 9010506369 9011906A05 9011906A05 9011906A46 9011906A47 9011906A48 9454100500
Part # Description Qty Price
35240E - VALVE, SOLENOID(S1)
85420-37010

XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT

 1
35240F - VALVE, SOLENOID(S2)
85420-37010

XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT

 1
35240G - VALVE, SOLENOID(S3)
85420-37010

XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT

 1
35240H - VALVE, SOLENOID(S4)
85420-37010

XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT

 1
35330 - STRAINER ASSY, VALVE BODY OIL
35330-37010

XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT

 1
Common parts
90105-05069
90105-06340
90105-06341
90105-06342
90105-06368
90105-06369
90119-06A05
90119-06A46
90119-06A47
90119-06A48
94541-00500
Linked diagrams
3502
3503
8401

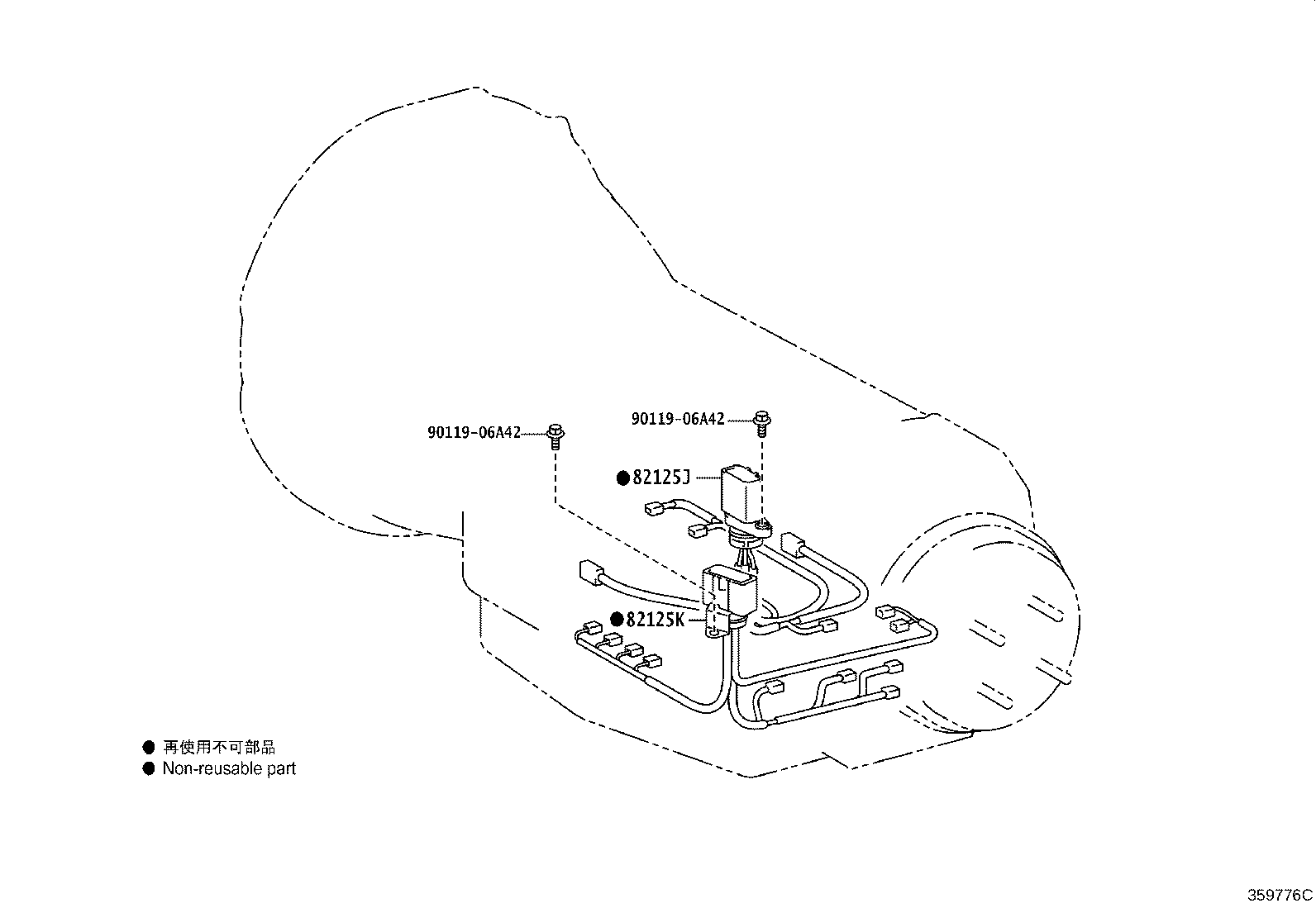

ILLUST NO. 2 OF 2(1107- )6FC

Click highlighted areas on diagram

A860E,ﾄﾗﾝｽﾐｯｼｮﾝﾜｲﾔ

diagram 82125J 82125K 9011906A42 9011906A42
Part # Description Qty Price
82125J - WIRE, TRANSMISSION
82291-37030

XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT

 1
82125K - WIRE, TRANSMISSION
82291-37040

XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT

 1
Common parts
90119-06A42
