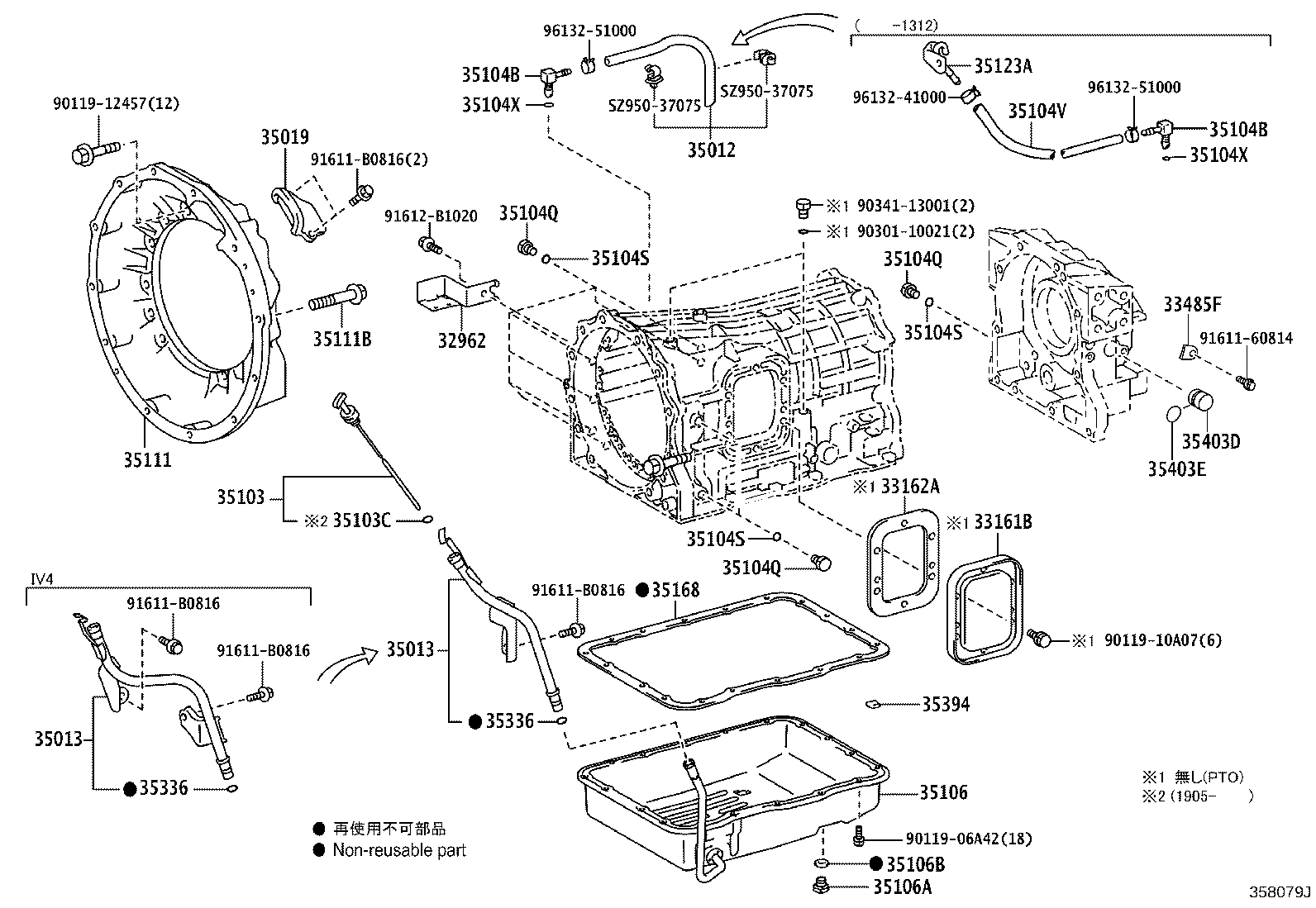

XZU655-TKTQB3 (2015)
Toyota Dyna/Toyoace
(0610- )6FC
A860E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 35893-37010 | ||||
| 90301-10189 | ||||
| 90341-13001 | ||||
| 91611-60814 | ||||
| 91611-B0616 | ||||
| 91611-B0816 | ||||
| 91612-61016 | ||||
| 91612-B1020 | ||||
| 96132-41000 | ||||
| 96132-51000 | ||||
(1107- )6FC
A860E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32962 - INSULATOR, OIL TEMPERATURE SWITCH HEAT | ||||
| 32962-37030 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
1 | ||
| 33161B - COVER, TRANSMISSION POWER TAKE-OFF | ||||
| 33161-37020 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,T2,T3,T4,T5)..6FC..WT..(CBU,IV3,IV4) |
1 | ||
| 33162A - GASKET, TRANSMISSION POWER TAKE-OFF | ||||
| 33162-37020 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,T2,T3,T4,T5)..6FC..WT..(CBU,IV3,IV4) |
1 | ||
| 33485F - PLATE, SPEEDMETER LOCK | ||||
| 33485-30020 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-37140 |
XZU650..6FC..20T;XZU640..T3..6FC..IV3;XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT..(CBU,IV3,IV5,IV6) |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-37140 |
XZU650..6FC..20T;XZU640..T3..6FC..IV3;XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT..(CBU,IV3,IV5,IV6) |
1 | ||
| 35019 - COVER SUB-ASSY, TRANSMISSION CASE DUST | ||||
| 35019-37040 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-37140 |
XZU650..6FC..20T;XZU640..T3..6FC..IV3;XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT..(CBU,IV3,IV5,IV6) |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03094 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03094 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-13001 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
9 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-13001 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
9 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-13001 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
9 | ||
| 35104X - RING, O (FOR BREATHER PLUG) | ||||
| 90301-06005 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
1 | ||
| 35104X - RING, O (FOR BREATHER PLUG) | ||||
| 90301-06005 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-37060 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-18057 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 12157-10010 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-37020 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
1 | ||
| 35111B - BOLT (FOR TRANSMISSION HOUSING & ENGINE SETTING) | ||||
| 90119-10898 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT *14−1.50PX50−26 |
12 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-37010 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09011 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09011 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
4 | ||
| 35403D - CAP, SPEED SENSOR DUST | ||||
| G3473-37010 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
1 | ||
| 35403E - RING, O(FOR SPEED SENSOR DUST CAP) | ||||
| 90301-21014 |
XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
1 | ||
| Common parts | ||||
| 90119-06A42 | ||||
| 90119-10A07 | ||||
| 90119-12457 | ||||
| 90301-10021 | ||||
| 90341-13001 | ||||
| 91611-60814 | ||||
| 91611-B0816 | ||||
| 91612-B1020 | ||||
| 96132-41000 | ||||
| 96132-51000 | ||||
| SZ950-37075 | ||||
