XZU655-TKTQB3 (2015)

Toyota Dyna/Toyoace

Production May 2015 - May 2017
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

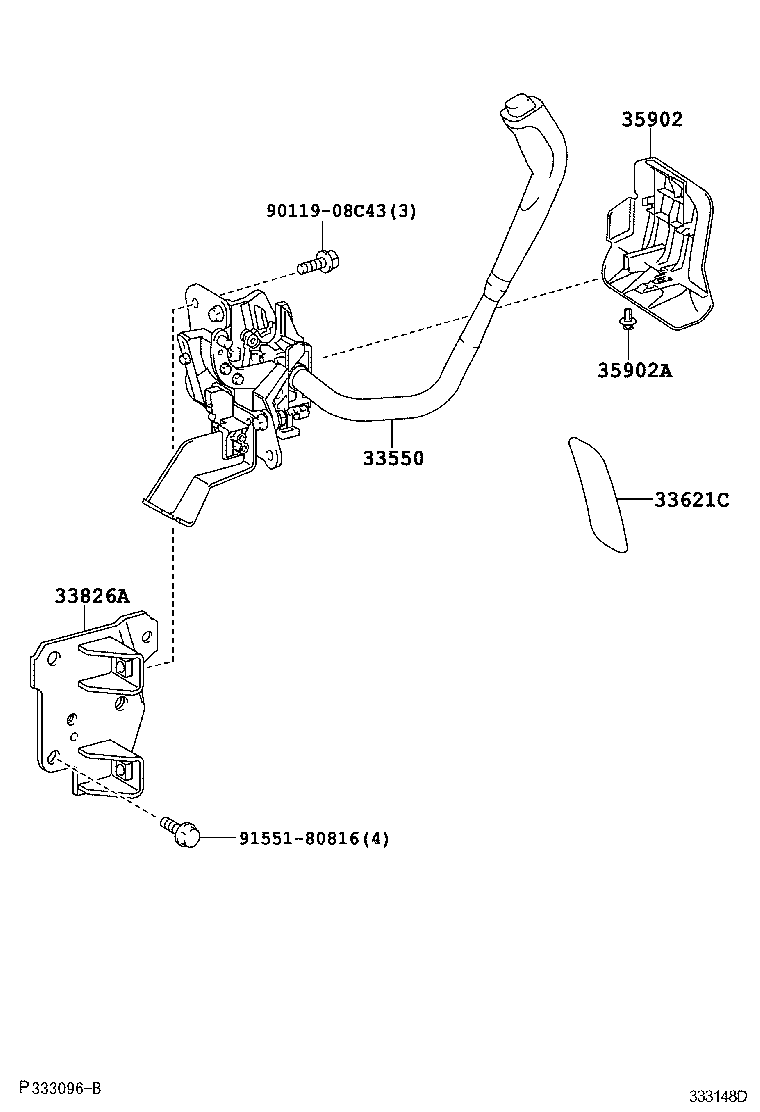

ILLUST NO. 1 OF 2(0610- )6FC

Click highlighted areas on diagram

diagram 33550 33621C 33826A 35902 35902A 9011908C43 9155180816
Part # Description Qty Price
Common parts
90119-08C43
91551-80816

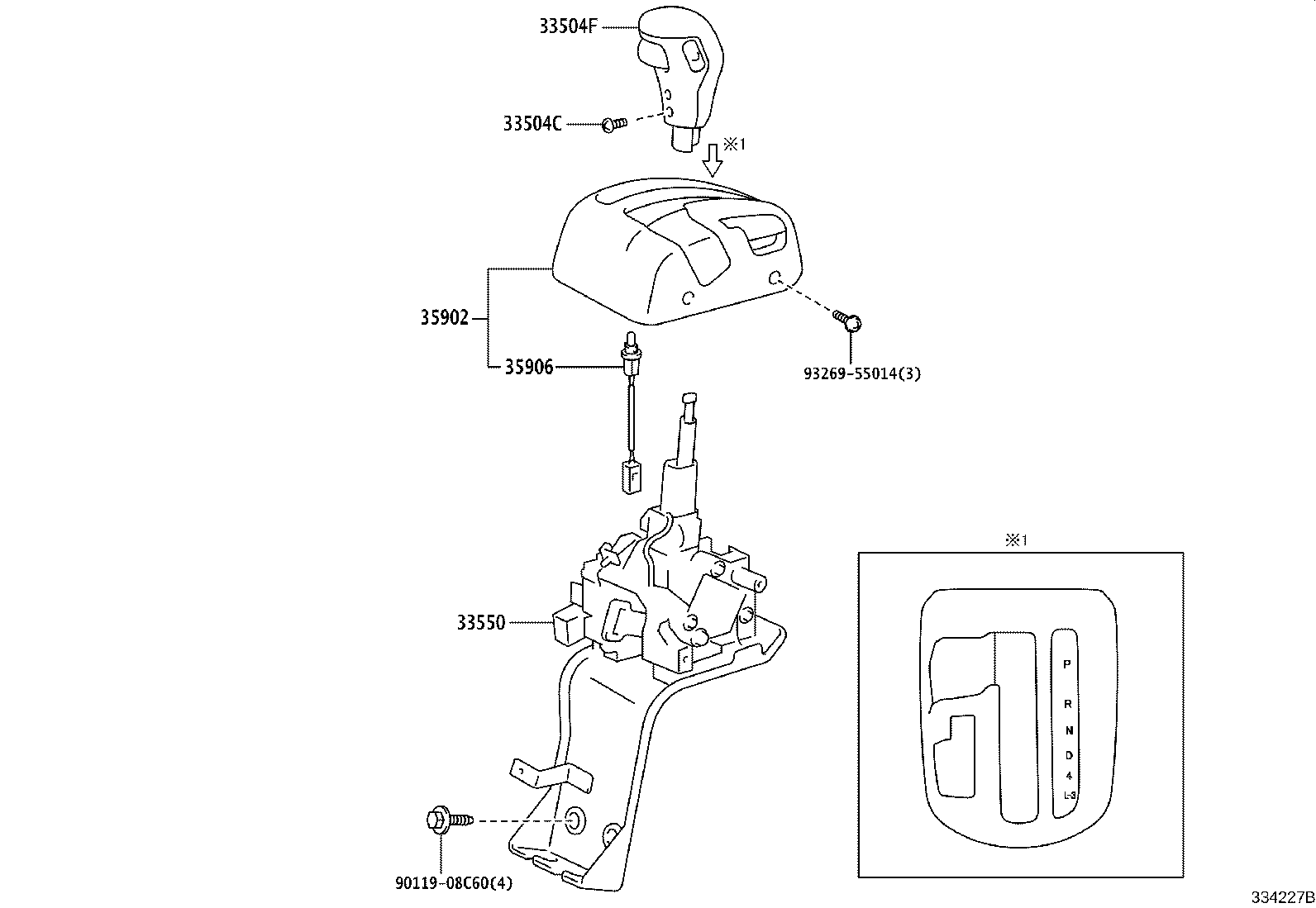

ILLUST NO. 1 OF 2(1107- )6FC

Click highlighted areas on diagram

diagram 33504C 33504F 33550 35902 35906 9011908C60 9326955014
Part # Description Qty Price
33504C - SCREW (FOR SHIFT LEVER KNOB SETTING)
90152-40003

XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-37090C0

XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT

BLACK,TRIM1#

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-37350C0

XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT

BLACK,TRIM1#

 1
35902 - COVER SUB-ASSY, POSITION INDICATOR HOUSING
35902-37082C0

XZC60#,610,630,645,655,XZU60#,610,620,64#,65#..6FC

BLACK,TRIM1#

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
82232-37020

XZU650..6FC..20T;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,645,655..6FC..(20T,30T)..WT

 1
82232-37020

XZC60#,610,630,645,655,XZU60#,610,620,64#,65#..6FC

 1
Common parts
90119-08C60
93269-55014
