Toyota Dyna/toyoace XZU655 SHIFT LEVER & RETAINER

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU655-TGTMX (2019)
3312 - SHIFT LEVER & RETAINER

XZU655-TGTMX (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999

Engine N04C

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1905- )XZC605,645,655,XZU605,645,655..6F

Click highlighted areas on diagram

Part #	Description	Period	Qty
33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)
33829-37390	XZC605,645,655,675,XZU605,645,655,675,685,695..DCRWD	05/2019 - 12/2999	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-37880	XZC60#,645,655,XZU60#,64#,65#..6FC..(DCRWD,DCVTO)	05/2019 - 12/2999	1
33825 - INSULATOR, TRANSMISSION CONTROL CABLE
33825-37040	XZC60#,645,655,XZU60#,64#,65#..DCRWD,DCVTO NO.2	05/2019 - 12/2999	1
33825-37031	XZC60#,645,655,XZU60#,64#,65#..DCRWD,DCVTO NO.1	05/2019 - 10/2019	1
33825 - INSULATOR, TRANSMISSION CONTROL CABLE
33825-37040	XZC60#,645,655,XZU60#,64#,65#..DCRWD,DCVTO NO.2	05/2019 - 12/2999	1
33825-37031	XZC60#,645,655,XZU60#,64#,65#..DCRWD,DCVTO NO.1	05/2019 - 10/2019	1
33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33826-37210	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4
33828-37310	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5
33827-37360	XZC605,645,655,XZU605,645,655..DCRWD	05/2019 - 12/2999	1
33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7
33827-37210	XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO	05/2019 - 12/2999	1
33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8
33826-37580	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-37400	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO	11/2019 - 12/2999	1
33829-37350	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO	05/2019 - 10/2019	1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-37210	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO	05/2019 - 12/2999	2
Common parts
90119-10883
90201-10042
90468-14004
90468-14016
90468-14017
91551-80825
91552-81030
91554-80825
91611-G0820
91674-80820
94151-80800
94185-60800

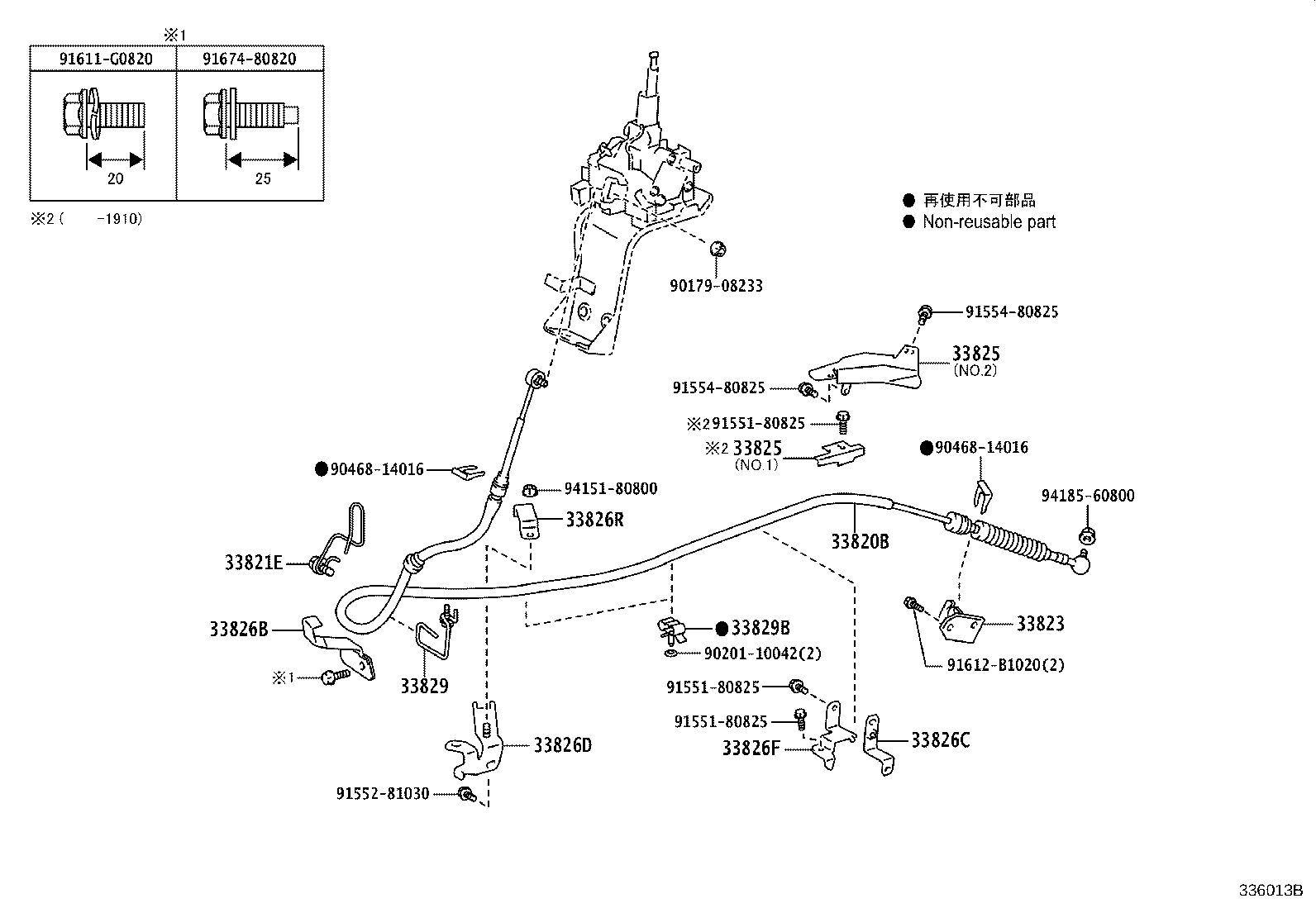

ILLUST NO. 2 OF 2(1905- )XZC605,645,655,XZU605,645,655..6FC..DCRWD

Click highlighted areas on diagram

Part #	Description	Period	Qty
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-37Q01	XZC60#,645,655,XZU60#,64#,65#..6FC..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6)	05/2019 - 12/2999	1
33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)
33829-37390	XZC605,645,655,675,XZU605,645,655,675,685,695..DCRWD	05/2019 - 12/2999	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-37880	XZC60#,645,655,XZU60#,64#,65#..6FC..(DCRWD,DCVTO)	05/2019 - 12/2999	1
33825 - INSULATOR, TRANSMISSION CONTROL CABLE
33825-37040	XZC60#,645,655,XZU60#,64#,65#..DCRWD,DCVTO NO.2	05/2019 - 12/2999	1
33825-37031	XZC60#,645,655,XZU60#,64#,65#..DCRWD,DCVTO NO.1	05/2019 - 10/2019	1
33825 - INSULATOR, TRANSMISSION CONTROL CABLE
33825-37040	XZC60#,645,655,XZU60#,64#,65#..DCRWD,DCVTO NO.2	05/2019 - 12/2999	1
33825-37031	XZC60#,645,655,XZU60#,64#,65#..DCRWD,DCVTO NO.1	05/2019 - 10/2019	1
33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33826-37210	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4
33828-37310	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5
33827-37360	XZC605,645,655,XZU605,645,655..DCRWD	05/2019 - 12/2999	1
33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7
33827-37210	XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO	05/2019 - 12/2999	1
33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8
33826-37580	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-37400	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO	11/2019 - 12/2999	1
33829-37350	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO	05/2019 - 10/2019	1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-37210	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO	05/2019 - 12/2999	2
Common parts
90179-08233
90201-10042
90468-14016
91551-80825
91552-81030
91554-80825
91611-G0820
91612-B1020
91674-80820
94151-80800
94185-60800

XZU655-TGTMX (2019)

ILLUST NO. 2 OF 2(1905- )XZC605,645,655,XZU605,645,655..6F

ILLUST NO. 2 OF 2(1905- )XZC605,645,655,XZU605,645,655..6FC..DCRWD
