XZU655-PQMMB3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )

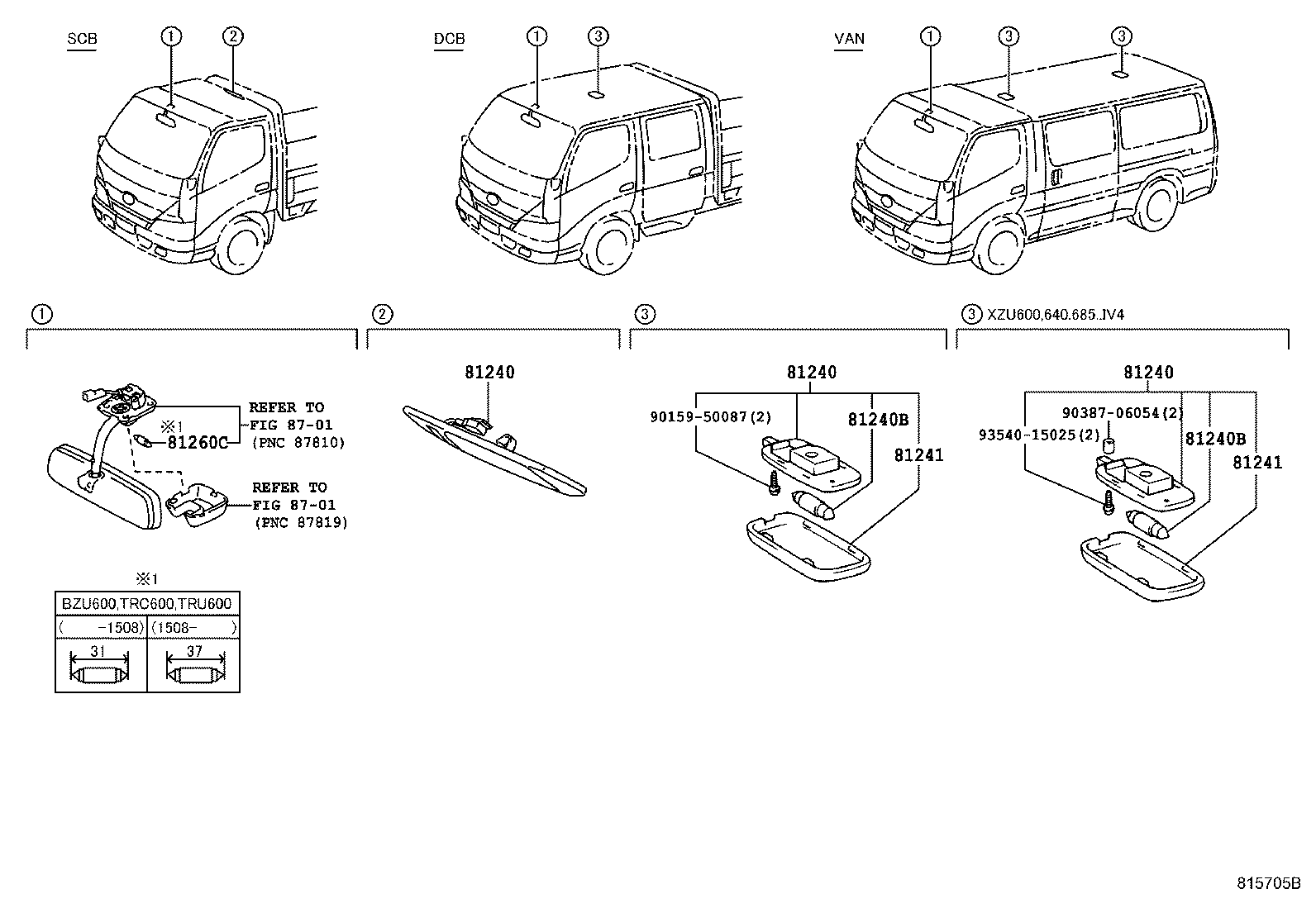

Click highlighted areas on diagram

diagram 81240 81240 81240 81240B 81240B 81240B 81241 81241 81241 81365A 81952C 9015950087 9038706054 9354015025 9354056020
Part # Description Qty Price
Common parts
90159-50087
90387-06054
93540-15025
93540-56020

(1107- )DCRTH,DCRTJ,DCRTK,DCRVT,EFI,LPG

Click highlighted areas on diagram

diagram 81240 81240 81240 81240B 81240B 81241 81241 81260C 8701 8701 9015950087 9038706054 9354015025
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-95014B1

XZU605,655,685,695..DCB..20T

MD.CHARCOAL,TRIM1#

 1
81240-37150B0

XZU605,655,685,695..DCB..20T

MD.CHARCOAL,TRIM1#

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-95014B1

XZU605,655,685,695..DCB..20T

MD.CHARCOAL,TRIM1#

 1
81240-37150B0

XZU605,655,685,695..DCB..20T

MD.CHARCOAL,TRIM1#

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-95014B1

XZU605,655,685,695..DCB..20T

MD.CHARCOAL,TRIM1#

 1
81240-37150B0

XZU605,655,685,695..DCB..20T

MD.CHARCOAL,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-16019

XZU60#,640,655,685,695..DCB

24V 10W

 1
81240B - BULB, ROOM LAMP, NO.1
90981-16019

XZU60#,640,655,685,695..DCB

24V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-95013

XZU60#,640,655,685,695..DCB

 1
81241 - LENS, ROOM LAMP, NO.1
81241-95013

XZU60#,640,655,685,695..DCB

 1
81260C - BULB(FOR MAP LAMP)
90981-16019

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

24V 10W

 1
Common parts
90159-50087
90387-06054
93540-15025
Linked diagrams
8701

(7708- )

Click highlighted areas on diagram

diagram 81240 81240B 8701 9015040004
Part # Description Qty Price
Common parts
90150-40004
Linked diagrams
8701
