XZU655-PQMMB3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

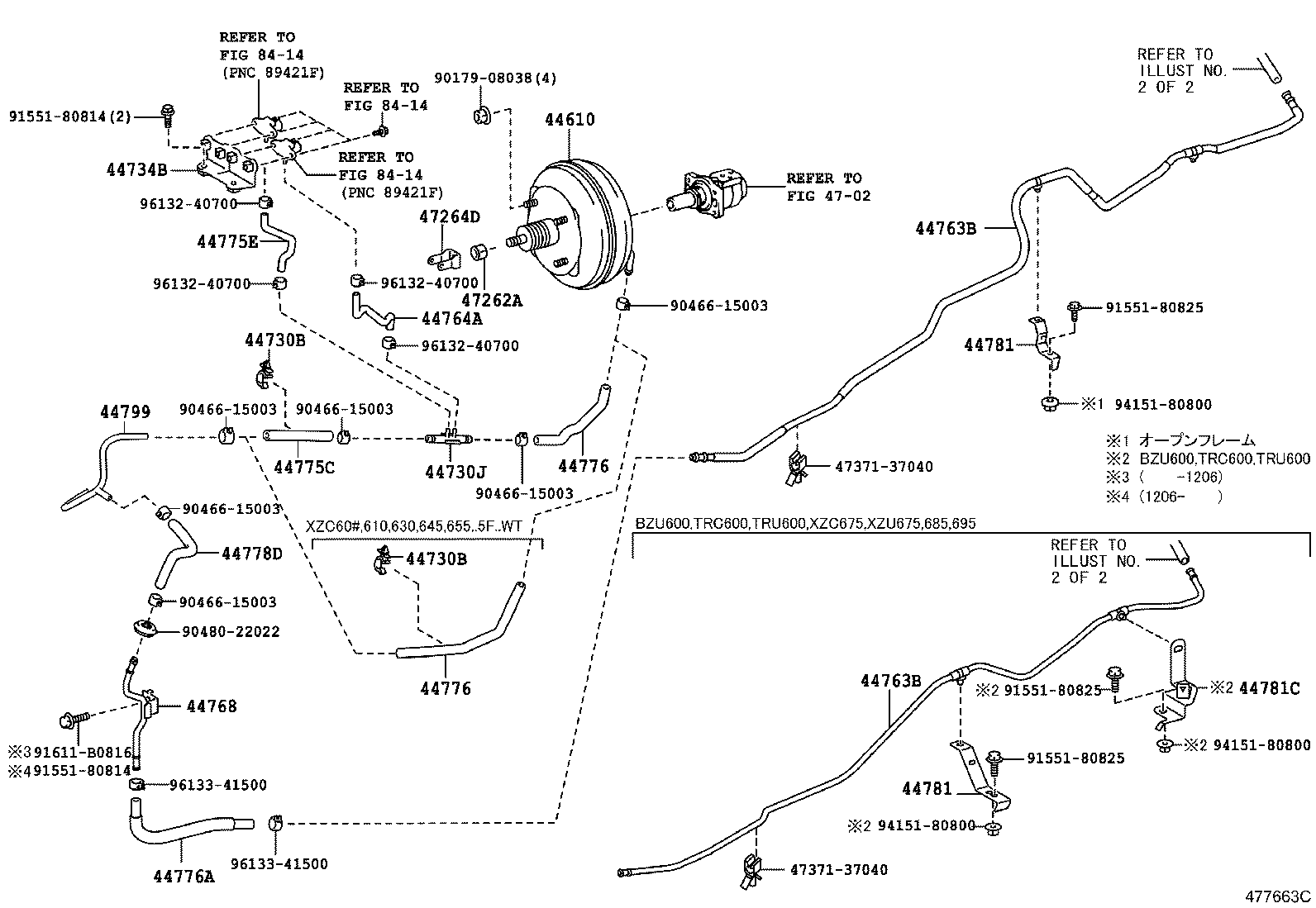

ILLUST NO. 1 OF 2(1107- )MTM..DCRTH,DCRTJ,DCRTK,DCRVT,EFI,LPG

Click highlighted areas on diagram

diagram 44610 44730B 44730B 44730J 44734B 44763B 44763B 44764A 44768 44775C 44775E 44776 44776 44776A 44778D 44781 44781 44781C 44799 4702 47262A 47264D 4737137040 4737137040 8414 8414 8414 9017908038 9046615003 9046615003 9046615003 9046615003 9046615003 9046615003 9048022022 9155180814 9155180814 9155180825 9155180825 9155180825 91611B0816 9415180800 9415180800 9415180800 9613240700 9613240700 9613240700 9613240700 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-37270

XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT

 1
44610-37280

XZC600..5F..ST;XZC675,XZU60#,610,630,645,65#,675,685,695..20T

 1
44730B - CLAMP, VACUUM HOSE
44597-37021

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

 1
44730B - CLAMP, VACUUM HOSE
44597-37021

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

 1
44730J - WAY(FOR BOOSTER VACUUM)
90414-10043

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC675,XZU60#,610,620,630,645,655,675,685,695..20T,30T

 1
44734B - BRACKET, BOOSTER SUPPORT
44734-37020

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC675,XZU60#,610,620,630,645,655,675,685,695..20T,30T

 1
44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR
44764-37610

XZC605,645,655,XZU605,645,655..03S,T2,T3,T4,T5

 1
44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR
44764-37610

XZC605,645,655,XZU605,645,655..03S,T2,T3,T4,T5

 1
44764A - HOSE, BOOSTER VACUUM
44776-37330

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC675,XZU60#,610,620,630,645,655,675,685,695..20T,30T

 1
44768 - TUBE, BOOSTER VACUUM
44768-37250

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

 1
44775C - HOSE, CONNECTOR TO WAY
44775-37030

XZC600..5F..ST;XZU640..MTM..DCRTK;XZU640..T4..5F..IV3;XZU650..MTM..(20T,35T);XZU650..T3..5F..30T..DCRTJ..CBU;XZC675,XZU60#,610,620,630,645,655,675,685,695..MTM

 1
44775E - HOSE, WAY TO CONNECTOR
44776-37340

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC675,XZU60#,610,620,630,645,655,675,685,695..20T,30T

 1
44776 - HOSE, BRAKE BOOSTER
44776-37360

XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..5F..WT

 1
44776-37350

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC675,XZU60#,610,620,630,645,655,675,685,695..20T,30T

 1
44776 - HOSE, BRAKE BOOSTER
44776-37360

XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..5F..WT

 1
44776-37350

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC675,XZU60#,610,620,630,645,655,675,685,695..20T,30T

 1
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
44776-37170

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

 1
44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE
44778-37250

BZU600,TRC600,TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..MTM

 1
44778-37251

XZU640..MTM..DCRTK;XZU640..T4..5F..IV3;XZU650..MTM..(20T,35T);XZU650..T3..5F..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..MTM

 1
44781 - BRACKET, HOSE
44781-37171

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

 1
44781 - BRACKET, HOSE
44781-37171

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

 1
44799 - WAY, BRAKE VACUUM HOSE
44799-37030

BZU600,TRC600;TRU600,XZC60#,610,630,645,655,675,XZU600,605,610,620,630,640,645,650,655,675,685,695..MTM..(DCRTH,DCRTJ,DCRTK,EFI)

 1
47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK
94120-41000

XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT

 1
90179-10065

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC675,XZU60#,610,620,630,645,655,675,685,695..20T,30T

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-42010

XZC60#,610,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT

 1
47264-50010

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC675,XZU60#,610,620,630,645,655,675,685,695..20T,30T

 1
Common parts
47371-37040
90179-08038
90466-15003
90480-22022
91551-80814
91551-80825
91611-B0816
94151-80800
96132-40700
96133-41500
Linked diagrams
4702
8414

ILLUST NO. 2 OF 2(1107- )XZU605,655..DCB..DCRTH,DCRTJ

Click highlighted areas on diagram

diagram 19971F 27690K 44704 44730P 44756 44757B 44761 44762 44764G 44764H 44764Q 44771 44771D 44771K 44773A 44773B 44773L 44774 44774 44778 44783 44783 44912G 4711 4737137040 8401 9046616004 9046616004 9155180816 9155180816 9155180820 9155180820 9155180820 9155180820 9155281035 9415180800 9415180800 9415180800 9544609230 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
19971F - PIPE, VACUUM
19971-78270

N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..(20T,30T)..WT

 1
19971-78271

N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5

 1
27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-78032

N04C..XZU600..6F;N04C..XZU60#..(20T,30T)..(IV4,IV5,IV6);N04C..XZC605,XZU605,640,655,685,695..(DCB,VAN)..(03S,T3,T4)

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-37260

XZU605,655,685,695..DCB..20T

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT

 1
44756 - BRACKET, VACUUM RESERVOIR
44756-37160

XZU605,655,685,695..DCB..20T

 1
44757B - BRACKET, VACUUM TANK CLAMP, NO.2
44757-37180

XZU605,655,685,695..DCB..20T

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-37540

XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU600..MTM..(CBU,IV3,IV5,IV6);XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV6)

 1
44761-37580

XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6

 1
44762 - TUBE, BOOSTER VACUUM
44702-37500

XZU605,655..DCB

 1
44764G - TUBE, CONNECTOR TO BRAKE BOOSTER
44761-37520

XZU605,655,685,695..DCB..20T

 1
44764H - HOSE(FOR CONNECTOR TO BRAKE BOOSTER TUBE)
95446-09120

XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU600..MTM..(CBU,IV3,IV5,IV6);XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV6)

 1
44764Q - HOSE(FOR CONNECTOR TO VACUUM RESERVOIR TUBE)
95446-09160

XZU605,655,685,695..DCB..20T

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
90445-17039

XZU685..T3..20T;XZU60#,640,655,695..DCB

 1
44771D - HOSE, VACUUM TUBE CONNECTOR
44771-37A60

XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT

 1
44771-37A61

XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5

 1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
44771-37800

XZU605,645,655;XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU600,650..(03S,T2,T3,T4,T5)..20T..WT

 1
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
96133-41500

XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU600..MTM..(CBU,IV3,IV5,IV6);XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV6)

 1
44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2)
90466-16004

XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6

 1
96133-41500

XZC600..5F..ST;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU600..MTM..(CBU,IV3,IV5,IV6);XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(03S,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV6)

 1
44773L - HOSE, SOLENOID TO EXHAUST RETARDER
44773-37440

XZU605,655..DCB

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-37290

XZU685..IV4;XZU60#,640,655..DCB

NO.2:ｲﾗｽﾄ参照

 1
44774-37280

XZU60#,640,655,685,695..DCB

NO.1:ｲﾗｽﾄ参照

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-37290

XZU685..IV4;XZU60#,640,655..DCB

NO.2:ｲﾗｽﾄ参照

 1
44774-37280

XZU60#,640,655,685,695..DCB

NO.1:ｲﾗｽﾄ参照

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-37060

XZC600..5F..ST;XZU650..20T,35T;XZU600..SCB..MTM;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(DCB,SCB)..WT..(CBU,IV3,IV6)

 1
44783 - CLAMP, VACUUM HOSE
44783-37020

XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5

 2
44783 - CLAMP, VACUUM HOSE
44783-37020

XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5

 2
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37A30

XZU605,655,685,695..DCB..20T

 1
44912-37C70

XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZU605,645,655..SCB..(CBU,IV3);XZC60#,645,655,XZU600,650..(T2,T3,T4,T5)..20T..WT

 1
Common parts
47371-37040
90466-16004
91551-80816
91551-80820
91552-81035
94151-80800
95446-09230
96133-41500
Linked diagrams
4711
8401

ILLUST NO. 1 OF 2(7708- )HU30,JU20,RU2#,3#

Click highlighted areas on diagram

diagram 44601 44608 44610 44610K 44626 44629 44642 44643 44645 44657A 44662 44662A 44662B 44662C 44662E 44662F 44662G 44669 44696 44697 44697A 44730 44758 4702 9017908146 9331914008 9411070600 9412041000
Part # Description Qty Price
Common parts
90179-08146
93319-14008
94110-70600
94120-41000
Linked diagrams
4702

ILLUST NO. 2 OF 2(7708- )

Click highlighted areas on diagram

diagram 44704 44730 44730A 44730A 44730F 44738 44738 44743 44743 44754 44754 44764 44764 44764A 44764A 44764F 44765 44765 44765B 44773 44774 44774 44774 44786 44786 9011908126 9011908126 9011908126 9017908146 9046108050 9046110376 9046112090 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9161140610 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9165140816 9165140816 9165140816 9165140816 9165140816 9165140820 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800
Part # Description Qty Price
Common parts
90119-08126
90179-08146
90461-08050
90461-10376
90461-12090
90467-16141
91611-40610
91611-40820
91651-40816
91651-40820
94110-40800
