XZU655-PQMMB3 (2011)
Toyota Dyna/Toyoace

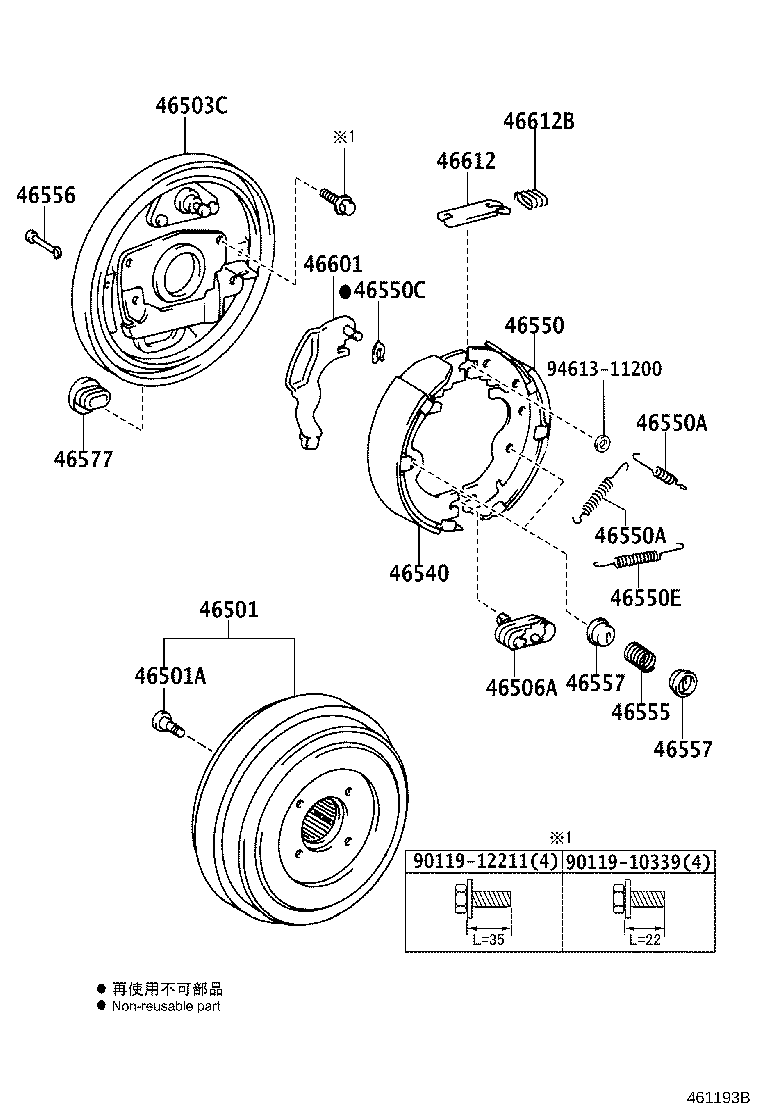

ILLUST NO. 2 OF 2(1107- )BZU600,TRC600,TRU600,XZC60#,645,655,XZU600,605,640,645,650,655..20T,30T.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-37060 |
XZU650..5F..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..5F..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..5F..(CBU,IV3,IV4,IV7) |
1 | ||
| 46501-37060 |
XZU650..5F..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..5F..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..5F..(CBU,IV3,IV4,IV7) |
1 | ||
| 46501-37060 |
XZU650..5F..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..5F..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..5F..(CBU,IV3,IV4,IV7) |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90031-01170 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 90031-01170 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 90031-01170 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-37681 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 46503-37681 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 46503-37681 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 46506A - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46506-36010 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 46506-36010 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 46506-36010 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46530-37030 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 46530-37030 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 46530-37030 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46530-37030 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 46530-37030 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 46530-37030 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18001 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
2 | ||
| 90506-18001 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
2 | ||
| 90506-18001 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18001 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
2 | ||
| 90506-18001 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
2 | ||
| 90506-18001 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06003 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 90213-06003 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 90213-06003 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 90506-14012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 90506-14012 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-16025 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
2 | ||
| 90501-16025 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
2 | ||
| 90501-16025 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 47447-22010 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
2 | ||
| 47447-22010 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
2 | ||
| 47447-22010 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 47449-20011 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 47449-20011 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 47449-20011 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 47449-20011 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 46577 - COVER, ADJUSTING CAM HOLE | ||||
| 46577-36010 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 46577-36010 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 46577-36010 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46601-37680 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 46601-37680 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 46601-37680 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| 46612-36010 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 46612-36010 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 46612-36010 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-10001 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 90504-10001 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 90504-10001 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| Common parts | ||||
| 90119-10339 | ||||
| 90119-12211 | ||||
| 94613-11200 | ||||

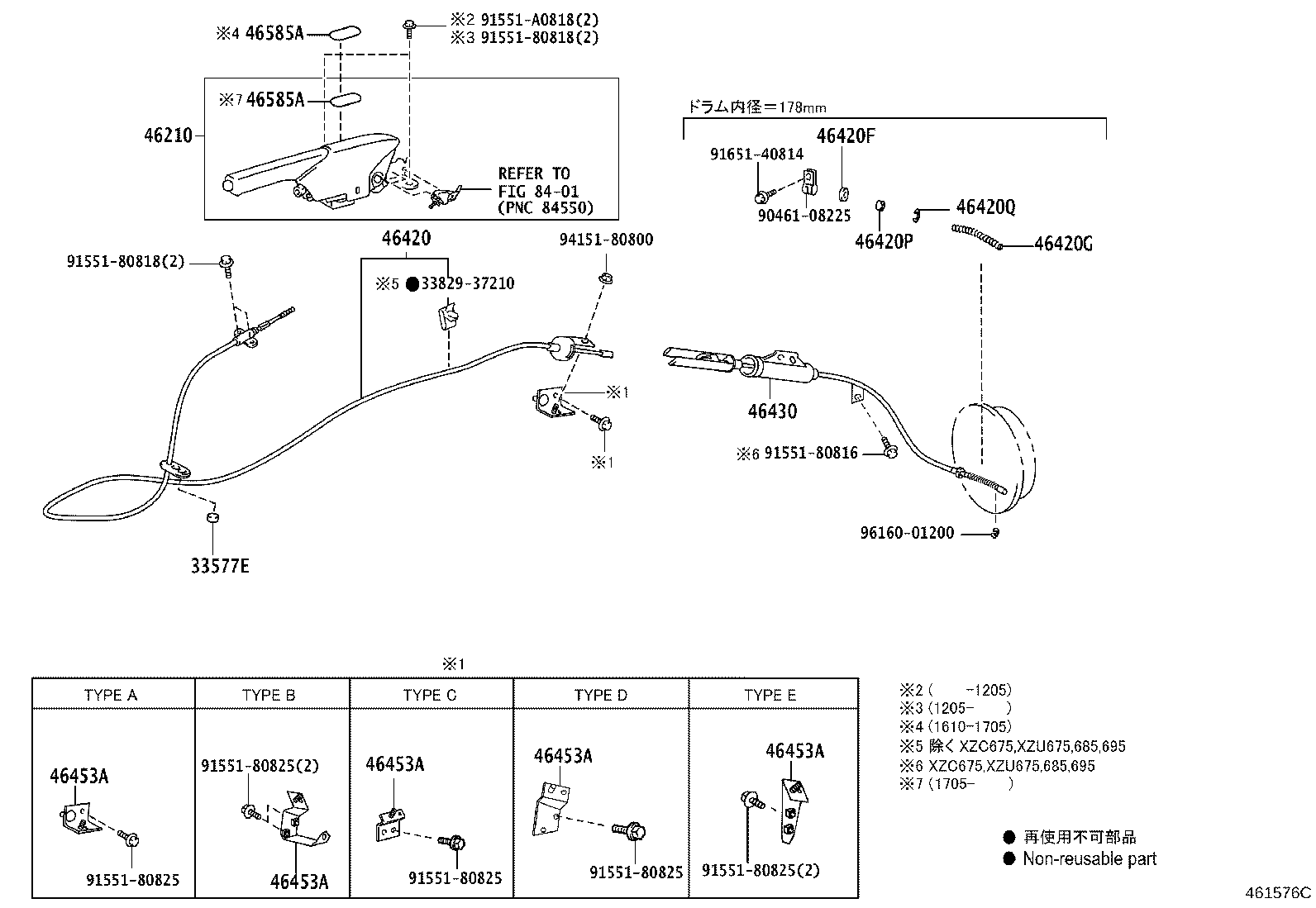

ILLUST NO. 1 OF 2(1107- )DCRTH,DCRTJ,DCRTK,DCRVT,EFI,LPG
ﾅｼ(ﾃﾞﾝﾄﾞｳﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37150C0 |
XZC600..5F..ST;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZU650..(20T,35T)..(CBU,IV3);BZU600,XZU640..5F..(DCRTK,LPG);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM7,T2,T3,T4,T5)..WT..(CBU,IV3,IV4) BLACK,TRIM1# |
1 | ||
| 46210-37130C0 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU600..6FC..30T..IV6;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV4 BLACK,TRIM1# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37850 |
XZC600..5F..ST;XZU605,645,655..CBU,IV3;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU600,650..(03S,T2,T3,T4,T5)..20T..WT |
1 | ||
| 46420-37B80 |
XZU645,655..6FC..30T;XZU650..T3..5F..30T..DCRTJ..CBU;XZU605,645,655..SCB..5F..(CBU,IV3);XZC60#,645,655,XZU600,650..(T2,T3,T4,T5)..5F..20T ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46420F - SEAL, DUST(FOR PARKING BRAKE CABLE) | ||||
| 90303-10001 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 46420G - SPRING(FOR PARKING CABLE INNER WIRE SET) | ||||
| 90501-14003 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 46420P - SPACER, PARKING BRAKE | ||||
| 90560-08002 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 46420Q - RING, E(FOR PARKING BRAKE CABLE) | ||||
| 96160-00700 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC610,630,XZU610,620..6FC;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU60#,645,655..(03S,DM3,T2,T3,T4,T5)..WT..(CBU,IV3,IV4,IV7) |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37860 |
XZU600,650..(T3,T4,T5)..5F..20T;XZU650..T3..5F..30T..DCRTJ..CBU;XZC60#,645,655,XZU605,645,655..(03S,T2,T3,T4,T5)..5F..(CBU,IV3) |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37260 |
XZU605,645,655;XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU600,650..(03S,T2,T3,T4,T5)..20T..WT |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37260 |
XZU605,645,655;XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU600,650..(03S,T2,T3,T4,T5)..20T..WT |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37260 |
XZU605,645,655;XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU600,650..(03S,T2,T3,T4,T5)..20T..WT |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37260 |
XZU605,645,655;XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU600,650..(03S,T2,T3,T4,T5)..20T..WT |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37260 |
XZU605,645,655;XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU600,650..(03S,T2,T3,T4,T5)..20T..WT |
1 | ||
| 46585A - LABEL, PARKING BRAKE NOTICE | ||||
| 46585-37020 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV4,IV7 |
1 | ||
| 46585-37030 |
XZC610,630,XZU610,620..6FC;XZC60#,645,655,XZU60#,64#,65#..(03S,DM3,T2,T3,T4,T5)..(20T,30T)..(CBU,IV3,IV4,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| 46585A - LABEL, PARKING BRAKE NOTICE | ||||
| 46585-37020 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..CBU,IV3,IV4,IV7 |
1 | ||
| 46585-37030 |
XZC610,630,XZU610,620..6FC;XZC60#,645,655,XZU60#,64#,65#..(03S,DM3,T2,T3,T4,T5)..(20T,30T)..(CBU,IV3,IV4,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ) |
1 | ||
| Common parts | ||||
| 33829-37210 | ||||
| 90461-08225 | ||||
| 91551-80816 | ||||
| 91551-80818 | ||||
| 91551-80825 | ||||
| 91551-A0818 | ||||
| 91651-40814 | ||||
| 94151-80800 | ||||
| 96160-01200 | ||||
| Linked diagrams | ||||
| 8401 | ||||

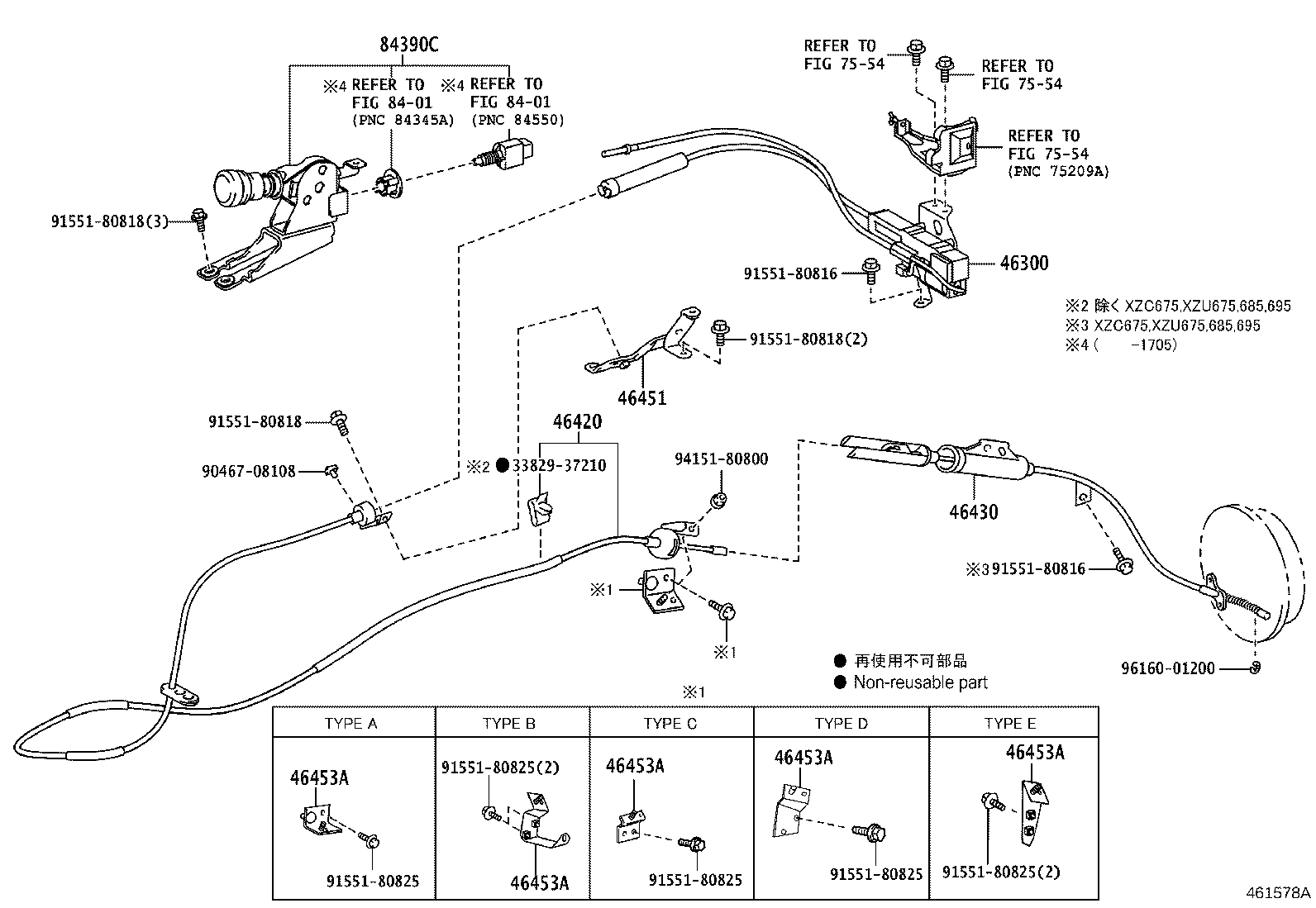

ILLUST NO. 1 OF 2(1305- )DCRTH,DCRTJ,DCRTK,DCRVT,EFI,LPG
ｱﾘ(ﾃﾞﾝﾄﾞｳﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37850 |
XZC600..5F..ST;XZU605,645,655..CBU,IV3;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU600,650..(03S,T2,T3,T4,T5)..20T..WT |
1 | ||
| 46420-37B80 |
XZU645,655..6FC..30T;XZU650..T3..5F..30T..DCRTJ..CBU;XZU605,645,655..SCB..5F..(CBU,IV3);XZC60#,645,655,XZU600,650..(T2,T3,T4,T5)..5F..20T ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37860 |
XZU600,650..(T3,T4,T5)..5F..20T;XZU650..T3..5F..30T..DCRTJ..CBU;XZC60#,645,655,XZU605,645,655..(03S,T2,T3,T4,T5)..5F..(CBU,IV3) |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37260 |
XZU605,645,655;XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU600,650..(03S,T2,T3,T4,T5)..20T..WT |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37260 |
XZU605,645,655;XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU600,650..(03S,T2,T3,T4,T5)..20T..WT |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37260 |
XZU605,645,655;XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU600,650..(03S,T2,T3,T4,T5)..20T..WT |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37260 |
XZU605,645,655;XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU600,650..(03S,T2,T3,T4,T5)..20T..WT |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37260 |
XZU605,645,655;XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU600,650..(03S,T2,T3,T4,T5)..20T..WT |
1 | ||
| Common parts | ||||
| 33829-37210 | ||||
| 90467-08108 | ||||
| 91551-80816 | ||||
| 91551-80818 | ||||
| 91551-80825 | ||||
| 94151-80800 | ||||
| 96160-01200 | ||||
| Linked diagrams | ||||
| 7554 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-10470 | ||||
| 90119-10338 | ||||
| 94531-01000 | ||||
| 94613-11200 | ||||
ILLUST NO. 2 OF 3(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-10443 | ||||
| 90101-10470 | ||||
| 90119-10338 | ||||
| 94531-01000 | ||||
| 94613-11200 | ||||
ILLUST NO. 1 OF 3(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90461-08225 | ||||
| 90468-08001 | ||||
| 91611-40812 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 94120-40600 | ||||
| 94512-01000 | ||||
| 95381-02520 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
