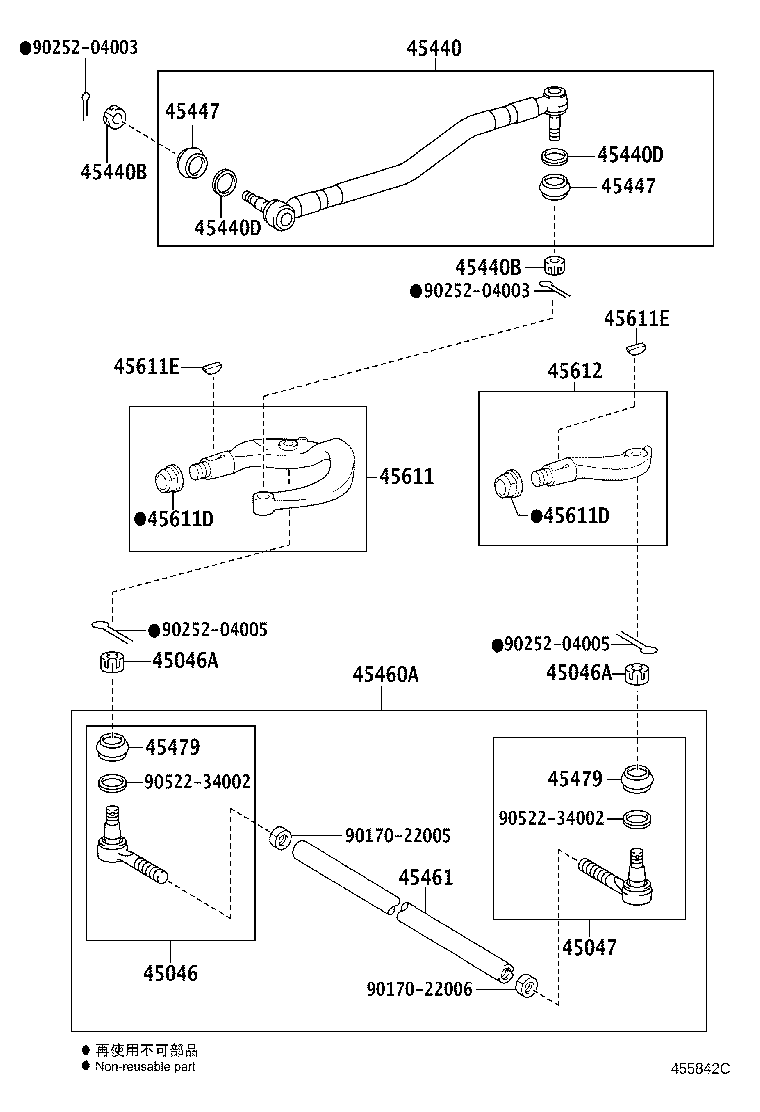

Toyota Dyna/toyoace XZU655 FRONT STEERING GEAR & LINK

Part #	Description	Period	Qty
45046 - END SUB-ASSY, TIE ROD, RH
45046-37120	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-16005	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-16005	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	2
45047 - END SUB-ASSY, TIE ROD, LH
45046-37120	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	1
45479 - SEAL, STEERING LINK JOINT DUST
45479-37030	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	2
45479 - SEAL, STEERING LINK JOINT DUST
45479-37030	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	2
Common parts
90170-22005
90170-22006
90252-04003
90252-04005
90522-34002

Part #	Description	Period	Qty
44200 - LINK ASSY, POWER STEERING
44200-37080	XZU605..T4..30T;XZC605,XZU605..T2,T5;XZC645,655,XZU645,655	07/2011 - 05/2017	1
44222A - COVER, DUST(FOR POWER STEERING GEAR)
45222-37030	XZC605,645,655,XZU605,645,655..03S,T2,T3,T4,T5	07/2011 - 05/2017	1
44418A - TUBE, STEERING RIGHT TURN PRESSURE
44418-37050	XZC605,645,655,XZU605,645,655..03S,T2,T3,T4,T5	07/2011 - 05/2017	1
44419A - TUBE, STEERING LEFT TURN PRESSURE
44419-37050	XZC605,645,655,XZU605,645,655..03S,T2,T3,T4,T5	07/2011 - 05/2017	1
44539C - RING, SET(FOR POWER STEERING RACK END DUST SEAL)
90522-30034	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	2
44539C - RING, SET(FOR POWER STEERING RACK END DUST SEAL)
90522-30034	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	2
45046 - END SUB-ASSY, TIE ROD, RH
45046-37120	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-16005	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-16005	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	2
45047 - END SUB-ASSY, TIE ROD, LH
45046-37120	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	1
45479 - SEAL, STEERING LINK JOINT DUST
45479-37030	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	2
45479 - SEAL, STEERING LINK JOINT DUST
45479-37030	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	2
45503 - END SUB-ASSY, STEERING RACK
45503-37030	XZC605,645,655,XZU605,645,655..03S,T2,T3,T4,T5	07/2011 - 05/2017	2
45503 - END SUB-ASSY, STEERING RACK
45503-37030	XZC605,645,655,XZU605,645,655..03S,T2,T3,T4,T5	07/2011 - 05/2017	2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-24001	XZC605,645,655,XZU605,645,655..03S,T2,T3,T4,T5 外径=47	07/2011 - 05/2017	2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-24001	XZC605,645,655,XZU605,645,655..03S,T2,T3,T4,T5 外径=47	07/2011 - 05/2017	2
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-37020	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	1
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-37010	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	1
45535 - BOOT, STEERING RACK, NO.1
45535-37010	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	2
45535 - BOOT, STEERING RACK, NO.1
45535-37010	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-62006	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-62006	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	1
Common parts
90119-16007
90170-19001
90252-04003
94151-21641
96134-42300

Part #	Description	Period	Qty	Price
Common parts
91161-51250
91619-61250
94115-41200
94512-01200
95381-03025
95381-03045
95381-04035
96451-00600
96456-00609

XZU655-PQMMB3 (2011)

ILLUST NO. 1 OF 2(1107- )BZU600,TRC600,TRU600,XZC600,610,630,XZU600,602,610,620,630,640,642,650,6

ILLUST NO. 2 OF 2(1107- )BZU600,TRC600,TRU600,XZC600,610,630,XZU600,602,610,620,630,640,642,650,6

(1107- )XZC605,645,655,XZU605,645,655

(7708- )HU30,JU20,RU2#,3#
