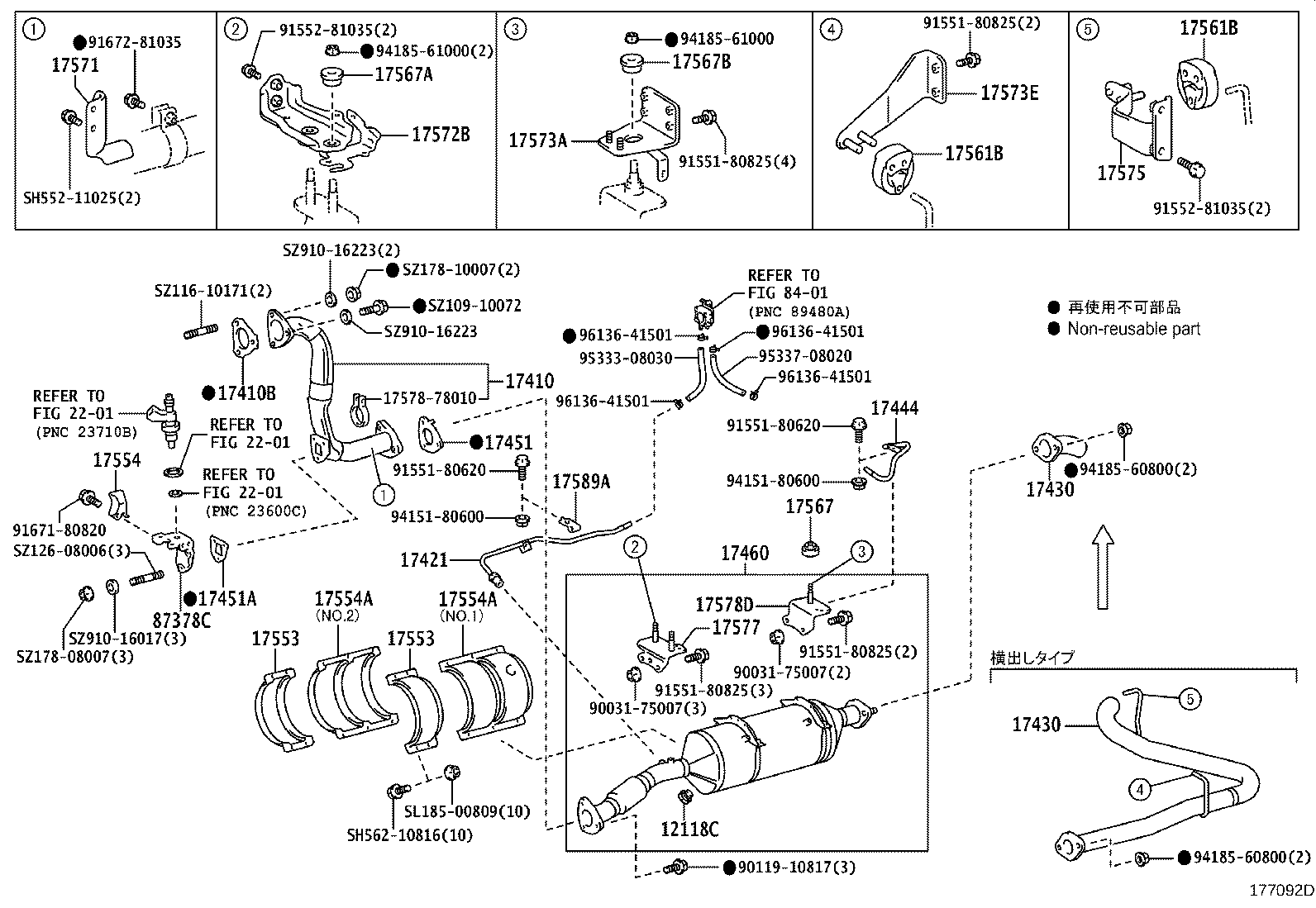

XZU655-PQMMB3 (2011)
Toyota Dyna/Toyoace
(1107- )N04C..XZC655,XZU65#..DCRTJ,DCRTK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12118C - PLUG, DRAIN | ||||
| 12118-78010 |
N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-E0Q50 |
N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-E0110 |
N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT |
1 | ||
| 17421 - PIPE, EXHAUST, NO.2 | ||||
| 17421-78130 |
N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU600..MTM..(CBU,IV3,IV5,IV6);N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC60#,610,630,645,655,XZU605,610,620,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78G70 |
N04C..XZC600..5F..ST;N04C..XZU620,630,645,655;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZU600..SCB..(T3,T4)..6FC..(20T,30T);N04C..XZU600..(T3,T4,T5)..MTM..(CBU,IV3,IV6);N04C..XZC60#,610,630,645,655,XZU605,610,650..(DCB,SCB)..(20T,35T)..WT |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78G70 |
N04C..XZC600..5F..ST;N04C..XZU620,630,645,655;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZU600..SCB..(T3,T4)..6FC..(20T,30T);N04C..XZU600..(T3,T4,T5)..MTM..(CBU,IV3,IV6);N04C..XZC60#,610,630,645,655,XZU605,610,650..(DCB,SCB)..(20T,35T)..WT |
1 | ||
| 17444 - PIPE, EXHAUST, NO.4 | ||||
| 17444-78100 |
N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU600..MTM..(CBU,IV3,IV5,IV6);N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC60#,610,630,645,655,XZU605,610,620,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-78061 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 17451-78060 |
N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..5F..DCRTK;N04C..XZU685..CBU,IV3,IV4;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC60#,645,655,675,XZU60#,645,655,675,695..(03S,DM5,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 17451A - GASKET, EXHAUST PIPE, NO.2 | ||||
| 17451-E0121 |
N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT |
1 | ||
| 17460 - CONVERTER ASSY, CATALYTIC W/PIPE | ||||
| 17406-78300 |
N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZU600..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV5,IV6);N04C..XZC60#,645,655,XZU605,645,655..(03S,T2,T3,T4,T5)..WT |
1 | ||
| 17553 - INSULATOR, EXHAUST PIPE HEAT, NO.3 | ||||
| 17553-78020 |
N04C..XZU600..6F;N04C..XZU685..IV4;N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,645,655,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 17553 - INSULATOR, EXHAUST PIPE HEAT, NO.3 | ||||
| 17553-78020 |
N04C..XZU600..6F;N04C..XZU685..IV4;N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,645,655,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 17554 - INSULATOR, EXHAUST PIPE HEAT, FRONT | ||||
| 17554-78101 |
N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT |
1 | ||
| 17554A - INSULATOR, EXHAUST PIPE HEAT, NO.4 | ||||
| 17554-78080 |
N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT NO.1 |
1 | ||
| 17554-78090 |
N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT NO.2 |
1 | ||
| 17554A - INSULATOR, EXHAUST PIPE HEAT, NO.4 | ||||
| 17554-78080 |
N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT NO.1 |
1 | ||
| 17554-78090 |
N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT NO.2 |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78040 |
N04C..XZU600..6F;N04C..XZU685..IV4;N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,645,655,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78030 |
N04C..XZU600..6F;N04C..XZU685..IV4;N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,645,655,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17567-78030 |
N04C..XZU600..6F;N04C..XZU685..IV4;N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,645,655,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-E0480 |
N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17572-78330 |
N04C..XZU685..IV4;N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU600..SCB..MTM;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC60#,645,655,XZU605,645,655,695..(03S,T2,T3,T4,T5)..WT |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-78380 |
N04C..XZC655,XZU655;N04C..XZU650..20T,35T;N04C..XZU650..T3..30T..DCRTJ..CBU |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 17577-78190 |
N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU600..MTM..(CBU,IV3,IV5,IV6);N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC60#,610,630,645,655,XZU605,610,620,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
1 | ||
| 17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8 | ||||
| 17578-78270 |
N04C..XZC600..5F..ST;N04C..XZU650..20T,35T;N04C..XZU640..T4..5F..IV3;N04C..XZU640..SCB..30T..DCRTK;N04C..XZU600..SCB..6FC..(20T,30T);N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU600..MTM..(CBU,IV3,IV5,IV6);N04C..XZU640..T3..(6F,6FC)..(IV3,IV6);N04C..XZC60#,610,630,645,655,XZU605,610,620,630,645,655..(03S,DM5,DM7,T2,T3,T4,T5)..WT |
1 | ||
| 17589A - CLAMP, EXHAUST PIPE | ||||
| 17589-78021 |
N04C..XZU600..6F;N04C..XZC600..5F..ST;N04C..XZU640..5F..DCRTK;N04C..XZU640..T4..5F..IV3;N04C..XZU650..T3..30T..DCRTJ..CBU;N04C..XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);N04C..XZC605,XZU650..(03S,T2,T3,T4,T5)..(20T,35T);N04C..XZC600,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(20T,30T)..WT |
1 | ||
| 87378C - PIPE, EXHAUST | ||||
| 87378-E0033 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5 |
1 | ||
| 87378-E0032 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| Common parts | ||||
| 17578-78010 | ||||
| 90031-75007 | ||||
| 90119-10817 | ||||
| 91551-80620 | ||||
| 91551-80825 | ||||
| 91552-81035 | ||||
| 91671-80820 | ||||
| 91672-81035 | ||||
| 94151-80600 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| 95333-08030 | ||||
| 95337-08020 | ||||
| 96136-41501 | ||||
| SH552-11025 | ||||
| SH562-10816 | ||||
| SL185-00809 | ||||
| SZ109-10072 | ||||
| SZ116-10171 | ||||
| SZ126-08006 | ||||
| SZ178-08007 | ||||
| SZ178-10007 | ||||
| SZ910-16017 | ||||
| SZ910-16223 | ||||
| Linked diagrams | ||||
| 2201 | ||||
| 8401 | ||||
