XZU652-TKFRC3 (2017)
Toyota Dyna/Toyoace
(1705- )XZU600,640,650..DCRVT ; (1905- )6F..DCRWD,DCVTO..IV6 ; (1905- )XZU
ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ(ｱﾀﾞﾌﾟﾀﾀｲﾌﾟ) 25KG

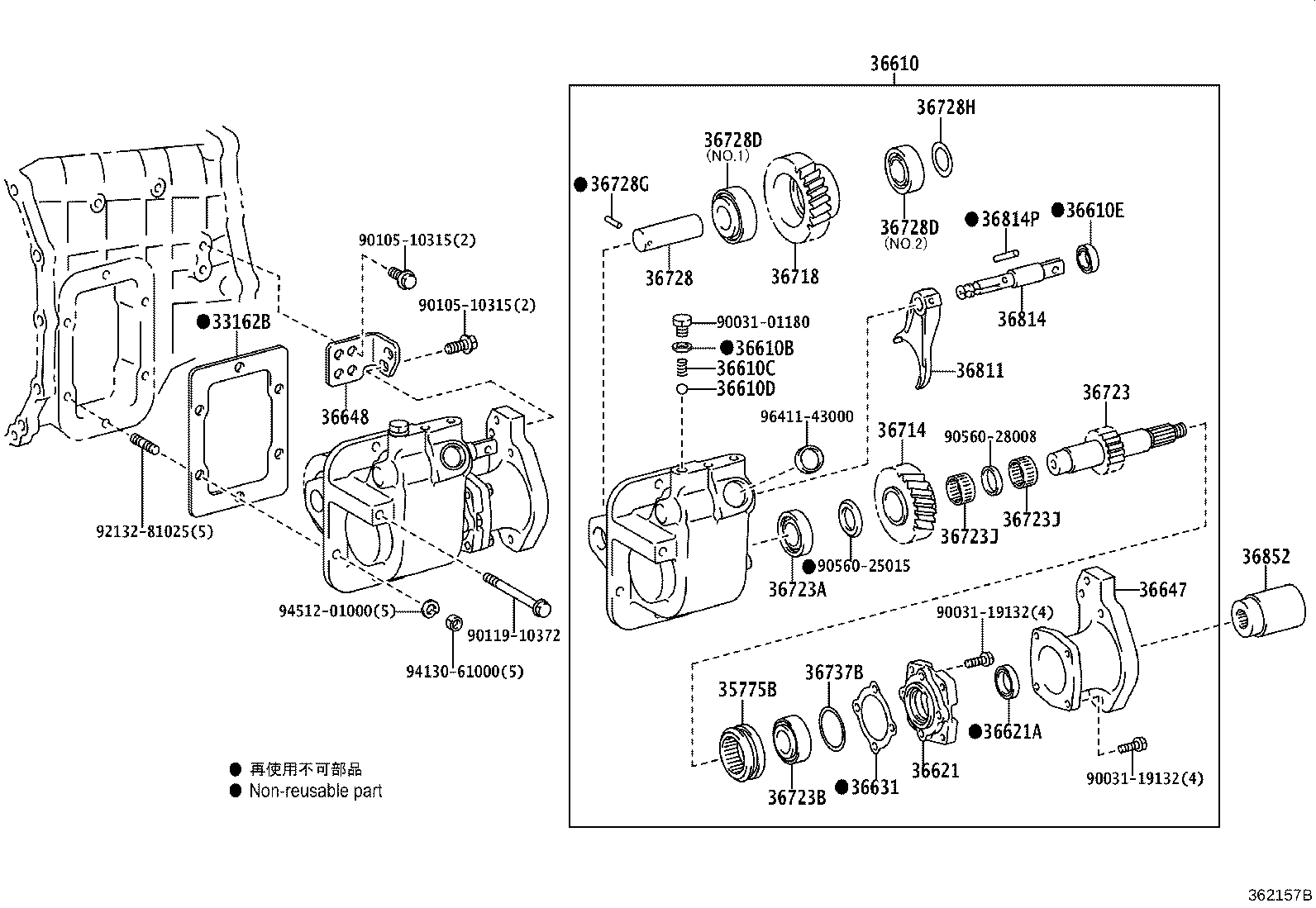

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| SU002-01095 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37291 |
XZU642..DCRTK;XZU652..DCRTK..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| SU002-01099 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| SU002-00894 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| SU002-00752 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| SU002-01030 |
XZU652..DCRTK..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| SU002-00761 |
XZU652..DCRTK..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| SU002-00831 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| SU002-00740 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| SU002-00740 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| SU002-00850 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| SU002-00743 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| SU002-00743 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| SU002-00725 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| SU002-00839 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.60,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00840 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.65,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00838 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.50,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00841 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.70,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00843 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.85,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00842 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.80,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| Common parts | ||||
| 90031-01180 | ||||
| 90031-19132 | ||||
| 90105-10315 | ||||
| 90119-10372 | ||||
| 90560-25015 | ||||
| 90560-28008 | ||||
| 92132-81025 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 96411-43000 | ||||
(1705- )XZU600,640,650..DCRVT ; (1905- )XZU600,642..6F..40T..DCRWD,DCVTO ; (1
ﾃﾞﾝｷｼｷ(ﾌﾗﾝｼﾞﾀｲﾌﾟ) 25KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| SU002-01095 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-01095 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37291 |
XZU642..DCRTK;XZU652..DCRTK..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36610-37291 |
XZU642..DCRTK;XZU652..DCRTK..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| SU002-01099 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-01099 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36610M - SOLENOID ASSY, POWER TAKE-OFF | ||||
| SU002-01066 |
XZU652,685..(DCRTJ,DCRTK)..(CBU,IV3);XZC675,XZU642,675,695..(T3,T4)..(DCRTJ,DCRTK) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-01066 |
XZU652,685..(DCRTJ,DCRTK)..(CBU,IV3);XZC675,XZU642,675,695..(T3,T4)..(DCRTJ,DCRTK) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| SU002-00894 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00894 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| SU002-00752 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00752 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| SU002-01030 |
XZU652..DCRTK..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-01030 |
XZU652..DCRTK..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| SU002-00761 |
XZU652..DCRTK..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00761 |
XZU652..DCRTK..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| SU002-00831 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00831 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| SU002-00740 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00740 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| SU002-00740 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00740 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| SU002-00850 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00850 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| SU002-00743 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00743 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| SU002-00743 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00743 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| SU002-00725 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00725 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| SU002-00839 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.60,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00839 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.60,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00840 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.65,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00840 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.65,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00838 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.50,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00838 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.50,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00841 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.70,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00841 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.70,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00843 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.85,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00843 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.85,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00842 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.80,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00842 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.80,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| 36851 - RETAINER, POWER TAKE-OFF JOINT | ||||
| SU002-00898 |
XZU652,685..(DCRTJ,DCRTK)..(CBU,IV3);XZC675,XZU642,675,695..(T3,T4)..(DCRTJ,DCRTK) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00898 |
XZU652,685..(DCRTJ,DCRTK)..(CBU,IV3);XZC675,XZU642,675,695..(T3,T4)..(DCRTJ,DCRTK) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| Common parts | ||||
| 82711-16820 | ||||
| 82715-3VM60 | ||||
| 90031-70107 | ||||
| 90032-01147 | ||||
| 90110-08024 | ||||
| 90119-08124 | ||||
| 90119-10372 | ||||
| 90179-16032 | ||||
| 90201-16038 | ||||
| 90204-08007 | ||||
| 90214-14001 | ||||
| 90501-26102 | ||||
| 90560-25015 | ||||
| 90560-28008 | ||||
| 92132-81025 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 96411-43000 | ||||
(1705- )XZU650..DCRVT ; (1905- )DCVTO..CBU; (1905- )XZU640..T4..DCRWD ; (
ﾃﾞﾝｷｼｷ(ｱﾀﾞﾌﾟﾀﾀｲﾌﾟ) 25KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| SU002-01095 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-01095 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-01095 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37291 |
XZU642..DCRTK;XZU652..DCRTK..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36610-37291 |
XZU642..DCRTK;XZU652..DCRTK..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36610-37291 |
XZU642..DCRTK;XZU652..DCRTK..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| SU002-01099 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-01099 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-01099 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36610M - SOLENOID ASSY, POWER TAKE-OFF | ||||
| SU002-01066 |
XZU652,685..(DCRTJ,DCRTK)..(CBU,IV3);XZC675,XZU642,675,695..(T3,T4)..(DCRTJ,DCRTK) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-01066 |
XZU652,685..(DCRTJ,DCRTK)..(CBU,IV3);XZC675,XZU642,675,695..(T3,T4)..(DCRTJ,DCRTK) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-01066 |
XZU652,685..(DCRTJ,DCRTK)..(CBU,IV3);XZC675,XZU642,675,695..(T3,T4)..(DCRTJ,DCRTK) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| SU002-00894 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00894 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00894 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| SU002-00752 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00752 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00752 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| SU002-01030 |
XZU652..DCRTK..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-01030 |
XZU652..DCRTK..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-01030 |
XZU652..DCRTK..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| SU002-00761 |
XZU652..DCRTK..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00761 |
XZU652..DCRTK..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00761 |
XZU652..DCRTK..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| SU002-00831 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00831 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00831 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| SU002-00740 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00740 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00740 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| SU002-00740 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00740 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00740 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| SU002-00850 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00850 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00850 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| SU002-00743 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00743 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00743 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| SU002-00743 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00743 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00743 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| SU002-00725 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00725 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00725 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| SU002-00839 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.60,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00839 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.60,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00839 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.60,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00840 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.65,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00840 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.65,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00840 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.65,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00838 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.50,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00838 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.50,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00838 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.50,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00841 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.70,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00841 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.70,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00841 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.70,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00843 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.85,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00843 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.85,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00843 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.85,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00842 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.80,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00842 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.80,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00842 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.80,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| Common parts | ||||
| 82711-16820 | ||||
| 82715-3VM60 | ||||
| 90031-19132 | ||||
| 90105-10315 | ||||
| 90110-08024 | ||||
| 90119-10372 | ||||
| 90179-16032 | ||||
| 90201-16038 | ||||
| 90204-08007 | ||||
| 90501-26102 | ||||
| 90560-25015 | ||||
| 90560-28008 | ||||
| 92132-81025 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 96411-43000 | ||||
(1905- )XZC605,645,655,XZU605,640,645..6F..CBU ; (1905- )XZU652,655..6F..30T,
ﾃﾞﾝｷｼｷ(ｱﾀﾞﾌﾟﾀﾀｲﾌﾟ) 25KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| SU002-01095 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-01095 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-01095 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37291 |
XZU642..DCRTK;XZU652..DCRTK..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36610-37291 |
XZU642..DCRTK;XZU652..DCRTK..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36610-37291 |
XZU642..DCRTK;XZU652..DCRTK..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| SU002-01099 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-01099 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-01099 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36610M - SOLENOID ASSY, POWER TAKE-OFF | ||||
| SU002-01066 |
XZU652,685..(DCRTJ,DCRTK)..(CBU,IV3);XZC675,XZU642,675,695..(T3,T4)..(DCRTJ,DCRTK) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-01066 |
XZU652,685..(DCRTJ,DCRTK)..(CBU,IV3);XZC675,XZU642,675,695..(T3,T4)..(DCRTJ,DCRTK) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-01066 |
XZU652,685..(DCRTJ,DCRTK)..(CBU,IV3);XZC675,XZU642,675,695..(T3,T4)..(DCRTJ,DCRTK) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| SU002-00894 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00894 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00894 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| SU002-00752 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00752 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00752 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| SU002-01030 |
XZU652..DCRTK..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-01030 |
XZU652..DCRTK..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-01030 |
XZU652..DCRTK..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| SU002-00761 |
XZU652..DCRTK..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00761 |
XZU652..DCRTK..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00761 |
XZU652..DCRTK..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| SU002-00831 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00831 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00831 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| SU002-00740 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00740 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00740 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| SU002-00740 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00740 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00740 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| SU002-00850 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00850 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00850 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| SU002-00743 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00743 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00743 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| SU002-00743 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00743 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00743 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| SU002-00725 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00725 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| SU002-00725 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| SU002-00839 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.60,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00839 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.60,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00839 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.60,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00840 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.65,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00840 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.65,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00840 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.65,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00838 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.50,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00838 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.50,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00838 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.50,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00841 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.70,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00841 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.70,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00841 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.70,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00843 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.85,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00843 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.85,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00843 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.85,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00842 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.80,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00842 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.80,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| SU002-00842 |
XZC675,XZU652,675,685,695..(T3,T4)..(DCRTJ,DCRTK)..(CBU,IV3) 厚さ=1.80,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式 20KG |
2 | ||
| Common parts | ||||
| 82711-16820 | ||||
| 82715-3VM60 | ||||
| 90031-19132 | ||||
| 90105-10315 | ||||
| 90110-08024 | ||||
| 90119-10372 | ||||
| 90179-16032 | ||||
| 90201-16038 | ||||
| 90204-08007 | ||||
| 90501-26102 | ||||
| 90560-25015 | ||||
| 90560-28008 | ||||
| 92132-81025 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 96411-43000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
