XZU650W-TKFRG6 (2017)
Toyota Dyna/Toyoace

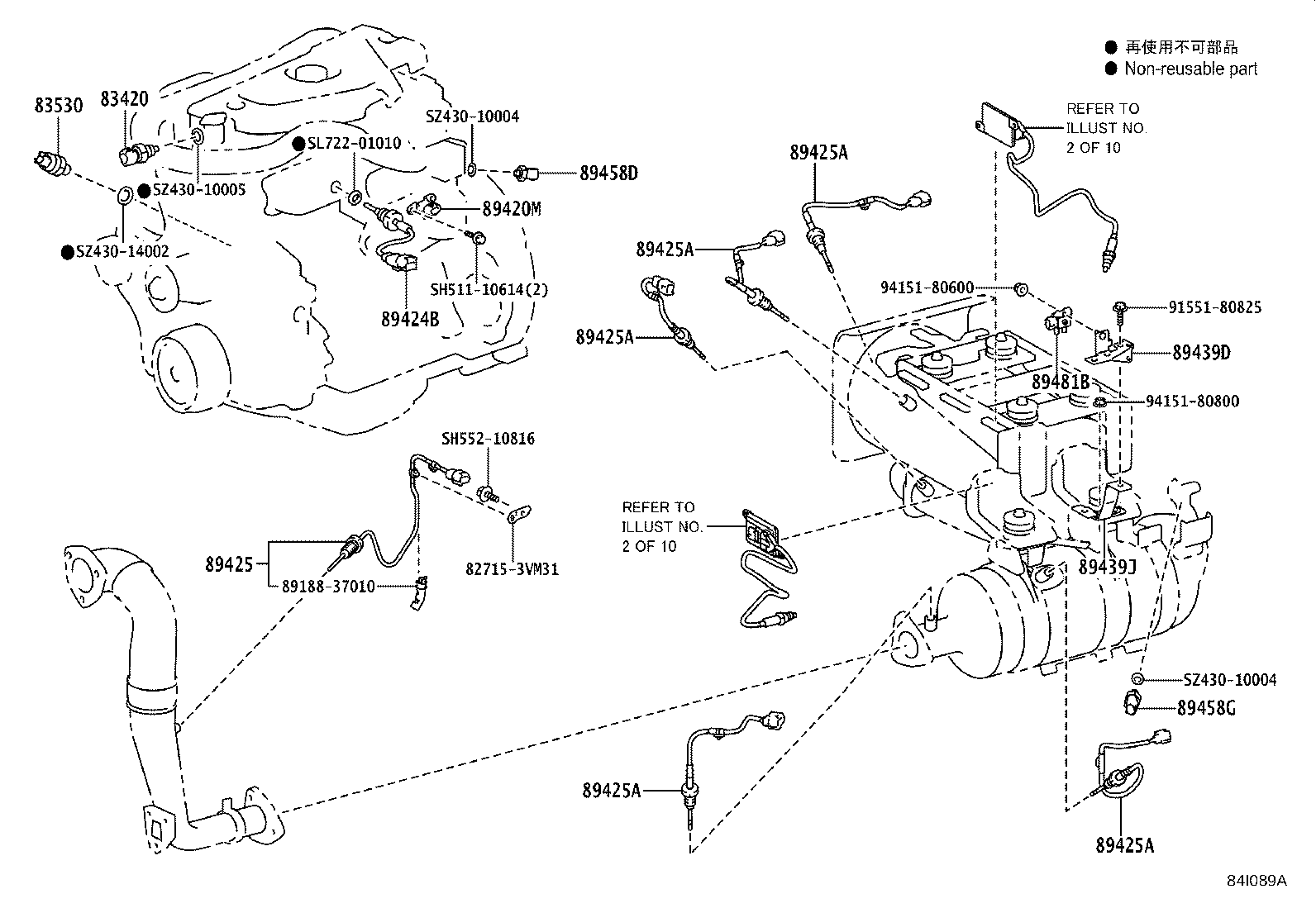

ILLUST NO. 1 OF10(1705- )XZU600,640,650..DCRVT
ｴﾝｼﾞﾝ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| S8342-01250 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-E0250 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 83530-E0220 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 89420M - SENSOR ASSY, AIR PRESSURE | ||||
| 89421-E0050 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 89424B - SWITCH, INLET AIR TEMPERATURE | ||||
| 89424-37020 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-37310 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(DCRTH,DCRTJ,DCRTK,DCRVT)..(CBU,IV3,IV5,IV6) |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XZU600,640,650..DCRVT |
5 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XZU600,640,650..DCRVT |
5 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XZU600,640,650..DCRVT |
5 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XZU600,640,650..DCRVT |
5 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XZU600,640,650..DCRVT |
5 | ||
| 89439D - BRACKET, SENSOR, NO.1 | ||||
| 89439-37391 |
XZU600,640,650..DCRVT |
1 | ||
| 89439-37330 |
XZU600,640,650..DCRVT |
1 | ||
| 89439J - BRACKET, SENSOR, NO.2 | ||||
| 89439-37340 |
XZU600,640,650..DCRVT |
1 | ||
| 89458D - SENSOR, FUEL PRESSURE | ||||
| 89458-E0050 |
XZU600,640,650..DCRVT |
1 | ||
| 89458G - SENSOR, FUEL PRESSURE, NO.2 | ||||
| 89458-E0050 |
XZU600,640,650..DCRVT |
1 | ||
| 89481B - SENSOR, DIFFERENTIAL PRESSURE | ||||
| 89481-E0020 |
XZU600,640,650..DCRVT |
1 | ||
| 89481-E0021 |
XZU600,640,650..DCRVT |
1 | ||
| Common parts | ||||
| 82715-3VM31 | ||||
| 89188-37010 | ||||
| 91551-80825 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| SH511-10614 | ||||
| SH552-10816 | ||||
| SL722-01010 | ||||
| SZ430-10004 | ||||
| SZ430-10005 | ||||
| SZ430-14002 | ||||
ILLUST NO. 6 OF10(1705- )DCRTH,DCRTJ,DCRTK,DCRVT
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-37030 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-37081 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(DCRTH,DCRTJ,DCRTK,DCRVT)..(CBU,IV3,IV5,IV6,IV7) |
1 | ||
| 84160 - SWITCH ASSY, ROOM LAMP | ||||
| 84270-37260 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..SCB..(DCRTH,DCRTJ,DCRTK,DCRVT) ﾙｰﾑﾗﾝﾌﾟ−ﾏｯﾌﾟﾗﾝﾌﾟ & 大型ﾙｰﾑﾗﾝﾌﾟ(LED) |
1 | ||
| 84270A - SWITCH ASSY, MIRROR HEATER | ||||
| 84270-37240 |
XZU600..20T..DCRTJ..IV3;XZU600..(DM6,T3)..(DCRTJ,DCRTK,DCRVT);XZC645,655,XZU640,645,65#,685,695..DCRTJ,DCRTK,DCRVT;XZC60#,610,630,675,XZU602,605,610,620,630,642,675..(DCRTH,DCRTJ,DCRTK,DCRVT)..(IV3,IV6) ｱｳﾀﾐﾗｰ−*DRP(*273 & *LOS & *WIH) |
1 | ||
| 84270-37240 |
XZU600..20T..DCRTJ..IV3;XZU600..(DM6,T3)..(DCRTJ,DCRTK,DCRVT);XZC645,655,XZU640,645,65#,685,695..DCRTJ,DCRTK,DCRVT;XZC60#,610,630,675,XZU602,605,610,620,630,642,675..(DCRTH,DCRTJ,DCRTK,DCRVT)..(IV3,IV6) ｱｳﾀﾐﾗｰ−*DRP(*273 & *LOS & *WIH & *CR(DOP)) |
1 | ||
| 84270B - SWITCH ASSY, BRAKE LOCK | ||||
| 84270-37250 |
XZU600..6FC..IV5;XZU675..30T..DCRTK..IV3;XZU602,605,642,650,652,685..MTM..IV6;XZU600,640,645..(DM6,T3)..MTM..(IV3,IV5,IV6) ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 84270D - SWITCH ASSY, ES START TIMING | ||||
| 84270-37320 |
XZU60#,640,642,650,652,685..MTM..(DCRTJ,DCRTK,DCRVT)..IV6 |
1 | ||
| 84270K - SWITCH ASSY, DPR | ||||
| 84270-37230 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 84270L - SWITCH ASSY, IDLE STOP | ||||
| 84270-37270 |
XZU600,605,652,685..MTM..(DCRTJ,DCRTK)..IV6;XZC60#,610,630,645,655,XZU60#,610,620,64#,650,655..(6F,6FC)..(DCRTH,DCRTJ,DCRTK,DCRVT) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-37110 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 84580E - SWITCH ASSY, THROTTLE POSITION | ||||
| 84581-37030 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 84770A - SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL | ||||
| 84270-37380 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(DCRTH,DCRTJ,DCRTK,DCRVT)..(CBU,IV3,IV5,IV6,IV7) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
XZU600..20T..DCRTJ..IV3;XZU600..(DM6,T3)..(DCRTJ,DCRTK,DCRVT);XZC645,655,XZU640,645,65#,685,695..DCRTJ,DCRTK,DCRVT;XZC60#,610,630,675,XZU602,605,610,620,630,642,675..(DCRTH,DCRTJ,DCRTK,DCRVT)..(IV3,IV6) ｱｳﾀﾐﾗｰ−*DRP(*273 & *LOS & *WIH) |
1 | ||
| 84870-34010 |
XZU600..20T..DCRTJ..IV3;XZU600..(DM6,T3)..(DCRTJ,DCRTK,DCRVT);XZC645,655,XZU640,645,65#,685,695..DCRTJ,DCRTK,DCRVT;XZC60#,610,630,675,XZU602,605,610,620,630,642,675..(DCRTH,DCRTJ,DCRTK,DCRVT)..(IV3,IV6) ｱｳﾀﾐﾗｰ−*DRP(*273 & *LOS & *WIH & *CR(DOP)) |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-52030 |
XZU600..20T..DCRTJ..IV3;XZU600..(DM6,T3)..(DCRTJ,DCRTK,DCRVT);XZC645,655,XZU640,645,65#,685,695..DCRTJ,DCRTK,DCRVT;XZC60#,610,630,675,XZU602,605,610,620,630,642,675..(DCRTH,DCRTJ,DCRTK,DCRVT)..(IV3,IV6) ｱｳﾀﾐﾗｰ−*DRP(*273 & *LOS & *WIH) |
1 | ||
| 84872-52030 |
XZU600..20T..DCRTJ..IV3;XZU600..(DM6,T3)..(DCRTJ,DCRTK,DCRVT);XZC645,655,XZU640,645,65#,685,695..DCRTJ,DCRTK,DCRVT;XZC60#,610,630,675,XZU602,605,610,620,630,642,675..(DCRTH,DCRTJ,DCRTK,DCRVT)..(IV3,IV6) ｱｳﾀﾐﾗｰ−*DRP(*273 & *LOS & *WIH & *CR(DOP)) |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-37030 |
XZU600..20T..DCRTJ..IV3;XZU600..(DM6,T3)..(DCRTJ,DCRTK,DCRVT);XZC645,655,XZU640,645,65#,685,695..DCRTJ,DCRTK,DCRVT;XZC60#,610,630,675,XZU602,605,610,620,630,642,675..(DCRTH,DCRTJ,DCRTK,DCRVT)..(IV3,IV6) ｱｳﾀﾐﾗｰ−*DRS(*TM)､*PAS(*57&*LOS&*TM)､*CR(DOP) |
1 | ||
| 84873-37030 |
XZU600..20T..DCRTJ..IV3;XZU600..(DM6,T3)..(DCRTJ,DCRTK,DCRVT);XZC645,655,XZU640,645,65#,685,695..DCRTJ,DCRTK,DCRVT;XZC60#,610,630,675,XZU602,605,610,620,630,642,675..(DCRTH,DCRTJ,DCRTK,DCRVT)..(IV3,IV6) ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57 & *LOS & *TM(*WVM)) |
1 | ||
| 84873-37030 |
XZU600..20T..DCRTJ..IV3;XZU600..(DM6,T3)..(DCRTJ,DCRTK,DCRVT);XZC645,655,XZU640,645,65#,685,695..DCRTJ,DCRTK,DCRVT;XZC60#,610,630,675,XZU602,605,610,620,630,642,675..(DCRTH,DCRTJ,DCRTK,DCRVT)..(IV3,IV6) ｱｳﾀﾐﾗｰ−*DRP(*273 & *LOS & *WIH & *CR(DOP)) |
1 | ||
| 84873-37030 |
XZU600..20T..DCRTJ..IV3;XZU600..(DM6,T3)..(DCRTJ,DCRTK,DCRVT);XZC645,655,XZU640,645,65#,685,695..DCRTJ,DCRTK,DCRVT;XZC60#,610,630,675,XZU602,605,610,620,630,642,675..(DCRTH,DCRTJ,DCRTK,DCRVT)..(IV3,IV6) ｱｳﾀﾐﾗｰ−*DRP(*273 & *LOS & *WIH) |
1 | ||
| 84873-37030 |
XZU600..20T..DCRTJ..IV3;XZU600..(DM6,T3)..(DCRTJ,DCRTK,DCRVT);XZC645,655,XZU640,645,65#,685,695..DCRTJ,DCRTK,DCRVT;XZC60#,610,630,675,XZU602,605,610,620,630,642,675..(DCRTH,DCRTJ,DCRTK,DCRVT)..(IV3,IV6) ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57 & *LOS & *TM) |
1 | ||
| 84873-37030 |
XZU600..20T..DCRTJ..IV3;XZU600..(DM6,T3)..(DCRTJ,DCRTK,DCRVT);XZC645,655,XZU640,645,65#,685,695..DCRTJ,DCRTK,DCRVT;XZC60#,610,630,675,XZU602,605,610,620,630,642,675..(DCRTH,DCRTJ,DCRTK,DCRVT)..(IV3,IV6) ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57 & *LOS & *TM(*WVM)) |
1 | ||
| 84986C - SWITCH, VSC OFF | ||||
| 84270-37300 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-37050 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-95400 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 87290F - SWITCH ASSY, ECO | ||||
| 84270-37410 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..MTM..(DCRTH,DCRTJ,DCRTK,DCRVT) |
1 | ||
| Linked diagrams | ||||
| 7851 | ||||
| 8413 | ||||
| 8420 | ||||
| 8609 | ||||

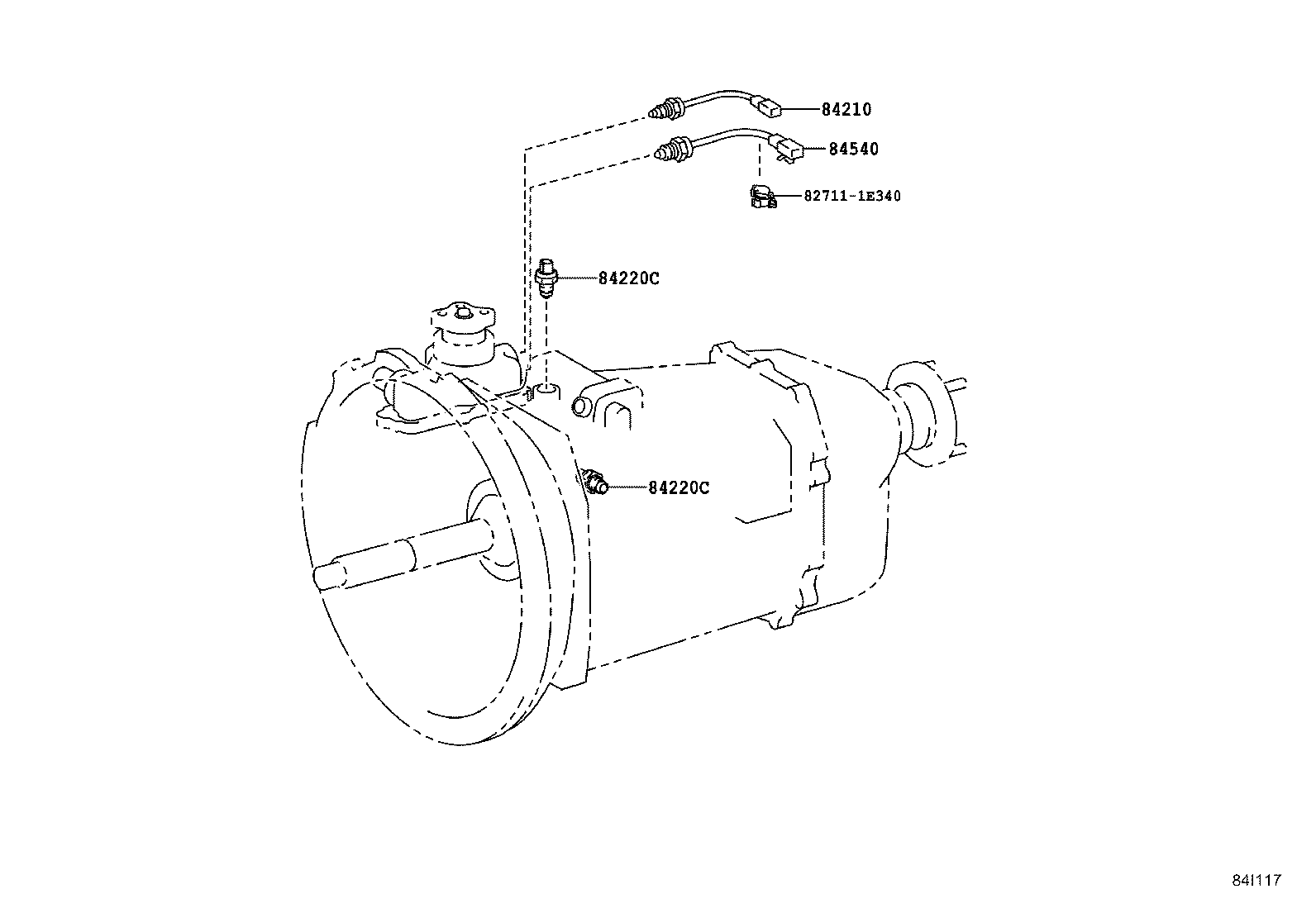

ILLUST NO. 3 OF10(1705- )XZU600,640,650..DCRVT
ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-37050 |
XZU600,640,650..DCRVT |
1 | ||
| 84220C - SWITCH ASSY, TRANSMISSION POSITION INDICATOR | ||||
| 84220-37010 |
XZU600,640,650..DCRVT |
2 | ||
| 84220C - SWITCH ASSY, TRANSMISSION POSITION INDICATOR | ||||
| 84220-37010 |
XZU600,640,650..DCRVT |
2 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-37090 |
XZU600,640,650..DCRVT |
1 | ||
| Common parts | ||||
| 82711-1E340 | ||||

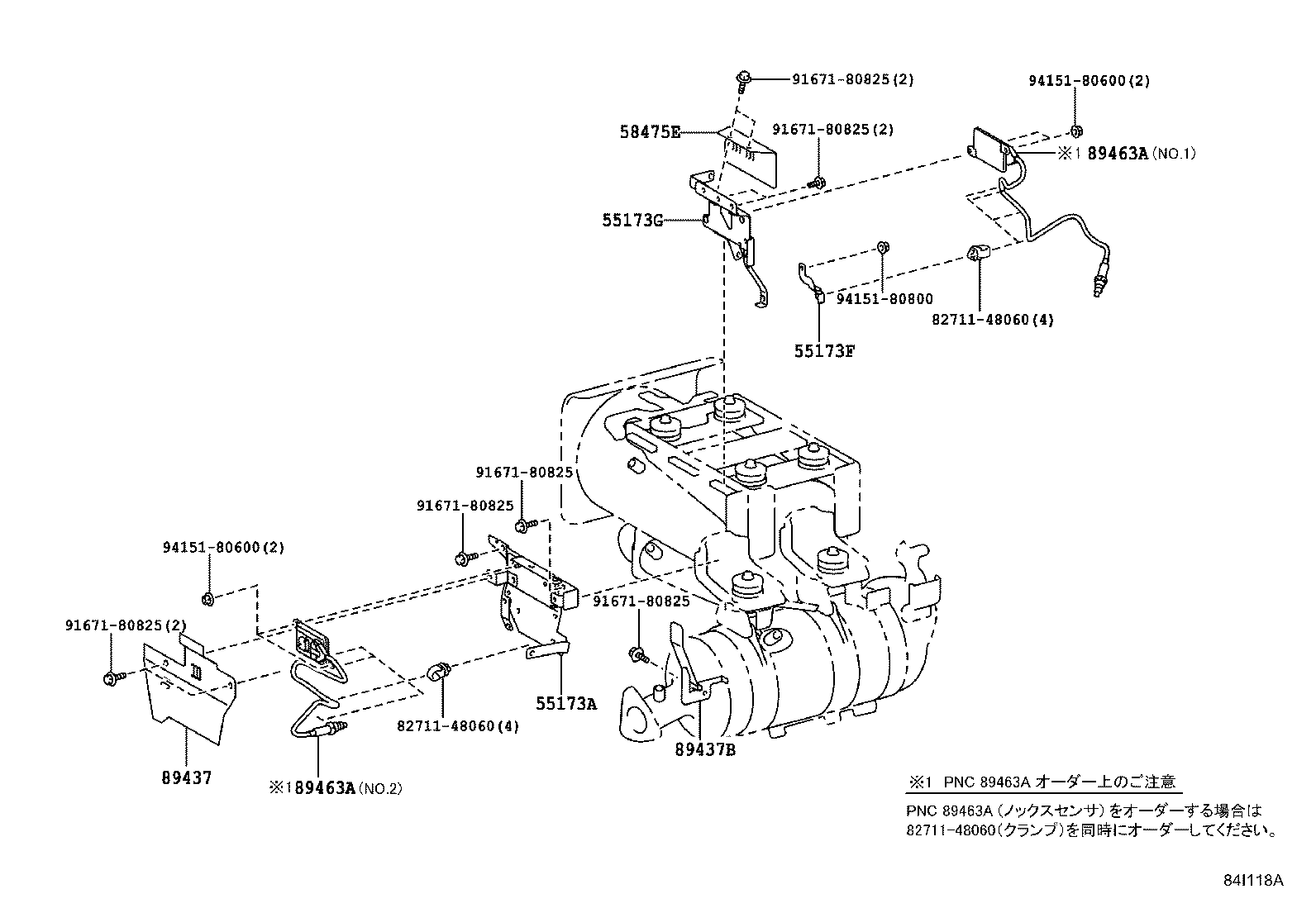

ILLUST NO. 2 OF10(1705- )XZU600,640,650..DCRVT
ｴﾝｼﾞﾝ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55173A - BRACKET | ||||
| 55173-37770 |
XZU600,640,650..DCRVT |
1 | ||
| 55173F - BRACKET, ELECTRICAL PART | ||||
| 55173-37760 |
XZU600,640,650..DCRVT |
1 | ||
| 55173G - BRACKET, ELECTRICAL PART, NO.2 | ||||
| 55173-37750 |
XZU600,640,650..DCRVT |
1 | ||
| 58475E - COVER, ECU SERVICE | ||||
| 58475-37060 |
XZU600,640,650..DCRVT |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 58475-37070 |
XZU600,640,650..DCRVT |
1 | ||
| 89437B - COVER, SENSOR | ||||
| 58475-37080 |
XZU600,640,650..DCRVT |
1 | ||
| 89463A - SENSOR, NITROGEN OXIDES | ||||
| 89463-E0013 |
XZU600,640,650..DCRVT NO.1,NO.2 |
1 | ||
| 89463A - SENSOR, NITROGEN OXIDES | ||||
| 89463-E0013 |
XZU600,640,650..DCRVT NO.1,NO.2 |
1 | ||
| Common parts | ||||
| 82711-48060 | ||||
| 91671-80825 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
ILLUST NO.10 OF10(1705- )DCRTH,DCRTJ,DCRTK,DCRVT
ﾘﾔﾎﾞﾃﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80374 |
XZU685..DCRTK..IV4;XZU605,685..SCB..(DCRTJ,DCRTK);XZC60#,610,630,645,655,675,XZU600,602,610,620,630,64#,65#,675,695..(DCB,SCB)..(DCRTH,DCRTJ,DCRTK,DCRVT) |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80374 |
XZU685..DCRTK..IV4;XZU605,685..SCB..(DCRTJ,DCRTK);XZC60#,610,630,645,655,675,XZU600,602,610,620,630,64#,65#,675,695..(DCB,SCB)..(DCRTH,DCRTJ,DCRTK,DCRVT) |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 86650E - BUZZER ASSY | ||||
| 86650-37070 |
XZU600..6FC..IV5;XZU675..30T..DCRTK..IV3;XZU602,605,642,650,652,685..MTM..IV6;XZU600,640,645..(DM6,T3)..MTM..(IV3,IV5,IV6) ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 86650H - BUZZER ASSY, BACK | ||||
| 86650-37180 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 86650-37181 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| Common parts | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 91611-B0816 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 94151-80800 | ||||
