XZU650W-TKFRG6 (2017)

Toyota Dyna/Toyoace

Production May 2017 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1705- )6F..DCRVT,DCRWD,DCVTO

Click highlighted areas on diagram

RE60,RE62

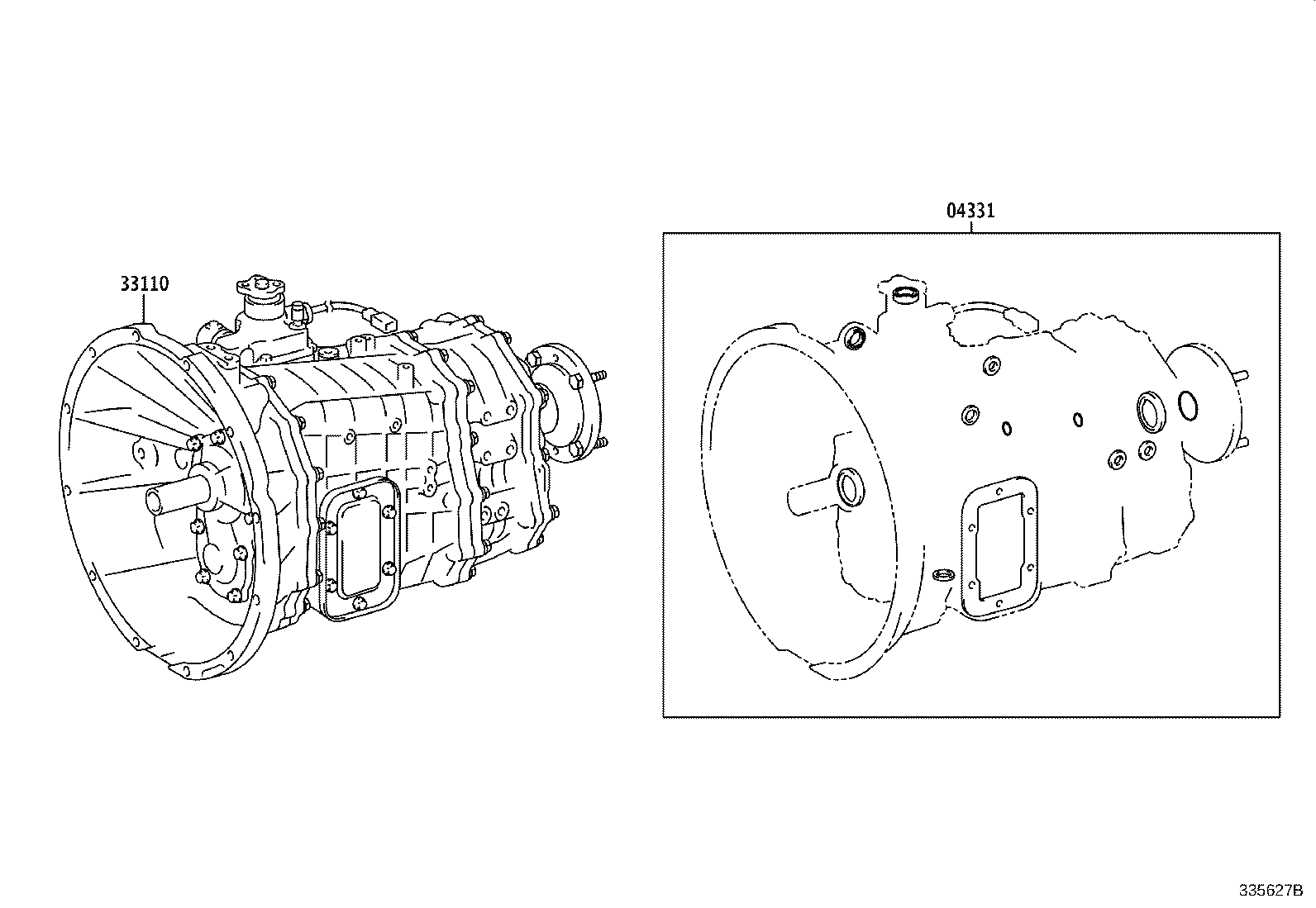

diagram 04331 33110
Part # Description Qty Price
04331 - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-37440

XZU600,640,650..DCRVT

 1
33110 - TRANSMISSION ASSY, MANUAL
33110-37P10

XZU600,640,650..DCRVT

RE60

 1
33110-37P11

XZU600,640,650..DCRVT

RE60

 1
33110-37M21

XZU600,640,650..DCRVT

RE60

 1
