XZU650W-TKFRG6 (2017)
Toyota Dyna/Toyoace

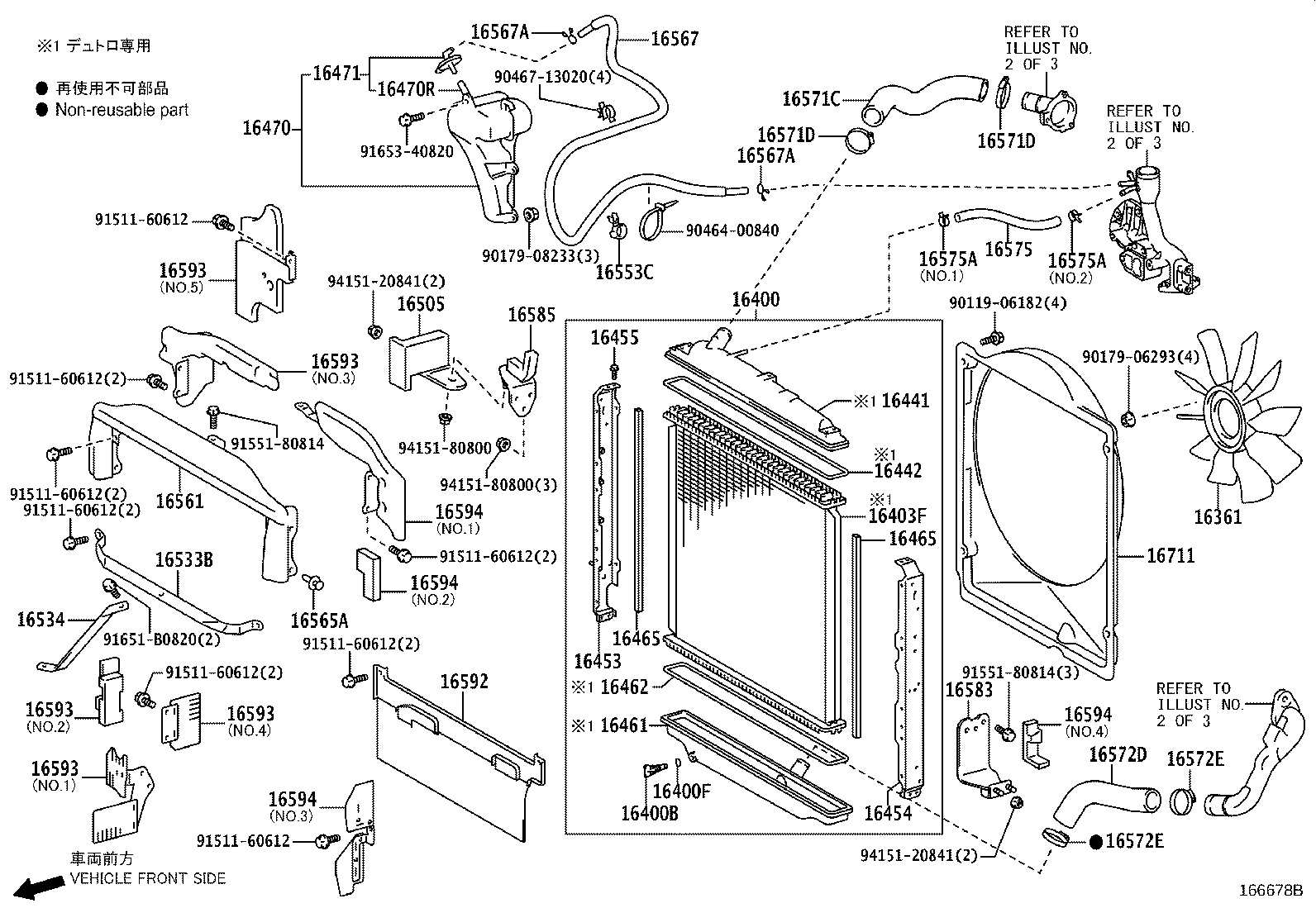

ILLUST NO. 1 OF 3(1705- )N04C..XZU600,640,650..DCRVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-E0610 |
N04C..XZU600,640,650..DCRVT |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-78C90 |
N04C..XZU600,640,650..DCRVT |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-78281 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-78080 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-78830 |
N04C..XZC60#,610..DCRTH,DCRTJ;N04C..XZC630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(DCRTH,DCRTJ,DCRTK,DCRVT)..(CBU,IV3,IV5,IV6,IV7) |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-78C90 |
N04C..XZU600,640,650..DCRVT |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-61160 |
N04C..XZC60#,610..DCRTH,DCRTJ;N04C..XZC630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(DCRTH,DCRTJ,DCRTK,DCRVT)..(CBU,IV3,IV5,IV6,IV7) |
8 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-78150 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..MTM..(DCRTH,DCRTJ,DCRTK,DCRVT)..(CBU,IV3,IV5,IV6,IV7) |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-78080 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-78080 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
2 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-78080 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
2 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78010 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..SCB |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..SCB 長さ=315 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78010 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..SCB |
1 | ||
| 16505 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 16505-78020 |
N04C..XZU600,640,650..DCRVT |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-78100 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-78140 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-78120 |
N04C..XZU685;N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,695..CBU,IV3,IV5,IV6,IV7 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-78060 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 16565A - CLIP | ||||
| 90467-07206C0 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT BLACK |
5 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78780 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..SCB..(DCRTH,DCRTJ,DCRTK,DCRVT) |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-12058 |
N04C..XZU685..IV4;N04C..XZU605,655,685,695..SCB;N04C..XZC60#,610,630,645,655,675,XZU600,602,610,620,630,64#,650,652,675..DCB,SCB |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-12058 |
N04C..XZU685..IV4;N04C..XZU605,655,685,695..SCB;N04C..XZC60#,610,630,645,655,675,XZU600,602,610,620,630,64#,650,652,675..DCB,SCB |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-78351 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 16581-78151 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 16581-78151 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-78162 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..CBU,IV3,IV5,IV6,IV7 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 16581-78151 |
N04C..XZC60#,610..DCRTH,DCRTJ;N04C..XZC630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(DCRTH,DCRTJ,DCRTK,DCRVT)..(CBU,IV3,IV5,IV6,IV7) |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 16581-78151 |
N04C..XZC60#,610..DCRTH,DCRTJ;N04C..XZC630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(DCRTH,DCRTJ,DCRTK,DCRVT)..(CBU,IV3,IV5,IV6,IV7) |
2 | ||
| 16575 - HOSE, RADIATOR, NO.5 | ||||
| 16575-78041 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 16575A - CLIP, RADIATOR HOSE, NO.5 | ||||
| 90467-15022 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT NO.1 |
1 | ||
| 96136-41501 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT NO.2 |
1 | ||
| 16575A - CLIP, RADIATOR HOSE, NO.5 | ||||
| 90467-15022 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT NO.1 |
1 | ||
| 96136-41501 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT NO.2 |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-78061 |
N04C..XZU650..IV6;N04C..XZU600..DM3,DM6,T3;N04C..XZC610,630,675,XZU602,610,620,630,640,642,652,675,685,695 |
1 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-78100 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 16592 - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-78070 |
N04C..XZU600,640,650..DCRVT |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-78140 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT NO.3 |
1 | ||
| 16593-78240 |
N04C..XZU600,640,650..DCRVT NO.5 |
1 | ||
| 16593-78200 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT NO.4 |
1 | ||
| 16593-78210 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT NO.1 |
1 | ||
| 16593-78150 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT NO.2 |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-78140 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT NO.3 |
1 | ||
| 16593-78240 |
N04C..XZU600,640,650..DCRVT NO.5 |
1 | ||
| 16593-78200 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT NO.4 |
1 | ||
| 16593-78210 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT NO.1 |
1 | ||
| 16593-78150 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT NO.2 |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-78140 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT NO.3 |
1 | ||
| 16593-78240 |
N04C..XZU600,640,650..DCRVT NO.5 |
1 | ||
| 16593-78200 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT NO.4 |
1 | ||
| 16593-78210 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT NO.1 |
1 | ||
| 16593-78150 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT NO.2 |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-78140 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT NO.3 |
1 | ||
| 16593-78240 |
N04C..XZU600,640,650..DCRVT NO.5 |
1 | ||
| 16593-78200 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT NO.4 |
1 | ||
| 16593-78210 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT NO.1 |
1 | ||
| 16593-78150 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT NO.2 |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-78140 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT NO.3 |
1 | ||
| 16593-78240 |
N04C..XZU600,640,650..DCRVT NO.5 |
1 | ||
| 16593-78200 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT NO.4 |
1 | ||
| 16593-78210 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT NO.1 |
1 | ||
| 16593-78150 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT NO.2 |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-78180 |
N04C..XZU600,640,650..DCRVT NO.3 |
1 | ||
| 16594-78190 |
N04C..XZU600,640,650..DCRVT NO.4 |
1 | ||
| 16594-78120 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT NO.1 |
1 | ||
| 16594-78130 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT NO.2 |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-78180 |
N04C..XZU600,640,650..DCRVT NO.3 |
1 | ||
| 16594-78190 |
N04C..XZU600,640,650..DCRVT NO.4 |
1 | ||
| 16594-78120 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT NO.1 |
1 | ||
| 16594-78130 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT NO.2 |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-78180 |
N04C..XZU600,640,650..DCRVT NO.3 |
1 | ||
| 16594-78190 |
N04C..XZU600,640,650..DCRVT NO.4 |
1 | ||
| 16594-78120 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT NO.1 |
1 | ||
| 16594-78130 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT NO.2 |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-78180 |
N04C..XZU600,640,650..DCRVT NO.3 |
1 | ||
| 16594-78190 |
N04C..XZU600,640,650..DCRVT NO.4 |
1 | ||
| 16594-78120 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT NO.1 |
1 | ||
| 16594-78130 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT NO.2 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-78280 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| Common parts | ||||
| 90119-06182 | ||||
| 90179-06293 | ||||
| 90179-08233 | ||||
| 90464-00840 | ||||
| 90467-13020 | ||||
| 91511-60612 | ||||
| 91551-80814 | ||||
| 91651-B0820 | ||||
| 91653-40820 | ||||
| 94151-20841 | ||||
| 94151-80800 | ||||

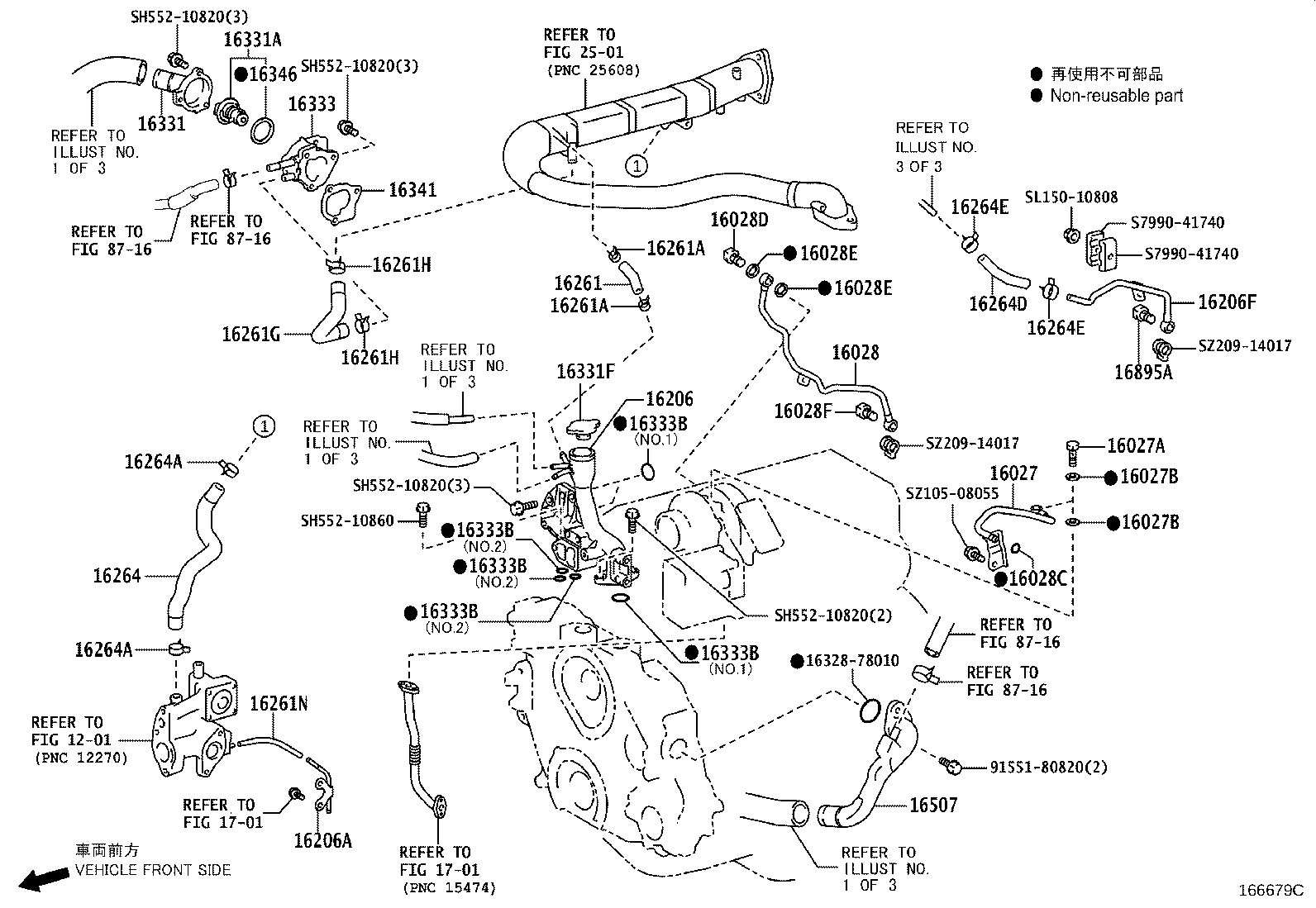

ILLUST NO. 2 OF 3(1705- )N04C..XZU600,640,650..DCRVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16895-E0181 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 16027A - BOLT, UNION(FOR TURBO WATER PIPE) | ||||
| SZ401-12001 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| SZ430-12005 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
2 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| SZ430-12005 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
2 | ||
| 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 | ||||
| 16206-78510 |
N04C..XZU600,640,650..DCRVT |
1 | ||
| 16028C - RING, O(FOR TURBO WATER PIPE) | ||||
| SN732-00092 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 16028D - BOLT, UNION, NO.1(FOR TURBO WATER PIPE) | ||||
| SZ401-12001 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 16028E - GASKET, NO.1(FOR TURBO WATER PIPE) | ||||
| SZ430-12005 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
2 | ||
| 16028E - GASKET, NO.1(FOR TURBO WATER PIPE) | ||||
| SZ430-12005 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
2 | ||
| 16028F - BOLT, UNION, NO.2(FOR TURBO WATER PIPE) | ||||
| SZ401-14004 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-78462 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 |
1 | ||
| 16206-78463 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 16206A - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| S1608-75320 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 16206F - PIPE SUB-ASSY, WATER BY-PASS, NO.4 | ||||
| 16206-78542 |
N04C..XZU600,640,650..DCRVT |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| SZ920-34333 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT 長さ=59 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| SZ466-13007 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| SZ466-13007 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
2 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 87245-E0C20 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| SZ466-26001 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| SZ466-26001 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
2 | ||
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| SZ920-34294 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 87245-E0C12 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| SZ466-26001 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| SZ466-26001 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
2 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 87245-37J12 |
N04C..XZU600,640,650..DCRVT |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41701 |
N04C..XZU600,640,650..DCRVT |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41701 |
N04C..XZU600,640,650..DCRVT |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-E0111 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 16331-E0112 |
N04C..XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 16331A - THERMOSTAT | ||||
| S1632-E9280 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT *WAX 82−95 |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-E0051 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-78150 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT 有り(PNC 16341) |
1 | ||
| 16303-78151 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT 有り(PNC 16341) |
1 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 15119-E0210 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT NO.2 |
3 | ||
| SZ301-31011 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT NO.1 |
3 | ||
| SZ301-19015 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 NO.2 |
3 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| SZ301-31011 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT NO.1 |
3 | ||
| 15119-E0210 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT NO.2 |
3 | ||
| SZ301-19015 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 NO.2 |
3 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 15119-E0210 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT NO.2 |
3 | ||
| SZ301-31011 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT NO.1 |
3 | ||
| SZ301-19015 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 NO.2 |
3 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 15119-E0210 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT NO.2 |
3 | ||
| SZ301-31011 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT NO.1 |
3 | ||
| SZ301-19015 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 NO.2 |
3 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 15119-E0210 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT NO.2 |
3 | ||
| SZ301-31011 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT NO.1 |
3 | ||
| SZ301-19015 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695 NO.2 |
3 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16346-E0040 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| S1632-51420 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 16507 - PIPE SUB-ASSY, RADIATOR | ||||
| 16507-78010 |
N04C..XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..DCRTH,DCRTJ,DCRTK,DCRVT |
1 | ||
| 16895A - BOLT, UNION(FOR TURBO WATER PIPE NO.1) | ||||
| SZ401-14004 |
N04C..XZU600,640,650..DCRVT |
1 | ||
| Common parts | ||||
| 16328-78010 | ||||
| 91551-80820 | ||||
| S7990-41740 | ||||
| SH552-10820 | ||||
| SH552-10860 | ||||
| SL150-10808 | ||||
| SZ105-08055 | ||||
| SZ209-14017 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1701 | ||||
| 2501 | ||||
| 8716 | ||||

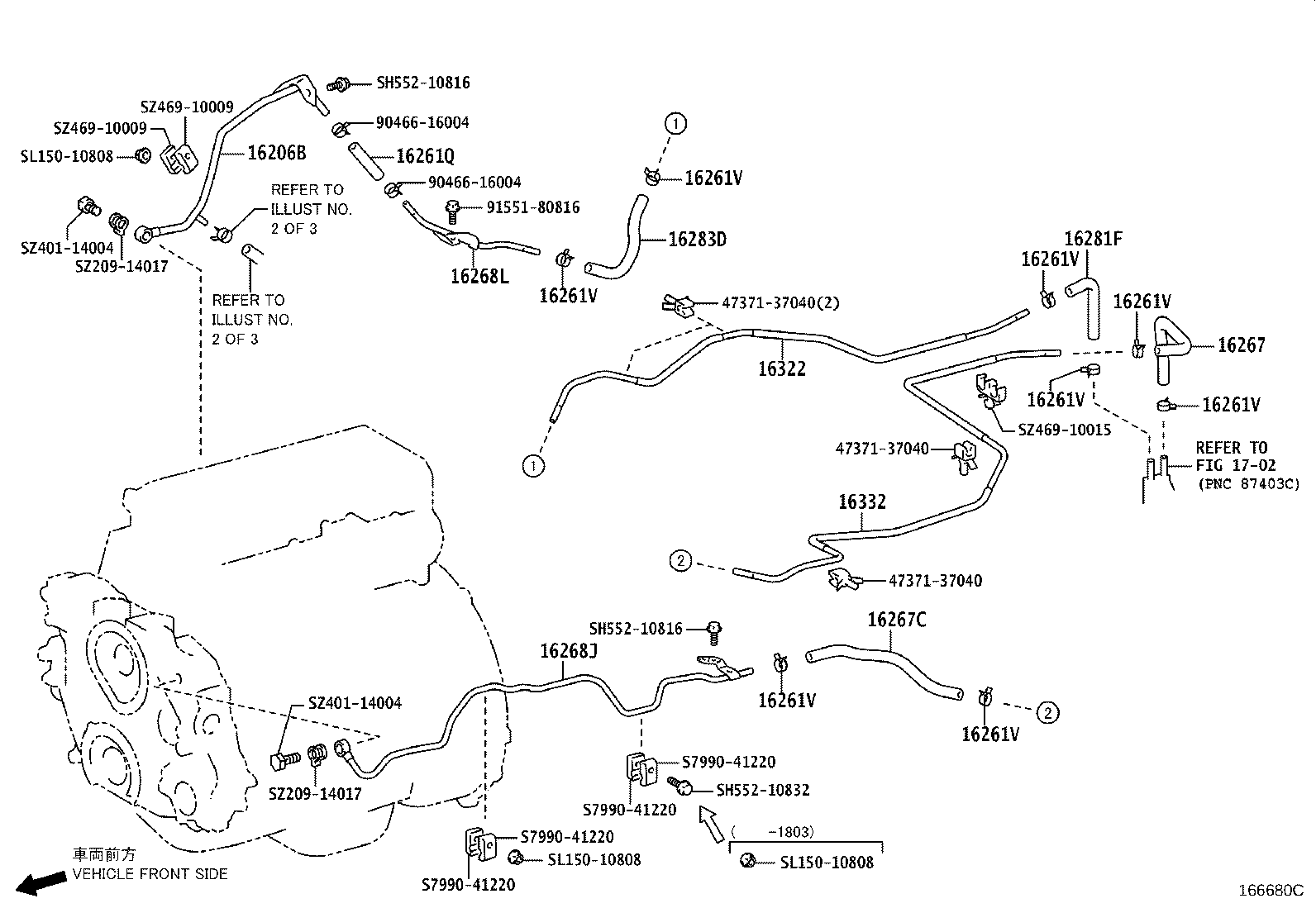

ILLUST NO. 3 OF 3(1705- )N04C..XZU600,640,650..DCRVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206B - PIPE SUB-ASSY, WATER BY-PASS, NO.3 | ||||
| 16206-78482 |
N04C..XZU600,640,650..DCRVT |
1 | ||
| 16261Q - HOSE, WATER BY-PASS | ||||
| 87245-37J20 |
N04C..XZU600,640,650..DCRVT |
1 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-16004 |
N04C..XZU600,640,650..DCRVT |
8 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-16004 |
N04C..XZU600,640,650..DCRVT |
8 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-16004 |
N04C..XZU600,640,650..DCRVT |
8 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-16004 |
N04C..XZU600,640,650..DCRVT |
8 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-16004 |
N04C..XZU600,640,650..DCRVT |
8 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-16004 |
N04C..XZU600,640,650..DCRVT |
8 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-16004 |
N04C..XZU600,640,650..DCRVT |
8 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-16004 |
N04C..XZU600,640,650..DCRVT |
8 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 87242-37010 |
N04C..XZU600,640,650..DCRVT |
1 | ||
| 16267C - HOSE, WATER BY-PASS, NO.4 | ||||
| 87243-37010 |
N04C..XZU600,640,650..DCRVT |
1 | ||
| 16268J - PIPE, WATER BY-PASS, NO.5 | ||||
| 16206-78532 |
N04C..XZU600,640,650..DCRVT |
1 | ||
| 16206-78531 |
N04C..XZU600,640,650..DCRVT |
1 | ||
| 16268L - PIPE, WATER BY-PASS | ||||
| 16206-78490 |
N04C..XZU600,640,650..DCRVT |
1 | ||
| 16281F - HOSE, WATER BY-PASS, NO.5 | ||||
| 87246-37A70 |
N04C..XZU600,640,650..DCRVT |
1 | ||
| 16283D - HOSE, WATER BY-PASS, NO.6 | ||||
| 87245-37J30 |
N04C..XZU600,640,650..DCRVT |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-78010 |
N04C..XZU600,640,650..DCRVT |
1 | ||
| 16332 - PIPE, WATER OUTLET, NO.1 | ||||
| 16332-78010 |
N04C..XZU600,640,650..DCRVT |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90466-16004 | ||||
| 91551-80816 | ||||
| S7990-41220 | ||||
| SH552-10816 | ||||
| SH552-10832 | ||||
| SL150-10808 | ||||
| SZ209-14017 | ||||
| SZ401-14004 | ||||
| SZ469-10009 | ||||
| SZ469-10015 | ||||
| Linked diagrams | ||||
| 1702 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
