XZU650-TQMQC (2011)
Toyota Dyna/Toyoace
(1107- )XZU650..T3..5F..DCRTJ..CBU ; (1405-)XZU650..T3..6FC..DCRTJ..CBU ; (1
ﾚﾝﾀｶｰｼﾖｳ(ｱﾘ(ｸﾚｰﾝ))

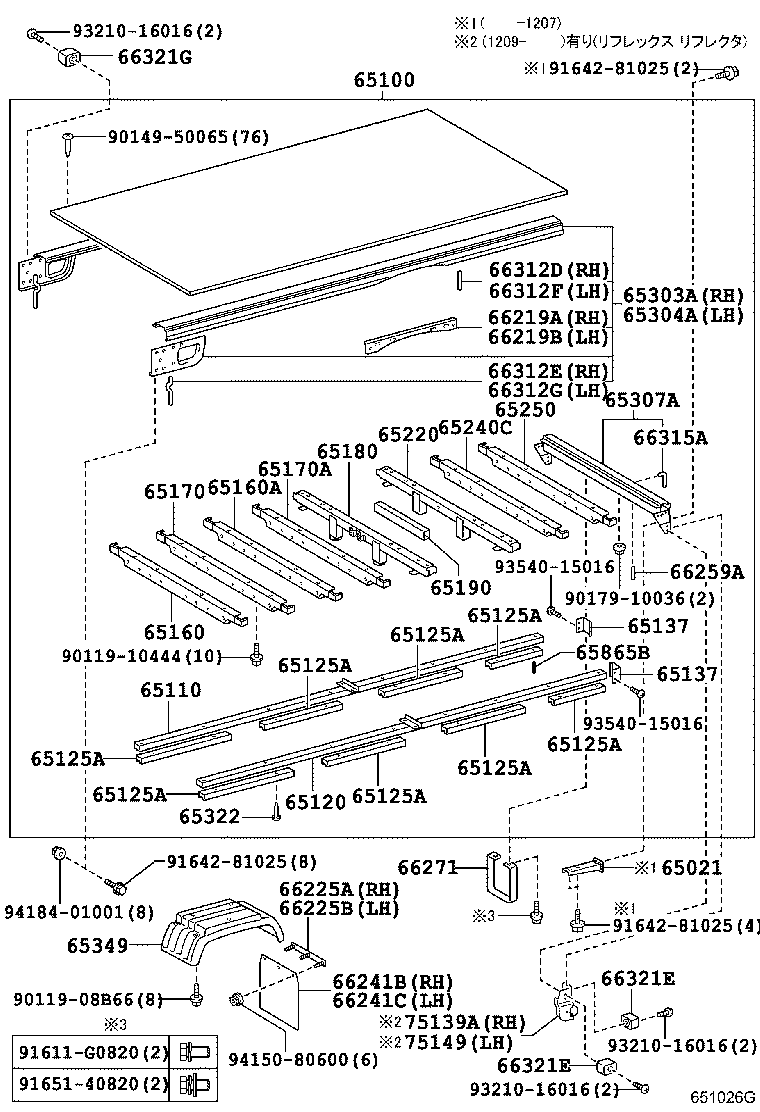

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-3VJ80 |
XZU650..T4..30T..CBU |
1 | ||
| 65100-3VJ80 |
XZU650..T4..30T..CBU |
1 | ||
| 65100-3VJ81 |
XZU650..T4..30T..CBU |
1 | ||
| 65100-3VJ81 |
XZU650..T4..30T..CBU |
1 | ||
| 65110 - SILL ASSY, MAIN, RH | ||||
| 65110-37E70 |
XZU650..T4..30T..CBU |
1 | ||
| 65110-37E70 |
XZU650..T4..30T..CBU |
1 | ||
| 65120 - SILL ASSY, MAIN, LH | ||||
| 65120-37L00 |
XZU650..T4..30T..CBU |
1 | ||
| 65120-37L00 |
XZU650..T4..30T..CBU |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65137 - COVER, MAIN SILL END | ||||
| 65137-37020 |
XZC600..6FC..ST..CBU;TRU600,XZU640,650..T4..30T..CBU |
2 | ||
| 65137-37020 |
XZC600..6FC..ST..CBU;TRU600,XZU640,650..T4..30T..CBU |
2 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65170-37360 |
XZU65#..T4..30T..CBU |
1 | ||
| 65170-37360 |
XZU65#..T4..30T..CBU |
1 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65170-37360 |
XZU65#..T4..30T..CBU |
1 | ||
| 65170-37360 |
XZU65#..T4..30T..CBU |
1 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65170-37360 |
XZU65#..T4..30T..CBU |
1 | ||
| 65170-37360 |
XZU65#..T4..30T..CBU |
1 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65170-37360 |
XZU65#..T4..30T..CBU |
1 | ||
| 65170-37360 |
XZU65#..T4..30T..CBU |
1 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65170-37360 |
XZU65#..T4..30T..CBU |
1 | ||
| 65170-37360 |
XZU65#..T4..30T..CBU |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65170-37360 |
XZU655..DCB..CBU;XZU685,695..T4..CBU;XZU64#,65#..T4..30T..CBU |
1 | ||
| 65170-37360 |
XZU655..DCB..CBU;XZU685,695..T4..CBU;XZU64#,65#..T4..30T..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37B20 |
XZU685,695..T4..CBU;XZU640,650..T4..30T..CBU |
1 | ||
| 65180-37B20 |
XZU685,695..T4..CBU;XZU640,650..T4..30T..CBU |
1 | ||
| 65180-37B21 |
XZU640,650..T4..30T..CBU |
1 | ||
| 65180-37B21 |
XZU640,650..T4..30T..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37B20 |
XZU685,695..T4..CBU;XZU640,650..T4..30T..CBU |
1 | ||
| 65180-37B20 |
XZU685,695..T4..CBU;XZU640,650..T4..30T..CBU |
1 | ||
| 65180-37B21 |
XZU640,650..T4..30T..CBU |
1 | ||
| 65180-37B21 |
XZU640,650..T4..30T..CBU |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65191-37120 |
XZU645,675..T4..CBU;XZU605,655..DCB..CBU;TRU600,XZU605,640,650,655..T4..30T..CBU;BZU600,TRC600,XZC675,XZU685,695..T4..20T..CBU |
1 | ||
| 65191-37120 |
XZU645,675..T4..CBU;XZU605,655..DCB..CBU;TRU600,XZU605,640,650,655..T4..30T..CBU;BZU600,TRC600,XZC675,XZU685,695..T4..20T..CBU |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65170-37360 |
XZU655..DCB..CBU;XZU685,695..T4..CBU;XZU64#,65#..T4..30T..CBU |
1 | ||
| 65170-37360 |
XZU655..DCB..CBU;XZU685,695..T4..CBU;XZU64#,65#..T4..30T..CBU |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-37760 |
XZU655..T2..CBU;XZU655..DCB..CBU;XZU685,695..T4..CBU;XZU640,650..T4..30T..CBU |
1 | ||
| 65307-37760 |
XZU655..T2..CBU;XZU655..DCB..CBU;XZU685,695..T4..CBU;XZU640,650..T4..30T..CBU |
1 | ||
| 65307-37A20 |
XZU655..T2..CBU;XZU655..DCB..CBU;XZU685,695..T4..CBU;XZU640,650..T4..30T..CBU |
1 | ||
| 65307-37A20 |
XZU655..T2..CBU;XZU655..DCB..CBU;XZU685,695..T4..CBU;XZU640,650..T4..30T..CBU |
1 | ||
| 65307-37A21 |
XZU640,650..T4..30T..CBU |
1 | ||
| 65307-37A21 |
XZU640,650..T4..30T..CBU |
1 | ||
| 65322 - NAIL | ||||
| 65322-92820 |
BZU600..20T..CBU;XZU655..DCB..DCRTJ..CBU;XZU650,655..T3..20T..DCRTJ..CBU;XZU605,650,655..(T3,T4)..(30T,35T)..(DCRTJ,DCRTK)..CBU;TRC600,TRU600,XZC675,XZU640,645,675..SCB..(T3,T4)..(DCRTJ,DCRTK,EFI)..CBU;BZU600,XZC60#,655,XZU600,605,685,695..(T3,T5)..(DCRTH,DCRTJ,DCRTK,LPG)..CBU |
16 | ||
| 65322-92820 |
BZU600..20T..CBU;XZU655..DCB..DCRTJ..CBU;XZU650,655..T3..20T..DCRTJ..CBU;XZU605,650,655..(T3,T4)..(30T,35T)..(DCRTJ,DCRTK)..CBU;TRC600,TRU600,XZC675,XZU640,645,675..SCB..(T3,T4)..(DCRTJ,DCRTK,EFI)..CBU;BZU600,XZC60#,655,XZU600,605,685,695..(T3,T5)..(DCRTH,DCRTJ,DCRTK,LPG)..CBU |
16 | ||
| 65349 - FENDER, FLOOR SIDE | ||||
| 65349-37010 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU |
2 | ||
| 65349-37010 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU |
2 | ||
| 65349-37040 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU |
2 | ||
| 65349-37040 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU |
2 | ||
| 65865B - PIN, COVER TOP GUIDE | ||||
| 65865-37020 |
XZC600..6FC..ST..CBU;XZU650..T4..30T..CBU;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU |
1 | ||
| 65865-37020 |
XZC600..6FC..ST..CBU;XZU650..T4..30T..CBU;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU |
1 | ||
| 66219A - EXTENSION, REAR FENDER | ||||
| 66219-37080 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU600,605,640,645,650,655,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66219-37080 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU600,605,640,645,650,655,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37270 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66242-37270 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37270 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66242-37270 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37B81 |
XZU685..T4..CBU;BZU600..30T..CBU;XZU650..T4..30T..CBU;XZU695..T3..20T..CBU;XZC675,XZU640,675..(T3,T4)..CBU;TRU600,XZC605,XZU60#..(T3,T5)..CBU |
1 | ||
| 66241-37B81 |
XZU685..T4..CBU;BZU600..30T..CBU;XZU650..T4..30T..CBU;XZU695..T3..20T..CBU;XZC675,XZU640,675..(T3,T4)..CBU;TRU600,XZC605,XZU60#..(T3,T5)..CBU |
1 | ||
| 66241-37B82 |
TRU600..T3..CBU;XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU |
1 | ||
| 66241-37B82 |
TRU600..T3..CBU;XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU |
1 | ||
| 66241-37B80 |
XZU685..T4..CBU;BZU600..30T..CBU;XZU650..T4..30T..CBU;XZU695..T3..20T..CBU;XZC675,XZU640,675..(T3,T4)..CBU;TRU600,XZC605,XZU60#..(T3,T5)..CBU |
1 | ||
| 66241-37B80 |
XZU685..T4..CBU;BZU600..30T..CBU;XZU650..T4..30T..CBU;XZU695..T3..20T..CBU;XZC675,XZU640,675..(T3,T4)..CBU;TRU600,XZC605,XZU60#..(T3,T5)..CBU |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37B80 |
XZU685..T4..CBU;BZU600..30T..CBU;XZU650..T4..30T..CBU;XZU695..T3..20T..CBU;XZC675,XZU640,675..(T3,T4)..CBU;TRU600,XZC605,XZU60#..(T3,T5)..CBU |
1 | ||
| 66241-37B80 |
XZU685..T4..CBU;BZU600..30T..CBU;XZU650..T4..30T..CBU;XZU695..T3..20T..CBU;XZC675,XZU640,675..(T3,T4)..CBU;TRU600,XZC605,XZU60#..(T3,T5)..CBU |
1 | ||
| 66241-37B81 |
XZU685..T4..CBU;BZU600..30T..CBU;XZU650..T4..30T..CBU;XZU695..T3..20T..CBU;XZC675,XZU640,675..(T3,T4)..CBU;TRU600,XZC605,XZU60#..(T3,T5)..CBU |
1 | ||
| 66241-37B81 |
XZU685..T4..CBU;BZU600..30T..CBU;XZU650..T4..30T..CBU;XZU695..T3..20T..CBU;XZC675,XZU640,675..(T3,T4)..CBU;TRU600,XZC605,XZU60#..(T3,T5)..CBU |
1 | ||
| 66241-37B82 |
TRU600..T3..CBU;XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU |
1 | ||
| 66241-37B82 |
TRU600..T3..CBU;XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU |
1 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-37010 |
XZC600..6FC..ST..CBU;XZU650..T4..30T..CBU;XZU650..T3..30T..DCRTK..CBU |
1 | ||
| 66271-37010 |
XZC600..6FC..ST..CBU;XZU650..T4..30T..CBU;XZU650..T3..30T..DCRTK..CBU |
1 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BZU600,TRU600,XZU600..T3..CBU;XZC655,XZU640,65#,685,695..CBU ｻｲﾄﾞ & ﾘﾔ |
4 | ||
| 66321-92805 |
BZU600,TRU600,XZU600..T3..CBU;XZC655,XZU640,65#,685,695..CBU ｻｲﾄﾞ & ﾘﾔ |
4 | ||
| 66321-92805 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU ﾘﾔ |
2 | ||
| 66321-92805 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU ﾘﾔ |
2 | ||
| 66321-37020 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU;TRU600,XZU650..T3..30T..(DCRTK,EFI)..CBU ｻｲﾄﾞ & ﾘﾔ |
4 | ||
| 66321-37020 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU;TRU600,XZU650..T3..30T..(DCRTK,EFI)..CBU ｻｲﾄﾞ & ﾘﾔ |
4 | ||
| 66321-92803 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU ｻｲﾄﾞ |
2 | ||
| 66321-92803 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU ｻｲﾄﾞ |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BZU600,TRU600,XZU600..T3..CBU;XZC655,XZU640,65#,685,695..CBU ｻｲﾄﾞ & ﾘﾔ |
4 | ||
| 66321-92805 |
BZU600,TRU600,XZU600..T3..CBU;XZC655,XZU640,65#,685,695..CBU ｻｲﾄﾞ & ﾘﾔ |
4 | ||
| 66321-92805 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU ﾘﾔ |
2 | ||
| 66321-92805 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU ﾘﾔ |
2 | ||
| 66321-37020 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU;TRU600,XZU650..T3..30T..(DCRTK,EFI)..CBU ｻｲﾄﾞ & ﾘﾔ |
4 | ||
| 66321-37020 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU;TRU600,XZU650..T3..30T..(DCRTK,EFI)..CBU ｻｲﾄﾞ & ﾘﾔ |
4 | ||
| 66321-92803 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU ｻｲﾄﾞ |
2 | ||
| 66321-92803 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU ｻｲﾄﾞ |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BZU600,TRU600,XZU600..T3..CBU;XZC655,XZU640,65#,685,695..CBU ｻｲﾄﾞ & ﾘﾔ |
4 | ||
| 66321-92805 |
BZU600,TRU600,XZU600..T3..CBU;XZC655,XZU640,65#,685,695..CBU ｻｲﾄﾞ & ﾘﾔ |
4 | ||
| 66321-92805 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU ﾘﾔ |
2 | ||
| 66321-92805 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU ﾘﾔ |
2 | ||
| 66321-37020 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU;TRU600,XZU650..T3..30T..(DCRTK,EFI)..CBU ｻｲﾄﾞ & ﾘﾔ |
4 | ||
| 66321-37020 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU;TRU600,XZU650..T3..30T..(DCRTK,EFI)..CBU ｻｲﾄﾞ & ﾘﾔ |
4 | ||
| 66321-92803 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU ｻｲﾄﾞ |
2 | ||
| 66321-92803 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU ｻｲﾄﾞ |
2 | ||
| 75139A - BRACKET, REFLEX REFLECTOR, RH | ||||
| 75139-37080 |
XZC600..6FC..ST..CBU;XZU650..T4..30T..CBU;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU |
1 | ||
| 75139-37080 |
XZC600..6FC..ST..CBU;XZU650..T4..30T..CBU;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU |
1 | ||
| 75149 - BRACKET, REFLEX REFLECTOR, LH | ||||
| 75149-37080 |
XZC600..6FC..ST..CBU;XZU650..T4..30T..CBU;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU |
1 | ||
| 75149-37080 |
XZC600..6FC..ST..CBU;XZU650..T4..30T..CBU;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU |
1 | ||
| Common parts | ||||
| 90031-51004 | ||||
| 90031-51005 | ||||
| 90031-51008 | ||||
| 90038-71009 | ||||
| 90119-08B66 | ||||
| 90290-03001 | ||||
| 91611-G0820 | ||||
| 91622-61030 | ||||
| 91631-60855 | ||||
| 91632-61060 | ||||
| 91651-40620 | ||||
| 91651-40820 | ||||
| 93311-16016 | ||||
| 93311-16020 | ||||
| 93540-14020 | ||||
| 94150-80600 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| 94613-40800 | ||||
| 95111-00822 | ||||
| 96160-00600 | ||||
(1107-1906)BZU600..T4..CBU ; (1107- )T5..DCRTH,DCRTJ,DCRTK..CBU ; (1107- )XZU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65021 - BRACKET SUB-ASSY, MAIN SILL, LOWER | ||||
| 65021-37010 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU |
2 | ||
| 65021-37010 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU |
2 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-3VJ80 |
XZU650..T4..30T..CBU |
1 | ||
| 65100-3VJ80 |
XZU650..T4..30T..CBU |
1 | ||
| 65100-3VJ81 |
XZU650..T4..30T..CBU |
1 | ||
| 65100-3VJ81 |
XZU650..T4..30T..CBU |
1 | ||
| 65110 - SILL ASSY, MAIN, RH | ||||
| 65110-37E70 |
XZU650..T4..30T..CBU |
1 | ||
| 65110-37E70 |
XZU650..T4..30T..CBU |
1 | ||
| 65120 - SILL ASSY, MAIN, LH | ||||
| 65120-37L00 |
XZU650..T4..30T..CBU |
1 | ||
| 65120-37L00 |
XZU650..T4..30T..CBU |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65137 - COVER, MAIN SILL END | ||||
| 65137-37020 |
XZC600..6FC..ST..CBU;TRU600,XZU640,650..T4..30T..CBU |
2 | ||
| 65137-37020 |
XZC600..6FC..ST..CBU;TRU600,XZU640,650..T4..30T..CBU |
2 | ||
| 65137 - COVER, MAIN SILL END | ||||
| 65137-37020 |
XZC600..6FC..ST..CBU;TRU600,XZU640,650..T4..30T..CBU |
2 | ||
| 65137-37020 |
XZC600..6FC..ST..CBU;TRU600,XZU640,650..T4..30T..CBU |
2 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65170-37360 |
XZU65#..T4..30T..CBU |
1 | ||
| 65170-37360 |
XZU65#..T4..30T..CBU |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65170-37360 |
XZU655..DCB..CBU;XZU685,695..T4..CBU;XZU64#,65#..T4..30T..CBU |
1 | ||
| 65170-37360 |
XZU655..DCB..CBU;XZU685,695..T4..CBU;XZU64#,65#..T4..30T..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37B20 |
XZU685,695..T4..CBU;XZU640,650..T4..30T..CBU |
1 | ||
| 65180-37B20 |
XZU685,695..T4..CBU;XZU640,650..T4..30T..CBU |
1 | ||
| 65180-37B21 |
XZU640,650..T4..30T..CBU |
1 | ||
| 65180-37B21 |
XZU640,650..T4..30T..CBU |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65191-37120 |
XZU645,675..T4..CBU;XZU605,655..DCB..CBU;TRU600,XZU605,640,650,655..T4..30T..CBU;BZU600,TRC600,XZC675,XZU685,695..T4..20T..CBU |
1 | ||
| 65191-37120 |
XZU645,675..T4..CBU;XZU605,655..DCB..CBU;TRU600,XZU605,640,650,655..T4..30T..CBU;BZU600,TRC600,XZC675,XZU685,695..T4..20T..CBU |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37690 |
XZU655..DCB..CBU;XZU685,695..T4..CBU;XZU640,650..T4..30T..CBU |
1 | ||
| 65180-37690 |
XZU655..DCB..CBU;XZU685,695..T4..CBU;XZU640,650..T4..30T..CBU |
1 | ||
| 65180-37691 |
XZU640,650..T4..30T..CBU |
1 | ||
| 65180-37691 |
XZU640,650..T4..30T..CBU |
1 | ||
| 65250 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37540 |
XZU655..DCB..CBU;XZU685,695..T4..CBU;XZU64#,65#..T4..30T..CBU |
1 | ||
| 65160-37540 |
XZU655..DCB..CBU;XZU685,695..T4..CBU;XZU64#,65#..T4..30T..CBU |
1 | ||
| 65303A - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 65303-37D80 |
XZC655,XZU65#,695..SCB..CBU |
1 | ||
| 65303-37D80 |
XZC655,XZU65#,695..SCB..CBU |
1 | ||
| 65304A - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 65304-37D90 |
XZC655,XZU65#,695..SCB..CBU |
1 | ||
| 65304-37D90 |
XZC655,XZU65#,695..SCB..CBU |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-37760 |
XZU655..T2..CBU;XZU655..DCB..CBU;XZU685,695..T4..CBU;XZU640,650..T4..30T..CBU |
1 | ||
| 65307-37760 |
XZU655..T2..CBU;XZU655..DCB..CBU;XZU685,695..T4..CBU;XZU640,650..T4..30T..CBU |
1 | ||
| 65307-37A20 |
XZU655..T2..CBU;XZU655..DCB..CBU;XZU685,695..T4..CBU;XZU640,650..T4..30T..CBU |
1 | ||
| 65307-37A20 |
XZU655..T2..CBU;XZU655..DCB..CBU;XZU685,695..T4..CBU;XZU640,650..T4..30T..CBU |
1 | ||
| 65307-37A21 |
XZU640,650..T4..30T..CBU |
1 | ||
| 65307-37A21 |
XZU640,650..T4..30T..CBU |
1 | ||
| 65322 - NAIL | ||||
| 65322-92820 |
BZU600..20T..CBU;XZU655..DCB..DCRTJ..CBU;XZU650,655..T3..20T..DCRTJ..CBU;XZU605,650,655..(T3,T4)..(30T,35T)..(DCRTJ,DCRTK)..CBU;TRC600,TRU600,XZC675,XZU640,645,675..SCB..(T3,T4)..(DCRTJ,DCRTK,EFI)..CBU;BZU600,XZC60#,655,XZU600,605,685,695..(T3,T5)..(DCRTH,DCRTJ,DCRTK,LPG)..CBU |
16 | ||
| 65322-92820 |
BZU600..20T..CBU;XZU655..DCB..DCRTJ..CBU;XZU650,655..T3..20T..DCRTJ..CBU;XZU605,650,655..(T3,T4)..(30T,35T)..(DCRTJ,DCRTK)..CBU;TRC600,TRU600,XZC675,XZU640,645,675..SCB..(T3,T4)..(DCRTJ,DCRTK,EFI)..CBU;BZU600,XZC60#,655,XZU600,605,685,695..(T3,T5)..(DCRTH,DCRTJ,DCRTK,LPG)..CBU |
16 | ||
| 65349 - FENDER, FLOOR SIDE | ||||
| 65349-37010 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU |
2 | ||
| 65349-37010 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU |
2 | ||
| 65349-37040 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU |
2 | ||
| 65349-37040 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU |
2 | ||
| 65865B - PIN, COVER TOP GUIDE | ||||
| 65865-37020 |
XZC600..6FC..ST..CBU;XZU650..T4..30T..CBU;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU |
1 | ||
| 65865-37020 |
XZC600..6FC..ST..CBU;XZU650..T4..30T..CBU;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU |
1 | ||
| 66219A - EXTENSION, REAR FENDER | ||||
| 66219-37080 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU600,605,640,645,650,655,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66219-37080 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU600,605,640,645,650,655,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66219B - EXTENSION, REAR FENDER | ||||
| 66219-37080 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU600,605,640,645,650,655,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66219-37080 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU600,605,640,645,650,655,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37270 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66242-37270 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37270 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66242-37270 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37B81 |
XZU685..T4..CBU;BZU600..30T..CBU;XZU650..T4..30T..CBU;XZU695..T3..20T..CBU;XZC675,XZU640,675..(T3,T4)..CBU;TRU600,XZC605,XZU60#..(T3,T5)..CBU |
1 | ||
| 66241-37B81 |
XZU685..T4..CBU;BZU600..30T..CBU;XZU650..T4..30T..CBU;XZU695..T3..20T..CBU;XZC675,XZU640,675..(T3,T4)..CBU;TRU600,XZC605,XZU60#..(T3,T5)..CBU |
1 | ||
| 66241-37B82 |
TRU600..T3..CBU;XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU |
1 | ||
| 66241-37B82 |
TRU600..T3..CBU;XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU |
1 | ||
| 66241-37B80 |
XZU685..T4..CBU;BZU600..30T..CBU;XZU650..T4..30T..CBU;XZU695..T3..20T..CBU;XZC675,XZU640,675..(T3,T4)..CBU;TRU600,XZC605,XZU60#..(T3,T5)..CBU |
1 | ||
| 66241-37B80 |
XZU685..T4..CBU;BZU600..30T..CBU;XZU650..T4..30T..CBU;XZU695..T3..20T..CBU;XZC675,XZU640,675..(T3,T4)..CBU;TRU600,XZC605,XZU60#..(T3,T5)..CBU |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37B80 |
XZU685..T4..CBU;BZU600..30T..CBU;XZU650..T4..30T..CBU;XZU695..T3..20T..CBU;XZC675,XZU640,675..(T3,T4)..CBU;TRU600,XZC605,XZU60#..(T3,T5)..CBU |
1 | ||
| 66241-37B80 |
XZU685..T4..CBU;BZU600..30T..CBU;XZU650..T4..30T..CBU;XZU695..T3..20T..CBU;XZC675,XZU640,675..(T3,T4)..CBU;TRU600,XZC605,XZU60#..(T3,T5)..CBU |
1 | ||
| 66241-37B81 |
XZU685..T4..CBU;BZU600..30T..CBU;XZU650..T4..30T..CBU;XZU695..T3..20T..CBU;XZC675,XZU640,675..(T3,T4)..CBU;TRU600,XZC605,XZU60#..(T3,T5)..CBU |
1 | ||
| 66241-37B81 |
XZU685..T4..CBU;BZU600..30T..CBU;XZU650..T4..30T..CBU;XZU695..T3..20T..CBU;XZC675,XZU640,675..(T3,T4)..CBU;TRU600,XZC605,XZU60#..(T3,T5)..CBU |
1 | ||
| 66241-37B82 |
TRU600..T3..CBU;XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU |
1 | ||
| 66241-37B82 |
TRU600..T3..CBU;XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-37010 |
XZC600..6FC..ST..CBU;XZU650..T4..30T..CBU;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU |
2 | ||
| 66259-37010 |
XZC600..6FC..ST..CBU;XZU650..T4..30T..CBU;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU |
2 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-37010 |
XZC600..6FC..ST..CBU;XZU650..T4..30T..CBU;XZU650..T3..30T..DCRTK..CBU |
1 | ||
| 66271-37010 |
XZC600..6FC..ST..CBU;XZU650..T4..30T..CBU;XZU650..T3..30T..DCRTK..CBU |
1 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
XZC655,XZU65#,695..SCB..CBU |
8 | ||
| 66311-37020 |
XZC655,XZU65#,695..SCB..CBU |
8 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
BZU600,TRU600..CBU;TRC600,XZC60#,645,655,675,XZU600,605,640,645,650,655,675,685,695..(T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,EFI)..CBU |
1 | ||
| 66312-37020 |
BZU600,TRU600..CBU;TRC600,XZC60#,645,655,675,XZU600,605,640,645,650,655,675,685,695..(T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,EFI)..CBU |
1 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
XZC655,XZU65#,695..SCB..CBU |
8 | ||
| 66311-37020 |
XZC655,XZU65#,695..SCB..CBU |
8 | ||
| 66312G - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
BZU600,TRU600..CBU;TRC600,XZC60#,645,655,675,XZU600,605,640,645,650,655,675,685,695..(T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,EFI)..CBU |
1 | ||
| 66312-37020 |
BZU600,TRU600..CBU;TRC600,XZC60#,645,655,675,XZU600,605,640,645,650,655,675,685,695..(T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,EFI)..CBU |
1 | ||
| 66315A - HOOK, ROPE | ||||
| 66315-37010 |
XZU640,650..T4..30T..CBU |
3 | ||
| 66315-37010 |
XZU640,650..T4..30T..CBU |
3 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BZU600,TRU600,XZU600..T3..CBU;XZC655,XZU640,65#,685,695..CBU ｻｲﾄﾞ & ﾘﾔ |
4 | ||
| 66321-92805 |
BZU600,TRU600,XZU600..T3..CBU;XZC655,XZU640,65#,685,695..CBU ｻｲﾄﾞ & ﾘﾔ |
4 | ||
| 66321-92805 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU ﾘﾔ |
2 | ||
| 66321-92805 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU ﾘﾔ |
2 | ||
| 66321-37020 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU;TRU600,XZU650..T3..30T..(DCRTK,EFI)..CBU ｻｲﾄﾞ & ﾘﾔ |
4 | ||
| 66321-37020 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU;TRU600,XZU650..T3..30T..(DCRTK,EFI)..CBU ｻｲﾄﾞ & ﾘﾔ |
4 | ||
| 66321-92803 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU ｻｲﾄﾞ |
2 | ||
| 66321-92803 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU ｻｲﾄﾞ |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BZU600,TRU600,XZU600..T3..CBU;XZC655,XZU640,65#,685,695..CBU ｻｲﾄﾞ & ﾘﾔ |
4 | ||
| 66321-92805 |
BZU600,TRU600,XZU600..T3..CBU;XZC655,XZU640,65#,685,695..CBU ｻｲﾄﾞ & ﾘﾔ |
4 | ||
| 66321-92805 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU ﾘﾔ |
2 | ||
| 66321-92805 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU ﾘﾔ |
2 | ||
| 66321-37020 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU;TRU600,XZU650..T3..30T..(DCRTK,EFI)..CBU ｻｲﾄﾞ & ﾘﾔ |
4 | ||
| 66321-37020 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU;TRU600,XZU650..T3..30T..(DCRTK,EFI)..CBU ｻｲﾄﾞ & ﾘﾔ |
4 | ||
| 66321-92803 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU ｻｲﾄﾞ |
2 | ||
| 66321-92803 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU ｻｲﾄﾞ |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BZU600,TRU600,XZU600..T3..CBU;XZC655,XZU640,65#,685,695..CBU |
2 | ||
| 66321-92805 |
BZU600,TRU600,XZU600..T3..CBU;XZC655,XZU640,65#,685,695..CBU |
2 | ||
| 66321-37020 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU;TRU600,XZU650..T3..30T..(DCRTK,EFI)..CBU |
2 | ||
| 66321-37020 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU;TRU600,XZU650..T3..30T..(DCRTK,EFI)..CBU |
2 | ||
| 75139A - BRACKET, REFLEX REFLECTOR, RH | ||||
| 75139-37080 |
XZC600..6FC..ST..CBU;XZU650..T4..30T..CBU;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU |
1 | ||
| 75139-37080 |
XZC600..6FC..ST..CBU;XZU650..T4..30T..CBU;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU |
1 | ||
| 75149 - BRACKET, REFLEX REFLECTOR, LH | ||||
| 75149-37080 |
XZC600..6FC..ST..CBU;XZU650..T4..30T..CBU;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU |
1 | ||
| 75149-37080 |
XZC600..6FC..ST..CBU;XZU650..T4..30T..CBU;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU |
1 | ||
| Common parts | ||||
| 90119-08B66 | ||||
| 90119-10444 | ||||
| 90149-50065 | ||||
| 90179-10036 | ||||
| 91611-G0820 | ||||
| 91642-81025 | ||||
| 91651-40820 | ||||
| 93210-16016 | ||||
| 93540-15016 | ||||
| 94150-80600 | ||||
| 94184-01001 | ||||
(1107- )XZU650,655..T4..30T..DCRTJ,DCRTK..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65021 - BRACKET SUB-ASSY, MAIN SILL, LOWER | ||||
| 65021-37010 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU |
2 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-3VJ80 |
XZU650..T4..30T..CBU |
1 | ||
| 65100-3VJ81 |
XZU650..T4..30T..CBU |
1 | ||
| 65110 - SILL ASSY, MAIN, RH | ||||
| 65110-37E70 |
XZU650..T4..30T..CBU |
1 | ||
| 65120 - SILL ASSY, MAIN, LH | ||||
| 65120-37L00 |
XZU650..T4..30T..CBU |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37820 |
XZU640..DCRTJ..CBU;TRU600,XZU650..T4..30T..CBU 長さ=828 |
4 | ||
| 65128-37670 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=534 |
2 | ||
| 65127-37850 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU 長さ=986 |
2 | ||
| 65137 - COVER, MAIN SILL END | ||||
| 65137-37020 |
XZC600..6FC..ST..CBU;TRU600,XZU640,650..T4..30T..CBU |
2 | ||
| 65137 - COVER, MAIN SILL END | ||||
| 65137-37020 |
XZC600..6FC..ST..CBU;TRU600,XZU640,650..T4..30T..CBU |
2 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65170-37360 |
XZU65#..T4..30T..CBU |
1 | ||
| 65160A - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37540 |
XZU650..T4..30T..CBU |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65170-37360 |
XZU655..DCB..CBU;XZU685,695..T4..CBU;XZU64#,65#..T4..30T..CBU |
1 | ||
| 65170A - SILL ASSY, CROSS, NO.3 | ||||
| 65170-37360 |
XZU640,650..T4..30T..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37B20 |
XZU685,695..T4..CBU;XZU640,650..T4..30T..CBU |
1 | ||
| 65180-37B21 |
XZU640,650..T4..30T..CBU |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65191-37120 |
XZU645,675..T4..CBU;XZU605,655..DCB..CBU;TRU600,XZU605,640,650,655..T4..30T..CBU;BZU600,TRC600,XZC675,XZU685,695..T4..20T..CBU |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37690 |
XZU655..DCB..CBU;XZU685,695..T4..CBU;XZU640,650..T4..30T..CBU |
1 | ||
| 65180-37691 |
XZU640,650..T4..30T..CBU |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65170-37360 |
XZU655..DCB..CBU;XZU685,695..T4..CBU;XZU64#,65#..T4..30T..CBU |
1 | ||
| 65250 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37540 |
XZU655..DCB..CBU;XZU685,695..T4..CBU;XZU64#,65#..T4..30T..CBU |
1 | ||
| 65303A - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 65303-37D80 |
XZC655,XZU65#,695..SCB..CBU |
1 | ||
| 65304A - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 65304-37D90 |
XZC655,XZU65#,695..SCB..CBU |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-37760 |
XZU655..T2..CBU;XZU655..DCB..CBU;XZU685,695..T4..CBU;XZU640,650..T4..30T..CBU |
1 | ||
| 65307-37A20 |
XZU655..T2..CBU;XZU655..DCB..CBU;XZU685,695..T4..CBU;XZU640,650..T4..30T..CBU |
1 | ||
| 65307-37A21 |
XZU640,650..T4..30T..CBU |
1 | ||
| 65322 - NAIL | ||||
| 65322-92820 |
BZU600..20T..CBU;XZU655..DCB..DCRTJ..CBU;XZU650,655..T3..20T..DCRTJ..CBU;XZU605,650,655..(T3,T4)..(30T,35T)..(DCRTJ,DCRTK)..CBU;TRC600,TRU600,XZC675,XZU640,645,675..SCB..(T3,T4)..(DCRTJ,DCRTK,EFI)..CBU;BZU600,XZC60#,655,XZU600,605,685,695..(T3,T5)..(DCRTH,DCRTJ,DCRTK,LPG)..CBU |
16 | ||
| 65349 - FENDER, FLOOR SIDE | ||||
| 65349-37010 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU |
2 | ||
| 65349-37040 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU |
2 | ||
| 65865B - PIN, COVER TOP GUIDE | ||||
| 65865-37020 |
XZC600..6FC..ST..CBU;XZU650..T4..30T..CBU;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU |
1 | ||
| 66219A - EXTENSION, REAR FENDER | ||||
| 66219-37080 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU600,605,640,645,650,655,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66219B - EXTENSION, REAR FENDER | ||||
| 66219-37080 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU600,605,640,645,650,655,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37270 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37270 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..WT..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37B81 |
XZU685..T4..CBU;BZU600..30T..CBU;XZU650..T4..30T..CBU;XZU695..T3..20T..CBU;XZC675,XZU640,675..(T3,T4)..CBU;TRU600,XZC605,XZU60#..(T3,T5)..CBU |
1 | ||
| 66241-37B82 |
TRU600..T3..CBU;XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU |
1 | ||
| 66241-37B80 |
XZU685..T4..CBU;BZU600..30T..CBU;XZU650..T4..30T..CBU;XZU695..T3..20T..CBU;XZC675,XZU640,675..(T3,T4)..CBU;TRU600,XZC605,XZU60#..(T3,T5)..CBU |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37B80 |
XZU685..T4..CBU;BZU600..30T..CBU;XZU650..T4..30T..CBU;XZU695..T3..20T..CBU;XZC675,XZU640,675..(T3,T4)..CBU;TRU600,XZC605,XZU60#..(T3,T5)..CBU |
1 | ||
| 66241-37B81 |
XZU685..T4..CBU;BZU600..30T..CBU;XZU650..T4..30T..CBU;XZU695..T3..20T..CBU;XZC675,XZU640,675..(T3,T4)..CBU;TRU600,XZC605,XZU60#..(T3,T5)..CBU |
1 | ||
| 66241-37B82 |
TRU600..T3..CBU;XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-37010 |
XZC600..6FC..ST..CBU;XZU650..T4..30T..CBU;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU |
2 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-37010 |
XZC600..6FC..ST..CBU;XZU650..T4..30T..CBU;XZU650..T3..30T..DCRTK..CBU |
1 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
XZC655,XZU65#,695..SCB..CBU |
8 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
BZU600,TRU600..CBU;TRC600,XZC60#,645,655,675,XZU600,605,640,645,650,655,675,685,695..(T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,EFI)..CBU |
1 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
XZC655,XZU65#,695..SCB..CBU |
8 | ||
| 66312G - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
BZU600,TRU600..CBU;TRC600,XZC60#,645,655,675,XZU600,605,640,645,650,655,675,685,695..(T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,EFI)..CBU |
1 | ||
| 66315A - HOOK, ROPE | ||||
| 66315-37010 |
XZU640,650..T4..30T..CBU |
3 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BZU600,TRU600,XZU600..T3..CBU;XZC655,XZU640,65#,685,695..CBU ｻｲﾄﾞ & ﾘﾔ |
4 | ||
| 66321-92805 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU ﾘﾔ |
2 | ||
| 66321-37020 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU;TRU600,XZU650..T3..30T..(DCRTK,EFI)..CBU ｻｲﾄﾞ & ﾘﾔ |
4 | ||
| 66321-92803 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU ｻｲﾄﾞ |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BZU600,TRU600,XZU600..T3..CBU;XZC655,XZU640,65#,685,695..CBU ｻｲﾄﾞ & ﾘﾔ |
4 | ||
| 66321-92805 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU ﾘﾔ |
2 | ||
| 66321-37020 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU;TRU600,XZU650..T3..30T..(DCRTK,EFI)..CBU ｻｲﾄﾞ & ﾘﾔ |
4 | ||
| 66321-92803 |
BZU600,TRC600,TRU600,XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..(T2,T3,T4,T5)..CBU ｻｲﾄﾞ |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BZU600,TRU600,XZU600..T3..CBU;XZC655,XZU640,65#,685,695..CBU |
2 | ||
| 66321-37020 |
XZU640..DCRTJ..CBU;XZU650..T4..30T..CBU;TRU600,XZU650..T3..30T..(DCRTK,EFI)..CBU |
2 | ||
| 75139A - BRACKET, REFLEX REFLECTOR, RH | ||||
| 75139-37080 |
XZC600..6FC..ST..CBU;XZU650..T4..30T..CBU;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU |
1 | ||
| 75149 - BRACKET, REFLEX REFLECTOR, LH | ||||
| 75149-37080 |
XZC600..6FC..ST..CBU;XZU650..T4..30T..CBU;XZU650..T3..30T..DCRTK..CBU;TRU600,XZU640..(DCRTJ,EFI)..CBU |
1 | ||
| Common parts | ||||
| 90119-08B66 | ||||
| 90119-10444 | ||||
| 90149-50065 | ||||
| 90179-10036 | ||||
| 91611-G0820 | ||||
| 91642-81025 | ||||
| 91651-40820 | ||||
| 93210-16016 | ||||
| 93540-15016 | ||||
| 94150-80600 | ||||
| 94184-01001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
