XZU650-TQMMB3 (2011)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 5(1107- )DCB,SCB..DCRTH,DCRTJ,DCRTK,DCRVT,EFI,LPG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100F - FRAME SUB-ASSY | ||||
| 51001-3VM80 |
XZU650..20T..IV3;XZU650..T3..DCRTJ..CBU |
1 | ||
| 51001-3VM81 |
XZU650..DCRTJ..IV3;XZU650..T3..DCRTJ..CBU |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51421-37081 |
XZU650..20T;XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZC600,610,630,XZU600,610,620,630..(DM5,DM7,T4,T5)..WT TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51422-37141 |
XZU650..20T;XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZC600,610,630,XZU600,610,620,630..(DM5,DM7,T4,T5)..WT TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-37840 |
XZC600..5F..ST;XZU650..20T,35T;XZU600..SCB..MTM;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZC600,610,XZU610,620..WT;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6) |
1 | ||
| 82715K - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-3VN20 |
XZC600..5F..ST;XZU650..20T,35T;XZU600..SCB..MTM;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC60#,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..SCB..WT |
1 | ||
| Common parts | ||||
| 90467-09101 | ||||
| 91552-81240 | ||||
| 91552-F1240 | ||||
| 94151-21201 | ||||
| 94151-81200 | ||||
ILLUST NO. 4 OF 5(1107- )DCRTH,DCRTJ,DCRTK,DCRVT,EFI,LPG
ﾌﾟﾛﾍﾟﾗｼｬﾌﾄｶﾞｰﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37610 |
XZC655,XZU655;XZU650..20T,35T;XZU650..T3..30T..DCRTJ..CBU |
1 | ||
| 51568D - NUT, HEXAGON | ||||
| 90031-70106 |
XZC655,XZU655;XZU650..20T,35T;XZU650..T3..30T..DCRTJ..CBU |
1 | ||
| 51568E - NUT, HEXAGON | ||||
| 94151-80800 |
XZC655,XZU655;XZU650..20T,35T;XZU650..T3..30T..DCRTJ..CBU |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XZC600..5F..ST;XZU650..20T,35T;XZU600,640,685..IV4,IV5;XZC655,675,XZU655,675,695;XZU650..T3..30T..DCRTJ..CBU;XZC605,XZU60#..(03S,DM3,DM6,T5)..(CBU,IV3,IV6) |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XZC600..5F..ST;XZU650..20T,35T;XZU600,640,685..IV4,IV5;XZC655,675,XZU655,675,695;XZU650..T3..30T..DCRTJ..CBU;XZC605,XZU60#..(03S,DM3,DM6,T5)..(CBU,IV3,IV6) |
1 | ||
| 51569C - GUARD, PROPELLER SHAFT | ||||
| 51569-37290 |
XZU695;XZU655..T2;XZU650..20T;XZU650..T3..30T..DCRTJ..CBU |
1 | ||
| Common parts | ||||
| 91551-80825 | ||||
ILLUST NO. 5 OF 5(1107- )
ﾘﾍﾞｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 95121-01024 | ||||
| 95121-01026 | ||||
| 95121-01028 | ||||
| 95121-01032 | ||||
| 95121-01036 | ||||
| 95121-01038 | ||||
| 95121-01040 | ||||

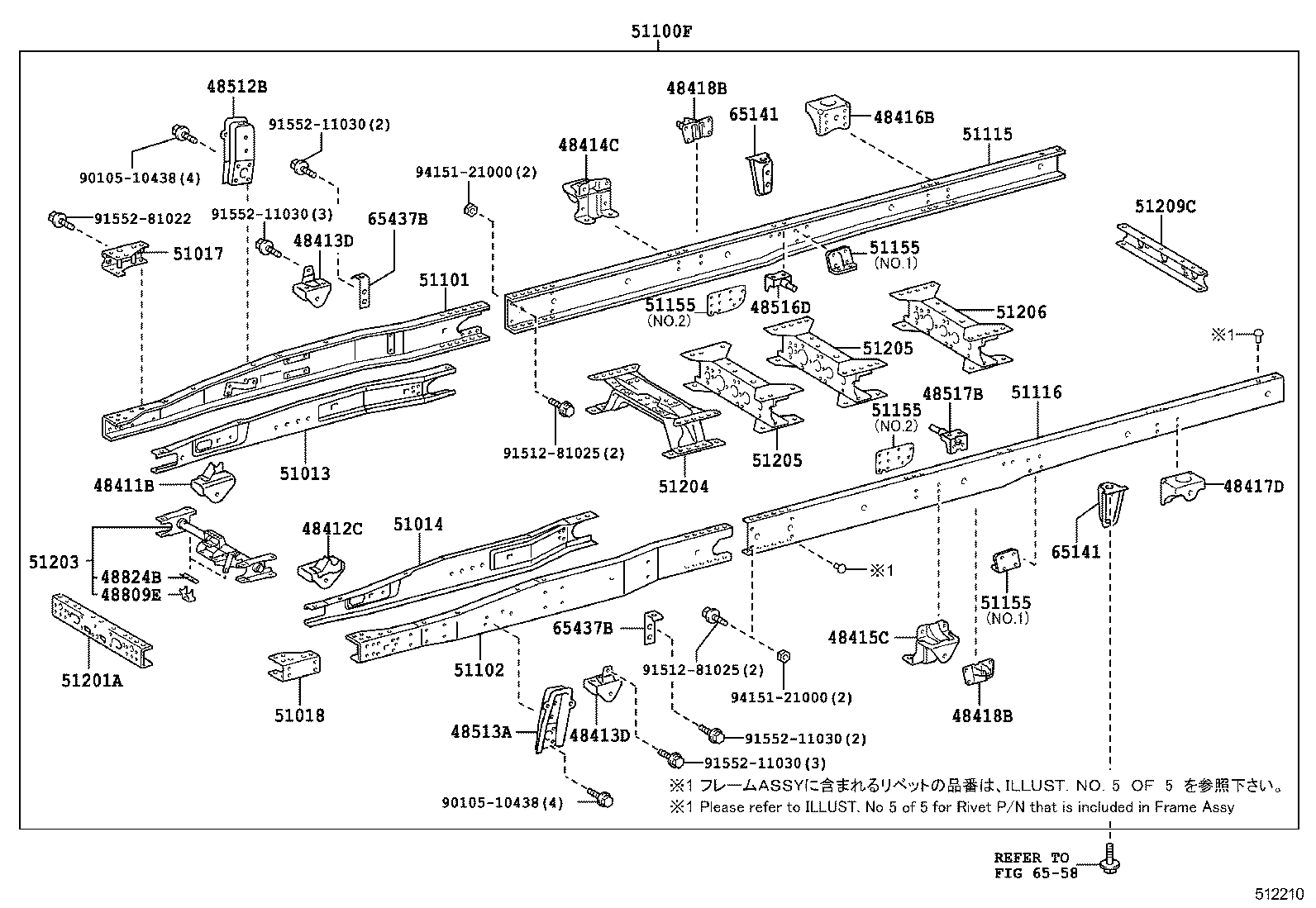

ILLUST NO. 2 OF 5(1107- )XZU650..20T,30T..DCRTJ,DCRTK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48411B - BRACKET, SPRING, NO.1 RH | ||||
| 48411-37070 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZC600,XZU600..(20T,30T)..WT;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
1 | ||
| 48412C - BRACKET, SPRING, NO.1 LH | ||||
| 48412-37060 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZC600,XZU600..(20T,30T)..WT;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
1 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48413-37110 |
XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZC600,XZU600,650..(T3,T4,T5)..20T..WT |
2 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48413-37110 |
XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZC600,XZU600,650..(T3,T4,T5)..20T..WT |
2 | ||
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48414-37100 |
XZU650..20T;XZU600,645..30T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC655,XZU655,685,695;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48415-37020 |
XZU645..30T..DCRTJ;BZU600,TRU600,XZU600..T3..30T..(DCRTJ,DCRTK,EFI,LPG);XZC655,XZU640,650,655,685,695..(20T,30T)..(DCRTJ,DCRTK) |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48416-37100 |
XZU650..20T;XZU600,645..30T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC655,XZU655,685,695;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48416-37100 |
XZU650..20T;XZU600,645..30T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC655,XZU655,685,695;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU |
1 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
XZU600..6F;XZU600,645..30T;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC655,XZU655,685,695;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
4 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
XZU600..6F;XZU600,645..30T;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC655,XZU655,685,695;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
4 | ||
| 48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-37050 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
1 | ||
| 48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-37130 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
1 | ||
| 48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37010 |
XZC675,XZU675..T4;BZU600,TRC600,TRU600,XZC60#,645,655,XZU600,605,640,645,650,655,685,695..WT..(DCRTH,DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH | ||||
| 48505-37010 |
XZC675,XZU675..T4;BZU600,TRC600,TRU600,XZC60#,645,655,XZU600,605,640,645,650,655,685,695..WT..(DCRTH,DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 48809E - BRACKET SUB-ASSY, STABILIZER | ||||
| 48809-37040 |
XZC600..5F..ST;XZU650..20T,35T;XZU600..SCB..MTM;XZU640..T4..5F..IV3;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC600,XZU640..WT..(DCRTH,DCRTK)..(CBU,IV3) |
2 | ||
| 48824B - BRACKET, STABILIZER | ||||
| 48824-37230 |
XZC600..5F..ST;XZU650..20T,35T;XZU600..SCB..MTM;XZU640..T4..5F..IV3;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC600,XZU640..WT..(DCRTH,DCRTK)..(CBU,IV3) |
2 | ||
| 51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH | ||||
| 51013-37440 |
XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZC600,XZU600,650..(T3,T4,T5)..20T..WT |
1 | ||
| 51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH | ||||
| 51014-37420 |
XZU650..20T,30T;XZC600,XZU600..T4,T5 |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37180 |
XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZC600,XZU600,650..(T3,T4,T5)..20T..WT |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37140 |
XZU605,655;XZC600..5F..ST;XZU650..T3..30T..DCRTJ..CBU;XZC60#,645,655,XZU600,645,650..(03S,T2,T3,T4,T5)..20T..WT |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-3VM80 |
XZU650..20T..IV3;XZU650..T3..DCRTJ..CBU |
1 | ||
| 51001-3VM81 |
XZU650..DCRTJ..IV3;XZU650..T3..DCRTJ..CBU |
1 | ||
| 51101 - RAIL, FRONT FRAME SIDE, RH | ||||
| 51101-37130 |
XZC600..5F..ST;XZU600..T5..CBU;XZU650..T3..DCRTJ..CBU;XZC600,XZU600,650..(T3,T4,T5)..20T..WT..IV3 |
1 | ||
| 51102 - RAIL, FRONT FRAME SIDE, LH | ||||
| 51102-37130 |
XZC600..5F..ST;XZU600..T5..CBU;XZU650..T3..DCRTJ..CBU;XZC600,XZU600,650..(T3,T4,T5)..20T..WT..IV3 |
1 | ||
| 51115 - RAIL, FRAME SIDE, REAR RH | ||||
| 51115-37410 |
XZU655..IV3;XZU655..30T..CBU;XZU655..DCB..CBU;XZU655..T3..20T..CBU;XZC655,XZU650..20T..IV3;XZC655,XZU650..T3..DCRTJ..CBU |
1 | ||
| 51116 - RAIL, FRAME SIDE, REAR LH | ||||
| 51108-37320 |
XZU655..SCB..IV3;XZU655..30T..CBU;XZU655..T3..20T..CBU;XZC655,XZU650..20T..IV3;XZC655,XZU650..T3..DCRTJ..CBU |
1 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37080 |
XZU655;XZU600..6F;XZU650..T3..30T..DCRTJ..CBU;XZC655,XZU640,650..20T,35T,40T NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 51155-37060 |
XZU655;XZU600..6F;XZU650..T3..30T..DCRTJ..CBU;XZC655,XZU640,650..20T,35T,40T NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37080 |
XZU655;XZU600..6F;XZU650..T3..30T..DCRTJ..CBU;XZC655,XZU640,650..20T,35T,40T NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 51155-37060 |
XZU655;XZU600..6F;XZU650..T3..30T..DCRTJ..CBU;XZC655,XZU640,650..20T,35T,40T NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37080 |
XZU655;XZU600..6F;XZU650..T3..30T..DCRTJ..CBU;XZC655,XZU640,650..20T,35T,40T NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 51155-37060 |
XZU655;XZU600..6F;XZU650..T3..30T..DCRTJ..CBU;XZC655,XZU640,650..20T,35T,40T NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37080 |
XZU655;XZU600..6F;XZU650..T3..30T..DCRTJ..CBU;XZC655,XZU640,650..20T,35T,40T NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 51155-37060 |
XZU655;XZU600..6F;XZU650..T3..30T..DCRTJ..CBU;XZC655,XZU640,650..20T,35T,40T NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51211-37280 |
XZC60#,645,655,XZU60#,64#,65# |
1 | ||
| 51211-37090 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,645,655,XZU60#,645,655..(03S,DM3,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-37230 |
XZC600..5F..ST;XZU650..20T,35T;XZU600..SCB..MTM;XZU640..T4..5F..IV3;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC600,XZU640..WT..(DCRTH,DCRTK)..(CBU,IV3) |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-37341 |
XZU605,645,65#..20T,30T;XZC60#,645,655,XZU600..(03S,06S,T2,T3,T4,T5)..20T |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-37140 |
XZC655,XZU65#..20T,30T ﾘﾔ |
1 | ||
| 51204-37110 |
XZC655,XZU65#..20T,30T ﾌﾛﾝﾄ |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-37140 |
XZC655,XZU65#..20T,30T ﾘﾔ |
1 | ||
| 51204-37110 |
XZC655,XZU65#..20T,30T ﾌﾛﾝﾄ |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51206-37030 |
XZU645..30T..DCRTJ;XZC675,XZU675..T4..(DCRTJ,DCRTK);XZU600..(DM3,DM6,T3)..(DCRTJ,DCRTK);BZU600,TRC600,TRU600,XZC655,XZU640,650,655,685,695..DCRTJ,DCRTK,EFI,LPG |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51291-37040 |
XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZC645,655,XZU645,655,685,695;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
1 | ||
| Common parts | ||||
| 90105-10438 | ||||
| 91512-81025 | ||||
| 91552-11030 | ||||
| 91552-81022 | ||||
| 94151-21000 | ||||
| Linked diagrams | ||||
| 6558 | ||||
