XZU650-TQFMX (2019)
Toyota Dyna/Toyoace

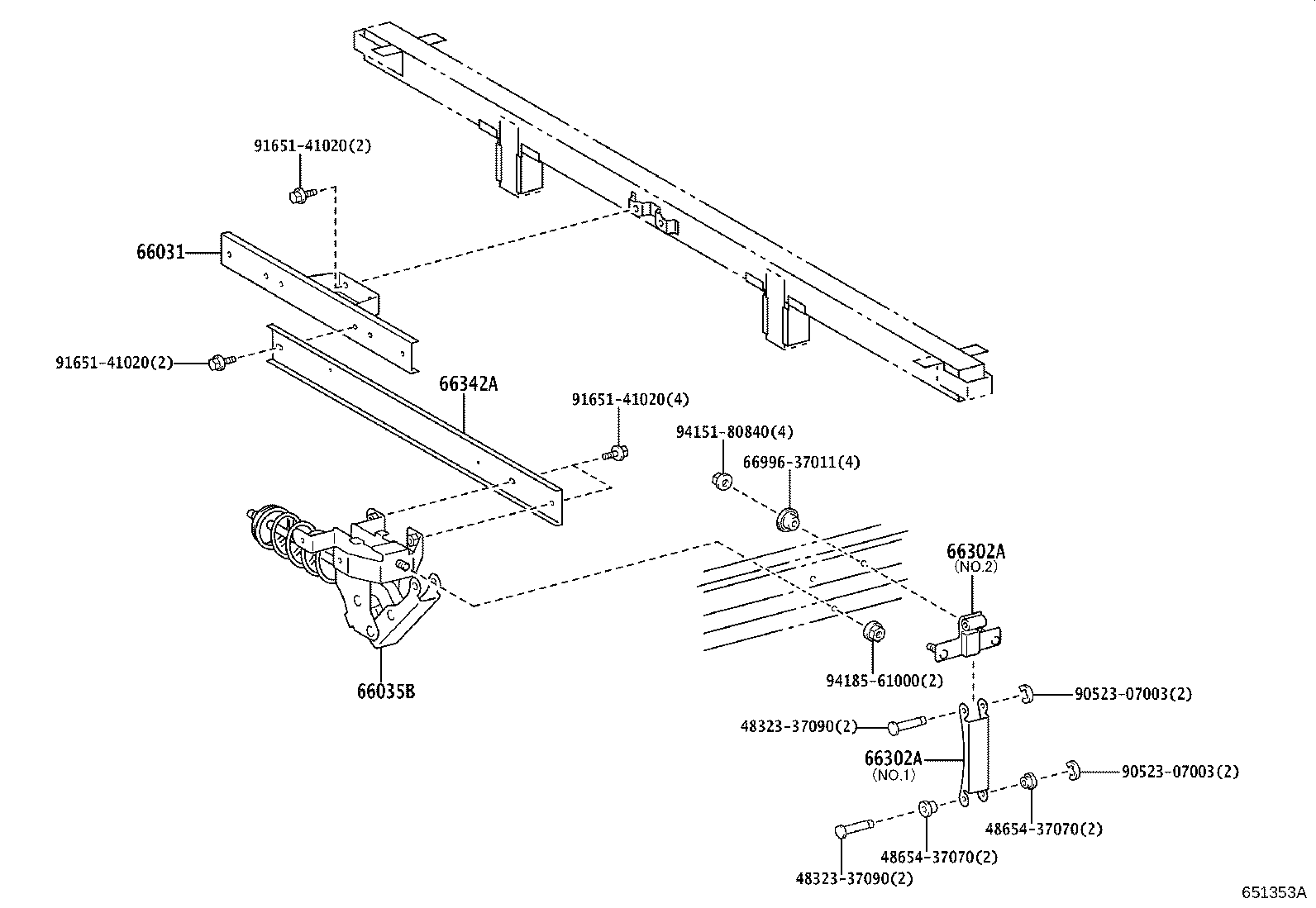

ILLUST NO. 2 OF 2(1905- )XZC655,XZU65#,695..SCB..DCRWD,DCVTO..CBU
ｻｲﾄﾞｹﾞｰﾄﾍﾙﾊﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66031 - BRACKET SUB-ASSY, GATE HELPER, NO.1 | ||||
| 66031-37040 |
XZU650..DCRWD..CBU;XZU655..(T3,T4)..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
1 | ||
| 66031-37040 |
XZC655,XZU65#,695..SCB..(DCRWD,DCVTO)..CBU |
1 | ||
| 66031-37040 |
XZC655,XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
1 | ||
| 66035B - BELLCRANK SUB-ASSY, GATE HELPER | ||||
| 66302-37070 |
XZC655,XZU65#,695..SCB..(DCRWD,DCVTO)..CBU |
2 | ||
| 66302-37070 |
XZU650..DCRWD..CBU;XZU655..(T3,T4)..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| 66302-37070 |
XZC655,XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| 66302A - LINK SUB-ASSY, GATE HELPER | ||||
| 66302-37040 |
XZC655,XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| 66302-37040 |
XZU650..DCRWD..CBU;XZU655..(T3,T4)..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| 66325-37060 |
XZC655,XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1 |
2 | ||
| 66325-37060 |
XZU650..DCRWD..CBU;XZU655..(T3,T4)..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1 |
2 | ||
| 66335-37110 |
XZC655,XZU65#,695..SCB..(DCRWD,DCVTO)..CBU NO.2 |
2 | ||
| 66325-37060 |
XZC655,XZU65#,695..SCB..(DCRWD,DCVTO)..CBU NO.1 |
2 | ||
| 66302A - LINK SUB-ASSY, GATE HELPER | ||||
| 66302-37040 |
XZC655,XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| 66302-37040 |
XZU650..DCRWD..CBU;XZU655..(T3,T4)..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| 66325-37060 |
XZC655,XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1 |
2 | ||
| 66325-37060 |
XZU650..DCRWD..CBU;XZU655..(T3,T4)..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1 |
2 | ||
| 66335-37110 |
XZC655,XZU65#,695..SCB..(DCRWD,DCVTO)..CBU NO.2 |
2 | ||
| 66325-37060 |
XZC655,XZU65#,695..SCB..(DCRWD,DCVTO)..CBU NO.1 |
2 | ||
| 66342A - SPACER, GATE HELPER | ||||
| 66342-37050 |
XZC655,XZU65#,695..SCB..(DCRWD,DCVTO)..CBU |
2 | ||
| 66342-37050 |
XZC655,XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| 66342-37050 |
XZU650..DCRWD..CBU;XZU655..(T3,T4)..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| Common parts | ||||
| 48323-37090 | ||||
| 48654-37070 | ||||
| 66996-37011 | ||||
| 90523-07003 | ||||
| 91651-41020 | ||||
| 94151-80840 | ||||
| 94185-61000 | ||||
