XZU650-TQFMX (2019)
Toyota Dyna/Toyoace

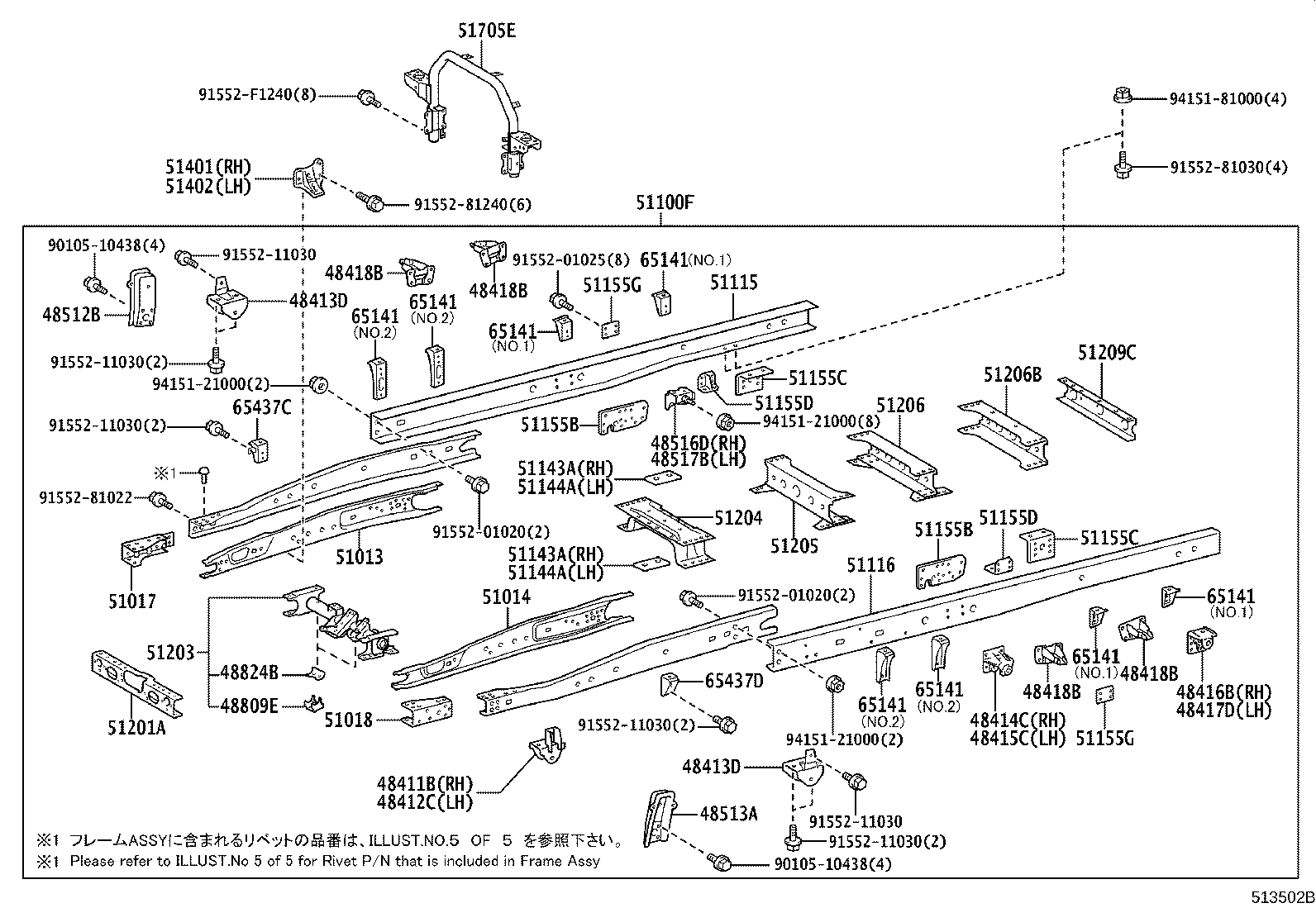

ILLUST NO. 2 OF 5(1905- )XZU650,652..DCRWD,DCVTO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48411B - BRACKET, SPRING, NO.1 RH | ||||
| 48411-37070 |
XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO |
1 | ||
| 48412C - BRACKET, SPRING, NO.1 LH | ||||
| 48412-37060 |
XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO |
1 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48413-37110 |
XZC600,XZU600,602,640,642,650,652..DCRWD,DCVTO |
2 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48413-37110 |
XZC600,XZU600,602,640,642,650,652..DCRWD,DCVTO |
2 | ||
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48414-37100 |
XZU645..30T..DCRWD;XZC655,XZU600,640,650,655,685,695..(T2,T3,T4)..DCRWD |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48415-37020 |
XZU645..30T..DCRWD;XZC655,XZU600,640,650,655,685,695..(T2,T3,T4)..DCRWD |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48416-37100 |
XZU645..30T..DCRWD;XZC655,XZU600,640,650,655,685,695..(T2,T3,T4)..DCRWD |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48416-37100 |
XZU645..30T..DCRWD;XZC655,XZU600,640,650,655,685,695..(T2,T3,T4)..DCRWD |
1 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
XZU645..30T..DCRWD;XZC655,XZU600,602,640,642,65#,685,695..(DM7,T2,T3,T4)..(DCRWD,DCVTO) |
4 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
XZU645..30T..DCRWD;XZC655,XZU600,602,640,642,65#,685,695..(DM7,T2,T3,T4)..(DCRWD,DCVTO) |
4 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
XZU645..30T..DCRWD;XZC655,XZU600,602,640,642,65#,685,695..(DM7,T2,T3,T4)..(DCRWD,DCVTO) |
4 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
XZU645..30T..DCRWD;XZC655,XZU600,602,640,642,65#,685,695..(DM7,T2,T3,T4)..(DCRWD,DCVTO) |
4 | ||
| 48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-37050 |
XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO |
1 | ||
| 48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-37130 |
XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO |
1 | ||
| 48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37130 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM3,DM6,DM7,T2,T3,T4,T5)..(DCRWD,DCVTO) |
1 | ||
| 48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH | ||||
| 48505-37130 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM3,DM6,DM7,T2,T3,T4,T5)..(DCRWD,DCVTO) |
1 | ||
| 48809E - BRACKET SUB-ASSY, STABILIZER | ||||
| 48809-37040 |
XZU600,602,640,642,650,652..SCB..(DM3,DM6,DM7,T3,T4)..(DCRWD,DCVTO) |
2 | ||
| 48824B - BRACKET, STABILIZER | ||||
| 48824-37230 |
XZU600,602,640,642,650,652..SCB..(DM3,DM6,DM7,T3,T4)..(DCRWD,DCVTO) |
2 | ||
| 51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH | ||||
| 51013-37570 |
XZC600,XZU600,602,640,642,650,652..DCRWD,DCVTO |
1 | ||
| 51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH | ||||
| 51014-37540 |
XZC600,XZU600,602,640,642,650,652..DCRWD,DCVTO |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37180 |
XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37230 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51002-3VG70 |
XZU650..T4..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
1 | ||
| 51002-3VG90 |
XZU650..T4..DCRWD..CBU |
1 | ||
| 51002-3VG70 |
XZU650..T4..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
1 | ||
| 51002-3VG70 |
XZU650..T4..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
1 | ||
| 51002-3VG70 |
XZU650..T4..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 51002-3VG70 |
XZU650..T4..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
1 | ||
| 51115 - RAIL, FRAME SIDE, REAR RH | ||||
| 51115-37680 |
XZC655,XZU65#..DCRWD,DCVTO |
1 | ||
| 51116 - RAIL, FRAME SIDE, REAR LH | ||||
| 51116-37520 |
XZC655,XZU65#..SCB..(DCRWD,DCVTO) |
1 | ||
| 51143A - REINFORCEMENT, SIDE RAIL, FRONT RH | ||||
| 51141-37350 |
XZC60#,645,655,XZU60#,64#,65#..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) |
2 | ||
| 51143A - REINFORCEMENT, SIDE RAIL, FRONT RH | ||||
| 51141-37350 |
XZC60#,645,655,XZU60#,64#,65#..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) |
2 | ||
| 51144A - REINFORCEMENT, SIDE RAIL, FRONT LH | ||||
| 51141-37350 |
XZC60#,645,655,XZU60#,64#,65#..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) |
2 | ||
| 51144A - REINFORCEMENT, SIDE RAIL, FRONT LH | ||||
| 51141-37350 |
XZC60#,645,655,XZU60#,64#,65#..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) |
2 | ||
| 51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2 | ||||
| 51155-37080 |
XZU645..30T..DCRWD;XZC655,XZU600,640,650,655..(T2,T3,T4)..DCRWD |
2 | ||
| 51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2 | ||||
| 51155-37080 |
XZU645..30T..DCRWD;XZC655,XZU600,640,650,655..(T2,T3,T4)..DCRWD |
2 | ||
| 51155C - STIFFENER, FRAME SIDE RAIL, REAR NO.3 | ||||
| 51155-37260 |
XZU645..30T..DCRWD;XZC655,XZU600,602,640,642,65#..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV6,IV7) |
2 | ||
| 51155C - STIFFENER, FRAME SIDE RAIL, REAR NO.3 | ||||
| 51155-37260 |
XZU645..30T..DCRWD;XZC655,XZU600,602,640,642,65#..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV6,IV7) |
2 | ||
| 51155D - STIFFENER, FRAME SIDE RAIL, REAR NO.1 | ||||
| 51155-37060 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM3,DM6,T2,T3,T4,T5)..(DCRWD,DCVTO) |
2 | ||
| 51155D - STIFFENER, FRAME SIDE RAIL, REAR NO.1 | ||||
| 51155-37060 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM3,DM6,T2,T3,T4,T5)..(DCRWD,DCVTO) |
2 | ||
| 51155G - STIFFENER, FRAME SIDE RAIL, REAR NO.4 | ||||
| 51155-37250 |
XZU645..30T..DCRWD;XZC655,XZU600,602,640,642,65#..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV6,IV7) |
2 | ||
| 51155G - STIFFENER, FRAME SIDE RAIL, REAR NO.4 | ||||
| 51155-37250 |
XZU645..30T..DCRWD;XZC655,XZU600,602,640,642,65#..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV6,IV7) |
2 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51211-37280 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-37290 |
XZU600,602,640,642,650,652..SCB..(DM3,DM6,DM7,T3,T4)..(DCRWD,DCVTO) |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-37390 |
XZU600,640..SCB..(DCRWD,DCVTO);XZC60#,645,655,675,XZU602,605,642,645,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-37170 |
XZC655,XZU65#..DCRWD,DCVTO |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51205-37190 |
XZC655,XZU65#,695..DCRWD,DCVTO |
1 | ||
| 51206B - CROSSMEMBER SUB-ASSY, FRAME, NO.6 | ||||
| 51261-37190 |
XZC655,XZU65#,695..DCRWD,DCVTO |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51291-37040 |
XZC675,XZU600,675..DM5..DCRWD;XZC600,645,655,XZU64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51421-37081 |
XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51422-37141 |
XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 51705E - BRACKET SUB-ASSY, CAB REAR MOUNTING | ||||
| 51705-37B30 |
XZC600,XZU600,602,640,642,650,652..SCB..(DCRWD,DCVTO) |
1 | ||
| 65141 - SUPPORT, MAIN SILL | ||||
| 65141-37010 |
XZU650,655..SCB..T4..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZC655,XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZC655,XZU650,655..SCB..(T2,T4)..20T..DCRWD..CBU NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:Cﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37070 |
XZC655,XZU650,655..SCB..(T2,T4)..20T..DCRWD..CBU NO.2:ｲﾗｽﾄ参照 |
4 | ||
| 65141 - SUPPORT, MAIN SILL | ||||
| 65141-37010 |
XZU650,655..SCB..T4..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZC655,XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZC655,XZU650,655..SCB..(T2,T4)..20T..DCRWD..CBU NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:Cﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37070 |
XZC655,XZU650,655..SCB..(T2,T4)..20T..DCRWD..CBU NO.2:ｲﾗｽﾄ参照 |
4 | ||
| 65141 - SUPPORT, MAIN SILL | ||||
| 65141-37010 |
XZU650,655..SCB..T4..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZC655,XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZC655,XZU650,655..SCB..(T2,T4)..20T..DCRWD..CBU NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:Cﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37070 |
XZC655,XZU650,655..SCB..(T2,T4)..20T..DCRWD..CBU NO.2:ｲﾗｽﾄ参照 |
4 | ||
| 65141 - SUPPORT, MAIN SILL | ||||
| 65141-37010 |
XZU650,655..SCB..T4..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZC655,XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZC655,XZU650,655..SCB..(T2,T4)..20T..DCRWD..CBU NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:Cﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37070 |
XZC655,XZU650,655..SCB..(T2,T4)..20T..DCRWD..CBU NO.2:ｲﾗｽﾄ参照 |
4 | ||
| 65141 - SUPPORT, MAIN SILL | ||||
| 65141-37010 |
XZU650,655..SCB..T4..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZC655,XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZC655,XZU650,655..SCB..(T2,T4)..20T..DCRWD..CBU NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:Cﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37070 |
XZC655,XZU650,655..SCB..(T2,T4)..20T..DCRWD..CBU NO.2:ｲﾗｽﾄ参照 |
4 | ||
| 65141 - SUPPORT, MAIN SILL | ||||
| 65141-37010 |
XZU650,655..SCB..T4..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZC655,XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZC655,XZU650,655..SCB..(T2,T4)..20T..DCRWD..CBU NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:Cﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37070 |
XZC655,XZU650,655..SCB..(T2,T4)..20T..DCRWD..CBU NO.2:ｲﾗｽﾄ参照 |
4 | ||
| 65141 - SUPPORT, MAIN SILL | ||||
| 65141-37010 |
XZU650,655..SCB..T4..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZC655,XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZC655,XZU650,655..SCB..(T2,T4)..20T..DCRWD..CBU NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:Cﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37070 |
XZC655,XZU650,655..SCB..(T2,T4)..20T..DCRWD..CBU NO.2:ｲﾗｽﾄ参照 |
4 | ||
| 65141 - SUPPORT, MAIN SILL | ||||
| 65141-37010 |
XZU650,655..SCB..T4..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZC655,XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZC655,XZU650,655..SCB..(T2,T4)..20T..DCRWD..CBU NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:Cﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37070 |
XZC655,XZU650,655..SCB..(T2,T4)..20T..DCRWD..CBU NO.2:ｲﾗｽﾄ参照 |
4 | ||
| 65141 - SUPPORT, MAIN SILL | ||||
| 65141-37010 |
XZU650,655..SCB..T4..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZC655,XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZC655,XZU650,655..SCB..(T2,T4)..20T..DCRWD..CBU NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:Cﾗｽﾄ参照 |
4 | ||
| 65141-37010 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照 |
4 | ||
| 65141-37070 |
XZC655,XZU650,655..SCB..(T2,T4)..20T..DCRWD..CBU NO.2:ｲﾗｽﾄ参照 |
4 | ||
| 65437C - SUPPORT, REAR BODY GUARD FRAME, RH | ||||
| 65437-37090 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
1 | ||
| 65437-37090 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
1 | ||
| 65437-37090 |
XZC655,XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
1 | ||
| 65437-37090 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
1 | ||
| 65437-37090 |
XZC605,645,655,XZU605,650,655..SCB..(T2,T4)..20T..DCRWD..CBU |
1 | ||
| 65437-37090 |
XZU650,655..SCB..T4..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 65437D - SUPPORT, REAR BODY GUARD FRAME, LH | ||||
| 65437-37030 |
XZU650,655..SCB..T4..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 65437-37030 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
1 | ||
| 65437-37030 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
1 | ||
| 65437-37030 |
XZC605,645,655,XZU605,650,655..SCB..(T2,T4)..20T..DCRWD..CBU |
1 | ||
| 65437-37030 |
XZC655,XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
1 | ||
| 65437-37030 |
XZU650..T4..DCRWD..CBU;XZU655..T4..6FC..20T..DCRWD..CBU ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾚﾝﾀｶｰ仕様(有り(ｸﾚｰﾝ,ﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
1 | ||
| Common parts | ||||
| 90105-10438 | ||||
| 91552-01020 | ||||
| 91552-01025 | ||||
| 91552-11030 | ||||
| 91552-81022 | ||||
| 91552-81030 | ||||
| 91552-81240 | ||||
| 91552-F1240 | ||||
| 94151-21000 | ||||
| 94151-81000 | ||||
ILLUST NO. 4 OF 5(1905- )DCRWD,DCVTO
ﾌﾟﾛﾍﾟﾗｼｬﾌﾄｶﾞｰﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37450 |
XZC655,XZU65#,695..DCRWD,DCVTO |
1 | ||
| 51569C - GUARD, PROPELLER SHAFT | ||||
| 51569-37420 |
XZC655,XZU65#,695..DCRWD,DCVTO |
1 | ||
| Common parts | ||||
| 91551-80825 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
