XZU650-TQFMX (2019)
Toyota Dyna/Toyoace

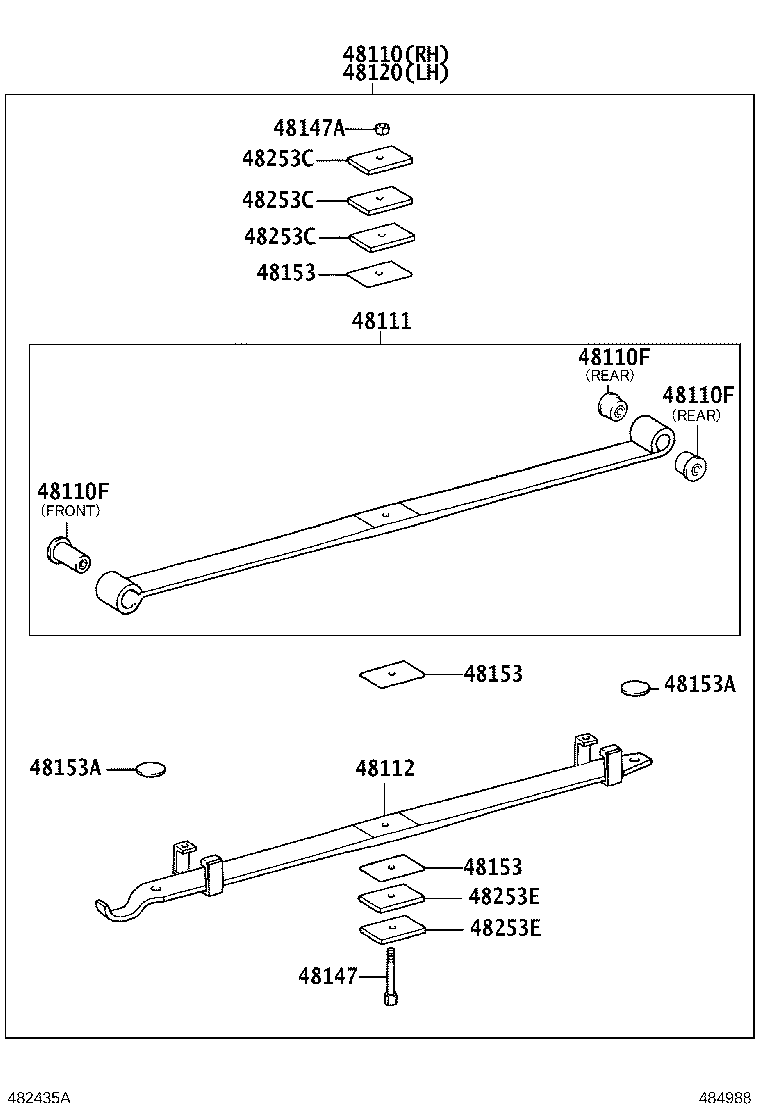

ILLUST NO. 2 OF 2(1905- )XZU650..20T..DCRWD
2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-37G80 |
XZU650..20T..DCRWD 2枚ﾘｰﾌ |
1 | ||
| 48110-3V820 |
XZU650..20T..DCRWD 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16025 |
XZU650..20T..DCRWD 左側ﾌﾛﾝﾄ |
1 | ||
| 90389-16029 |
XZU600,640,650..(T3,T4)..DCRWD..(CBU,IV3,IV6) 右側ﾌﾛﾝﾄ |
1 | ||
| 90389-16028 |
XZU600,640,650..(T3,T4)..DCRWD..(CBU,IV3,IV6) 右側ﾘﾔ |
2 | ||
| 90389-16026 |
XZU650..20T..DCRWD 左側ﾘﾔ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16025 |
XZU650..20T..DCRWD 左側ﾌﾛﾝﾄ |
1 | ||
| 90389-16029 |
XZU600,640,650..(T3,T4)..DCRWD..(CBU,IV3,IV6) 右側ﾌﾛﾝﾄ |
1 | ||
| 90389-16028 |
XZU600,640,650..(T3,T4)..DCRWD..(CBU,IV3,IV6) 右側ﾘﾔ |
2 | ||
| 90389-16026 |
XZU650..20T..DCRWD 左側ﾘﾔ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16025 |
XZU650..20T..DCRWD 左側ﾌﾛﾝﾄ |
1 | ||
| 90389-16029 |
XZU600,640,650..(T3,T4)..DCRWD..(CBU,IV3,IV6) 右側ﾌﾛﾝﾄ |
1 | ||
| 90389-16028 |
XZU600,640,650..(T3,T4)..DCRWD..(CBU,IV3,IV6) 右側ﾘﾔ |
2 | ||
| 90389-16026 |
XZU650..20T..DCRWD 左側ﾘﾔ |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-37Z70 |
XZU650..20T..DCRWD 助手席側 |
1 | ||
| 48101-37G80 |
XZU650..20T..DCRWD 運転席側 |
1 | ||
| 48101-3V820 |
XZU650..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,運転席側 |
1 | ||
| 48101-3V830 |
XZU650..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,助手席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-37Z70 |
XZU650..20T..DCRWD 助手席側 |
1 | ||
| 48102-37G80 |
XZU650..20T..DCRWD 運転席側 |
1 | ||
| 48102-3V820 |
XZU650..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,運転席側 |
1 | ||
| 48102-3V830 |
XZU650..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,助手席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3V830 |
XZU650..20T..DCRWD 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110-37Z70 |
XZU650..20T..DCRWD 2枚ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37G80 |
XZU650..20T..DCRWD |
2 | ||
| 48147-3V830 |
XZU650..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37J42 |
XZU600,630..(DM5,DM7)..30T..DCRWD;XZU600,650..(DM6,T3,T4)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37J42 |
XZU630..30T..DCRWD;XZU600..DM5..30T..IV3;XZU600..30T..DCRWD..(CBU,IV7);XZU600,650..(DM6,T3,T4)..20T..DCRWD |
6 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37J42 |
XZU600,630..(DM5,DM7)..30T..DCRWD;XZU600,650..(DM6,T3,T4)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37J42 |
XZU630..30T..DCRWD;XZU600..DM5..30T..IV3;XZU600..30T..DCRWD..(CBU,IV7);XZU600,650..(DM6,T3,T4)..20T..DCRWD |
6 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37J42 |
XZU600,630..(DM5,DM7)..30T..DCRWD;XZU600,650..(DM6,T3,T4)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37J42 |
XZU630..30T..DCRWD;XZU600..DM5..30T..IV3;XZU600..30T..DCRWD..(CBU,IV7);XZU600,650..(DM6,T3,T4)..20T..DCRWD |
6 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC600,630,XZU600,630,640,650..DCRWD |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC600,630,XZU600,630,640,650..DCRWD |
4 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48113-37J42 |
XZU650..20T..DCRWD |
6 | ||
| 48113-3VB20 |
XZU600,630..(DM5,DM7)..30T..DCRWD;XZU600,650..(DM6,T3,T4)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48113-37J42 |
XZU650..20T..DCRWD |
6 | ||
| 48113-3VB20 |
XZU600,630..(DM5,DM7)..30T..DCRWD;XZU600,650..(DM6,T3,T4)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48113-37J42 |
XZU650..20T..DCRWD |
6 | ||
| 48113-3VB20 |
XZU600,630..(DM5,DM7)..30T..DCRWD;XZU600,650..(DM6,T3,T4)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48113-37U10 |
XZU650..20T..DCRWD |
4 | ||
| 48113-3V840 |
XZU650..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
6 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48113-37U10 |
XZU650..20T..DCRWD |
4 | ||
| 48113-3V840 |
XZU650..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
6 | ||

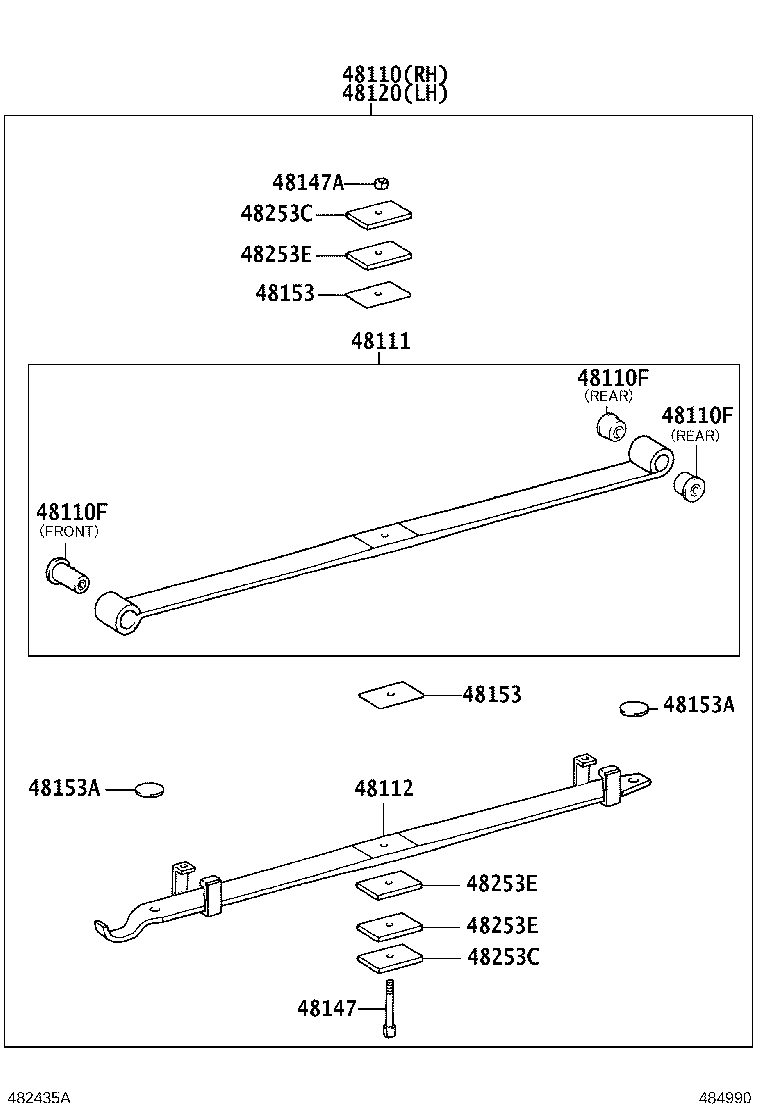

ILLUST NO. 2 OF 2(1905- )XZU650..20T..DCRWD
2-LEAF(ｷｮｳｶﾘｰﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-37G80 |
XZU650..20T..DCRWD 2枚ﾘｰﾌ |
1 | ||
| 48110-3V820 |
XZU650..20T..DCRWD 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16025 |
XZU650..20T..DCRWD 左側ﾌﾛﾝﾄ |
1 | ||
| 90389-16029 |
XZU600,640,650..(T3,T4)..DCRWD..(CBU,IV3,IV6) 右側ﾌﾛﾝﾄ |
1 | ||
| 90389-16028 |
XZU600,640,650..(T3,T4)..DCRWD..(CBU,IV3,IV6) 右側ﾘﾔ |
2 | ||
| 90389-16026 |
XZU650..20T..DCRWD 左側ﾘﾔ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16025 |
XZU650..20T..DCRWD 左側ﾌﾛﾝﾄ |
1 | ||
| 90389-16029 |
XZU600,640,650..(T3,T4)..DCRWD..(CBU,IV3,IV6) 右側ﾌﾛﾝﾄ |
1 | ||
| 90389-16028 |
XZU600,640,650..(T3,T4)..DCRWD..(CBU,IV3,IV6) 右側ﾘﾔ |
2 | ||
| 90389-16026 |
XZU650..20T..DCRWD 左側ﾘﾔ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16025 |
XZU650..20T..DCRWD 左側ﾌﾛﾝﾄ |
1 | ||
| 90389-16029 |
XZU600,640,650..(T3,T4)..DCRWD..(CBU,IV3,IV6) 右側ﾌﾛﾝﾄ |
1 | ||
| 90389-16028 |
XZU600,640,650..(T3,T4)..DCRWD..(CBU,IV3,IV6) 右側ﾘﾔ |
2 | ||
| 90389-16026 |
XZU650..20T..DCRWD 左側ﾘﾔ |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-37Z70 |
XZU650..20T..DCRWD 助手席側 |
1 | ||
| 48101-37G80 |
XZU650..20T..DCRWD 運転席側 |
1 | ||
| 48101-3V820 |
XZU650..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,運転席側 |
1 | ||
| 48101-3V830 |
XZU650..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,助手席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-37Z70 |
XZU650..20T..DCRWD 助手席側 |
1 | ||
| 48102-37G80 |
XZU650..20T..DCRWD 運転席側 |
1 | ||
| 48102-3V820 |
XZU650..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,運転席側 |
1 | ||
| 48102-3V830 |
XZU650..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,助手席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3V830 |
XZU650..20T..DCRWD 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110-37Z70 |
XZU650..20T..DCRWD 2枚ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37G80 |
XZU650..20T..DCRWD |
2 | ||
| 48147-3V830 |
XZU650..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37J42 |
XZU600,630..(DM5,DM7)..30T..DCRWD;XZU600,650..(DM6,T3,T4)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37J42 |
XZU630..30T..DCRWD;XZU600..DM5..30T..IV3;XZU600..30T..DCRWD..(CBU,IV7);XZU600,650..(DM6,T3,T4)..20T..DCRWD |
6 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37J42 |
XZU600,630..(DM5,DM7)..30T..DCRWD;XZU600,650..(DM6,T3,T4)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37J42 |
XZU630..30T..DCRWD;XZU600..DM5..30T..IV3;XZU600..30T..DCRWD..(CBU,IV7);XZU600,650..(DM6,T3,T4)..20T..DCRWD |
6 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC600,630,XZU600,630,640,650..DCRWD |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC600,630,XZU600,630,640,650..DCRWD |
4 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48113-37J42 |
XZU650..20T..DCRWD |
6 | ||
| 48113-3VB20 |
XZU600,630..(DM5,DM7)..30T..DCRWD;XZU600,650..(DM6,T3,T4)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48113-37J42 |
XZU650..20T..DCRWD |
6 | ||
| 48113-3VB20 |
XZU600,630..(DM5,DM7)..30T..DCRWD;XZU600,650..(DM6,T3,T4)..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48113-37U10 |
XZU650..20T..DCRWD |
4 | ||
| 48113-3V840 |
XZU650..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
6 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48113-37U10 |
XZU650..20T..DCRWD |
4 | ||
| 48113-3V840 |
XZU650..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
6 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48113-37U10 |
XZU650..20T..DCRWD |
4 | ||
| 48113-3V840 |
XZU650..20T..DCRWD ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
6 | ||
