Toyota Dyna/toyoace XZU650 SUSPENSION CROSSMEMBER & UNDER COVER

Part #	Description	Period	Qty
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080	XZU600..6F;XZC600..5F..ST;XZU685,695..SCB;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	2
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080	XZU600..6F;XZC600..5F..ST;XZU685,695..SCB;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT	07/2011 - 05/2017	2
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37180	BZU600,TRC600,TRU600,XZC600,610,630,XZU600,610,620,630,640,650	07/2011 - 01/2012	1
51473-37182	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT	02/2012 - 05/2017	1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37120	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT	07/2011 - 05/2017	1
51480 - SHUTTER ASSY, ENGINE REAR SIDE, RH
51480-37110	XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC645,655,XZU645,655..SCB..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 03/2017	1
51480-37110	XZU605..IV6;XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZC645,655,XZU645,655..SCB;XZU600..6FC..(20T,30T)..IV6;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZU600..(DM6,T3)..MTM..(CBU,IV6)	07/2011 - 03/2017	1
51480-37110	XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC645,655,XZU645,655..SCB..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 03/2017	1
51480-37110	XZU640..DCRTK..IV3;XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU650..(20T,35T)..IV3;XZC645,655,XZU645,655..SCB..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)	07/2011 - 03/2017	1
51480-37111	XZC645,655,XZU64#,65#..SCB..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	04/2017 - 05/2017	1
51480-37111	XZC645,655,XZU64#,65#..SCB..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)	04/2017 - 05/2017	1
51480-37111	XZU605..IV6;XZC645,655,XZU64#,65#..SCB;XZU600..(DM6,T3)..(CBU,IV6)	04/2017 - 05/2017	1
51480-37111	XZC645,655,XZU64#,65#..SCB..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	04/2017 - 05/2017	1
53343B - BRACKET, AIR DEFLECTOR, NO.1
53343-37020	XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC600,XZU600..SCB..MTM..(DCRTJ,DCRTK);XZC605,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(DCB,SCB)..(DCRTJ,DCRTK)..(CBU,IV3,IV6)	07/2011 - 05/2016	2
53345C - BRACKET, AIR DEFLECTOR, NO.2
53304-37010	XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(DCB,SCB)..(DCRTJ,DCRTK)..(CBU,IV3,IV5,IV6,IV7)	05/2016 - 05/2017	1
53345-37030	XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC600,XZU600..SCB..MTM..(DCRTJ,DCRTK);XZC605,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(DCB,SCB)..(DCRTJ,DCRTK)..(CBU,IV3,IV6)	07/2011 - 05/2016	1
55827A - DUCT, VENTILATOR AIR GUIDE
55827-37052	XZU650..20T,35T;XZU640..T4..5F..IV3;XZU640..SCB..30T..DCRTK;XZU600..SCB..6FC..(20T,30T);XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV6);XZC600,XZU600..SCB..MTM..(DCRTJ,DCRTK);XZC605,610,630,645,655,675,XZU605,610,620,630,645,655,675,685,695..(DCB,SCB)..(DCRTJ,DCRTK)..(CBU,IV3,IV6)	07/2011 - 05/2016	1
55827-37100	XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..(DCB,SCB)..(DCRTJ,DCRTK)..(CBU,IV3,IV5,IV6,IV7)	05/2016 - 05/2017	1
Common parts
90119-08C42
90179-08113
91552-81025
91552-81030
91651-B0825
91653-40820

Part #	Description	Period	Qty
51961C - HOOK, FRONT
51961-37040	XZU640,650..6F;XZU600..DM6..6FC;XZU600..MTM..(20T,40T)..(IV5,IV6)	07/2011 - 05/2017	1
51962 - HOOK, NO.2
51961-36040	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT 牽引ﾌｯｸ−有り(ﾘﾔ & ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)	07/2011 - 05/2017	1
51962 - HOOK, NO.2
51961-36040	XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT 牽引ﾌｯｸ−有り(ﾘﾔ & ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)	07/2011 - 05/2017	1
51963B - HOOK, TRANSPORT, FRONT RH
51963-37030	XZU600..40T;XZU600..IV4,IV5;XZU640..IV4,IV6;XZU650..DCRTK..(CBU,IV3)	05/2016 - 05/2017	1
51964B - HOOK, TRANSPORT, FRONT LH
51964-37040	XZU600..40T;XZU600..IV4,IV5;XZU640..IV4,IV6;XZU650..DCRTK..(CBU,IV3)	05/2016 - 05/2017	1
Common parts
90178-14007
90179-14007
91552-81030
91672-01450
91672-01460
94130-01002
94130-01402
94130-01432
94622-41400
C5191-51010

XZU650-TKFRC3 (2011)

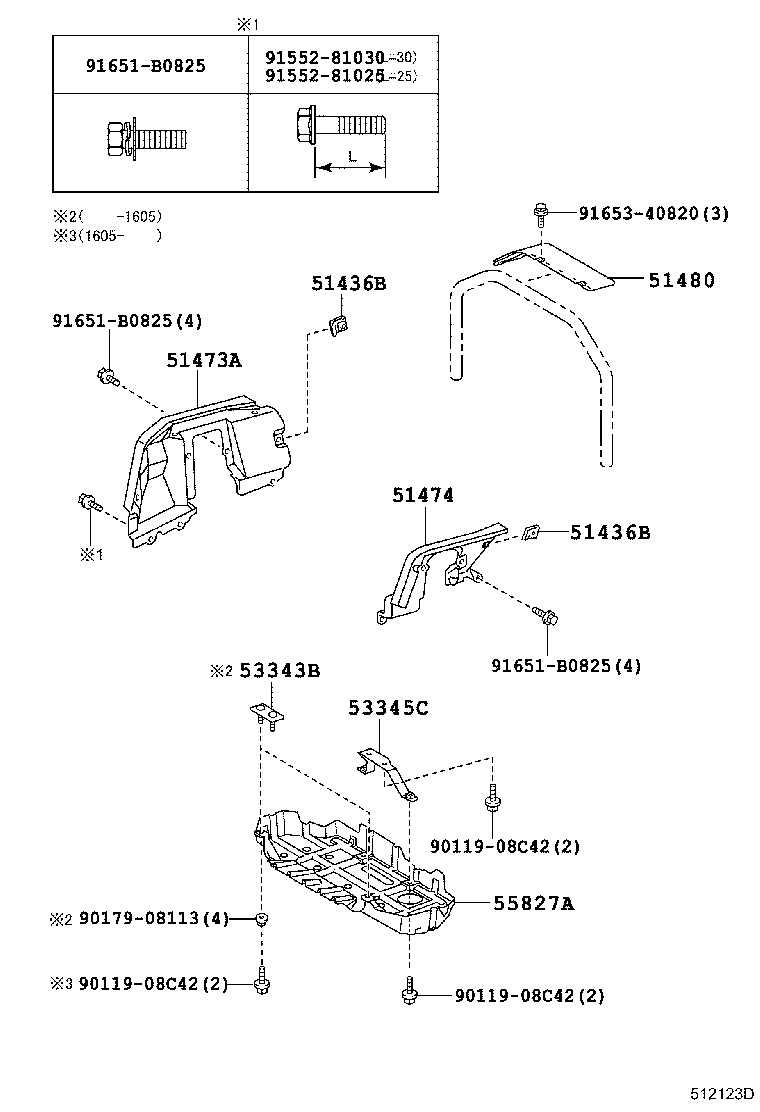

ILLUST NO. 1 OF 2(1107- )XZC600,610,630,XZU600,602,610,620,630,640,642,650,652..DCRTH,DCRTJ,DCRTK

ILLUST NO. 2 OF 2(1107- )
