XZU650-TKFRC3 (2011)
Toyota Dyna/Toyoace

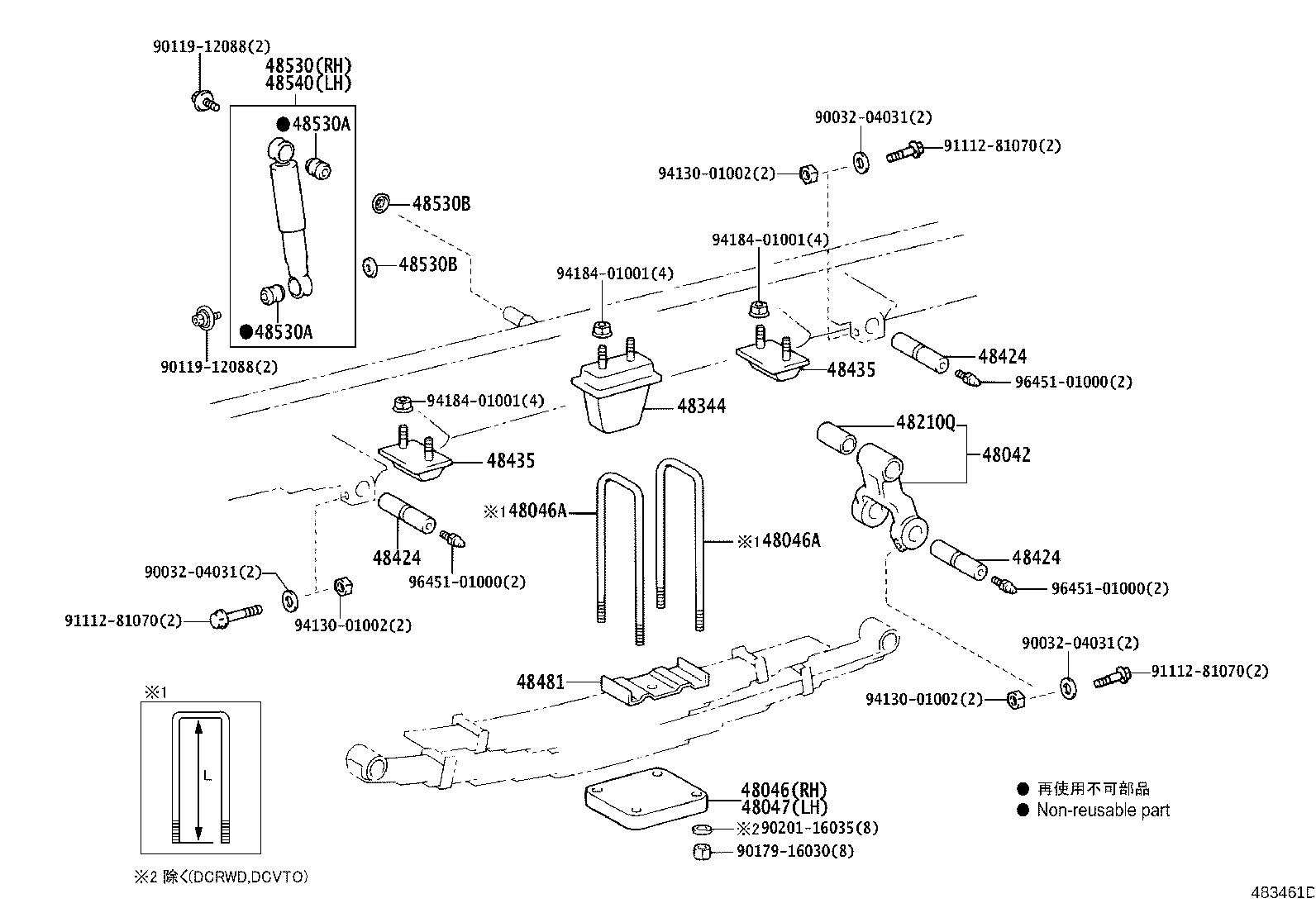

ILLUST NO. 1 OF 2(1107- )35T,40T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37041 |
XZU600,640,650..6F |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-37180 |
XZU600..6F;XZU600,645..30T;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU655,685,695..T3,T4;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16060 |
XZU650..35T 長さ=335 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16060 |
XZU650..35T 長さ=335 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-37180 |
XZU600..6F;XZU600,645..30T;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU655,685,695..T3,T4;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90384-28009 |
XZU600,640,650..6F |
2 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37140 |
XZU655..T2;XZU600,640,650..6F |
2 | ||
| 48424 - PIN, SPRING BRACKET, NO.2 | ||||
| 48424-37020 |
XZU600,640,650..6F |
6 | ||
| 48424 - PIN, SPRING BRACKET, NO.2 | ||||
| 48424-37020 |
XZU600,640,650..6F |
6 | ||
| 48424 - PIN, SPRING BRACKET, NO.2 | ||||
| 48424-37020 |
XZU600,640,650..6F |
6 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
XZU600..6F;XZU600,645..30T;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC655,XZU655,685,695;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
XZU600..6F;XZU600,645..30T;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC655,XZU655,685,695;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
4 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37081 |
XZU645..30T..DCRTJ;XZU640,650,655,685,695..(T3,T4)..(DCRTJ,DCRTK);BZU600,TRU600,XZU600..T3..(DCRTJ,DCRTK,EFI,LPG) |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80780 |
XZU600,640,650..35T,40T ﾏｰｸ 48531−37060 |
1 | ||
| 48531-80798 |
XZU600,640,650..6F ﾏｰｸ 48531−37061 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80780 |
XZU600,640,650..35T,40T ﾏｰｸ 48531−37060 |
1 | ||
| 48531-80798 |
XZU600,640,650..6F ﾏｰｸ 48531−37061 |
1 | ||
| Common parts | ||||
| 90032-04031 | ||||
| 90119-12088 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91112-81070 | ||||
| 94130-01002 | ||||
| 94184-01001 | ||||
| 96451-01000 | ||||
ILLUST NO. 1 OF 2(1107- )XZU640..30T..DCRTK ; (1107- )XZU600,650..DCVTO..IV6 ; (1107- )XZU6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37041 |
XZU600,640,650..6F |
2 | ||
| 48042-37041 |
XZU600,640,650..6F |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-37180 |
XZU600..6F;XZU600,645..30T;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU655,685,695..T3,T4;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
1 | ||
| 48473-37180 |
XZU600..6F;XZU600,645..30T;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU655,685,695..T3,T4;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16060 |
XZU650..35T 長さ=335 |
4 | ||
| 90117-16060 |
XZU650..35T 長さ=335 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16060 |
XZU650..35T 長さ=335 |
4 | ||
| 90117-16060 |
XZU650..35T 長さ=335 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-37180 |
XZU600..6F;XZU600,645..30T;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU655,685,695..T3,T4;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
1 | ||
| 48473-37180 |
XZU600..6F;XZU600,645..30T;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU655,685,695..T3,T4;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90384-28009 |
XZU600,640,650..6F |
2 | ||
| 90384-28009 |
XZU600,640,650..6F |
2 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90384-28009 |
XZU600,640,650..6F |
2 | ||
| 90384-28009 |
XZU600,640,650..6F |
2 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37140 |
XZU655..T2;XZU600,640,650..6F |
2 | ||
| 48344-37140 |
XZU655..T2;XZU600,640,650..6F |
2 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
XZU600..6F;XZU600,645..30T;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC655,XZU655,685,695;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
4 | ||
| 48435-36050 |
XZU600..6F;XZU600,645..30T;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC655,XZU655,685,695;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
XZU600..6F;XZU600,645..30T;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC655,XZU655,685,695;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
4 | ||
| 48435-36050 |
XZU600..6F;XZU600,645..30T;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC655,XZU655,685,695;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
4 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37081 |
XZU645..30T..DCRTJ;XZU640,650,655,685,695..(T3,T4)..(DCRTJ,DCRTK);BZU600,TRU600,XZU600..T3..(DCRTJ,DCRTK,EFI,LPG) |
2 | ||
| 48481-37081 |
XZU645..30T..DCRTJ;XZU640,650,655,685,695..(T3,T4)..(DCRTJ,DCRTK);BZU600,TRU600,XZU600..T3..(DCRTJ,DCRTK,EFI,LPG) |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80780 |
XZU600,640,650..35T,40T ﾏｰｸ 48531−37060 |
1 | ||
| 48531-80780 |
XZU600,640,650..35T,40T ﾏｰｸ 48531−37060 |
1 | ||
| 48531-80798 |
XZU600,640,650..6F ﾏｰｸ 48531−37061 |
1 | ||
| 48531-80798 |
XZU600,640,650..6F ﾏｰｸ 48531−37061 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 90385-19011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 90385-19011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 90948-03011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 90948-03011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80780 |
XZU600,640,650..35T,40T ﾏｰｸ 48531−37060 |
1 | ||
| 48531-80780 |
XZU600,640,650..35T,40T ﾏｰｸ 48531−37060 |
1 | ||
| 48531-80798 |
XZU600,640,650..6F ﾏｰｸ 48531−37061 |
1 | ||
| 48531-80798 |
XZU600,640,650..6F ﾏｰｸ 48531−37061 |
1 | ||
| Common parts | ||||
| 90105-16021 | ||||
| 90105-16067 | ||||
| 90105-16070 | ||||
| 90119-10740 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90178-16007 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91552-81030 | ||||
| 91552-81045 | ||||
| 91651-B0820 | ||||
| 94151-81000 | ||||
| 94184-01001 | ||||

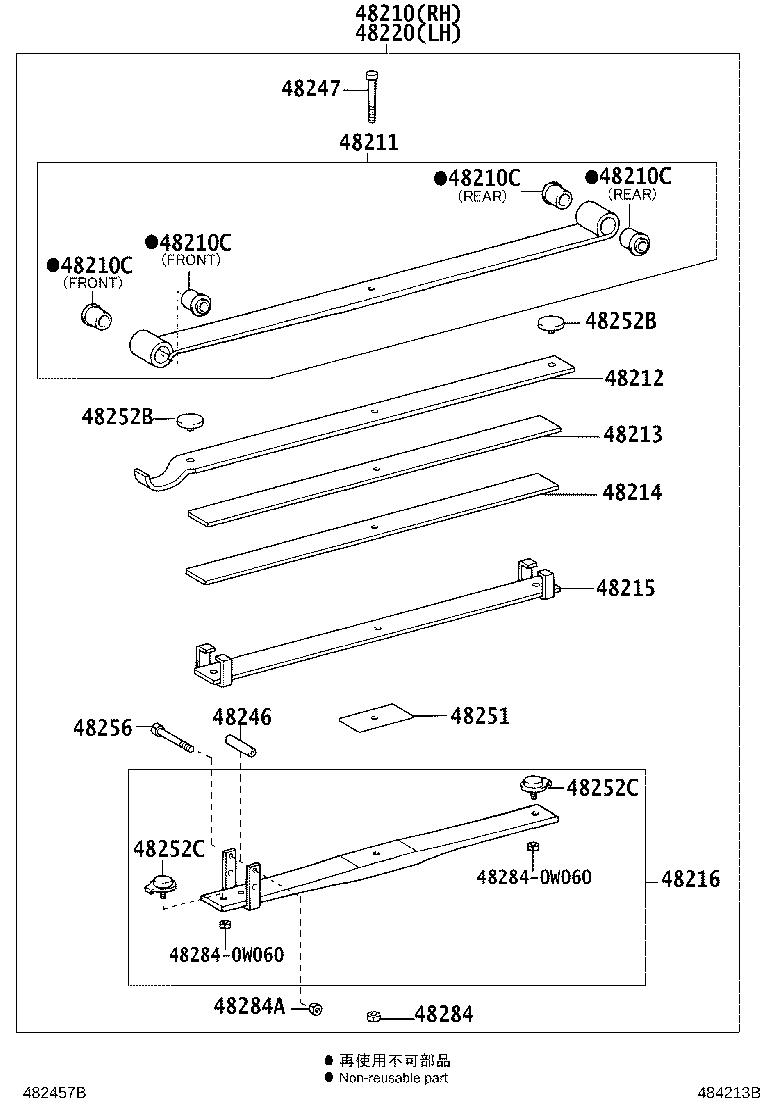

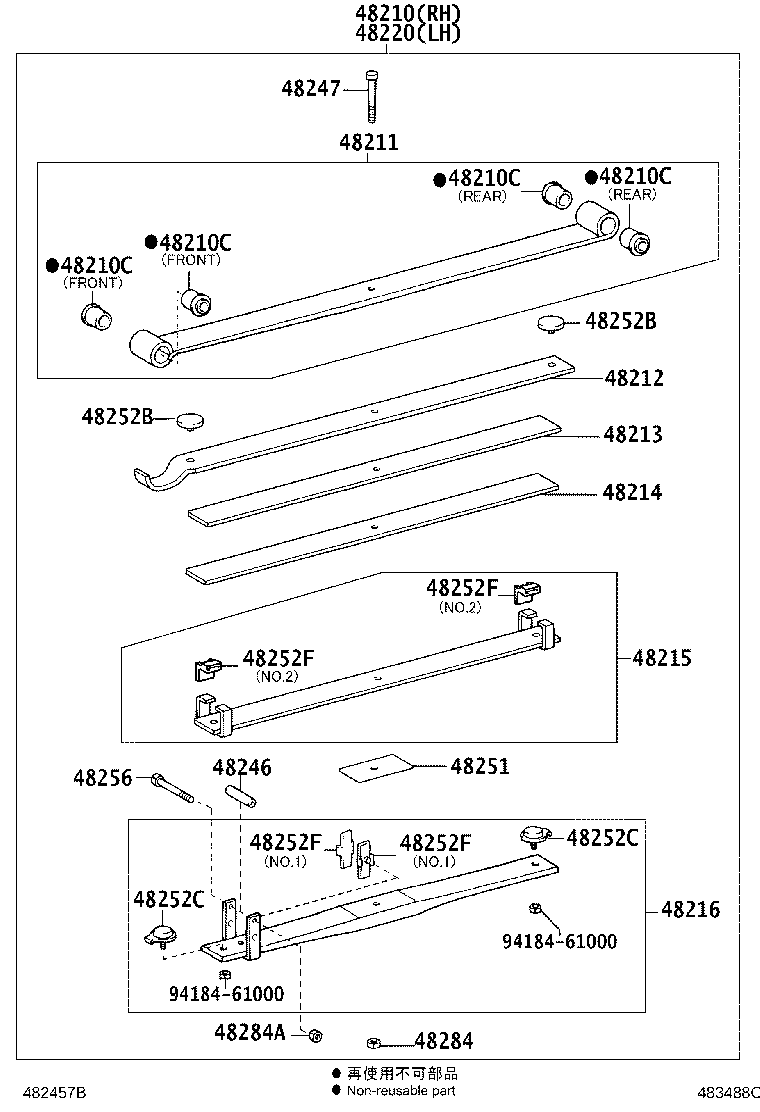

ILLUST NO. 2 OF 2(1107-1503)BZU600,TRU600..T4..30T ; (1107-1503)XZC605..T4..6FC..DCRTJ..IV3 ; (1107-
6-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37561 |
XZU650..35T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ |
1 | ||
| 48210-37561 |
XZU650..35T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37561 |
XZU650..35T |
2 | ||
| 48201-37561 |
XZU650..35T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-37560 |
XZU650..35T |
2 | ||
| 48212-37560 |
XZU650..35T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48204-37560 |
XZU650..35T |
2 | ||
| 48204-37560 |
XZU650..35T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-37560 |
XZU650..35T |
2 | ||
| 48214-37560 |
XZU650..35T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-37560 |
XZU650..35T |
2 | ||
| 48215-37560 |
XZU650..35T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-37560 |
XZU650..35T |
2 | ||
| 48216-37560 |
XZU650..35T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37561 |
XZU650..35T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ |
1 | ||
| 48210-37561 |
XZU650..35T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37560 |
XZU650..35T |
2 | ||
| 48247-37560 |
XZU650..35T |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48268-37560 |
XZU600,640,650..6F |
2 | ||
| 48268-37560 |
XZU600,640,650..6F |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48155-3B470 |
XZU650..35T;XZU685,695..30T |
2 | ||
| 48155-3B470 |
XZU650..35T;XZU685,695..30T |
2 | ||
| Common parts | ||||
| 94184-61000 | ||||

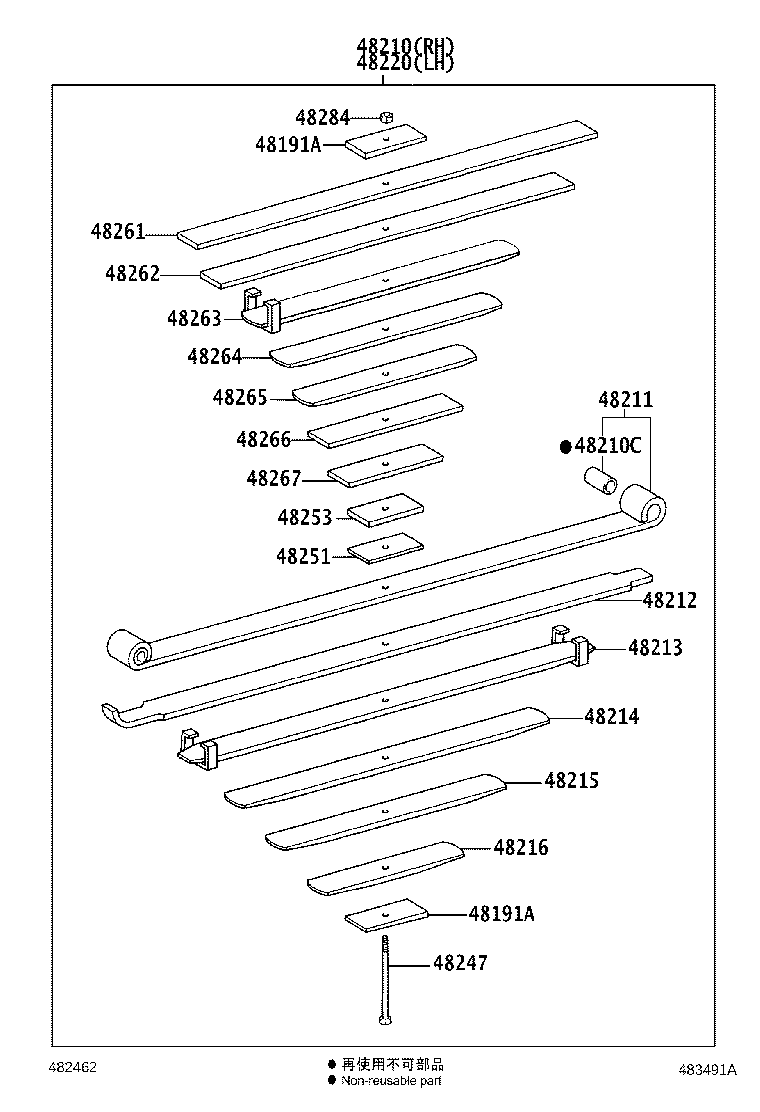

ILLUST NO. 2 OF 2(1107- )35T..DCRTK,DCRVT
MAIN 6+HELPER 7-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37070 |
XZC600..5F..ST;XZU600,640,650..6F |
4 | ||
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37070 |
XZC600..5F..ST;XZU600,640,650..6F |
4 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37561 |
XZU650..35T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37561 |
XZU650..35T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-37560 |
XZU650..35T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48204-37560 |
XZU650..35T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-37560 |
XZU650..35T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-37560 |
XZU650..35T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-37560 |
XZU650..35T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37561 |
XZU650..35T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37560 |
XZU650..35T |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48268-37560 |
XZU600,640,650..6F |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48263-37070 |
XZU650..35T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-37560 |
XZU650..35T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-37560 |
XZU650..35T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48207-37560 |
XZU650..35T |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48264-37560 |
XZU650..35T |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48265-37560 |
XZU650..35T |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48266-37560 |
XZU650..35T |
2 | ||
| 48267 - LEAF, REAR HELPER SPRING, NO.7 | ||||
| 48267-37560 |
XZU650..35T |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48155-3B470 |
XZU650..35T;XZU685,695..30T |
2 | ||
ILLUST NO. 2 OF 2(1503- )TRC600..DM5 ; (1503- )T5..5F..30T; (1503- )DM3..DCRTJ..CBU ; (150
6-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37561 |
XZU650..35T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ |
1 | ||
| 48210-37561 |
XZU650..35T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ |
1 | ||
| 48210-37561 |
XZU650..35T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37561 |
XZU650..35T |
2 | ||
| 48201-37561 |
XZU650..35T |
2 | ||
| 48201-37561 |
XZU650..35T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-37560 |
XZU650..35T |
2 | ||
| 48212-37560 |
XZU650..35T |
2 | ||
| 48212-37560 |
XZU650..35T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48204-37560 |
XZU650..35T |
2 | ||
| 48204-37560 |
XZU650..35T |
2 | ||
| 48204-37560 |
XZU650..35T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-37560 |
XZU650..35T |
2 | ||
| 48214-37560 |
XZU650..35T |
2 | ||
| 48214-37560 |
XZU650..35T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-37560 |
XZU650..35T |
2 | ||
| 48215-37560 |
XZU650..35T |
2 | ||
| 48215-37560 |
XZU650..35T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-37560 |
XZU650..35T |
2 | ||
| 48216-37560 |
XZU650..35T |
2 | ||
| 48216-37560 |
XZU650..35T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37561 |
XZU650..35T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ |
1 | ||
| 48210-37561 |
XZU650..35T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ |
1 | ||
| 48210-37561 |
XZU650..35T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37560 |
XZU650..35T |
2 | ||
| 48247-37560 |
XZU650..35T |
2 | ||
| 48247-37560 |
XZU650..35T |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48268-37560 |
XZU600,640,650..6F |
2 | ||
| 48268-37560 |
XZU600,640,650..6F |
2 | ||
| 48268-37560 |
XZU600,640,650..6F |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48155-3B470 |
XZU650..35T;XZU685,695..30T |
2 | ||
| 48155-3B470 |
XZU650..35T;XZU685,695..30T |
2 | ||
| 48155-3B470 |
XZU650..35T;XZU685,695..30T |
2 | ||
| Common parts | ||||
| 48284-0W060 | ||||
ILLUST NO. 2 OF 2(1503- )XZC605..T4..6FC..DCRTJ..IV3 ; (1503-)XZU605..T4..30T..DCRTJ..CBU ; (
6-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37561 |
XZU650..35T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ |
1 | ||
| 48210-37561 |
XZU650..35T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ |
1 | ||
| 48210-37561 |
XZU650..35T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 90384-28009 |
XZU600,640,650..6F |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37561 |
XZU650..35T |
2 | ||
| 48201-37561 |
XZU650..35T |
2 | ||
| 48201-37561 |
XZU650..35T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-37560 |
XZU650..35T |
2 | ||
| 48212-37560 |
XZU650..35T |
2 | ||
| 48212-37560 |
XZU650..35T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48204-37560 |
XZU650..35T |
2 | ||
| 48204-37560 |
XZU650..35T |
2 | ||
| 48204-37560 |
XZU650..35T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-37560 |
XZU650..35T |
2 | ||
| 48214-37560 |
XZU650..35T |
2 | ||
| 48214-37560 |
XZU650..35T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-37560 |
XZU650..35T |
2 | ||
| 48215-37560 |
XZU650..35T |
2 | ||
| 48215-37560 |
XZU650..35T |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-37560 |
XZU650..35T |
2 | ||
| 48216-37560 |
XZU650..35T |
2 | ||
| 48216-37560 |
XZU650..35T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37561 |
XZU650..35T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ |
1 | ||
| 48210-37561 |
XZU650..35T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ |
1 | ||
| 48210-37561 |
XZU650..35T ﾒｲﾝ6枚ﾘｰﾌ+ｻﾌﾞ7枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37560 |
XZU650..35T |
2 | ||
| 48247-37560 |
XZU650..35T |
2 | ||
| 48247-37560 |
XZU650..35T |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48268-37560 |
XZU600,640,650..6F |
2 | ||
| 48268-37560 |
XZU600,640,650..6F |
2 | ||
| 48268-37560 |
XZU600,640,650..6F |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48155-3B470 |
XZU650..35T;XZU685,695..30T |
2 | ||
| 48155-3B470 |
XZU650..35T;XZU685,695..30T |
2 | ||
| 48155-3B470 |
XZU650..35T;XZU685,695..30T |
2 | ||
| Common parts | ||||
| 48284-0W060 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
