XZU645-TQMQB3 (2015)
Toyota Dyna/Toyoace

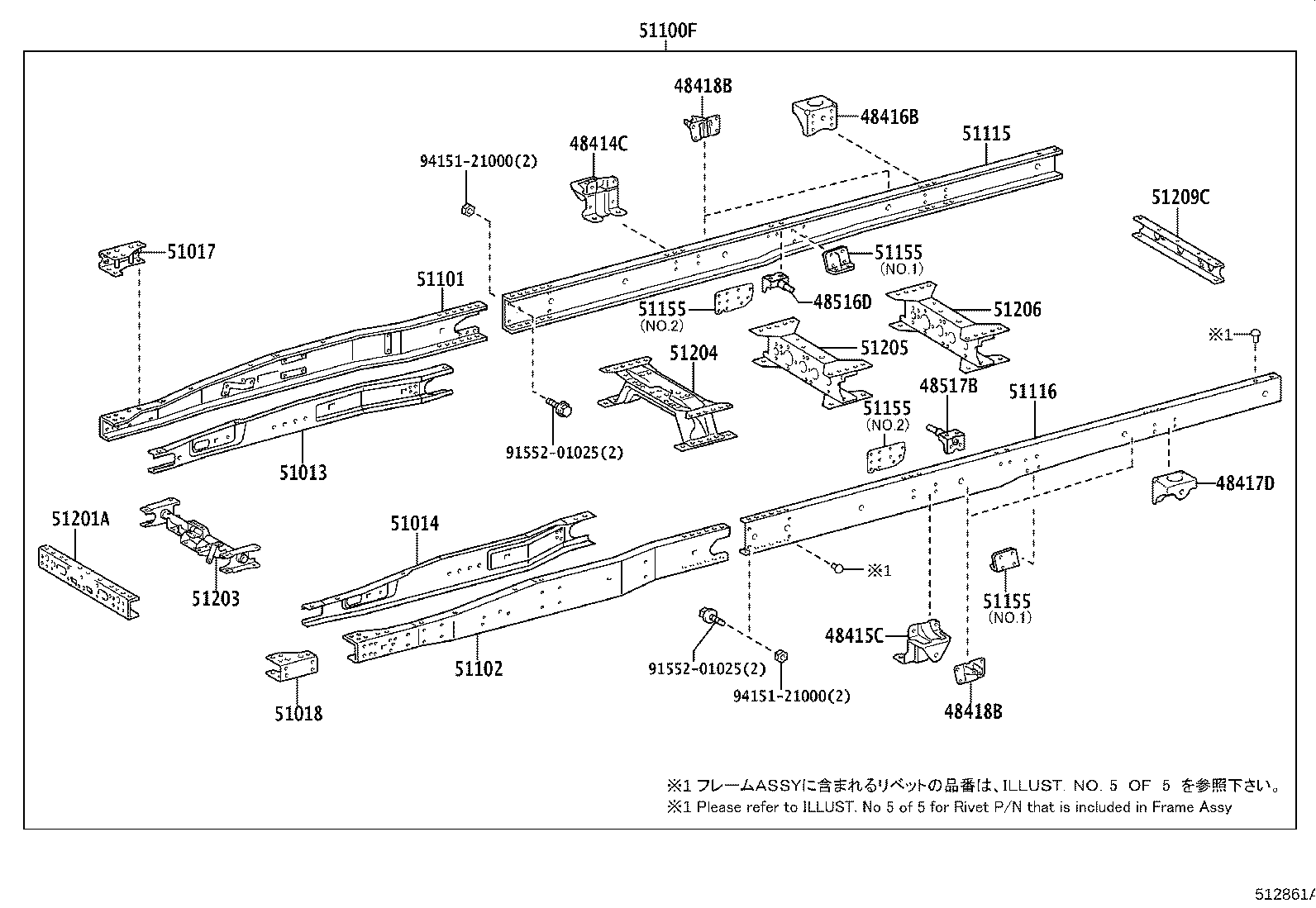

ILLUST NO. 2 OF 5(1505- )XZU645..30T..DCRTJ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48414-37180 |
XZU645..20T;XZC60#,645,675,XZU60#,675..(DM3,DM5,DM6,T2,T4,T5)..WT |
1 | ||
| 48414-37100 |
XZU650..20T;XZU600,645..30T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC655,XZU655,685,695;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48414-37180 |
XZU645..20T;XZC60#,645,XZU60#..(T2,T4,T5)..WT |
2 | ||
| 48414-37180 |
XZU645..20T..DCRTJ;XZC60#,645,XZU600,605..(T2,T4,T5)..WT..(DCRTH,DCRTJ,DCRTK) |
1 | ||
| 48415-37020 |
XZU645..30T..DCRTJ;BZU600,TRU600,XZU600..T3..30T..(DCRTJ,DCRTK,EFI,LPG);XZC655,XZU640,650,655,685,695..(20T,30T)..(DCRTJ,DCRTK) |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48416-37150 |
XZU645..20T;XZC60#,645,675,XZU60#,675..(03S,DM3,DM5,DM6,T2,T4,T5)..WT |
1 | ||
| 48416-37100 |
XZU650..20T;XZU600,645..30T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC655,XZU655,685,695;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48416-37150 |
XZU645..20T;XZC60#,645,675,XZU60#,675..(03S,DM3,DM5,DM6,T2,T4,T5)..WT |
1 | ||
| 48416-37100 |
XZU650..20T;XZU600,645..30T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC655,XZU655,685,695;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU |
1 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
XZU600..6F;XZU600,645..30T;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC655,XZU655,685,695;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
4 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
XZU600..6F;XZU600,645..30T;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZC655,XZU655,685,695;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
4 | ||
| 48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37010 |
XZC675,XZU675..T4;BZU600,TRC600,TRU600,XZC60#,645,655,XZU600,605,640,645,650,655,685,695..WT..(DCRTH,DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH | ||||
| 48505-37010 |
XZC675,XZU675..T4;BZU600,TRC600,TRU600,XZC60#,645,655,XZU600,605,640,645,650,655,685,695..WT..(DCRTH,DCRTJ,DCRTK,EFI,LPG) |
1 | ||
| 51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH | ||||
| 51013-37430 |
XZU645..20T;XZC605,645,655,XZU605,655..03S,T2,T3,T4,T5 |
1 | ||
| 51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH | ||||
| 51014-37410 |
XZU645..20T;XZC605,645,655,XZU605,655 |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37170 |
XZU645..20T;XZC605,645,655,XZU605,655..03S,T2,T3,T4,T5 |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-3VT90 |
XZU645..30T ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 51001-3VT60 |
XZU645..30T |
1 | ||
| 51001-3VT61 |
XZU645..30T |
1 | ||
| 51001-3VT91 |
XZU645..30T ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 51101 - RAIL, FRONT FRAME SIDE, RH | ||||
| 51101-37120 |
XZU645..20T;XZU655..T3..20T..CBU;XZU605,655..(T3,T4)..30T..CBU;XZC605,655,XZU605..(T3,T5)..CBU;XZC605,645,655,XZU605,655..SCB..(IV3,IV6) |
1 | ||
| 51102 - RAIL, FRONT FRAME SIDE, LH | ||||
| 51102-37120 |
XZU645..20T;XZU655..T3..20T..CBU;XZU605,655..(T3,T4)..30T..CBU;XZC605,655,XZU605..(T3,T5)..CBU;XZC605,645,655,XZU605,655..SCB..(IV3,IV6) |
1 | ||
| 51115 - RAIL, FRAME SIDE, REAR RH | ||||
| 51115-37530 |
XZU645..30T |
1 | ||
| 51115-37540 |
XZU645..30T ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 51116 - RAIL, FRAME SIDE, REAR LH | ||||
| 51108-37470 |
XZU645..30T ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 51108-37440 |
XZU645..30T |
1 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37060 |
XZU645..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZC60#,645,675,XZU60#,675,685,695..(03S,DM3,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37060 |
XZU645..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZC60#,645,675,XZU60#,675,685,695..(03S,DM3,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37060 |
XZU645..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZC60#,645,675,XZU60#,675,685,695..(03S,DM3,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37060 |
XZU645..20T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZC60#,645,675,XZU60#,675,685,695..(03S,DM3,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51211-37280 |
XZC60#,645,655,XZU60#,64#,65# |
1 | ||
| 51211-37090 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,645,655,XZU60#,645,655..(03S,DM3,DM6,T2,T3,T4,T5)..(20T,30T)..WT |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-37220 |
XZU645..20T;XZU600,640..IV4;XZC605,645,655,XZU605,655..03S,T2,T3,T4,T5 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-37341 |
XZU605,645,65#..20T,30T;XZC60#,645,655,XZU600..(03S,06S,T2,T3,T4,T5)..20T |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-37160 |
XZU645..20T;XZC60#,645,XZU60#..(03S,06S,T2,T4,T5)..WT |
1 | ||
| 51205-37140 |
XZU645..30T..DCRTJ;XZC675,XZU675..T4..(DCRTJ,DCRTK);XZU600..SCB..(DM3,DM6,T3)..(DCRTJ,DCRTK);BZU600,TRC600,TRU600,XZU640,685..(DCRTJ,DCRTK,EFI,LPG)..(CBU,IV3,IV5,IV6) |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51206-37060 |
XZU645..20T;XZC60#,645,XZU60#..(03S,06S,T2,T4,T5)..WT |
1 | ||
| 51206-37030 |
XZU645..30T..DCRTJ;XZC675,XZU675..T4..(DCRTJ,DCRTK);XZU600..(DM3,DM6,T3)..(DCRTJ,DCRTK);BZU600,TRC600,TRU600,XZC655,XZU640,650,655,685,695..DCRTJ,DCRTK,EFI,LPG |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51291-37040 |
XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZC645,655,XZU645,655,685,695;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6) |
1 | ||
| Common parts | ||||
| 91552-01025 | ||||
| 94151-21000 | ||||
