XZU642G-TMFSX3 (2019)
Toyota Dyna/Toyoace
ILLUST NO. 2 OF 4(1107- )TRU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,640,642,650,652,675
ｺﾝﾃﾞﾝｻ(ｻﾌﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88463-35120 | ||||
| 88463-37370 | ||||
| 88688-37F10 | ||||
| 88688-3V630 | ||||
| 88718-24060 | ||||
| 90091-20609 | ||||
| 90099-14119 | ||||
| 91511-60612 | ||||

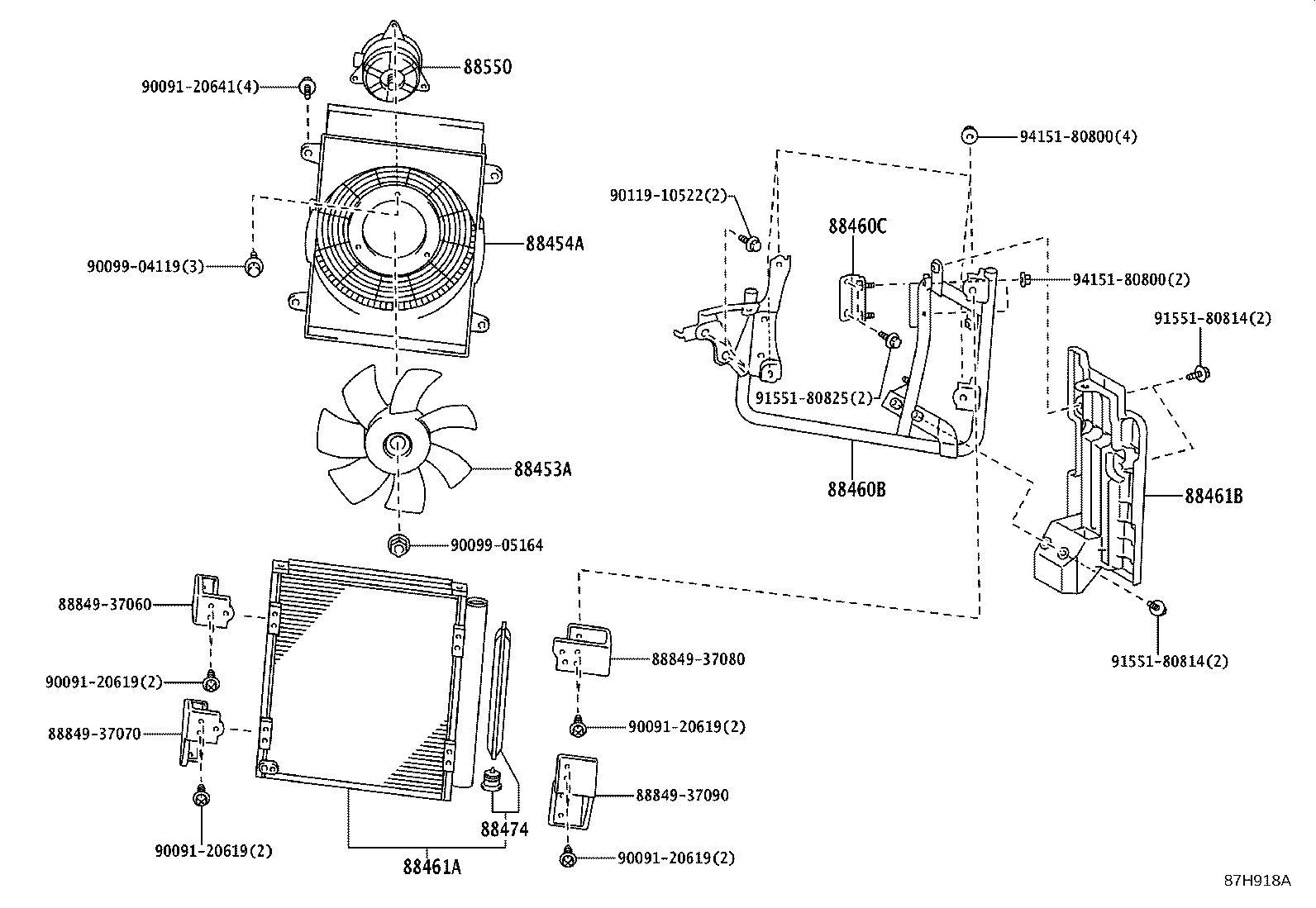

ILLUST NO. 1 OF 3(1905- )XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO
ｺﾝﾃﾞﾝｻ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453A - FAN, COOLING | ||||
| 88453-37030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-37180 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 85924-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 85924-37030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-37270 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 88461B - COVER, COOLER CONDENSER | ||||
| 53716-37310 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-37140 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| Common parts | ||||
| 88849-37060 | ||||
| 88849-37070 | ||||
| 88849-37080 | ||||
| 88849-37090 | ||||
| 90091-20619 | ||||
| 90091-20641 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-10522 | ||||
| 91551-80814 | ||||
| 91551-80825 | ||||
| 94151-80800 | ||||
ILLUST NO. 2 OF 3(1905- )XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..DCRWD,DCVTO
ｸｰﾗﾊｲｶﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-34010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 88689E - BRACKET, COOLER, NO.1 | ||||
| 88688-37420 |
XZU685,695..SCB..DCRWD;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) |
1 | ||
| 88689F - BRACKET, COOLER, NO.2 | ||||
| 88688-3V570 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-37130 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-37C00 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-37E70 |
XZU685,695..SCB..DCRWD;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) |
1 | ||
| 88715G - TUBE, DISCHARGE, G | ||||
| 88715-37500 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 88721A - HOSE, LIQUID, A | ||||
| 88721-37E00 |
XZU685,695..SCB..DCRWD;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) |
1 | ||
| Common parts | ||||
| 82715-37A90 | ||||
| 88438-37010 | ||||
| 88718-2J090 | ||||
| 88718-37390 | ||||
| 88718-3V150 | ||||
| 88718-3V160 | ||||
| 88718-3V190 | ||||
| 88718-3V210 | ||||
| 88718-3V230 | ||||
| 90044-64009 | ||||
| 90099-00264 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 91511-B0630 | ||||
| 91511-G0814 | ||||
| 91511-J0625 | ||||
| 91551-80825 | ||||
| 91651-60614 | ||||
| 91651-60645 | ||||
| 91651-60840 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
(7708- )RU2#,3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88714-14010 | ||||
| 88714-95401 | ||||
| 88714-95402 | ||||
| 88714-95403 | ||||
| 88718-22170 | ||||
| 88718-95400 | ||||
| 88718-95402 | ||||
| 88718-95403 | ||||
| 88718-95404 | ||||
| 88718-95406 | ||||
| 88899-95405 | ||||
| 90950-01060 | ||||
| 93315-14012 | ||||
| 93315-16016 | ||||
| 93315-40616 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||
| 93385-40820 | ||||
| 94110-40800 | ||||
| 94612-10601 | ||||
| 94612-10800 | ||||
ILLUST NO. 3 OF 3(9905- )
O ﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
