XZU642G-TMFSX3 (2019)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 3(1107- )XZC60#,610,630,645,655,675,XZU602,610,620,630,642,645,652,655,675,695..D
ﾌｭｰｴﾙﾀﾝｸ(690(780 OR 992)X310X385)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37070 |
XZU685..SCB..DCRWD;XZU600..DCRWD..(CBU,IV3,IV7);XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,695..(DCRWD,DCVTO)..(CBU,IV3,IV6) |
1 | ||
| 77017-37070 |
XZU685..SCB..DCRWD;XZU600..DCRWD..(CBU,IV3,IV7);XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,695..(DCRWD,DCVTO)..(CBU,IV3,IV6) |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37070 |
XZU685..SCB..DCRWD;XZU600..DCRWD..(CBU,IV3,IV7);XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,695..(DCRWD,DCVTO)..(CBU,IV3,IV6) |
1 | ||
| 77017-37070 |
XZU685..SCB..DCRWD;XZU600..DCRWD..(CBU,IV3,IV7);XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,695..(DCRWD,DCVTO)..(CBU,IV3,IV6) |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-36010 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 77023-36010 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-36010 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 77023-36010 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77026-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 90105-12116 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 90430-12245 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT | ||||
| 77154-25010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77154-25010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77169-14020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 77169-14020 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 77169-14020 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-44010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77178-44010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77244C - JOINT, FUEL TUBE, NO.2 | ||||
| 77244-37030 |
XZU685..DCRWD..IV4;XZU605,685..SCB..DCRWD;XZC60#,630,645,655,675,XZU600,602,630,64#,65#,675,695..DCRWD,DCVTO |
1 | ||
| 77244-37030 |
XZU685..DCRWD..IV4;XZU605,685..SCB..DCRWD;XZC60#,630,645,655,675,XZU600,602,630,64#,65#,675,695..DCRWD,DCVTO |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-37510 |
XZU655..DCB..DCRWD;XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU650..DCVTO..(CBU,IV6);XZC60#,630,XZU630,642,695..DCRWD;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZU640,652..(DCRWD,DCVTO)..(IV4,IV6);XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3) |
1 | ||
| 77249-37510 |
XZU655..DCB..DCRWD;XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU650..DCVTO..(CBU,IV6);XZC60#,630,XZU630,642,695..DCRWD;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZU640,652..(DCRWD,DCVTO)..(IV4,IV6);XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3) |
1 | ||
| 77249-37520 |
XZU642..IV3;XZU640..DCVTO;XZU642..6FC..DCRWD ﾌｭｰｴﾙﾀﾝｸ−100L |
1 | ||
| 77249-37520 |
XZU642..IV3;XZU640..DCVTO;XZU642..6FC..DCRWD ﾌｭｰｴﾙﾀﾝｸ−100L |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77380-26010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| Common parts | ||||
| 93319-A4010 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 6765 | ||||
| 8401 | ||||

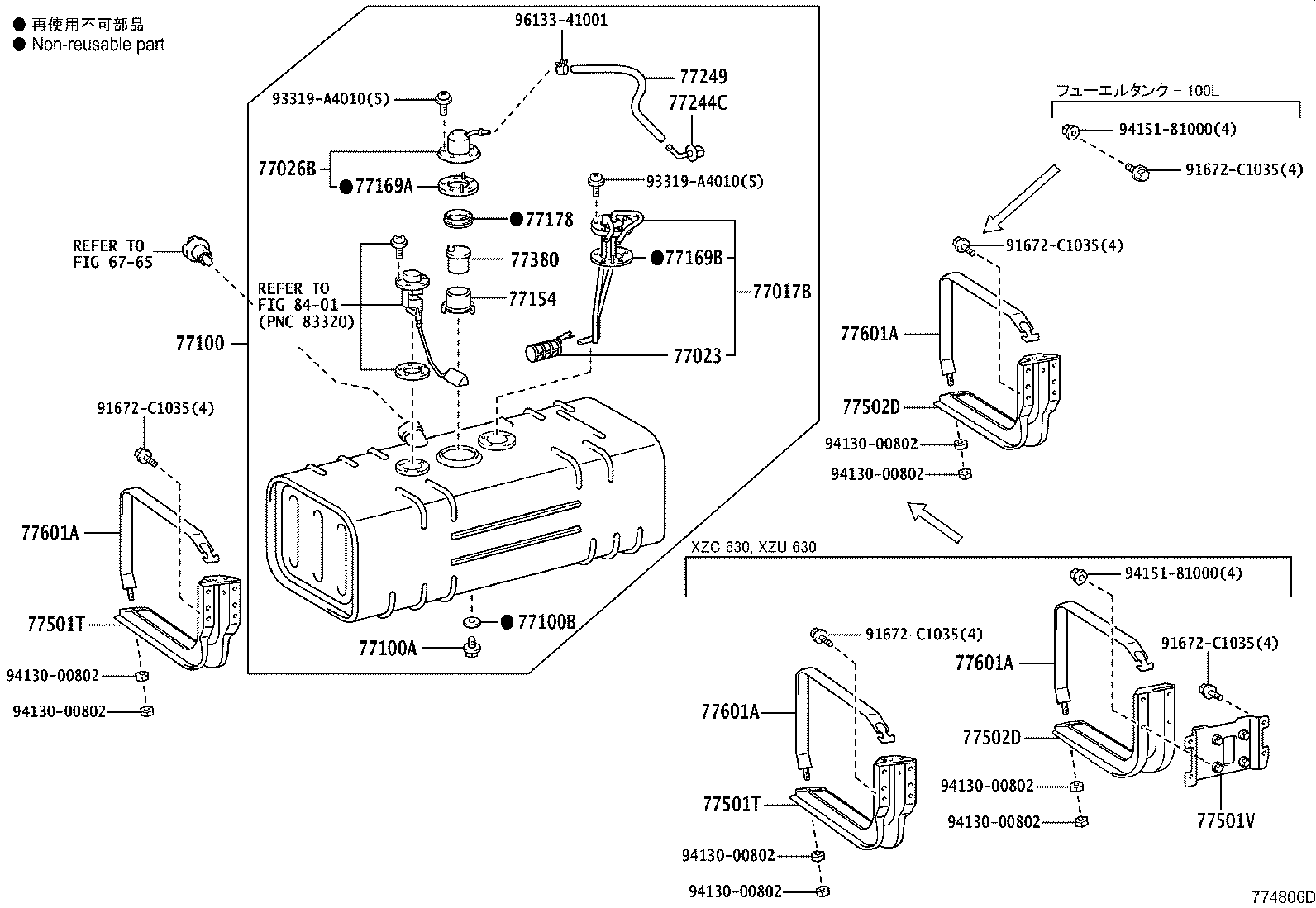

ILLUST NO. 1 OF 2(1905- )XZC60#,630,645,655,XZU600,605,630,642,645,65#..SCB..DCRWD..CBU,IV3,IV7
ﾌｭｰｴﾙﾀﾝｸ & ﾌｭｰｴﾙﾀﾝｸｽﾃｰ(ﾐｷﾞｶﾞﾜ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37070 |
XZU685..SCB..DCRWD;XZU600..DCRWD..(CBU,IV3,IV7);XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,695..(DCRWD,DCVTO)..(CBU,IV3,IV6) |
1 | ||
| 77017-37070 |
XZU685..SCB..DCRWD;XZU600..DCRWD..(CBU,IV3,IV7);XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,695..(DCRWD,DCVTO)..(CBU,IV3,IV6) |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-36010 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 77023-36010 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77026-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-37A20 |
XZU685..DCRWD..IV6;XZU640,642..40T..(DCRWD,DCVTO) |
1 | ||
| 77100-37A20 |
XZU685..DCRWD..IV6;XZU640,642..40T..(DCRWD,DCVTO) |
1 | ||
| 77100-37A50 |
XZU642..IV3;XZU640..DCVTO;XZU642..6FC..DCRWD ﾌｭｰｴﾙﾀﾝｸ−100L |
1 | ||
| 77100-37A50 |
XZU642..IV3;XZU640..DCVTO;XZU642..6FC..DCRWD ﾌｭｰｴﾙﾀﾝｸ−100L |
1 | ||
| 77100-37A30 |
XZU640,642..SCB..6FC..DCRWD;XZU642,645..(DM7,T3)..DCRWD..IV3 ﾌｭｰｴﾙﾀﾝｸ−80L |
1 | ||
| 77100-37A30 |
XZU640,642..SCB..6FC..DCRWD;XZU642,645..(DM7,T3)..DCRWD..IV3 ﾌｭｰｴﾙﾀﾝｸ−80L |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 90105-12116 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 90430-12245 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT | ||||
| 77154-25010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77154-25010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77169-14020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-14020 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 77169-14020 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-44010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77178-44010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77244C - JOINT, FUEL TUBE, NO.2 | ||||
| 77244-37030 |
XZU685..DCRWD..IV4;XZU605,685..SCB..DCRWD;XZC60#,630,645,655,675,XZU600,602,630,64#,65#,675,695..DCRWD,DCVTO |
1 | ||
| 77244-37030 |
XZU685..DCRWD..IV4;XZU605,685..SCB..DCRWD;XZC60#,630,645,655,675,XZU600,602,630,64#,65#,675,695..DCRWD,DCVTO |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-37510 |
XZU655..DCB..DCRWD;XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU650..DCVTO..(CBU,IV6);XZC60#,630,XZU630,642,695..DCRWD;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZU640,652..(DCRWD,DCVTO)..(IV4,IV6);XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3) |
1 | ||
| 77249-37510 |
XZU655..DCB..DCRWD;XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU650..DCVTO..(CBU,IV6);XZC60#,630,XZU630,642,695..DCRWD;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZU640,652..(DCRWD,DCVTO)..(IV4,IV6);XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3) |
1 | ||
| 77249-37520 |
XZU642..IV3;XZU640..DCVTO;XZU642..6FC..DCRWD ﾌｭｰｴﾙﾀﾝｸ−100L |
1 | ||
| 77249-37520 |
XZU642..IV3;XZU640..DCVTO;XZU642..6FC..DCRWD ﾌｭｰｴﾙﾀﾝｸ−100L |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77380-26010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37531 |
XZU650..DCVTO..IV3;XZC60#,645,655,XZU600,605,64#,65#..SCB..DCRWD..(CBU,IV3,IV7) |
1 | ||
| 77501-37531 |
XZU650..DCVTO..IV3;XZC60#,645,655,XZU600,605,64#,65#..SCB..DCRWD..(CBU,IV3,IV7) |
1 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37531 |
XZU650..DCVTO..IV3;XZC60#,645,655,XZU600,605,64#,65#..SCB..DCRWD..(CBU,IV3,IV7) |
1 | ||
| 77501-37531 |
XZU650..DCVTO..IV3;XZC60#,645,655,XZU600,605,64#,65#..SCB..DCRWD..(CBU,IV3,IV7) |
1 | ||
| 77502D - BRACKET SUB-ASSY, FUEL TANK, REAR | ||||
| 77501-37521 |
XZU650..DCVTO..IV3;XZC60#,645,655,XZU600,605,64#,65#..SCB..DCRWD..(CBU,IV3,IV7) |
1 | ||
| 77501-37521 |
XZU650..DCVTO..IV3;XZC60#,645,655,XZU600,605,64#,65#..SCB..DCRWD..(CBU,IV3,IV7) |
1 | ||
| 77502D - BRACKET SUB-ASSY, FUEL TANK, REAR | ||||
| 77501-37521 |
XZU650..DCVTO..IV3;XZC60#,645,655,XZU600,605,64#,65#..SCB..DCRWD..(CBU,IV3,IV7) |
1 | ||
| 77501-37521 |
XZU650..DCVTO..IV3;XZC60#,645,655,XZU600,605,64#,65#..SCB..DCRWD..(CBU,IV3,IV7) |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37121 |
XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC60#,630,645,655,XZU630,64#,65#,695..DCRWD,DCVTO;XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3) |
2 | ||
| 77601-37121 |
XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC60#,630,645,655,XZU630,64#,65#,695..DCRWD,DCVTO;XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3) |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37121 |
XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC60#,630,645,655,XZU630,64#,65#,695..DCRWD,DCVTO;XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3) |
2 | ||
| 77601-37121 |
XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC60#,630,645,655,XZU630,64#,65#,695..DCRWD,DCVTO;XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3) |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37121 |
XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC60#,630,645,655,XZU630,64#,65#,695..DCRWD,DCVTO;XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3) |
2 | ||
| 77601-37121 |
XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC60#,630,645,655,XZU630,64#,65#,695..DCRWD,DCVTO;XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3) |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37121 |
XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC60#,630,645,655,XZU630,64#,65#,695..DCRWD,DCVTO;XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3) |
2 | ||
| 77601-37121 |
XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC60#,630,645,655,XZU630,64#,65#,695..DCRWD,DCVTO;XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3) |
2 | ||
| Common parts | ||||
| 91672-C1035 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 94151-81000 | ||||
| 96133-41001 | ||||
| Linked diagrams | ||||
| 6765 | ||||
| 8401 | ||||
