XZU642G-TMFSX3 (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 5 OF 5(1107- )

Click highlighted areas on diagram

ﾘﾍﾞｯﾄ

diagram 9512101024 9512101026 9512101028 9512101032 9512101036 9512101038 9512101040
Part # Description Qty Price
Common parts
95121-01024
95121-01026
95121-01028
95121-01032
95121-01036
95121-01038
95121-01040

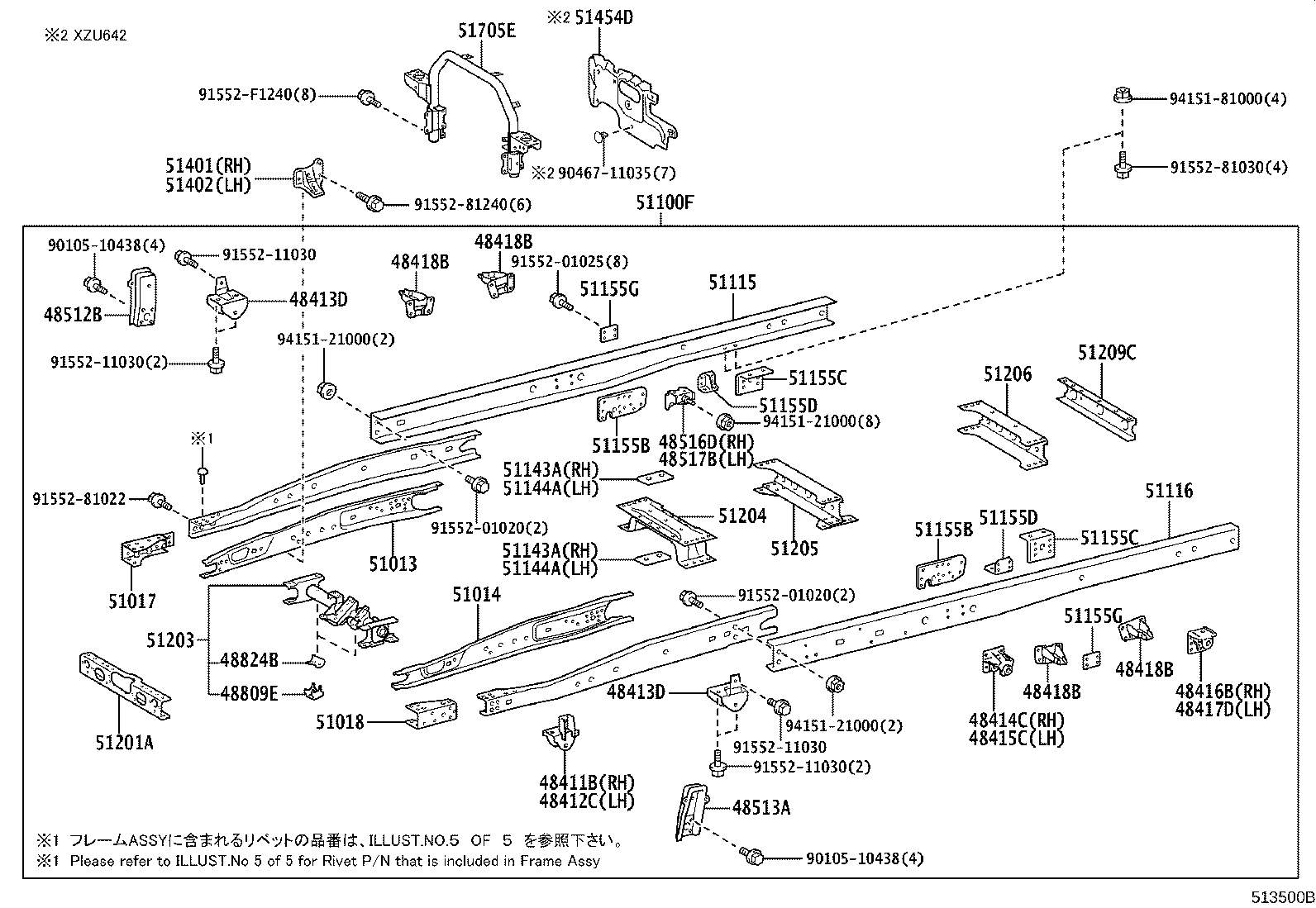

ILLUST NO. 2 OF 5(1905- )XZU640,642..SCB..DCRWD,DCVTO

Click highlighted areas on diagram

diagram 48411B 48412C 48413D 48413D 48414C 48415C 48416B 48417D 48418B 48418B 48418B 48418B 48512B 48513A 48516D 48517B 48809E 48824B 51013 51014 51017 51018 51100F 51115 51116 51143A 51143A 51144A 51144A 51155B 51155B 51155C 51155C 51155D 51155D 51155G 51155G 51201A 51203 51204 51205 51206 51209C 51401 51402 51454D 51705E 9010510438 9010510438 9046711035 9155201020 9155201020 9155201025 9155211030 9155211030 9155211030 9155211030 9155281022 9155281030 9155281240 91552F1240 9415121000 9415121000 9415121000 9415181000
Part # Description Qty Price
48411B - BRACKET, SPRING, NO.1 RH
48411-37070

XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO

 1
48412C - BRACKET, SPRING, NO.1 LH
48412-37060

XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO

 1
48413D - BRACKET, SPRING, NO.2
48413-37110

XZC600,XZU600,602,640,642,650,652..DCRWD,DCVTO

 2
48413D - BRACKET, SPRING, NO.2
48413-37110

XZC600,XZU600,602,640,642,650,652..DCRWD,DCVTO

 2
48414C - BRACKET, SPRING, NO.3 RH
48414-37110

XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO)

 1
48415C - BRACKET, SPRING, NO.3 LH
48414-37110

XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO)

 1
48416B - BRACKET, SPRING, NO.4 RH
48416-37080

XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO)

 1
48417D - BRACKET, SPRING, NO.4 LH
48416-37080

XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO)

 1
48418B - BRACKET, SPRING, NO.6
48418-36090

XZU645..30T..DCRWD;XZC655,XZU600,602,640,642,65#,685,695..(DM7,T2,T3,T4)..(DCRWD,DCVTO)

 4
48418B - BRACKET, SPRING, NO.6
48418-36090

XZU645..30T..DCRWD;XZC655,XZU600,602,640,642,65#,685,695..(DM7,T2,T3,T4)..(DCRWD,DCVTO)

 4
48418B - BRACKET, SPRING, NO.6
48418-36090

XZU645..30T..DCRWD;XZC655,XZU600,602,640,642,65#,685,695..(DM7,T2,T3,T4)..(DCRWD,DCVTO)

 4
48418B - BRACKET, SPRING, NO.6
48418-36090

XZU645..30T..DCRWD;XZC655,XZU600,602,640,642,65#,685,695..(DM7,T2,T3,T4)..(DCRWD,DCVTO)

 4
48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH
48512-37050

XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO

 1
48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH
48512-37130

XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO

 1
48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH
48505-37130

XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM3,DM6,DM7,T2,T3,T4,T5)..(DCRWD,DCVTO)

 1
48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH
48505-37130

XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM3,DM6,DM7,T2,T3,T4,T5)..(DCRWD,DCVTO)

 1
48809E - BRACKET SUB-ASSY, STABILIZER
48809-37040

XZU600,602,640,642,650,652..SCB..(DM3,DM6,DM7,T3,T4)..(DCRWD,DCVTO)

 2
48824B - BRACKET, STABILIZER
48824-37230

XZU600,602,640,642,650,652..SCB..(DM3,DM6,DM7,T3,T4)..(DCRWD,DCVTO)

 2
51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH
51013-37570

XZC600,XZU600,602,640,642,650,652..DCRWD,DCVTO

 1
51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH
51014-37540

XZC600,XZU600,602,640,642,650,652..DCRWD,DCVTO

 1
51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH
51017-37180

XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO

 1
51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH
51018-37230

XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO

 1
51100F - FRAME SUB-ASSY
51002-3VT40

XZU642..IV3

 1
51115 - RAIL, FRAME SIDE, REAR RH
51115-37720

XZU642..IV3

 1
51116 - RAIL, FRAME SIDE, REAR LH
51116-37560

XZU642..IV3

 1
51143A - REINFORCEMENT, SIDE RAIL, FRONT RH
51141-37350

XZC60#,645,655,XZU60#,64#,65#..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7)

 2
51143A - REINFORCEMENT, SIDE RAIL, FRONT RH
51141-37350

XZC60#,645,655,XZU60#,64#,65#..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7)

 2
51144A - REINFORCEMENT, SIDE RAIL, FRONT LH
51141-37350

XZC60#,645,655,XZU60#,64#,65#..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7)

 2
51144A - REINFORCEMENT, SIDE RAIL, FRONT LH
51141-37350

XZC60#,645,655,XZU60#,64#,65#..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7)

 2
51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2
51155-37270

XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO)

 2
51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2
51155-37270

XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO)

 2
51155C - STIFFENER, FRAME SIDE RAIL, REAR NO.3
51155-37260

XZU645..30T..DCRWD;XZC655,XZU600,602,640,642,65#..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV6,IV7)

 2
51155C - STIFFENER, FRAME SIDE RAIL, REAR NO.3
51155-37260

XZU645..30T..DCRWD;XZC655,XZU600,602,640,642,65#..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV6,IV7)

 2
51155D - STIFFENER, FRAME SIDE RAIL, REAR NO.1
51155-37310

XZU642..IV3

 2
51155D - STIFFENER, FRAME SIDE RAIL, REAR NO.1
51155-37310

XZU642..IV3

 2
51155G - STIFFENER, FRAME SIDE RAIL, REAR NO.4
51155-37250

XZU645..30T..DCRWD;XZC655,XZU600,602,640,642,65#..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV6,IV7)

 2
51155G - STIFFENER, FRAME SIDE RAIL, REAR NO.4
51155-37250

XZU645..30T..DCRWD;XZC655,XZU600,602,640,642,65#..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV6,IV7)

 2
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51211-37280

XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-37290

XZU600,602,640,642,650,652..SCB..(DM3,DM6,DM7,T3,T4)..(DCRWD,DCVTO)

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-37390

XZU600,640..SCB..(DCRWD,DCVTO);XZC60#,645,655,675,XZU602,605,642,645,65#,675,685,695..DCRWD,DCVTO

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205-37190

XZU645..30T..DCRWD;XZU600,602,640,642,685,695..(DM7,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV6,IV7)

 1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51261-37190

XZU645..30T..DCRWD;XZU600,602,640,642,685..(DM7,T3,T4)..(DCRWD,DCVTO)

 1
51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR
51291-37040

XZC675,XZU600,675..DM5..DCRWD;XZC600,645,655,XZU64#,65#,685,695..DCRWD,DCVTO

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51421-37081

XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO

TYPE B:ｲﾗｽﾄ参照

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51422-37141

XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO

TYPE B:ｲﾗｽﾄ参照

 1
51454D - SILENCER, ENGINE REAR COVER
51454-37310

XZC600,XZU600,605,642..(DM3,DM5,DM6,DM7)..DCRWD..(CBU,IV3,IV5)

 1
51705E - BRACKET SUB-ASSY, CAB REAR MOUNTING
51705-37B30

XZC600,XZU600,602,640,642,650,652..SCB..(DCRWD,DCVTO)

 1
Common parts
90105-10438
90467-11035
91552-01020
91552-01025
91552-11030
91552-81022
91552-81030
91552-81240
91552-F1240
94151-21000
94151-81000

ILLUST NO. 4 OF 5(1905- )DCRWD,DCVTO

Click highlighted areas on diagram

ﾌﾟﾛﾍﾟﾗｼｬﾌﾄｶﾞｰﾄﾞ

diagram 51569 51569C 9155180825 9155180825
Part # Description Qty Price
51569 - GUARD, PROPELLER SHAFT
51569-37480

XZU640,642..40T..(DCRWD,DCVTO)

 1
Common parts
91551-80825

ILLUST NO. 1 OF 2(7708- )

Click highlighted areas on diagram

diagram 51100 51100F 51202 51203 51204 51204 51205 51206 51207 51208 51209 51210 51211
Part # Description Qty Price

ILLUST NO. 2 OF 2(7708- )

Click highlighted areas on diagram

diagram 1702 51017 51018 51209A 51401 51402 51703A 51704A 51721 51731 51732 51733 51734 51741 51741A 51741A 5174336011 5175136020 5176936040 51881 51881 51882 51883 51884 51884 51943A 51947B 51947B 66103A 66104A 66176 66177 9010110096 9020110489 9020110489 9020112002 9111271030 9116171230 9411051000 9411551200 9418401000
Part # Description Qty Price
Common parts
51743-36011
51751-36020
51769-36040
90101-10096
90201-10489
90201-12002
91112-71030
91161-71230
94110-51000
94115-51200
94184-01000
Linked diagrams
1702
