XZU642G-TMFSX3 (2019)
Toyota Dyna/Toyoace
(1107- )35T,40T

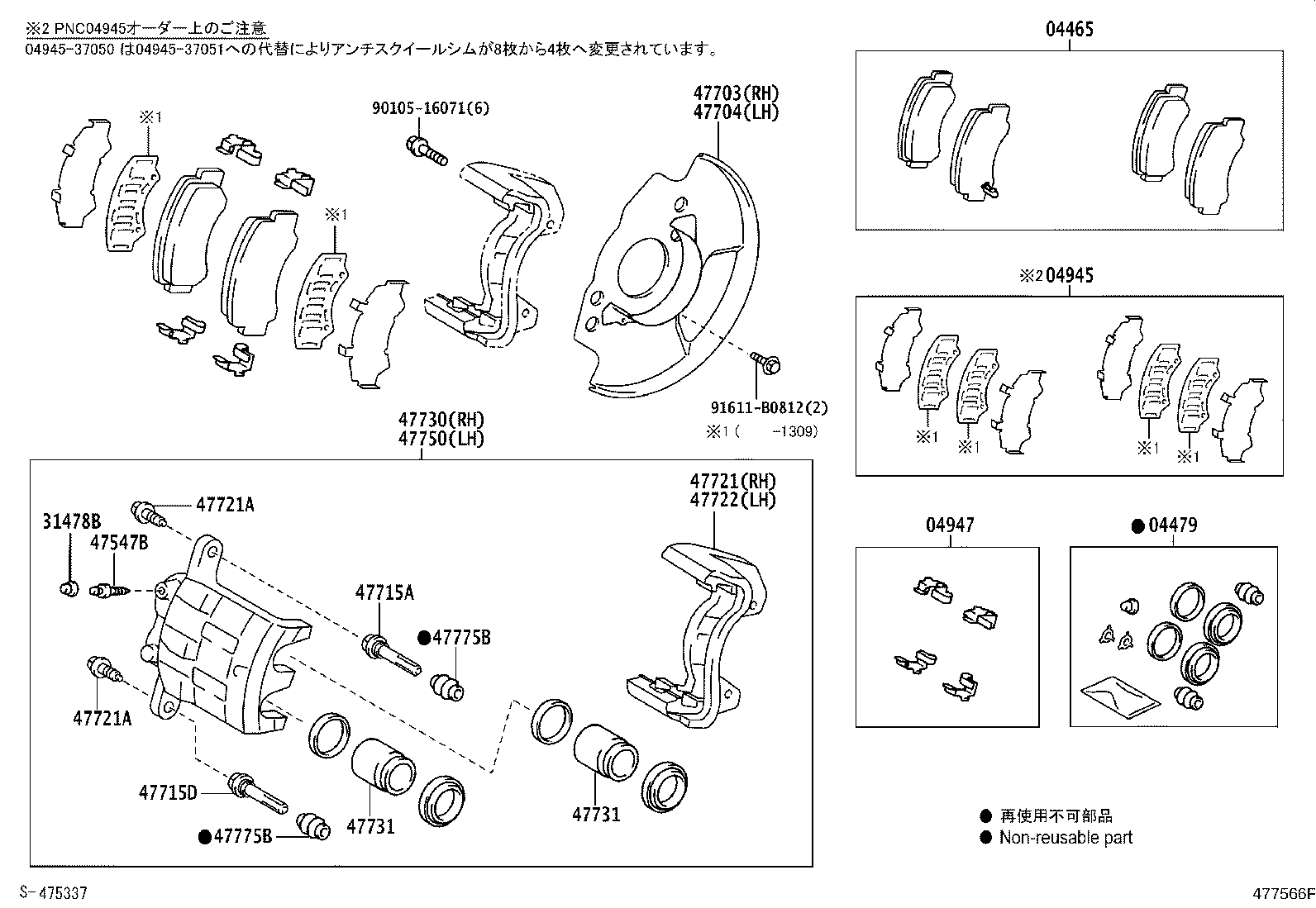

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-37230 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) ﾏｰｸ AK NS265 |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 0447B-37030 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
2 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-37051 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 0494A-37030 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
2 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-37030 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
2 | ||
| S4753-81190 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| S4753-71360 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
2 | ||
| 47847-37030 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
2 | ||
| 47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH | ||||
| 47703-37070 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
1 | ||
| 47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH | ||||
| 47704-37070 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
1 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47714-37120 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
2 | ||
| 47714-37121 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
2 | ||
| 47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2 | ||||
| 47715-37120 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
2 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-37160 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90105-37120 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90105-37120 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-37160 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-37162 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-37120 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
4 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-37120 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-37162 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
1 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-37121 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
4 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-37121 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
4 | ||
| Common parts | ||||
| 90105-16071 | ||||
| 91611-B0812 | ||||
