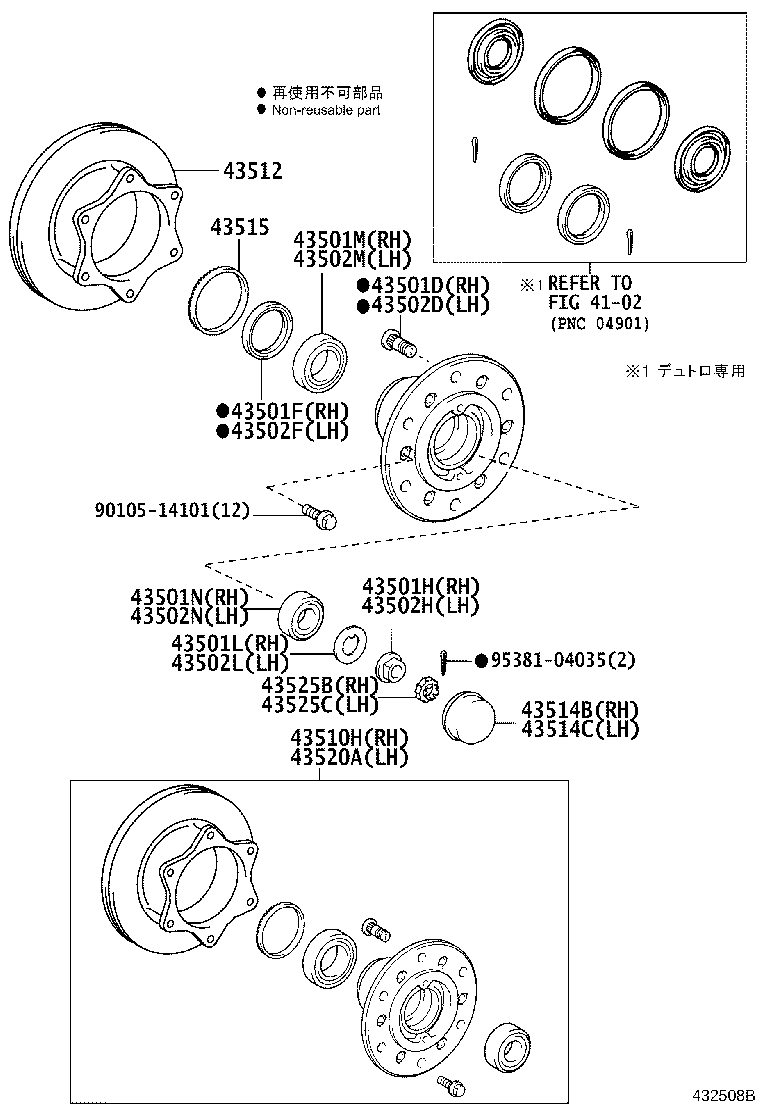

XZU642G-TMFSX3 (2019)
Toyota Dyna/Toyoace
(1107- )BZU600,TRC600,TRU600,XZC60#,610,630,645,655,XZU600,605,610,620,630,640,6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02071 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90311-68003 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90178-28001 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH) | ||||
| 90214-29001 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90366-50069 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 43501N - BEARING (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90366-35105 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02072 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90311-68003 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90178-28001 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH) | ||||
| 90214-29001 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90366-50069 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 43502N - BEARING (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90366-35105 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 43510H - HUB & DISC(DRUM) ASSY, FRONT AXLE, RH | ||||
| 43510-39235 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-37140 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
2 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-37050 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-37050 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 43515 - ROTOR, SKID CONTROL, FRONT | ||||
| 43515-37010 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
2 | ||
| 43520A - HUB & DISC(DRUM) ASSY, FRONT AXLE, LH | ||||
| 43520-39215 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
1 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-37010 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-37010 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| Common parts | ||||
| 90105-14101 | ||||
| 95381-04035 | ||||
| Linked diagrams | ||||
| 4102 | ||||
(1107- )35T,40T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02071 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90311-68003 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90178-28001 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH) | ||||
| 90214-29001 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90366-50069 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 43501N - BEARING (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90366-35105 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02072 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90311-68003 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90178-28001 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH) | ||||
| 90214-29001 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90366-50069 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 43502N - BEARING (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90366-35105 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 43510H - HUB & DISC(DRUM) ASSY, FRONT AXLE, RH | ||||
| 43510-39235 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-37140 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
2 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-37050 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-37050 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 43515 - ROTOR, SKID CONTROL, FRONT | ||||
| 43515-37010 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
2 | ||
| 43520A - HUB & DISC(DRUM) ASSY, FRONT AXLE, LH | ||||
| 43520-39215 |
XZU600,602,640,642,650,652..(35T,40T)..(DCRWD,DCVTO) |
1 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-37010 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-37010 |
XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| Common parts | ||||
| 90105-14101 | ||||
| 95381-04035 | ||||
| Linked diagrams | ||||
| 4102 | ||||
(7708- )HU30,RU2#,3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90170-20005 | ||||
| 94115-71600 | ||||
| 95381-05040 | ||||
