XZU642G-TMFSX3 (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1107- )MTM

Click highlighted areas on diagram

diagram 33504F 33520A 33550 33555 33571F 9011908C60 9011908C60 9017908249
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-37060C0

XZC60#,630,645,655,XZU60#,630,64#,65#..6F..(DCRWD,DCVTO)

BLACK,TRIM1#

 1
33520A - SHAFT ASSY, FLOOR SHIFT CONTROL
33520-37030

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO)

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-37341C0

XZC60#,630,645,655,XZU60#,630,64#,65#..6F..(DCRWD,DCVTO)

BLACK,TRIM1#

 1
33555 - BOOT, SHIFT LEVER
58808-37030C0

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO)

BLACK,TRIM1#

 1
Common parts
90119-08C60
90179-08249

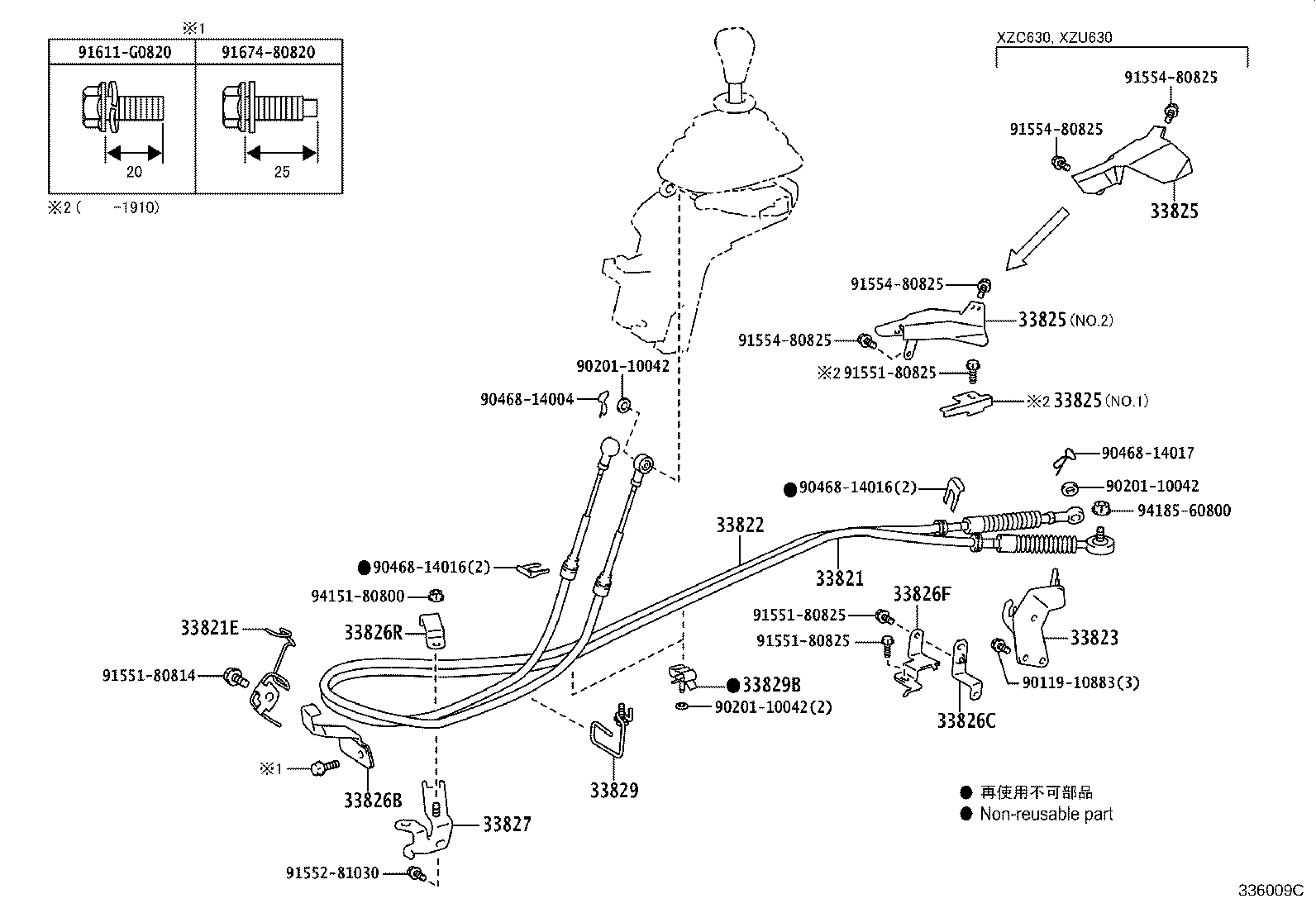

ILLUST NO. 2 OF 2(1905- )XZC600,630,XZU600,602,630,640,642,650,652..6F..DCRWD,DCVTO

Click highlighted areas on diagram

diagram 33821 33821E 33822 33823 33825 33825 33825 33826B 33826C 33826F 33826R 33827 33829 33829B 9011910883 9020110042 9020110042 9020110042 9046814004 9046814016 9046814016 9046814017 9155180814 9155180825 9155180825 9155180825 9155281030 9155480825 9155480825 9155480825 9155480825 91611G0820 9167480820 9415180800 9418560800
Part # Description Qty Price
33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33820-37P90

XZU685,695..SCB..DCRWD;XZC60#,645,655,675,XZU60#,64#,65#,675..MTM..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6)

 1
33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)
33829-37410

XZC600,630,XZU600,602,630,640,642,650,652..DCRWD,DCVTO

 1
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33830-37810

XZU685,695..SCB..DCRWD;XZC60#,645,655,675,XZU60#,64#,65#,675..MTM..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6)

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-37B31

XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..MTM..(DCRWD,DCVTO)

 1
33825 - INSULATOR, TRANSMISSION CONTROL CABLE
33825-37040

XZC60#,645,655,XZU60#,64#,65#..DCRWD,DCVTO

NO.2

 1
33825-37031

XZC60#,645,655,XZU60#,64#,65#..DCRWD,DCVTO

NO.1

 1
33825 - INSULATOR, TRANSMISSION CONTROL CABLE
33825-37040

XZC60#,645,655,XZU60#,64#,65#..DCRWD,DCVTO

NO.2

 1
33825-37031

XZC60#,645,655,XZU60#,64#,65#..DCRWD,DCVTO

NO.1

 1
33825 - INSULATOR, TRANSMISSION CONTROL CABLE
33825-37040

XZC60#,645,655,XZU60#,64#,65#..DCRWD,DCVTO

NO.2

 1
33825-37031

XZC60#,645,655,XZU60#,64#,65#..DCRWD,DCVTO

NO.1

 1
33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33826-37210

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4
33828-37310

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7
33827-37210

XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO

 1
33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8
33826-37580

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
33827 - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33827-37360

XZC600,630,675,XZU600,602,630,640,642,650,652,675,685,695..DCRWD,DCVTO

 1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-37400

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
33829-37350

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-37210

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 2
Common parts
90119-10883
90201-10042
90468-14004
90468-14016
90468-14017
91551-80814
91551-80825
91552-81030
91554-80825
91611-G0820
91674-80820
94151-80800
94185-60800
