XZU640-PKMQC4 (2011)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(1107- )BZU600,TRC600,TRU600,XZC600,610,630,XZU600,602,610,620,630,640,642,650,6
ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042A - SHACKLE SUB-ASSY, FRONT SPRING, NO.2 | ||||
| 48042-37020 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
2 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-37060 |
XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZU650..(20T,35T)..(CBU,IV3);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-37040 |
XZU600..6F;XZC600..5F..ST;XZU600..20T,30T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZC600,610,630,XZU610,630,650..(20T,35T)..WT;XZU620,640..(DM5,T3)..(6F,6FC)..(IV3,IV4,IV6) |
2 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-37010 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
2 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16082 |
XZU600,640..IV4;XZU650..T3..30T..DCRTJ..CBU 長さ=140 |
4 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16082 |
XZU600,640..IV4;XZU650..T3..30T..DCRTJ..CBU 長さ=140 |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-80121 |
XZU620,630..30T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..35T..(CBU,IV3);XZU640..T3..6FC..(IV3,IV4);XZU600..(DM6,T3)..(20T,30T);XZU650..T3..30T..DCRTJ..CBU ﾏｰｸ 48511−37250 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01071 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01071 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02054 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02009 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02009 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
4 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
2 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90385-19011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-80121 |
XZU620,630..30T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..35T..(CBU,IV3);XZU640..T3..6FC..(IV3,IV4);XZU600..(DM6,T3)..(20T,30T);XZU650..T3..30T..DCRTJ..CBU ﾏｰｸ 48511−37250 |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90385-19011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-37030 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
2 | ||
| Common parts | ||||
| 90105-16067 | ||||
| 90119-12088 | ||||
| 90177-14005 | ||||
| 90178-16004 | ||||
| 90178-16007 | ||||
| 90179-12016 | ||||
| 90201-16035 | ||||
| 91112-81045 | ||||
| 91651-B0820 | ||||
| 94184-01001 | ||||
ILLUST NO. 1 OF 2(1107- )BZU600,TRC600,TRU600,XZC600,610,630,XZU600,602,610,620,630,640,642,650,6
ﾅｼ(ｽﾀﾋﾞﾗｲｻﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042A - SHACKLE SUB-ASSY, FRONT SPRING, NO.2 | ||||
| 48042-37020 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
2 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-37060 |
XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZU650..(20T,35T)..(CBU,IV3);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-37040 |
XZU600..6F;XZC600..5F..ST;XZU600..20T,30T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZC600,610,630,XZU610,630,650..(20T,35T)..WT;XZU620,640..(DM5,T3)..(6F,6FC)..(IV3,IV4,IV6) |
2 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-37010 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
2 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16082 |
XZU600,640..IV4;XZU650..T3..30T..DCRTJ..CBU 長さ=140 |
4 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16082 |
XZU600,640..IV4;XZU650..T3..30T..DCRTJ..CBU 長さ=140 |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-80121 |
XZU620,630..30T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..35T..(CBU,IV3);XZU640..T3..6FC..(IV3,IV4);XZU600..(DM6,T3)..(20T,30T);XZU650..T3..30T..DCRTJ..CBU ﾏｰｸ 48511−37250 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01071 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01071 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02054 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02009 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02009 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
4 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
2 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90385-19011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-80121 |
XZU620,630..30T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..35T..(CBU,IV3);XZU640..T3..6FC..(IV3,IV4);XZU600..(DM6,T3)..(20T,30T);XZU650..T3..30T..DCRTJ..CBU ﾏｰｸ 48511−37250 |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90385-19011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-37030 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
2 | ||
| Common parts | ||||
| 90105-16067 | ||||
| 90119-12088 | ||||
| 90178-16004 | ||||
| 90178-16007 | ||||
| 90179-12016 | ||||
| 90201-16035 | ||||
| 91651-B0820 | ||||

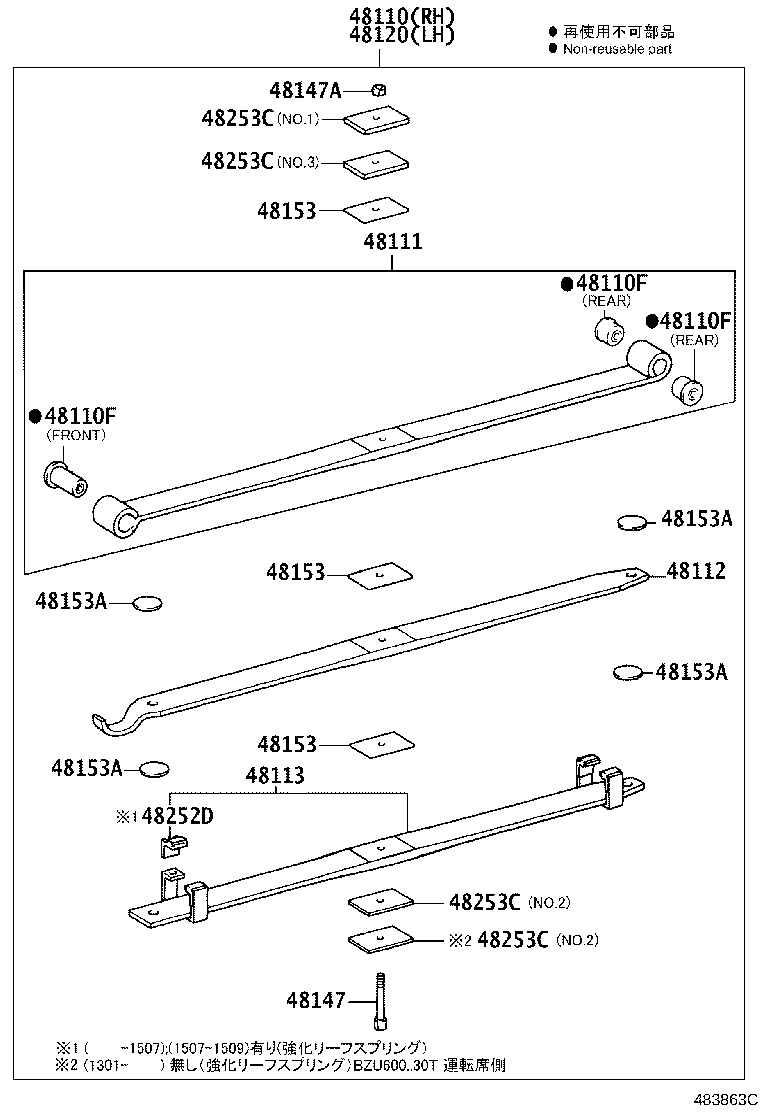

ILLUST NO. 2 OF 2(1107-1301)BZU600..IV5 ; (1107- )XZU600..20T..DCRTK ; (1107- )DCRTJ,DCRTK..IV
3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3V580 |
XZU600,640..IV4 3枚ﾘｰﾌ |
1 | ||
| 48110-3V581 |
XZU600,640..IV4 3枚ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU600..6F;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT ﾘﾔ |
4 | ||
| 90389-16025 |
XZU600..6F;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU600..6F;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT ﾘﾔ |
4 | ||
| 90389-16025 |
XZU600..6F;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU600..6F;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT ﾘﾔ |
4 | ||
| 90389-16025 |
XZU600..6F;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT ﾌﾛﾝﾄ |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3V580 |
XZU600,640..IV4 運転席側 |
1 | ||
| 48101-3V590 |
XZU600,640..IV4 助手席側 |
1 | ||
| 48101-3V581 |
XZU600,640..IV4 運転席側 |
1 | ||
| 48101-3V591 |
XZU600,640..IV4 助手席側 |
1 | ||
| 48101-37E11 |
XZU600,640..IV4 運転席側 |
1 | ||
| 48101-37E21 |
XZU600,640..IV4 助手席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3V590 |
XZU600,640..IV4 助手席側 |
1 | ||
| 48112-3V580 |
XZU600,640..IV4 運転席側 |
1 | ||
| 48112-3V581 |
XZU600,640..IV4 運転席側 |
1 | ||
| 48112-3V591 |
XZU600,640..IV4 助手席側 |
1 | ||
| 48112-37E11 |
XZU600,640..IV4 運転席側 |
1 | ||
| 48112-37E21 |
XZU600,640..IV4 助手席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3V580 |
XZU600,640..IV4 運転席側 |
1 | ||
| 48102-3V590 |
XZU600,640..IV4 助手席側 |
1 | ||
| 48102-3V581 |
XZU600,640..IV4 運転席側 |
1 | ||
| 48102-3V591 |
XZU600,640..IV4 助手席側 |
1 | ||
| 48102-37E11 |
XZU600,640..IV4 運転席側 |
1 | ||
| 48102-37E21 |
XZU600,640..IV4 助手席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3V590 |
XZU600,640..IV4 3枚ﾘｰﾌ |
1 | ||
| 48110-3V591 |
XZU600,640..IV4 3枚ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37440 |
XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU600..30T..(CBU,IV3,IV4,IV6);XZU620,640..(DM5,T3)..6FC..(IV3,IV4) |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU600,640..IV4;XZC600,610,630,XZU600,610,630,650..(DM5,DM7,T3,T4,T5)..20T |
2 | ||
| 48284-37130 |
XZC610,XZU610;XZC600..5F..ST;XZU600,640..IV4;BZU600,TRC600,XZC600,630,XZU600,630,650..(DM7,T3,T4,T5)..20T..WT |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
TRC600..T4;XZC600..5F..ST;XZU600,640..IV4 |
6 | ||
| 48152-37J42 |
XZC600..ST;XZU600,640..IV4 |
6 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
TRC600..T4;XZC600..5F..ST;XZU600,640..IV4 |
6 | ||
| 48152-37J42 |
XZC600..ST;XZU600,640..IV4 |
6 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
TRC600..T4;XZC600..5F..ST;XZU600,640..IV4 |
6 | ||
| 48152-37J42 |
XZC600..ST;XZU600,640..IV4 |
6 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37670 |
TRC600..T4;XZU600,640..IV4 |
8 | ||
| 48252-37521 |
XZU600,640..IV4 |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37670 |
TRC600..T4;XZU600,640..IV4 |
8 | ||
| 48252-37521 |
XZU600,640..IV4 |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37670 |
TRC600..T4;XZU600,640..IV4 |
8 | ||
| 48252-37521 |
XZU600,640..IV4 |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37670 |
TRC600..T4;XZU600,640..IV4 |
8 | ||
| 48252-37521 |
XZU600,640..IV4 |
8 | ||
| 48252D - SILENCER | ||||
| 48252-37380 |
XZC610,XZU610;XZC600..5F..ST;XZU600,640..IV4;BZU600,TRC600,XZC600,630,XZU600,630,650..(DM7,T3,T4,T5)..20T..WT |
8 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-3B770 |
XZU600,640..IV4 NO.2 |
2 | ||
| 48253-3B122 |
XZU600,640..IV4 NO.1 & NO.3 |
4 | ||
| 48115-37V40 |
XZU600,640..IV4 NO.1 |
2 | ||
| 48116-37V40 |
XZU600,640..IV4 NO.2 & NO.3 |
4 | ||
| 48373-E0020 |
XZU600,640..IV4 NO.1 |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-3B770 |
XZU600,640..IV4 NO.2 |
2 | ||
| 48253-3B122 |
XZU600,640..IV4 NO.1 & NO.3 |
4 | ||
| 48115-37V40 |
XZU600,640..IV4 NO.1 |
2 | ||
| 48116-37V40 |
XZU600,640..IV4 NO.2 & NO.3 |
4 | ||
| 48373-E0020 |
XZU600,640..IV4 NO.1 |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-3B770 |
XZU600,640..IV4 NO.2 |
2 | ||
| 48253-3B122 |
XZU600,640..IV4 NO.1 & NO.3 |
4 | ||
| 48115-37V40 |
XZU600,640..IV4 NO.1 |
2 | ||
| 48116-37V40 |
XZU600,640..IV4 NO.2 & NO.3 |
4 | ||
| 48373-E0020 |
XZU600,640..IV4 NO.1 |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-3B770 |
XZU600,640..IV4 NO.2 |
2 | ||
| 48253-3B122 |
XZU600,640..IV4 NO.1 & NO.3 |
4 | ||
| 48115-37V40 |
XZU600,640..IV4 NO.1 |
2 | ||
| 48116-37V40 |
XZU600,640..IV4 NO.2 & NO.3 |
4 | ||
| 48373-E0020 |
XZU600,640..IV4 NO.1 |
2 | ||
ILLUST NO. 2 OF 2(1107- )XZU620..6FC ; (1107- )BZU600,TRU600,XZU600,640..30T..DCRTJ,DCRTK,EFI,
3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3V580 |
XZU600,640..IV4 3枚ﾘｰﾌ |
1 | ||
| 48110-3V581 |
XZU600,640..IV4 3枚ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU600..6F;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT ﾘﾔ |
4 | ||
| 90389-16025 |
XZU600..6F;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU600..6F;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT ﾘﾔ |
4 | ||
| 90389-16025 |
XZU600..6F;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU600..6F;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT ﾘﾔ |
4 | ||
| 90389-16025 |
XZU600..6F;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT ﾌﾛﾝﾄ |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3V580 |
XZU600,640..IV4 運転席側 |
1 | ||
| 48101-3V590 |
XZU600,640..IV4 助手席側 |
1 | ||
| 48101-3V581 |
XZU600,640..IV4 運転席側 |
1 | ||
| 48101-3V591 |
XZU600,640..IV4 助手席側 |
1 | ||
| 48101-37E11 |
XZU600,640..IV4 運転席側 |
1 | ||
| 48101-37E21 |
XZU600,640..IV4 助手席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3V590 |
XZU600,640..IV4 助手席側 |
1 | ||
| 48112-3V580 |
XZU600,640..IV4 運転席側 |
1 | ||
| 48112-3V581 |
XZU600,640..IV4 運転席側 |
1 | ||
| 48112-3V591 |
XZU600,640..IV4 助手席側 |
1 | ||
| 48112-37E11 |
XZU600,640..IV4 運転席側 |
1 | ||
| 48112-37E21 |
XZU600,640..IV4 助手席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3V580 |
XZU600,640..IV4 運転席側 |
1 | ||
| 48102-3V590 |
XZU600,640..IV4 助手席側 |
1 | ||
| 48102-3V581 |
XZU600,640..IV4 運転席側 |
1 | ||
| 48102-3V591 |
XZU600,640..IV4 助手席側 |
1 | ||
| 48102-37E11 |
XZU600,640..IV4 運転席側 |
1 | ||
| 48102-37E21 |
XZU600,640..IV4 助手席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3V590 |
XZU600,640..IV4 3枚ﾘｰﾌ |
1 | ||
| 48110-3V591 |
XZU600,640..IV4 3枚ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37440 |
XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU600..30T..(CBU,IV3,IV4,IV6);XZU620,640..(DM5,T3)..6FC..(IV3,IV4) |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU600,640..IV4;XZC600,610,630,XZU600,610,630,650..(DM5,DM7,T3,T4,T5)..20T |
2 | ||
| 48284-37130 |
XZC610,XZU610;XZC600..5F..ST;XZU600,640..IV4;BZU600,TRC600,XZC600,630,XZU600,630,650..(DM7,T3,T4,T5)..20T..WT |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
TRC600..T4;XZC600..5F..ST;XZU600,640..IV4 |
6 | ||
| 48152-37J42 |
XZC600..ST;XZU600,640..IV4 |
6 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
TRC600..T4;XZC600..5F..ST;XZU600,640..IV4 |
6 | ||
| 48152-37J42 |
XZC600..ST;XZU600,640..IV4 |
6 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
TRC600..T4;XZC600..5F..ST;XZU600,640..IV4 |
6 | ||
| 48152-37J42 |
XZC600..ST;XZU600,640..IV4 |
6 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37670 |
TRC600..T4;XZU600,640..IV4 |
8 | ||
| 48252-37521 |
XZU600,640..IV4 |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37670 |
TRC600..T4;XZU600,640..IV4 |
8 | ||
| 48252-37521 |
XZU600,640..IV4 |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37670 |
TRC600..T4;XZU600,640..IV4 |
8 | ||
| 48252-37521 |
XZU600,640..IV4 |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37670 |
TRC600..T4;XZU600,640..IV4 |
8 | ||
| 48252-37521 |
XZU600,640..IV4 |
8 | ||
| 48252D - SILENCER | ||||
| 48252-37380 |
XZC610,XZU610;XZC600..5F..ST;XZU600,640..IV4;BZU600,TRC600,XZC600,630,XZU600,630,650..(DM7,T3,T4,T5)..20T..WT |
8 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-3B770 |
XZU600,640..IV4 NO.2 |
2 | ||
| 48253-3B122 |
XZU600,640..IV4 NO.1 & NO.3 |
4 | ||
| 48115-37V40 |
XZU600,640..IV4 NO.1 |
2 | ||
| 48116-37V40 |
XZU600,640..IV4 NO.2 & NO.3 |
4 | ||
| 48373-E0020 |
XZU600,640..IV4 NO.1 |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-3B770 |
XZU600,640..IV4 NO.2 |
2 | ||
| 48253-3B122 |
XZU600,640..IV4 NO.1 & NO.3 |
4 | ||
| 48115-37V40 |
XZU600,640..IV4 NO.1 |
2 | ||
| 48116-37V40 |
XZU600,640..IV4 NO.2 & NO.3 |
4 | ||
| 48373-E0020 |
XZU600,640..IV4 NO.1 |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-3B770 |
XZU600,640..IV4 NO.2 |
2 | ||
| 48253-3B122 |
XZU600,640..IV4 NO.1 & NO.3 |
4 | ||
| 48115-37V40 |
XZU600,640..IV4 NO.1 |
2 | ||
| 48116-37V40 |
XZU600,640..IV4 NO.2 & NO.3 |
4 | ||
| 48373-E0020 |
XZU600,640..IV4 NO.1 |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-3B770 |
XZU600,640..IV4 NO.2 |
2 | ||
| 48253-3B122 |
XZU600,640..IV4 NO.1 & NO.3 |
4 | ||
| 48115-37V40 |
XZU600,640..IV4 NO.1 |
2 | ||
| 48116-37V40 |
XZU600,640..IV4 NO.2 & NO.3 |
4 | ||
| 48373-E0020 |
XZU600,640..IV4 NO.1 |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
