XZU640-PKFQX4 (2019)
Toyota Dyna/Toyoace

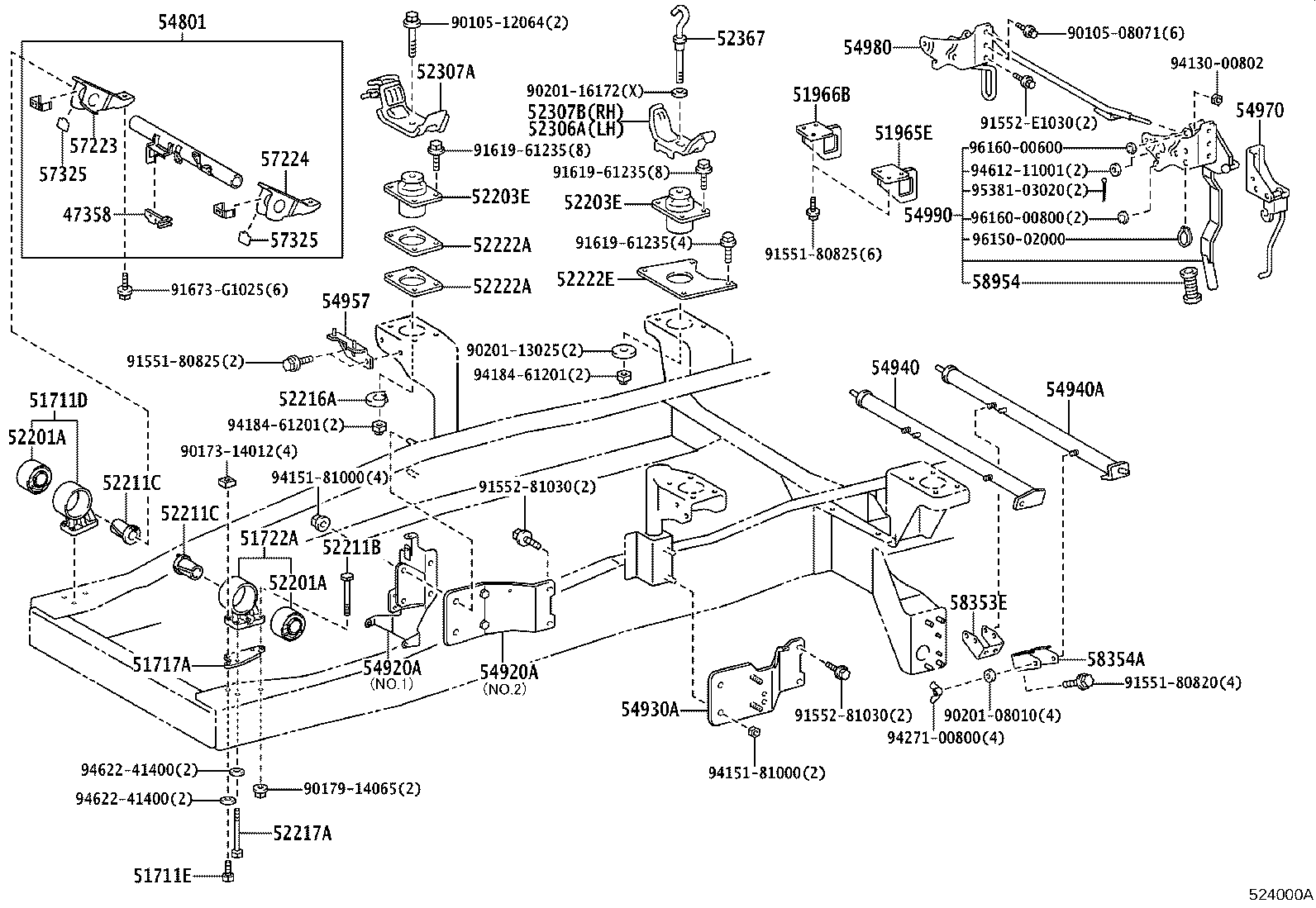

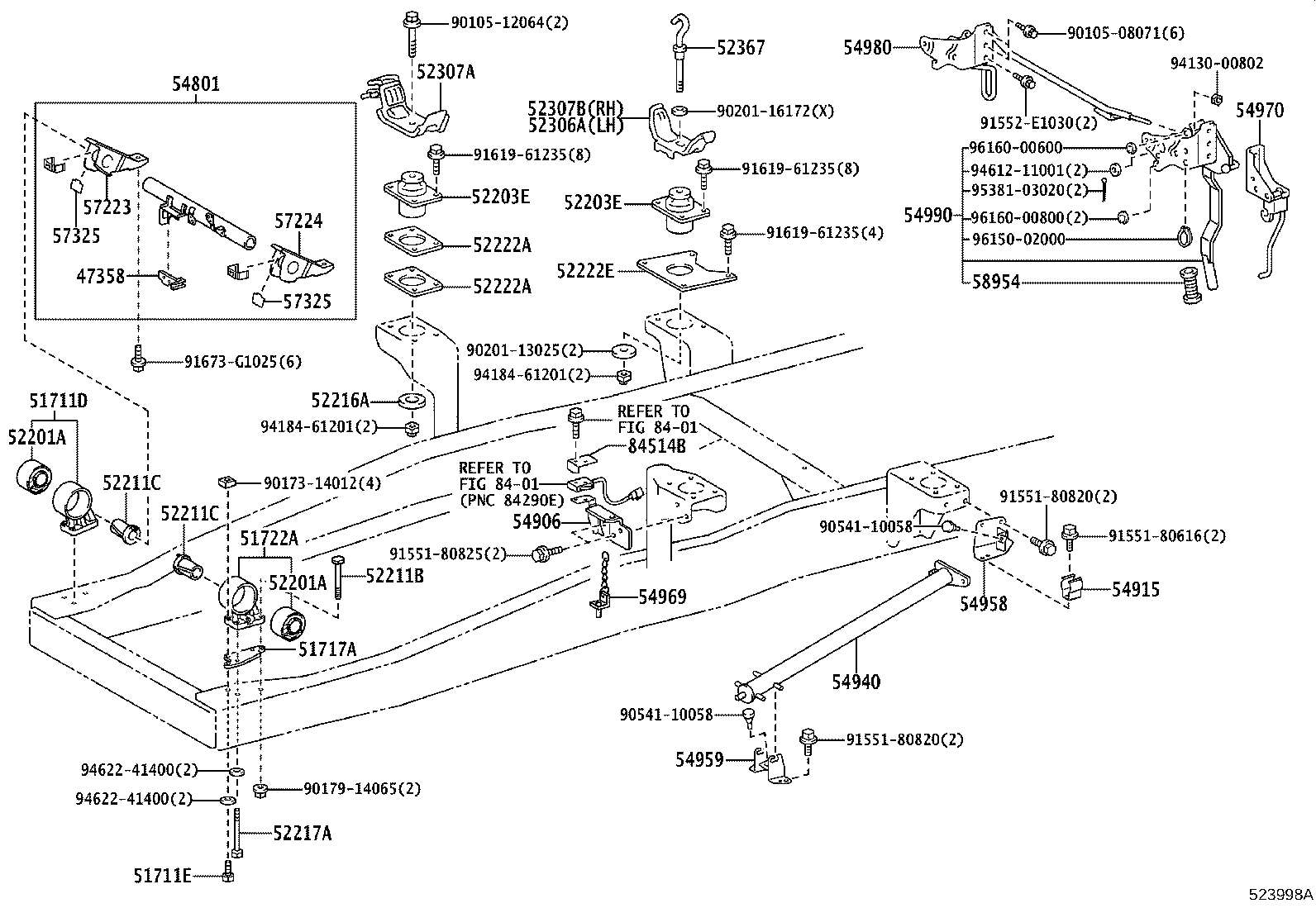

ILLUST NO. 1 OF 2(1905- )DCRWD..IV4
ﾃﾞﾝﾄﾞｳﾁﾙﾄｷｬﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47358 - TUBE, BOOSTER TO RESERVOIR, NO.2 | ||||
| 47358-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 51711D - BRACKET, CAB FRONT MOUNTING | ||||
| 51701-37110 |
XZU600,640,685,695..DCB..DCRWD |
1 | ||
| 51711E - BOLT, HEXAGON(FOR CAB MOUNTING BARACKET) | ||||
| 90101-14041 |
XZU600,640,685,695..DCB..DCRWD |
2 | ||
| 51717A - PLATE, BODY SUPPORT BRACKET | ||||
| 51717-37120 |
XZU600,640,685,695..DCB..DCRWD |
2 | ||
| 51722A - BRACKET SUB-ASSY, CAB FRONT MOUNTING, LH | ||||
| 51702-37350 |
XZU600,640,685,695..DCB..DCRWD |
1 | ||
| 52201A - CUSHION SUB-ASSY, CAB FRONT MOUNTING | ||||
| 52201-37050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 52201A - CUSHION SUB-ASSY, CAB FRONT MOUNTING | ||||
| 52201-37050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 | ||||
| 52203-37050 |
XZU600,640,685..DCRWD..IV4 |
4 | ||
| 52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 | ||||
| 52203-37050 |
XZU600,640,685..DCRWD..IV4 |
4 | ||
| 52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 90109-14014 |
XZU600,640,685,695..DCB..DCRWD |
2 | ||
| 52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 52211-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 52211-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 52216A - STOPPER, CAB MOUNTING CUSHION | ||||
| 52216-92601 |
XZU600,640,685..DCRWD..IV4 |
2 | ||
| 52217A - BOLT, BODY MOUNTING | ||||
| 90101-14080 |
XZU600,640,685,695..DCB..DCRWD |
2 | ||
| 52222A - SPACER, CAB REAR MOUNTING, UPPER | ||||
| 52222-37020 |
XZU600,640,685..DCRWD..IV4 |
4 | ||
| 52222A - SPACER, CAB REAR MOUNTING, UPPER | ||||
| 52222-37020 |
XZU600,640,685..DCRWD..IV4 |
4 | ||
| 52222E - SPACER, CAB REAR MOUNTING, UPPER | ||||
| 52222-37040 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| 52307A - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2 | ||||
| 52307-37010 |
XZU600,640,685..DCRWD..IV4 |
2 | ||
| 52307B - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2 | ||||
| 52307-36021 |
XZU600,640,685..DCRWD..IV4 |
2 | ||
| 52367 - HOOK, CAB REAR MOUNTING | ||||
| 52367-37070 |
XZU600,640,685..DCRWD..IV4 |
2 | ||
| 54801 - TUBE SUB-ASSY, TILT CAB, NO.1 | ||||
| 54801-37221 |
XZU600,605,640,655,685,695..DCB..DCRWD |
1 | ||
| 54801-37220 |
XZU600,605,640,655,685,695..DCB..DCRWD |
1 | ||
| 54906 - BRACKET SUB-ASSY, TILT CAB STAY, LOWER | ||||
| 54906-37010 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| 54915 - SPRING, TILT CAB, NO.1 | ||||
| 54915-37140 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| 54940 - STAY ASSY, TILT CAB | ||||
| 54940-37110 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
1 | ||
| 54940-37110 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
1 | ||
| 54940-37110 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
1 | ||
| 54940-37340 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| 54958 - BRACKET, TILT CAB STAY, NO.3 | ||||
| 54906-37070 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| 54959 - BRACKET, TILT CAB STAY, NO.4 | ||||
| 54959-37080 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
1 | ||
| 54905-37050 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| 54959-37080 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
1 | ||
| 54959-37080 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
1 | ||
| 54969 - STOPPER, TILT CAB STAY | ||||
| 54969-37010 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| 54970 - LATCH ASSY, TILT CAB STOPPER | ||||
| 54970-37020 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| 54980 - LOCK ASSY, TILT CAB MOUNTING, RH | ||||
| 54980-37030 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| 54990 - LOCK ASSY, TILT CAB MOUNTING, LH | ||||
| 54990-37090 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| 57223 - BRACKET, FRONT MOUNTING, RH | ||||
| 57223-37011 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 57224 - BRACKET, FRONT MOUNTING, LH | ||||
| 57224-37011 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 57325 - REINFORCEMENT, FRONT MOUNTING | ||||
| 57325-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 57325 - REINFORCEMENT, FRONT MOUNTING | ||||
| 57325-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 58954 - COVER, REAR LOCK HANDLE GRIP | ||||
| 58954-95400 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| 84514B - BRACKET, TILT CAB CONTROL SWITCH | ||||
| 84514-37070 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
1 | ||
| 84514-37070 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
1 | ||
| 84514-37070 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
1 | ||
| 84514-37070 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| Common parts | ||||
| 90105-08071 | ||||
| 90105-12064 | ||||
| 90173-14012 | ||||
| 90179-14065 | ||||
| 90201-13025 | ||||
| 90201-16172 | ||||
| 90541-10058 | ||||
| 91551-80616 | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 91552-E1030 | ||||
| 91619-61235 | ||||
| 91673-G1025 | ||||
| 94130-00802 | ||||
| 94184-61201 | ||||
| 94612-11001 | ||||
| 94622-41400 | ||||
| 95381-03020 | ||||
| 96150-02000 | ||||
| 96160-00600 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

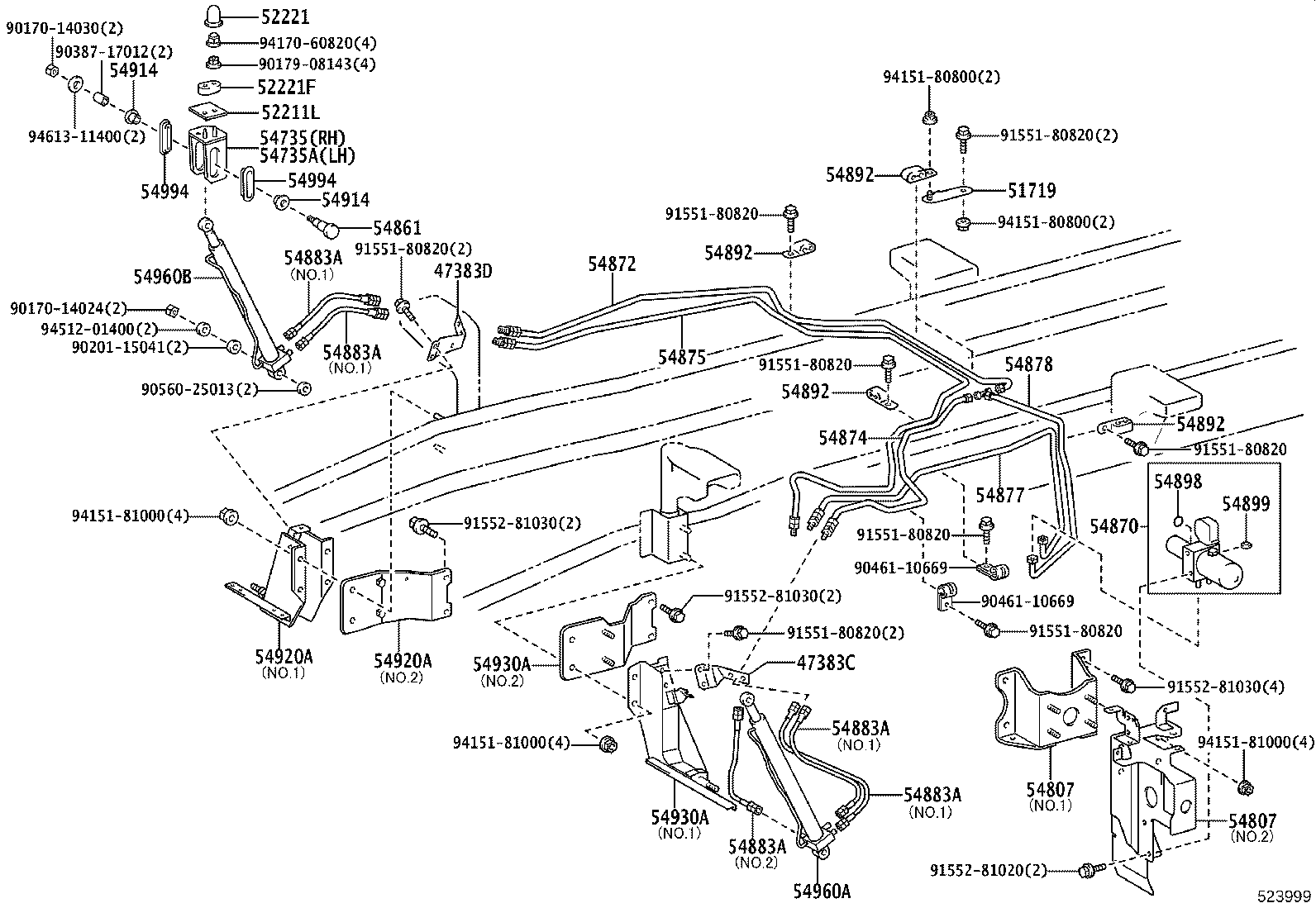

ILLUST NO. 2 OF 2(1905- )DCRWD..IV4
ﾃﾞﾝﾄﾞｳﾁﾙﾄｷｬﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47383C - BRACKET, CONNECTOR, N0.1 | ||||
| 47383-37060 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
1 | ||
| 47383-37060 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
1 | ||
| 47383-37060 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| 47383-37060 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
1 | ||
| 47383D - BRACKET, CONNECTOR, NO.2 | ||||
| 47383-37050 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
1 | ||
| 47383-37050 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
1 | ||
| 47383-37050 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
1 | ||
| 47383-37050 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| 51719 - PLATE, BODY SUPPORT BRACKET | ||||
| 51551-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
2 | ||
| 51551-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
2 | ||
| 51551-37010 |
XZU600,640,685..DCRWD..IV4 |
2 | ||
| 51551-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
2 | ||
| 52211L - CUSHION, BODY MOUNTING, NO.1 | ||||
| 52221-37040 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
2 | ||
| 52221-37040 |
XZU600,640,685..DCRWD..IV4 |
2 | ||
| 52221-37040 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
2 | ||
| 52221-37040 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
2 | ||
| 52221 - CUSHION, BODY MOUNT, NO.2 UPPER | ||||
| 52221-37050 |
XZU600,640,685..DCRWD..IV4 |
4 | ||
| 52221-37050 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
4 | ||
| 52221-37050 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
4 | ||
| 52221-37050 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
4 | ||
| 52221F - CUSHION, BODY MOUNTING, CENTER UPPER | ||||
| 52221-37010 |
XZU600,640,685..DCRWD..IV4 |
2 | ||
| 52221-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
2 | ||
| 52221-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
2 | ||
| 52221-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
2 | ||
| 54735 - SUPPORT, TILT CAB CYLINDER CUSHION HINGE | ||||
| 54935-37021 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
1 | ||
| 54935-37021 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
1 | ||
| 54935-37021 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| 54935-37021 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
1 | ||
| 54735A - SUPPORT, TILT CAB CYLINDER CUSHION HINGE | ||||
| 54935-37031 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
1 | ||
| 54935-37031 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
1 | ||
| 54935-37031 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
1 | ||
| 54935-37031 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| 54807 - BRACKET SUB-ASSY, TILT CAB PUMP | ||||
| 54807-37060 |
XZU600,640,685..DCRWD..IV4 NO.1 |
1 | ||
| 54807-37070 |
XZU600,640,685..DCRWD..IV4 NO.2 |
1 | ||
| 54807 - BRACKET SUB-ASSY, TILT CAB PUMP | ||||
| 54807-37060 |
XZU600,640,685..DCRWD..IV4 NO.1 |
1 | ||
| 54807-37070 |
XZU600,640,685..DCRWD..IV4 NO.2 |
1 | ||
| 54861 - PIN, TILT CAB CYLINDER MOUNTING, UPPER | ||||
| 54861-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
2 | ||
| 54861-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
2 | ||
| 54861-37010 |
XZU600,640,685..DCRWD..IV4 |
2 | ||
| 54861-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
2 | ||
| 54870 - PUMP ASSY, TILT CAB | ||||
| 54870-37060 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
1 | ||
| 54870-37060 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
1 | ||
| 54870-37060 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
1 | ||
| 54870-37060 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| 54872 - TUBE, TILT CAB, NO.1 | ||||
| 54801-37200 |
XZU600,640..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
1 | ||
| 54801-37200 |
XZU600,640..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
1 | ||
| 54801-37200 |
XZU600,640..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
1 | ||
| 54801-37200 |
XZU600,640..DCRWD..IV4 |
1 | ||
| 54874 - TUBE, TILT CAB, NO.3 | ||||
| 54804-37110 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
1 | ||
| 54804-37110 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
1 | ||
| 54804-37110 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| 54804-37110 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
1 | ||
| 54875 - TUBE, TILT CAB, NO.4 | ||||
| 54803-37090 |
XZU600,640..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
1 | ||
| 54803-37090 |
XZU600,640..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
1 | ||
| 54803-37090 |
XZU600,640..DCRWD..IV4 |
1 | ||
| 54803-37090 |
XZU600,640..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
1 | ||
| 54877 - TUBE, TILT CAB, NO.6 | ||||
| 54805-37020 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
1 | ||
| 54805-37020 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| 54805-37020 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
1 | ||
| 54805-37020 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
1 | ||
| 54878 - TUBE, TILT CAB, NO.7 | ||||
| 54806-37030 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
1 | ||
| 54806-37030 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
1 | ||
| 54806-37030 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| 54806-37030 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
1 | ||
| 54883A - HOSE, TILT CAB PUMP | ||||
| 54883-37070 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250),NOD2 |
1 | ||
| 54883-37130 |
XZU600,640,685..DCRWD..IV4 NO.1 |
4 | ||
| 54883-37070 |
XZU600,640,685..DCRWD..IV4 NO.2 |
1 | ||
| 54883-37070 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170),NOD2 |
1 | ||
| 54883-37070 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ),NO.2 |
1 | ||
| 54883A - HOSE, TILT CAB PUMP | ||||
| 54883-37070 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250),NOD2 |
1 | ||
| 54883-37130 |
XZU600,640,685..DCRWD..IV4 NO.1 |
4 | ||
| 54883-37070 |
XZU600,640,685..DCRWD..IV4 NO.2 |
1 | ||
| 54883-37070 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170),NOD2 |
1 | ||
| 54883-37070 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ),NO.2 |
1 | ||
| 54883A - HOSE, TILT CAB PUMP | ||||
| 54883-37070 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250),NOD2 |
1 | ||
| 54883-37130 |
XZU600,640,685..DCRWD..IV4 NO.1 |
4 | ||
| 54883-37070 |
XZU600,640,685..DCRWD..IV4 NO.2 |
1 | ||
| 54883-37070 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170),NOD2 |
1 | ||
| 54883-37070 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ),NO.2 |
1 | ||
| 54883A - HOSE, TILT CAB PUMP | ||||
| 54883-37070 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250),NOD2 |
1 | ||
| 54883-37130 |
XZU600,640,685..DCRWD..IV4 NO.1 |
4 | ||
| 54883-37070 |
XZU600,640,685..DCRWD..IV4 NO.2 |
1 | ||
| 54883-37070 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170),NOD2 |
1 | ||
| 54883-37070 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ),NO.2 |
1 | ||
| 54883A - HOSE, TILT CAB PUMP | ||||
| 54883-37070 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250),NOD2 |
1 | ||
| 54883-37130 |
XZU600,640,685..DCRWD..IV4 NO.1 |
4 | ||
| 54883-37070 |
XZU600,640,685..DCRWD..IV4 NO.2 |
1 | ||
| 54883-37070 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170),NOD2 |
1 | ||
| 54883-37070 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ),NO.2 |
1 | ||
| 54892 - CLAMP, TILT CAB PIPE | ||||
| 54892-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
5 | ||
| 54892-37010 |
XZU600,640,685..DCRWD..IV4 |
5 | ||
| 54892-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
5 | ||
| 54892-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
5 | ||
| 54892 - CLAMP, TILT CAB PIPE | ||||
| 54892-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
5 | ||
| 54892-37010 |
XZU600,640,685..DCRWD..IV4 |
5 | ||
| 54892-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
5 | ||
| 54892-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
5 | ||
| 54892 - CLAMP, TILT CAB PIPE | ||||
| 54892-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
5 | ||
| 54892-37010 |
XZU600,640,685..DCRWD..IV4 |
5 | ||
| 54892-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
5 | ||
| 54892-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
5 | ||
| 54892 - CLAMP, TILT CAB PIPE | ||||
| 54892-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
5 | ||
| 54892-37010 |
XZU600,640,685..DCRWD..IV4 |
5 | ||
| 54892-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
5 | ||
| 54892-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
5 | ||
| 54898 - GASKET, TILT CAB PUMP, NO.1 | ||||
| 54898-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
1 | ||
| 54898-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
1 | ||
| 54898-37010 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| 54898-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
1 | ||
| 54899 - GASKET, TILT CAB PUMP, NO.2 | ||||
| 54899-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
1 | ||
| 54899-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
1 | ||
| 54899-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
1 | ||
| 54899-37010 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| 54914 - JOINT, TILT CAB PIPE | ||||
| 54914-37050 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
4 | ||
| 54914-37050 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
4 | ||
| 54914-37050 |
XZU600,640,685..DCRWD..IV4 |
4 | ||
| 54914-37050 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
4 | ||
| 54914 - JOINT, TILT CAB PIPE | ||||
| 54914-37050 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
4 | ||
| 54914-37050 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
4 | ||
| 54914-37050 |
XZU600,640,685..DCRWD..IV4 |
4 | ||
| 54914-37050 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
4 | ||
| 54920A - BRACKET ASSY, TILT CAB CYLINDER, LOWER RH | ||||
| 54920-37160 |
XZU600,640,685..DCRWD..IV4 NO.1 |
1 | ||
| 54920-37170 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250),NOD1 |
1 | ||
| 54920-37170 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170),NOD1 |
1 | ||
| 54920-37170 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ),NO.1 |
1 | ||
| 54920-37200 |
XZU600,640,685..DCRWD..IV4 NO.2 |
1 | ||
| 54920A - BRACKET ASSY, TILT CAB CYLINDER, LOWER RH | ||||
| 54920-37160 |
XZU600,640,685..DCRWD..IV4 NO.1 |
1 | ||
| 54920-37170 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250),NOD1 |
1 | ||
| 54920-37170 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170),NOD1 |
1 | ||
| 54920-37170 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ),NO.1 |
1 | ||
| 54920-37200 |
XZU600,640,685..DCRWD..IV4 NO.2 |
1 | ||
| 54930A - BRACKET ASSY, TILT CAB CYLINDER, LOWER LH | ||||
| 54930-37070 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
1 | ||
| 54930-37070 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
1 | ||
| 54930-37070 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
1 | ||
| 54930-37060 |
XZU600,640,685..DCRWD..IV4 NO.1 |
1 | ||
| 54930-37070 |
XZU600,640,685..DCRWD..IV4 NO.2 |
1 | ||
| 54930A - BRACKET ASSY, TILT CAB CYLINDER, LOWER LH | ||||
| 54930-37070 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
1 | ||
| 54930-37070 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
1 | ||
| 54930-37070 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
1 | ||
| 54930-37060 |
XZU600,640,685..DCRWD..IV4 NO.1 |
1 | ||
| 54930-37070 |
XZU600,640,685..DCRWD..IV4 NO.2 |
1 | ||
| 54960A - CYLINDER ASSY, TILT CAB | ||||
| 54960-37040 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
1 | ||
| 54960-37040 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
1 | ||
| 54960-37040 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
1 | ||
| 54960-37040 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| 54960B - CYLINDER ASSY, TILT CAB | ||||
| 54960-37050 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
1 | ||
| 54960-37050 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| 54960-37050 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
1 | ||
| 54960-37050 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
1 | ||
| 54994 - GUIDE, TILT CAB LOCK HOOK | ||||
| 54994-37040 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
4 | ||
| 54994-37040 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
4 | ||
| 54994-37040 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
4 | ||
| 54994-37040 |
XZU600,640,685..DCRWD..IV4 |
4 | ||
| 54994 - GUIDE, TILT CAB LOCK HOOK | ||||
| 54994-37040 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
4 | ||
| 54994-37040 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
4 | ||
| 54994-37040 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
4 | ||
| 54994-37040 |
XZU600,640,685..DCRWD..IV4 |
4 | ||
| Common parts | ||||
| 90170-14024 | ||||
| 90170-14030 | ||||
| 90179-08143 | ||||
| 90201-15041 | ||||
| 90387-17012 | ||||
| 90461-10669 | ||||
| 90560-25013 | ||||
| 91551-80820 | ||||
| 91552-81020 | ||||
| 91552-81030 | ||||
| 94151-80800 | ||||
| 94151-81000 | ||||
| 94170-60820 | ||||
| 94512-01400 | ||||
| 94613-11400 | ||||
(1905- )DCRWD..IV4
ｼｭﾄﾞｳﾁﾙﾄｷｬﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47358 - TUBE, BOOSTER TO RESERVOIR, NO.2 | ||||
| 47358-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 51711D - BRACKET, CAB FRONT MOUNTING | ||||
| 51701-37110 |
XZU600,640,685,695..DCB..DCRWD |
1 | ||
| 51711E - BOLT, HEXAGON(FOR CAB MOUNTING BARACKET) | ||||
| 90101-14041 |
XZU600,640,685,695..DCB..DCRWD |
2 | ||
| 51717A - PLATE, BODY SUPPORT BRACKET | ||||
| 51717-37120 |
XZU600,640,685,695..DCB..DCRWD |
2 | ||
| 51722A - BRACKET SUB-ASSY, CAB FRONT MOUNTING, LH | ||||
| 51702-37350 |
XZU600,640,685,695..DCB..DCRWD |
1 | ||
| 51965E - HOOK, REAR NO.1 | ||||
| 51965-37040 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
1 | ||
| 51965-37040 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
1 | ||
| 51965-37040 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
1 | ||
| 51966B - HOOK, REAR NO.2 | ||||
| 51966-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
1 | ||
| 51966-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
1 | ||
| 51966-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
1 | ||
| 52201A - CUSHION SUB-ASSY, CAB FRONT MOUNTING | ||||
| 52201-37050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 52201A - CUSHION SUB-ASSY, CAB FRONT MOUNTING | ||||
| 52201-37050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 | ||||
| 52203-37050 |
XZU600,640,685..DCRWD..IV4 |
4 | ||
| 52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 | ||||
| 52203-37050 |
XZU600,640,685..DCRWD..IV4 |
4 | ||
| 52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 90109-14014 |
XZU600,640,685,695..DCB..DCRWD |
2 | ||
| 52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 52211-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 52211-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 52216A - STOPPER, CAB MOUNTING CUSHION | ||||
| 52216-92601 |
XZU600,640,685..DCRWD..IV4 |
2 | ||
| 52217A - BOLT, BODY MOUNTING | ||||
| 90101-14080 |
XZU600,640,685,695..DCB..DCRWD |
2 | ||
| 52222A - SPACER, CAB REAR MOUNTING, UPPER | ||||
| 52222-37020 |
XZU600,640,685..DCRWD..IV4 |
4 | ||
| 52222A - SPACER, CAB REAR MOUNTING, UPPER | ||||
| 52222-37020 |
XZU600,640,685..DCRWD..IV4 |
4 | ||
| 52222E - SPACER, CAB REAR MOUNTING, UPPER | ||||
| 52222-37040 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| 52307A - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2 | ||||
| 52307-37010 |
XZU600,640,685..DCRWD..IV4 |
2 | ||
| 52307B - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2 | ||||
| 52307-36021 |
XZU600,640,685..DCRWD..IV4 |
2 | ||
| 52367 - HOOK, CAB REAR MOUNTING | ||||
| 52367-37070 |
XZU600,640,685..DCRWD..IV4 |
2 | ||
| 54801 - TUBE SUB-ASSY, TILT CAB, NO.1 | ||||
| 54801-37221 |
XZU600,605,640,655,685,695..DCB..DCRWD |
1 | ||
| 54801-37220 |
XZU600,605,640,655,685,695..DCB..DCRWD |
1 | ||
| 54920A - BRACKET ASSY, TILT CAB CYLINDER, LOWER RH | ||||
| 54920-37160 |
XZU600,640,685..DCRWD..IV4 NO.1 |
1 | ||
| 54920-37170 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250),NOD1 |
1 | ||
| 54920-37170 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170),NOD1 |
1 | ||
| 54920-37170 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ),NO.1 |
1 | ||
| 54920-37200 |
XZU600,640,685..DCRWD..IV4 NO.2 |
1 | ||
| 54920A - BRACKET ASSY, TILT CAB CYLINDER, LOWER RH | ||||
| 54920-37160 |
XZU600,640,685..DCRWD..IV4 NO.1 |
1 | ||
| 54920-37170 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250),NOD1 |
1 | ||
| 54920-37170 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170),NOD1 |
1 | ||
| 54920-37170 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ),NO.1 |
1 | ||
| 54920-37200 |
XZU600,640,685..DCRWD..IV4 NO.2 |
1 | ||
| 54930A - BRACKET ASSY, TILT CAB CYLINDER, LOWER LH | ||||
| 54930-37070 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
1 | ||
| 54930-37070 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
1 | ||
| 54930-37070 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
1 | ||
| 54930-37060 |
XZU600,640,685..DCRWD..IV4 NO.1 |
1 | ||
| 54930-37070 |
XZU600,640,685..DCRWD..IV4 NO.2 |
1 | ||
| 54940 - STAY ASSY, TILT CAB | ||||
| 54940-37110 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
1 | ||
| 54940-37110 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
1 | ||
| 54940-37110 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
1 | ||
| 54940-37340 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| 54940A - STAY ASSY, TILT CAB | ||||
| 54940-37120 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
1 | ||
| 54940-37120 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
1 | ||
| 54940-37120 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
1 | ||
| 54957 - GUSSET, TILT CAB STAY, UPPER | ||||
| 54957-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
1 | ||
| 54957-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
1 | ||
| 54957-37010 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
1 | ||
| 54970 - LATCH ASSY, TILT CAB STOPPER | ||||
| 54970-37020 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| 54980 - LOCK ASSY, TILT CAB MOUNTING, RH | ||||
| 54980-37030 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| 54990 - LOCK ASSY, TILT CAB MOUNTING, LH | ||||
| 54990-37090 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| 57223 - BRACKET, FRONT MOUNTING, RH | ||||
| 57223-37011 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 57224 - BRACKET, FRONT MOUNTING, LH | ||||
| 57224-37011 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 57325 - REINFORCEMENT, FRONT MOUNTING | ||||
| 57325-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 57325 - REINFORCEMENT, FRONT MOUNTING | ||||
| 57325-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 58353E - STAY, REAR FLOOR, RH | ||||
| 58353-37021 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
1 | ||
| 58353-37021 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
1 | ||
| 58353-37021 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
1 | ||
| 58354A - STAY, REAR FLOOR, LH | ||||
| 58354-37041 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) |
1 | ||
| 58354-37041 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(170) |
1 | ||
| 58354-37041 |
XZU600,640,685..DCRWD..IV4 ｷｬﾌﾞﾀｲﾌﾟ−ﾊｲﾙｰﾌ(ｷｬﾌﾞﾛｯｸ) & ﾊﾞｯｸﾊﾟﾈﾙﾎﾞｯｸｽ(250) |
1 | ||
| 58954 - COVER, REAR LOCK HANDLE GRIP | ||||
| 58954-95400 |
XZU600,640,685..DCRWD..IV4 |
1 | ||
| Common parts | ||||
| 90105-08071 | ||||
| 90105-12064 | ||||
| 90173-14012 | ||||
| 90179-14065 | ||||
| 90201-08010 | ||||
| 90201-13025 | ||||
| 90201-16172 | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 91552-81030 | ||||
| 91552-E1030 | ||||
| 91619-61235 | ||||
| 91673-G1025 | ||||
| 94130-00802 | ||||
| 94151-81000 | ||||
| 94184-61201 | ||||
| 94271-00800 | ||||
| 94612-11001 | ||||
| 94622-41400 | ||||
| 95381-03020 | ||||
| 96150-02000 | ||||
| 96160-00600 | ||||
| 96160-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
