XZU630D-TMMQB3 (2011)
Toyota Dyna/Toyoace

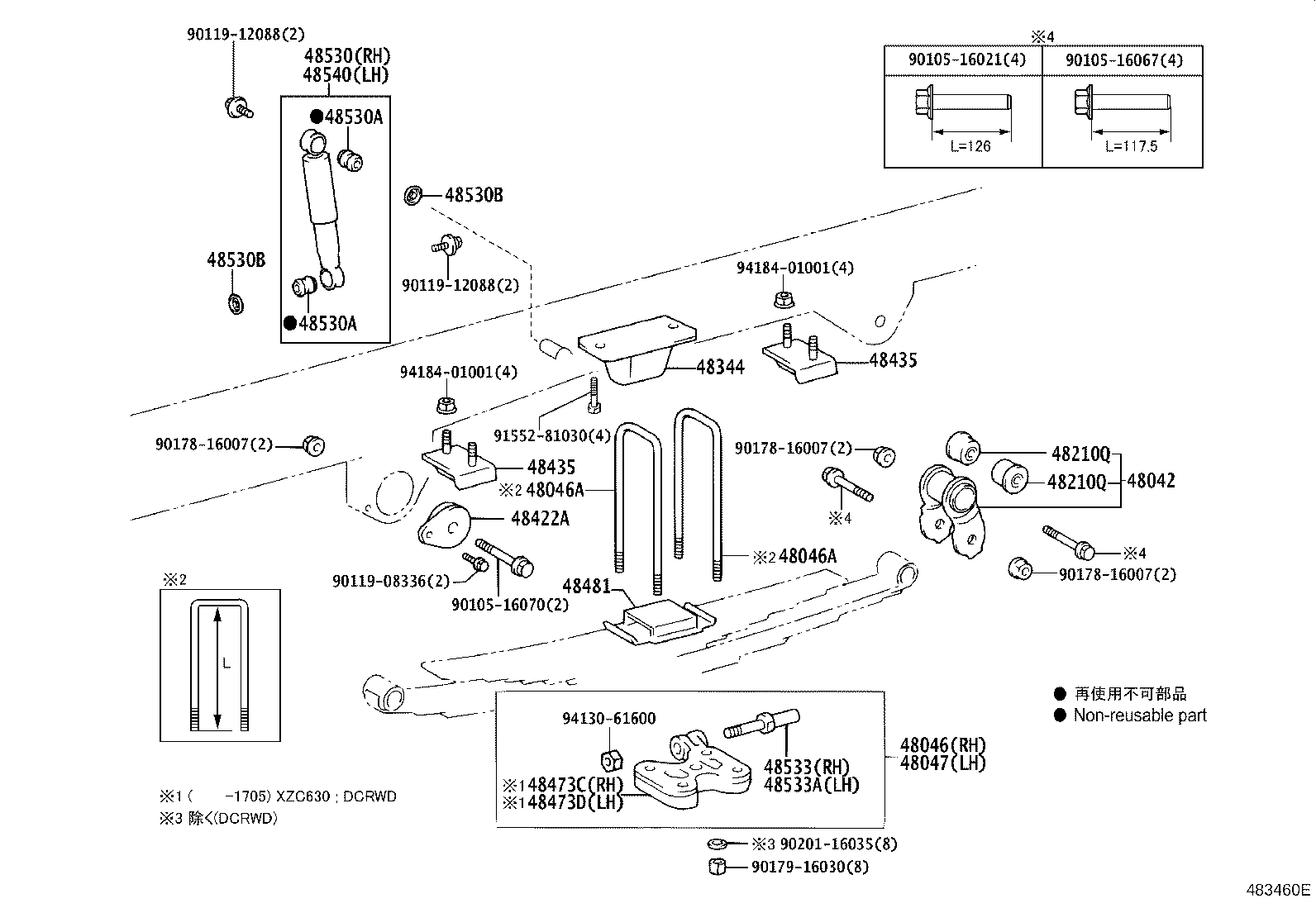

ILLUST NO. 1 OF 2(1107- )XZC630,XZU630
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-37140 |
XZU630 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16040 |
XZU630..30T 長さ=320 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16040 |
XZU630..30T 長さ=320 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-37140 |
XZU630 |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37230 |
XZC630,XZU630 |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36090 |
XZU645..20T..DCRTJ;BZU600,TRC600,TRU600..DM5,DM6,T4;XZC60#,610,630,645,675,XZU600,605,610,620,630,675..(03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5)..(DCRTH,DCRTJ,DCRTK) |
2 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37010 |
XZC630,XZU630 |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37010 |
XZC630,XZU630 |
4 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37060 |
XZU630 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80746 |
XZC630,XZU630 ﾏｰｸ 48531−37230 |
1 | ||
| 48531-80797 |
XZC630,XZU630 ﾏｰｸ 48531−37231 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 48533 - PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH | ||||
| 48522-37030 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT |
1 | ||
| 48533A - PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH | ||||
| 48522-37030 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80746 |
XZC630,XZU630 ﾏｰｸ 48531−37230 |
1 | ||
| 48531-80797 |
XZC630,XZU630 ﾏｰｸ 48531−37231 |
1 | ||
| Common parts | ||||
| 90105-16021 | ||||
| 90105-16067 | ||||
| 90105-16070 | ||||
| 90119-08336 | ||||
| 90119-12088 | ||||
| 90178-16007 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91552-81030 | ||||
| 94130-61600 | ||||
| 94184-01001 | ||||
ILLUST NO. 1 OF 2(1107- )XZU640..30T..DCRTK ; (1107- )XZU600,650..DCVTO..IV6 ; (1107- )XZU6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 48042-37020 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-37140 |
XZU630 |
1 | ||
| 48046-37140 |
XZU630 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16040 |
XZU630..30T 長さ=320 |
4 | ||
| 90117-16040 |
XZU630..30T 長さ=320 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16040 |
XZU630..30T 長さ=320 |
4 | ||
| 90117-16040 |
XZU630..30T 長さ=320 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-37140 |
XZU630 |
1 | ||
| 48047-37140 |
XZU630 |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 90389-16026 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 90389-16026 |
XZU650..20T;XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37230 |
XZC630,XZU630 |
2 | ||
| 48344-37230 |
XZC630,XZU630 |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36090 |
XZU645..20T..DCRTJ;BZU600,TRC600,TRU600..DM5,DM6,T4;XZC60#,610,630,645,675,XZU600,605,610,620,630,675..(03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5)..(DCRTH,DCRTJ,DCRTK) |
2 | ||
| 48422-36090 |
XZU645..20T..DCRTJ;BZU600,TRC600,TRU600..DM5,DM6,T4;XZC60#,610,630,645,675,XZU600,605,610,620,630,675..(03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5)..(DCRTH,DCRTJ,DCRTK) |
2 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37010 |
XZC630,XZU630 |
4 | ||
| 48435-37010 |
XZC630,XZU630 |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-37010 |
XZC630,XZU630 |
4 | ||
| 48435-37010 |
XZC630,XZU630 |
4 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37060 |
XZU630 |
2 | ||
| 48481-37060 |
XZU630 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80746 |
XZC630,XZU630 ﾏｰｸ 48531−37230 |
1 | ||
| 48531-80746 |
XZC630,XZU630 ﾏｰｸ 48531−37230 |
1 | ||
| 48531-80797 |
XZC630,XZU630 ﾏｰｸ 48531−37231 |
1 | ||
| 48531-80797 |
XZC630,XZU630 ﾏｰｸ 48531−37231 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 90385-19011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 90385-19011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 90948-03011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 90948-03011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC60#,610,630,645,655,675,XZU60#,610,620,630,645,655,675,685,695..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..(20T,30T)..WT |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80746 |
XZC630,XZU630 ﾏｰｸ 48531−37230 |
1 | ||
| 48531-80746 |
XZC630,XZU630 ﾏｰｸ 48531−37230 |
1 | ||
| 48531-80797 |
XZC630,XZU630 ﾏｰｸ 48531−37231 |
1 | ||
| 48531-80797 |
XZC630,XZU630 ﾏｰｸ 48531−37231 |
1 | ||
| Common parts | ||||
| 90105-16021 | ||||
| 90105-16067 | ||||
| 90105-16070 | ||||
| 90119-10740 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90178-16007 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91552-81030 | ||||
| 91552-81045 | ||||
| 91651-B0820 | ||||
| 94151-81000 | ||||
| 94184-01001 | ||||

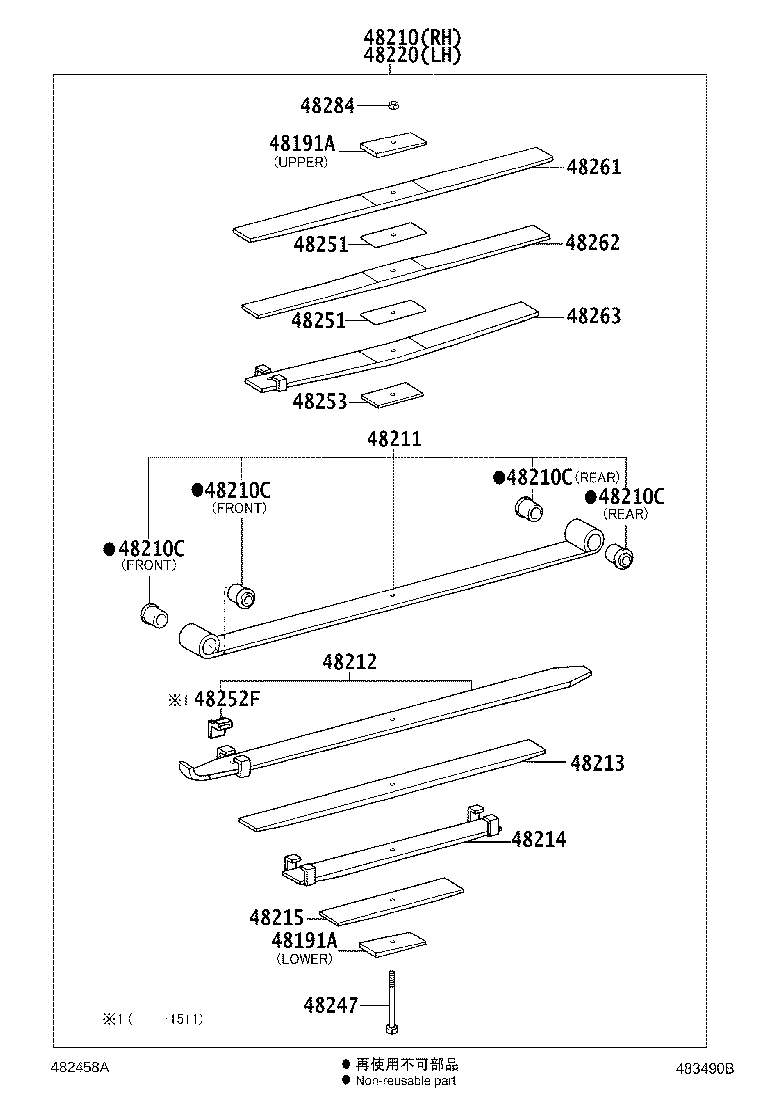

ILLUST NO. 2 OF 2(1107-1503)BZU600,TRU600..T4..30T ; (1107-1503)XZC605..T4..6FC..DCRTJ..IV3 ; (1107-
6-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V420 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V420 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V421 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V421 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V420 |
XZU630..30T |
2 | ||
| 48201-3V420 |
XZU630..30T |
2 | ||
| 48201-3V421 |
XZU630..30T |
2 | ||
| 48201-3V421 |
XZU630..30T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3V420 |
XZU630..30T |
2 | ||
| 48202-3V420 |
XZU630..30T |
2 | ||
| 48202-3V421 |
XZU630..30T |
2 | ||
| 48202-3V421 |
XZU630..30T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-3V420 |
XZU630..30T |
2 | ||
| 48213-3V420 |
XZU630..30T |
2 | ||
| 48213-3V421 |
XZU630..30T |
2 | ||
| 48213-3V421 |
XZU630..30T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-3V420 |
XZU630..30T |
2 | ||
| 48203-3V420 |
XZU630..30T |
2 | ||
| 48203-3V421 |
XZU630..30T |
2 | ||
| 48203-3V421 |
XZU630..30T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3V420 |
XZU630..30T |
2 | ||
| 48215-3V420 |
XZU630..30T |
2 | ||
| 48215-3V421 |
XZU630..30T |
2 | ||
| 48215-3V421 |
XZU630..30T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V420 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V420 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V421 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V421 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37780 |
XZU630..30T |
2 | ||
| 48247-37780 |
XZU630..30T |
2 | ||
| 48247-3V421 |
XZU630..30T |
2 | ||
| 48247-3V421 |
XZU630..30T |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37521 |
XZU600..DM6;XZU630..30T;XZC655,XZU65#,685,695..20T |
4 | ||
| 48282-37521 |
XZU600..DM6;XZU630..30T;XZC655,XZU65#,685,695..20T |
4 | ||
| 48251-36530 |
XZU630..30T;BZU600,XZU600..DM6;XZC655,XZU65#,685,695..20T |
4 | ||
| 48251-36530 |
XZU630..30T;BZU600,XZU600..DM6;XZC655,XZU65#,685,695..20T |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XZU630..30T |
4 | ||
| 48252-37380 |
XZU630..30T |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XZU630..30T |
4 | ||
| 48252-37380 |
XZU630..30T |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XZU630..30T |
4 | ||
| 48252-37380 |
XZU630..30T |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XZU630..30T |
4 | ||
| 48252-37380 |
XZU630..30T |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-27620 |
XZU630..30T;BZU600,XZU600..DM6 |
2 | ||
| 48299-27620 |
XZU630..30T;BZU600,XZU600..DM6 |
2 | ||
| 48284-0W060 |
XZU600..DM6;XZC600,630,XZU630..DM7,T5;XZC655,XZU65#,685,695..20T |
2 | ||
| 48284-0W060 |
XZU600..DM6;XZC600,630,XZU630..DM7,T5;XZC655,XZU65#,685,695..20T |
2 | ||
| Common parts | ||||
| 94184-61000 | ||||
ILLUST NO. 2 OF 2(1107- )XZU630..30T..DCRTJ
MAIN 5+HELPER 3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37040 |
XZC630,XZU630 下側 |
2 | ||
| 48192-37020 |
XZC630,XZU630 上側 |
2 | ||
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37040 |
XZC630,XZU630 下側 |
2 | ||
| 48192-37020 |
XZC630,XZU630 上側 |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V420 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V421 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V420 |
XZU630..30T |
2 | ||
| 48201-3V421 |
XZU630..30T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3V420 |
XZU630..30T |
2 | ||
| 48202-3V421 |
XZU630..30T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-3V420 |
XZU630..30T |
2 | ||
| 48213-3V421 |
XZU630..30T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-3V420 |
XZU630..30T |
2 | ||
| 48203-3V421 |
XZU630..30T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3V420 |
XZU630..30T |
2 | ||
| 48215-3V421 |
XZU630..30T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V420 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V421 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37780 |
XZU630..30T |
2 | ||
| 48247-3V421 |
XZU630..30T |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37521 |
XZU600..DM6;XZU630..30T;XZC655,XZU65#,685,695..20T |
4 | ||
| 48251-36530 |
XZU630..30T;BZU600,XZU600..DM6;XZC655,XZU65#,685,695..20T |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37521 |
XZU600..DM6;XZU630..30T;XZC655,XZU65#,685,695..20T |
4 | ||
| 48251-36530 |
XZU630..30T;BZU600,XZU600..DM6;XZC655,XZU65#,685,695..20T |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XZU630..30T |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-25670 |
XZU630..30T |
2 | ||
| 48253-37631 |
XZU630..30T |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48216-3V420 |
XZU630..30T |
2 | ||
| 48216-3V421 |
XZU630..30T |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48217-3V421 |
XZU630..30T |
2 | ||
| 48217-3V420 |
XZU630..30T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48204-3V420 |
XZU630..30T |
2 | ||
| 48204-3V421 |
XZU630..30T |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-27620 |
XZU630..30T;BZU600,XZU600..DM6 |
2 | ||
| 48284-0W060 |
XZU600..DM6;XZC600,630,XZU630..DM7,T5;XZC655,XZU65#,685,695..20T |
2 | ||
ILLUST NO. 2 OF 2(1503- )TRC600..DM5 ; (1503- )T5..5F..30T; (1503- )DM3..DCRTJ..CBU ; (150
6-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V420 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V420 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V420 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V421 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V421 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V421 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V420 |
XZU630..30T |
2 | ||
| 48201-3V420 |
XZU630..30T |
2 | ||
| 48201-3V420 |
XZU630..30T |
2 | ||
| 48201-3V421 |
XZU630..30T |
2 | ||
| 48201-3V421 |
XZU630..30T |
2 | ||
| 48201-3V421 |
XZU630..30T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3V420 |
XZU630..30T |
2 | ||
| 48202-3V420 |
XZU630..30T |
2 | ||
| 48202-3V420 |
XZU630..30T |
2 | ||
| 48202-3V421 |
XZU630..30T |
2 | ||
| 48202-3V421 |
XZU630..30T |
2 | ||
| 48202-3V421 |
XZU630..30T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-3V420 |
XZU630..30T |
2 | ||
| 48213-3V420 |
XZU630..30T |
2 | ||
| 48213-3V420 |
XZU630..30T |
2 | ||
| 48213-3V421 |
XZU630..30T |
2 | ||
| 48213-3V421 |
XZU630..30T |
2 | ||
| 48213-3V421 |
XZU630..30T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-3V420 |
XZU630..30T |
2 | ||
| 48203-3V420 |
XZU630..30T |
2 | ||
| 48203-3V420 |
XZU630..30T |
2 | ||
| 48203-3V421 |
XZU630..30T |
2 | ||
| 48203-3V421 |
XZU630..30T |
2 | ||
| 48203-3V421 |
XZU630..30T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3V420 |
XZU630..30T |
2 | ||
| 48215-3V420 |
XZU630..30T |
2 | ||
| 48215-3V420 |
XZU630..30T |
2 | ||
| 48215-3V421 |
XZU630..30T |
2 | ||
| 48215-3V421 |
XZU630..30T |
2 | ||
| 48215-3V421 |
XZU630..30T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V420 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V420 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V420 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V421 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V421 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V421 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37780 |
XZU630..30T |
2 | ||
| 48247-37780 |
XZU630..30T |
2 | ||
| 48247-37780 |
XZU630..30T |
2 | ||
| 48247-3V421 |
XZU630..30T |
2 | ||
| 48247-3V421 |
XZU630..30T |
2 | ||
| 48247-3V421 |
XZU630..30T |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37521 |
XZU600..DM6;XZU630..30T;XZC655,XZU65#,685,695..20T |
4 | ||
| 48282-37521 |
XZU600..DM6;XZU630..30T;XZC655,XZU65#,685,695..20T |
4 | ||
| 48282-37521 |
XZU600..DM6;XZU630..30T;XZC655,XZU65#,685,695..20T |
4 | ||
| 48251-36530 |
XZU630..30T;BZU600,XZU600..DM6;XZC655,XZU65#,685,695..20T |
4 | ||
| 48251-36530 |
XZU630..30T;BZU600,XZU600..DM6;XZC655,XZU65#,685,695..20T |
4 | ||
| 48251-36530 |
XZU630..30T;BZU600,XZU600..DM6;XZC655,XZU65#,685,695..20T |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-27620 |
XZU630..30T;BZU600,XZU600..DM6 |
2 | ||
| 48299-27620 |
XZU630..30T;BZU600,XZU600..DM6 |
2 | ||
| 48299-27620 |
XZU630..30T;BZU600,XZU600..DM6 |
2 | ||
| 48284-0W060 |
XZU600..DM6;XZC600,630,XZU630..DM7,T5;XZC655,XZU65#,685,695..20T |
2 | ||
| 48284-0W060 |
XZU600..DM6;XZC600,630,XZU630..DM7,T5;XZC655,XZU65#,685,695..20T |
2 | ||
| 48284-0W060 |
XZU600..DM6;XZC600,630,XZU630..DM7,T5;XZC655,XZU65#,685,695..20T |
2 | ||
| Common parts | ||||
| 48284-0W060 | ||||
ILLUST NO. 2 OF 2(1503- )XZC605..T4..6FC..DCRTJ..IV3 ; (1503-)XZU605..T4..30T..DCRTJ..CBU ; (
6-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V420 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V420 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V420 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V421 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V421 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V421 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16026 |
XZC600..5F..ST;XZU605,675..30T;XZC630,XZU600,620,630..DM3,DM5,DM6,DM7 ﾘﾔ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 90389-16024 |
XZU645..20T;XZC600..5F..ST;XZC60#,610,630,645,675,XZU60#,610,620,630,675..(03S,DM3,DM5,DM6,DM7,T2,T4,T5)..WT ﾌﾛﾝﾄ |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V420 |
XZU630..30T |
2 | ||
| 48201-3V420 |
XZU630..30T |
2 | ||
| 48201-3V420 |
XZU630..30T |
2 | ||
| 48201-3V421 |
XZU630..30T |
2 | ||
| 48201-3V421 |
XZU630..30T |
2 | ||
| 48201-3V421 |
XZU630..30T |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-3V420 |
XZU630..30T |
2 | ||
| 48202-3V420 |
XZU630..30T |
2 | ||
| 48202-3V420 |
XZU630..30T |
2 | ||
| 48202-3V421 |
XZU630..30T |
2 | ||
| 48202-3V421 |
XZU630..30T |
2 | ||
| 48202-3V421 |
XZU630..30T |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-3V420 |
XZU630..30T |
2 | ||
| 48213-3V420 |
XZU630..30T |
2 | ||
| 48213-3V420 |
XZU630..30T |
2 | ||
| 48213-3V421 |
XZU630..30T |
2 | ||
| 48213-3V421 |
XZU630..30T |
2 | ||
| 48213-3V421 |
XZU630..30T |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-3V420 |
XZU630..30T |
2 | ||
| 48203-3V420 |
XZU630..30T |
2 | ||
| 48203-3V420 |
XZU630..30T |
2 | ||
| 48203-3V421 |
XZU630..30T |
2 | ||
| 48203-3V421 |
XZU630..30T |
2 | ||
| 48203-3V421 |
XZU630..30T |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3V420 |
XZU630..30T |
2 | ||
| 48215-3V420 |
XZU630..30T |
2 | ||
| 48215-3V420 |
XZU630..30T |
2 | ||
| 48215-3V421 |
XZU630..30T |
2 | ||
| 48215-3V421 |
XZU630..30T |
2 | ||
| 48215-3V421 |
XZU630..30T |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V420 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V420 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V420 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V421 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V421 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V421 |
XZU630..30T ﾒｲﾝ5枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37780 |
XZU630..30T |
2 | ||
| 48247-37780 |
XZU630..30T |
2 | ||
| 48247-37780 |
XZU630..30T |
2 | ||
| 48247-3V421 |
XZU630..30T |
2 | ||
| 48247-3V421 |
XZU630..30T |
2 | ||
| 48247-3V421 |
XZU630..30T |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37521 |
XZU600..DM6;XZU630..30T;XZC655,XZU65#,685,695..20T |
4 | ||
| 48282-37521 |
XZU600..DM6;XZU630..30T;XZC655,XZU65#,685,695..20T |
4 | ||
| 48282-37521 |
XZU600..DM6;XZU630..30T;XZC655,XZU65#,685,695..20T |
4 | ||
| 48251-36530 |
XZU630..30T;BZU600,XZU600..DM6;XZC655,XZU65#,685,695..20T |
4 | ||
| 48251-36530 |
XZU630..30T;BZU600,XZU600..DM6;XZC655,XZU65#,685,695..20T |
4 | ||
| 48251-36530 |
XZU630..30T;BZU600,XZU600..DM6;XZC655,XZU65#,685,695..20T |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-27620 |
XZU630..30T;BZU600,XZU600..DM6 |
2 | ||
| 48299-27620 |
XZU630..30T;BZU600,XZU600..DM6 |
2 | ||
| 48299-27620 |
XZU630..30T;BZU600,XZU600..DM6 |
2 | ||
| 48284-0W060 |
XZU600..DM6;XZC600,630,XZU630..DM7,T5;XZC655,XZU65#,685,695..20T |
2 | ||
| 48284-0W060 |
XZU600..DM6;XZC600,630,XZU630..DM7,T5;XZC655,XZU65#,685,695..20T |
2 | ||
| 48284-0W060 |
XZU600..DM6;XZC600,630,XZU630..DM7,T5;XZC655,XZU65#,685,695..20T |
2 | ||
| Common parts | ||||
| 48284-0W060 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
