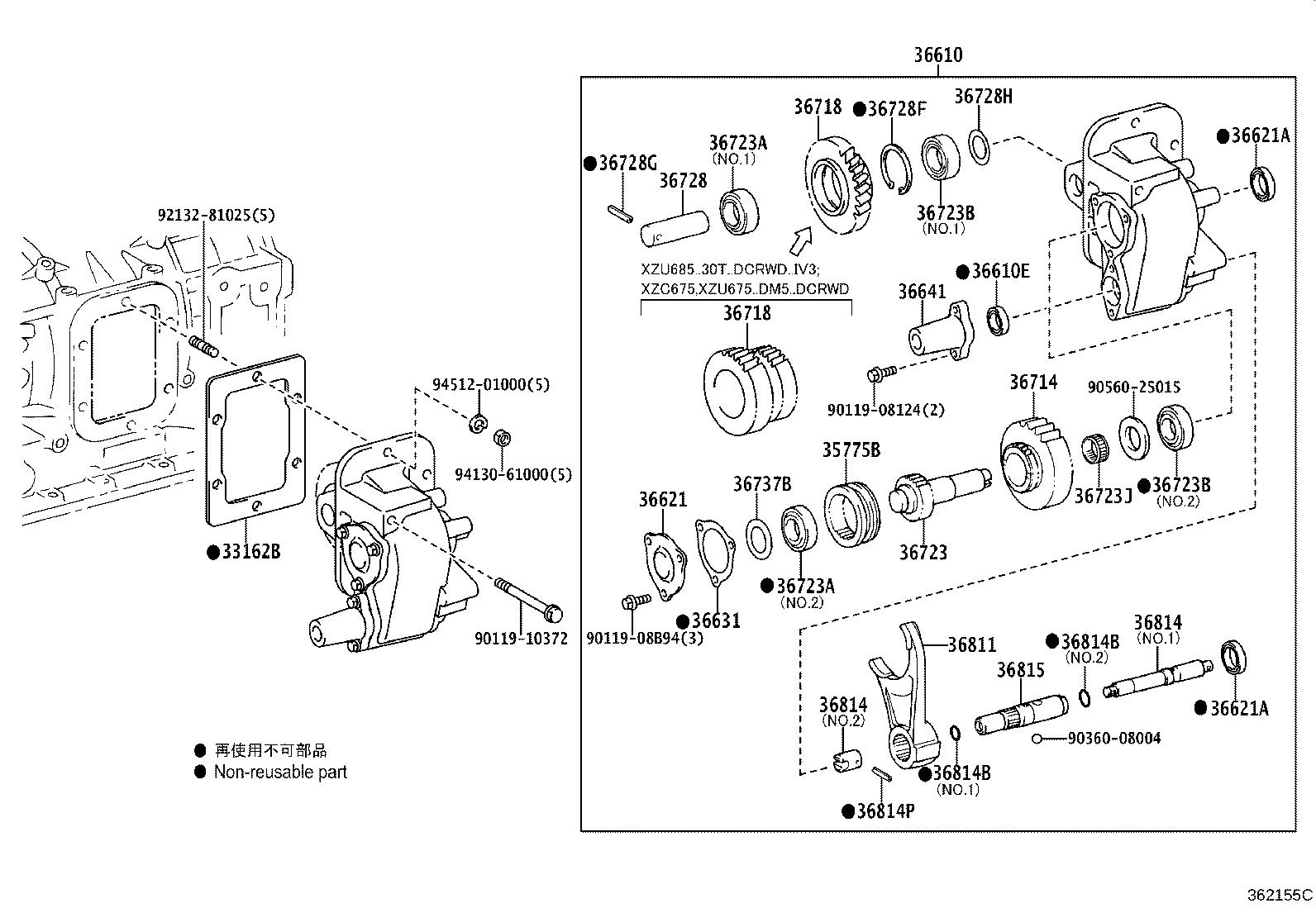

XZU630D-TMFQX3 (2019)
Toyota Dyna/Toyoace
(1905- )XZC600,630,675,XZU602,630,675..DM5,DM7,T3..MTM..DCRWD
ﾎﾟﾝﾌﾟｼﾞｶﾂﾞｹﾀｲﾌﾟ 10KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37050 |
XZU600..(DM3,DM5)..6F..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZU605,640,650,652,685..MTM..(DCRWD,DCVTO)..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM..DCRWD |
1 | ||
| 33162-37050 |
XZU600..(DM3,DM5)..6F..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZU605,640,650,652,685..MTM..(DCRWD,DCVTO)..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM..DCRWD |
1 | ||
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-37031 |
XZU600..(DM3,DM5)..6F..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZU605,640,650,652,685..MTM..(DCRWD,DCVTO)..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM..DCRWD |
1 | ||
| 35775-37031 |
XZU600..(DM3,DM5)..6F..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZU605,640,650,652,685..MTM..(DCRWD,DCVTO)..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM..DCRWD |
1 | ||
| 35775-37030 |
XZU600..(DM3,DM5)..6F..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZU605,640,650,652,685..MTM..(DCRWD,DCVTO)..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM..DCRWD |
1 | ||
| 35775-37030 |
XZU600..(DM3,DM5)..6F..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZU605,640,650,652,685..MTM..(DCRWD,DCVTO)..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM..DCRWD |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37530 |
XZC600,630,XZU600,630..(DM3,DM5,DM7)..6F |
1 | ||
| 36610-37530 |
XZC600,630,XZU600,630..(DM3,DM5,DM7)..6F |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| 90311-20010 |
XZU600..(DM3,DM5)..6F..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZU605,640,650,652,685..MTM..(DCRWD,DCVTO)..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM..DCRWD |
1 | ||
| 90311-20010 |
XZU600..(DM3,DM5)..6F..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZU605,640,650,652,685..MTM..(DCRWD,DCVTO)..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM..DCRWD |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-37050 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD |
1 | ||
| 36621-37050 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD |
2 | ||
| 90311-25110 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD |
2 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD |
2 | ||
| 90311-25110 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD |
2 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36631-37050 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD |
1 | ||
| 36631-37050 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD |
1 | ||
| 36641 - CAP, POWER TAKE-OFF SHIFT SHAFT | ||||
| 36641-37010 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD |
1 | ||
| 36641-37010 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-37250 |
XZC600,630,XZU600,630..(DM3,DM5,DM7)..6F |
1 | ||
| 36714-37250 |
XZC600,630,XZU600,630..(DM3,DM5,DM7)..6F |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-37170 |
XZC600,630,XZU600,630..(DM3,DM5,DM7)..6F |
1 | ||
| 36718-37170 |
XZC600,630,XZU600,630..(DM3,DM5,DM7)..6F |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-37170 |
XZC600,630,XZU600,630..(DM3,DM5,DM7)..6F |
1 | ||
| 36718-37170 |
XZC600,630,XZU600,630..(DM3,DM5,DM7)..6F |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-37050 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD |
1 | ||
| 36723-37050 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-22001 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD NO.1 |
1 | ||
| 90366-22001 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD NO.1 |
1 | ||
| 97100-06205 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD NO.2 |
1 | ||
| 97100-06205 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD NO.2 |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-22001 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD NO.1 |
1 | ||
| 90366-22001 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD NO.1 |
1 | ||
| 97100-06205 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD NO.2 |
1 | ||
| 97100-06205 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD NO.2 |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-22001 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD 厚さ=16.25,NO.1 |
1 | ||
| 90366-22001 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD 厚さ=16.25,NO.1 |
1 | ||
| 97100-06205 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD NO.2 |
1 | ||
| 97100-06205 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD NO.2 |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-22001 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD 厚さ=16.25,NO.1 |
1 | ||
| 90366-22001 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD 厚さ=16.25,NO.1 |
1 | ||
| 97100-06205 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD NO.2 |
1 | ||
| 97100-06205 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD NO.2 |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28021 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD |
1 | ||
| 90364-28021 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD |
1 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-37020 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD |
1 | ||
| 36728-37020 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD |
1 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
XZU685..DCRWD..IV6;XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD |
2 | ||
| 90521-56108 |
XZU685..DCRWD..IV6;XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90254-04002 |
XZU600..(DM3,DM5)..6F..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZU605,640,650,652,685..MTM..(DCRWD,DCVTO)..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM..DCRWD |
1 | ||
| 90254-04002 |
XZU600..(DM3,DM5)..6F..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZU605,640,650,652,685..MTM..(DCRWD,DCVTO)..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM..DCRWD |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25001 |
XZU600..(DM3,DM5)..6F..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZU605,640,650,652,685..MTM..(DCRWD,DCVTO)..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM..DCRWD 厚さ=0.05 |
1 | ||
| 90564-25001 |
XZU600..(DM3,DM5)..6F..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZU605,640,650,652,685..MTM..(DCRWD,DCVTO)..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM..DCRWD 厚さ=0.05 |
1 | ||
| 90564-25002 |
XZU600..(DM3,DM5)..6F..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZU605,640,650,652,685..MTM..(DCRWD,DCVTO)..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM..DCRWD 厚さ=0.1 |
1 | ||
| 90564-25002 |
XZU600..(DM3,DM5)..6F..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZU605,640,650,652,685..MTM..(DCRWD,DCVTO)..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM..DCRWD 厚さ=0.1 |
1 | ||
| 90564-25003 |
XZU600..(DM3,DM5)..6F..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZU605,640,650,652,685..MTM..(DCRWD,DCVTO)..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM..DCRWD 厚さ=0.2 |
1 | ||
| 90564-25003 |
XZU600..(DM3,DM5)..6F..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZU605,640,650,652,685..MTM..(DCRWD,DCVTO)..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM..DCRWD 厚さ=0.2 |
1 | ||
| 90564-25004 |
XZU600..(DM3,DM5)..6F..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZU605,640,650,652,685..MTM..(DCRWD,DCVTO)..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM..DCRWD 厚さ=0.5 |
1 | ||
| 90564-25004 |
XZU600..(DM3,DM5)..6F..IV3;XZU600..6F..(DCRWD,DCVTO)..(CBU,IV6);XZU605,640,650,652,685..MTM..(DCRWD,DCVTO)..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM..DCRWD 厚さ=0.5 |
1 | ||
| 36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) | ||||
| 90562-43002 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD 厚さ=6.4 |
1 | ||
| 90562-43002 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD 厚さ=6.4 |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-37020 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD |
1 | ||
| 36811-37020 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-37040 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD NO.1 |
1 | ||
| 36814-37040 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD NO.1 |
1 | ||
| 36814-37050 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD NO.2 |
1 | ||
| 36814-37050 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD NO.2 |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-37040 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD NO.1 |
1 | ||
| 36814-37040 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD NO.1 |
1 | ||
| 36814-37050 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD NO.2 |
1 | ||
| 36814-37050 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD NO.2 |
1 | ||
| 36814B - RING, O (FOR FRONT POWER TAKE-OFF SHAFT) | ||||
| 96711-24015 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD NO.2 |
1 | ||
| 96711-24015 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD NO.2 |
1 | ||
| 90301-11009 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD NO.1 |
1 | ||
| 90301-11009 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD NO.1 |
1 | ||
| 36814B - RING, O (FOR FRONT POWER TAKE-OFF SHAFT) | ||||
| 96711-24015 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD NO.2 |
1 | ||
| 96711-24015 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD NO.2 |
1 | ||
| 90301-11009 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD NO.1 |
1 | ||
| 90301-11009 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD NO.1 |
1 | ||
| 36814P - PIN (FOR POWER TAKE-OFF SHIFT SHAFT) | ||||
| 90254-04023 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD |
1 | ||
| 90254-04023 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD |
1 | ||
| 36815 - SHAFT, POWER TAKE-OFF FORK, NO.2 | ||||
| 36815-37010 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD |
1 | ||
| 36815-37010 |
XZC600,630,675,XZU600,630,675..(DM3,DM5,DM7)..MTM..DCRWD |
1 | ||
| Common parts | ||||
| 90119-08124 | ||||
| 90119-08B94 | ||||
| 90119-10372 | ||||
| 90360-08004 | ||||
| 90560-25015 | ||||
| 92132-81025 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
