XZU620D-TWMQC3 (2011)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(1107- )BZU600,TRC600,TRU600,XZC600,610,630,XZU600,602,610,620,630,640,642,650,6
ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042A - SHACKLE SUB-ASSY, FRONT SPRING, NO.2 | ||||
| 48042-37020 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
2 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-37060 |
XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZU650..(20T,35T)..(CBU,IV3);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-37050 |
XZU620,630..5F..30T |
2 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-37010 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
2 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16080 |
XZU650..20T;XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZC600,XZU600,620..(DM5,T3,T4,T5)..(20T,30T)..WT..(CBU,IV3,IV6) 長さ=130,ｱﾘ(PNC 48475) |
3 | ||
| 90117-16082 |
XZU650..20T;XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZC600,XZU600,620..(DM5,T3,T4,T5)..(20T,30T)..WT..(CBU,IV3,IV6) 長さ=140,ｱﾘ(PNC 48475) |
1 | ||
| 90117-16080 |
XZU620,630..5F..30T 長さ=130,ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16080 |
XZU650..20T;XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZC600,XZU600,620..(DM5,T3,T4,T5)..(20T,30T)..WT..(CBU,IV3,IV6) 長さ=130,ｱﾘ(PNC 48475) |
3 | ||
| 90117-16082 |
XZU650..20T;XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZC600,XZU600,620..(DM5,T3,T4,T5)..(20T,30T)..WT..(CBU,IV3,IV6) 長さ=140,ｱﾘ(PNC 48475) |
1 | ||
| 90117-16080 |
XZU620,630..5F..30T 長さ=130,ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-80121 |
XZU620,630..30T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..35T..(CBU,IV3);XZU640..T3..6FC..(IV3,IV4);XZU600..(DM6,T3)..(20T,30T);XZU650..T3..30T..DCRTJ..CBU ﾏｰｸ 48511−37250 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01071 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01071 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02054 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02009 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02009 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
4 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
2 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90385-19011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-80121 |
XZU620,630..30T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..35T..(CBU,IV3);XZU640..T3..6FC..(IV3,IV4);XZU600..(DM6,T3)..(20T,30T);XZU650..T3..30T..DCRTJ..CBU ﾏｰｸ 48511−37250 |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90385-19011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-37030 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
2 | ||
| Common parts | ||||
| 90105-16067 | ||||
| 90119-12088 | ||||
| 90177-14005 | ||||
| 90178-16004 | ||||
| 90178-16007 | ||||
| 90179-12016 | ||||
| 90201-16035 | ||||
| 91112-81045 | ||||
| 91651-B0820 | ||||
| 94184-01001 | ||||
ILLUST NO. 1 OF 2(1107- )BZU600,TRC600,TRU600,XZC600,610,630,XZU600,602,610,620,630,640,642,650,6
ﾅｼ(ｽﾀﾋﾞﾗｲｻﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042A - SHACKLE SUB-ASSY, FRONT SPRING, NO.2 | ||||
| 48042-37020 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
2 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-37060 |
XZC600..5F..ST;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..30T..DCRTJ..CBU;XZU650..(20T,35T)..(CBU,IV3);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-37050 |
XZU620,630..5F..30T |
2 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-37010 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
2 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16080 |
XZU650..20T;XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZC600,XZU600,620..(DM5,T3,T4,T5)..(20T,30T)..WT..(CBU,IV3,IV6) 長さ=130,ｱﾘ(PNC 48475) |
3 | ||
| 90117-16082 |
XZU650..20T;XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZC600,XZU600,620..(DM5,T3,T4,T5)..(20T,30T)..WT..(CBU,IV3,IV6) 長さ=140,ｱﾘ(PNC 48475) |
1 | ||
| 90117-16080 |
XZU620,630..5F..30T 長さ=130,ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16080 |
XZU650..20T;XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZC600,XZU600,620..(DM5,T3,T4,T5)..(20T,30T)..WT..(CBU,IV3,IV6) 長さ=130,ｱﾘ(PNC 48475) |
3 | ||
| 90117-16082 |
XZU650..20T;XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;XZC600,XZU600,620..(DM5,T3,T4,T5)..(20T,30T)..WT..(CBU,IV3,IV6) 長さ=140,ｱﾘ(PNC 48475) |
1 | ||
| 90117-16080 |
XZU620,630..5F..30T 長さ=130,ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-80121 |
XZU620,630..30T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..35T..(CBU,IV3);XZU640..T3..6FC..(IV3,IV4);XZU600..(DM6,T3)..(20T,30T);XZU650..T3..30T..DCRTJ..CBU ﾏｰｸ 48511−37250 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01071 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01071 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02054 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02009 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02009 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
4 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
2 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90385-19011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-80121 |
XZU620,630..30T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..35T..(CBU,IV3);XZU640..T3..6FC..(IV3,IV4);XZU600..(DM6,T3)..(20T,30T);XZU650..T3..30T..DCRTJ..CBU ﾏｰｸ 48511−37250 |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90385-19011 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-37030 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT |
2 | ||
| Common parts | ||||
| 90105-16067 | ||||
| 90119-12088 | ||||
| 90178-16004 | ||||
| 90178-16007 | ||||
| 90179-12016 | ||||
| 90201-16035 | ||||
| 91651-B0820 | ||||

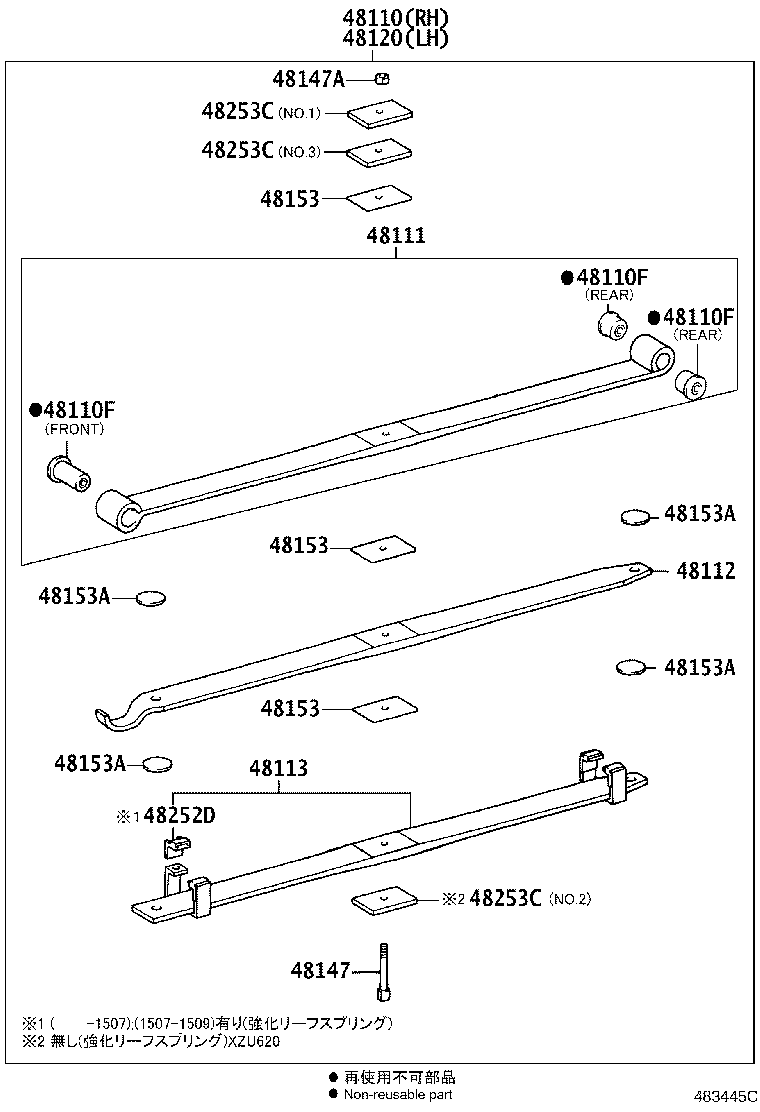

ILLUST NO. 2 OF 2(1107-1301)BZU600..IV5 ; (1107- )XZU600..20T..DCRTK ; (1107- )DCRTJ,DCRTK..IV
3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-37G00 |
XZU620..5F 3枚ﾘｰﾌ |
1 | ||
| 48110-3V391 |
XZU620,630..5F..30T 3枚ﾘｰﾌ,ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110-37G01 |
XZU620..5F 3枚ﾘｰﾌ |
1 | ||
| 48110-3V392 |
XZU620,630..5F..30T 3枚ﾘｰﾌ,ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU600..6F;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT ﾘﾔ |
4 | ||
| 90389-16025 |
XZU600..6F;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU600..6F;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT ﾘﾔ |
4 | ||
| 90389-16025 |
XZU600..6F;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU600..6F;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT ﾘﾔ |
4 | ||
| 90389-16025 |
XZU600..6F;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT ﾌﾛﾝﾄ |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-37G10 |
XZU620..5F 助手席側 |
1 | ||
| 48101-37G00 |
XZU620..5F 運転席側 |
1 | ||
| 48101-3V401 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,助手席側 |
1 | ||
| 48101-3V391 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,運転席側 |
1 | ||
| 48101-37G01 |
XZU620..5F 運転席側 |
1 | ||
| 48101-37G11 |
XZU620..5F 助手席側 |
1 | ||
| 48101-3V392 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,運転席側 |
1 | ||
| 48101-3V402 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,助手席側 |
1 | ||
| 48101-3V382 |
XZU620..5F 助手席側 |
1 | ||
| 48101-3V372 |
XZU620..5F 運転席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-37G10 |
XZU620..5F 助手席側 |
1 | ||
| 48112-37G00 |
XZU620..5F 運転席側 |
1 | ||
| 48112-3V390 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,運転席側 |
1 | ||
| 48112-3V400 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,助手席側 |
1 | ||
| 48112-37G01 |
XZU620..5F 運転席側 |
1 | ||
| 48112-37G11 |
XZU620..5F 助手席側 |
1 | ||
| 48112-3V401 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,助手席側 |
1 | ||
| 48112-3V391 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,運転席側 |
1 | ||
| 48112-3V371 |
XZU620..5F 運転席側 |
1 | ||
| 48112-3V381 |
XZU620..5F 助手席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-37G10 |
XZU620..5F 助手席側 |
1 | ||
| 48102-37G00 |
XZU620..5F 運転席側 |
1 | ||
| 48102-3V390 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,運転席側 |
1 | ||
| 48102-3V400 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,助手席側 |
1 | ||
| 48102-37G01 |
XZU620..5F 運転席側 |
1 | ||
| 48102-37G11 |
XZU620..5F 助手席側 |
1 | ||
| 48102-3V401 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,助手席側 |
1 | ||
| 48102-3V371 |
XZU620..5F 運転席側 |
1 | ||
| 48102-3V391 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,運転席側 |
1 | ||
| 48102-3V381 |
XZU620..5F 助手席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-37G10 |
XZU620..5F 3枚ﾘｰﾌ |
1 | ||
| 48110-3V401 |
XZU620,630..5F..30T 3枚ﾘｰﾌ,ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110-37G11 |
XZU620..5F 3枚ﾘｰﾌ |
1 | ||
| 48110-3V402 |
XZU620,630..5F..30T 3枚ﾘｰﾌ,ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37410 |
XZU620..5F ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48147-37G00 |
XZU620..5F |
2 | ||
| 48147-37D51 |
XZU620..5F |
2 | ||
| 48147-37A01 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-37130 |
XZU640..SCB..30T;BZU600,XZU600,620,630,650..(DM5,DM7,T3)..30T..(CBU,IV3) ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48284-37130 |
BZU600..IV5;XZU640..T3..6FC..IV3;BZU600,XZU620,630..30T;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
2 | ||
| 48284-0W060 |
XZU620,630,640,650..SCB..30T;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
XZU640..SCB..30T;BZU600,XZU600,620,630,650..(DM5,DM7,T3)..30T..(CBU,IV3) ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
6 | ||
| 48152-37J42 |
XZU620,630,640,650..SCB..30T;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
6 | ||
| 48253-3B440 |
BZU600..IV5;XZU640..T3..6FC..IV3;BZU600,XZU620,630..30T;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
6 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
XZU640..SCB..30T;BZU600,XZU600,620,630,650..(DM5,DM7,T3)..30T..(CBU,IV3) ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
6 | ||
| 48152-37J42 |
XZU620,630,640,650..SCB..30T;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
6 | ||
| 48253-3B440 |
BZU600..IV5;XZU640..T3..6FC..IV3;BZU600,XZU620,630..30T;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
6 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
XZU640..SCB..30T;BZU600,XZU600,620,630,650..(DM5,DM7,T3)..30T..(CBU,IV3) ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
6 | ||
| 48152-37J42 |
XZU620,630,640,650..SCB..30T;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
6 | ||
| 48253-3B440 |
BZU600..IV5;XZU640..T3..6FC..IV3;BZU600,XZU620,630..30T;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
6 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZU620,630,640,650..SCB..30T;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
8 | ||
| 48252-37670 |
BZU600..IV5;XZU640..T3..6FC..IV3;BZU600,XZU620,630..30T;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
8 | ||
| 48252-37670 |
XZU640..SCB..30T;BZU600,XZU600,620,630,650..(DM5,DM7,T3)..30T..(CBU,IV3) ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZU620,630,640,650..SCB..30T;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
8 | ||
| 48252-37670 |
BZU600..IV5;XZU640..T3..6FC..IV3;BZU600,XZU620,630..30T;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
8 | ||
| 48252-37670 |
XZU640..SCB..30T;BZU600,XZU600,620,630,650..(DM5,DM7,T3)..30T..(CBU,IV3) ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZU620,630,640,650..SCB..30T;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
8 | ||
| 48252-37670 |
BZU600..IV5;XZU640..T3..6FC..IV3;BZU600,XZU620,630..30T;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
8 | ||
| 48252-37670 |
XZU640..SCB..30T;BZU600,XZU600,620,630,650..(DM5,DM7,T3)..30T..(CBU,IV3) ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZU620,630,640,650..SCB..30T;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
8 | ||
| 48252-37670 |
BZU600..IV5;XZU640..T3..6FC..IV3;BZU600,XZU620,630..30T;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
8 | ||
| 48252-37670 |
XZU640..SCB..30T;BZU600,XZU600,620,630,650..(DM5,DM7,T3)..30T..(CBU,IV3) ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
8 | ||
| 48252D - SILENCER | ||||
| 48252-37380 |
XZU640..SCB..30T;BZU600,XZU600,620,630,650..(DM5,DM7,T3)..30T..(CBU,IV3) ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
8 | ||
| 48252-37380 |
BZU600..IV5;XZU640..T3..6FC..IV3;BZU600,XZU620,630..30T;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
8 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-37360 |
XZU620..5F NO.2 |
2 | ||
| 48253-3B122 |
XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;BZU600,XZU600,620,630..30T..(CBU,IV3,IV6) NO.1 & NO.3 |
4 | ||
| 48253-3B122 |
XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;BZU600,XZU600,620,630..(DM5,DM7,T3)..30T..(CBU,IV3) ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,NO.1 & NO.3 |
4 | ||
| 48115-37V40 |
XZU620..5F NO.1 & NO.2 |
4 | ||
| 48114-37J42 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,NO.1 & NO.3 |
4 | ||
| 48116-37V40 |
XZU620..5F NO.3 |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-37360 |
XZU620..5F NO.2 |
2 | ||
| 48253-3B122 |
XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;BZU600,XZU600,620,630..30T..(CBU,IV3,IV6) NO.1 & NO.3 |
4 | ||
| 48253-3B122 |
XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;BZU600,XZU600,620,630..(DM5,DM7,T3)..30T..(CBU,IV3) ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,NO.1 & NO.3 |
4 | ||
| 48115-37V40 |
XZU620..5F NO.1 & NO.2 |
4 | ||
| 48114-37J42 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,NO.1 & NO.3 |
4 | ||
| 48116-37V40 |
XZU620..5F NO.3 |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-37360 |
XZU620..5F NO.2 |
2 | ||
| 48253-3B122 |
XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;BZU600,XZU600,620,630..30T..(CBU,IV3,IV6) NO.1 & NO.3 |
4 | ||
| 48253-3B122 |
XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;BZU600,XZU600,620,630..(DM5,DM7,T3)..30T..(CBU,IV3) ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,NO.1 & NO.3 |
4 | ||
| 48115-37V40 |
XZU620..5F NO.1 & NO.2 |
4 | ||
| 48114-37J42 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,NO.1 & NO.3 |
4 | ||
| 48116-37V40 |
XZU620..5F NO.3 |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-37360 |
XZU620..5F NO.2 |
2 | ||
| 48253-3B122 |
XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;BZU600,XZU600,620,630..30T..(CBU,IV3,IV6) NO.1 & NO.3 |
4 | ||
| 48253-3B122 |
XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;BZU600,XZU600,620,630..(DM5,DM7,T3)..30T..(CBU,IV3) ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,NO.1 & NO.3 |
4 | ||
| 48115-37V40 |
XZU620..5F NO.1 & NO.2 |
4 | ||
| 48114-37J42 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,NO.1 & NO.3 |
4 | ||
| 48116-37V40 |
XZU620..5F NO.3 |
2 | ||
ILLUST NO. 2 OF 2(1107- )XZU620,630..5F..30T
3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-37G00 |
XZU620..5F 3枚ﾘｰﾌ |
1 | ||
| 48110-3V391 |
XZU620,630..5F..30T 3枚ﾘｰﾌ,ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110-37G01 |
XZU620..5F 3枚ﾘｰﾌ |
1 | ||
| 48110-3V392 |
XZU620,630..5F..30T 3枚ﾘｰﾌ,ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU600..6F;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT ﾘﾔ |
4 | ||
| 90389-16025 |
XZU600..6F;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU600..6F;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT ﾘﾔ |
4 | ||
| 90389-16025 |
XZU600..6F;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU600..6F;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT ﾘﾔ |
4 | ||
| 90389-16025 |
XZU600..6F;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC600,610,630,XZU600,610,620,630..(20T,30T)..WT ﾌﾛﾝﾄ |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-37G10 |
XZU620..5F 助手席側 |
1 | ||
| 48101-37G00 |
XZU620..5F 運転席側 |
1 | ||
| 48101-3V401 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,助手席側 |
1 | ||
| 48101-3V391 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,運転席側 |
1 | ||
| 48101-37G01 |
XZU620..5F 運転席側 |
1 | ||
| 48101-37G11 |
XZU620..5F 助手席側 |
1 | ||
| 48101-3V392 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,運転席側 |
1 | ||
| 48101-3V402 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,助手席側 |
1 | ||
| 48101-3V382 |
XZU620..5F 助手席側 |
1 | ||
| 48101-3V372 |
XZU620..5F 運転席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-37G10 |
XZU620..5F 助手席側 |
1 | ||
| 48112-37G00 |
XZU620..5F 運転席側 |
1 | ||
| 48112-3V390 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,運転席側 |
1 | ||
| 48112-3V400 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,助手席側 |
1 | ||
| 48112-37G01 |
XZU620..5F 運転席側 |
1 | ||
| 48112-37G11 |
XZU620..5F 助手席側 |
1 | ||
| 48112-3V401 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,助手席側 |
1 | ||
| 48112-3V391 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,運転席側 |
1 | ||
| 48112-3V371 |
XZU620..5F 運転席側 |
1 | ||
| 48112-3V381 |
XZU620..5F 助手席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-37G10 |
XZU620..5F 助手席側 |
1 | ||
| 48102-37G00 |
XZU620..5F 運転席側 |
1 | ||
| 48102-3V390 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,運転席側 |
1 | ||
| 48102-3V400 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,助手席側 |
1 | ||
| 48102-37G01 |
XZU620..5F 運転席側 |
1 | ||
| 48102-37G11 |
XZU620..5F 助手席側 |
1 | ||
| 48102-3V401 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,助手席側 |
1 | ||
| 48102-3V371 |
XZU620..5F 運転席側 |
1 | ||
| 48102-3V391 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,運転席側 |
1 | ||
| 48102-3V381 |
XZU620..5F 助手席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-37G10 |
XZU620..5F 3枚ﾘｰﾌ |
1 | ||
| 48110-3V401 |
XZU620,630..5F..30T 3枚ﾘｰﾌ,ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110-37G11 |
XZU620..5F 3枚ﾘｰﾌ |
1 | ||
| 48110-3V402 |
XZU620,630..5F..30T 3枚ﾘｰﾌ,ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37410 |
XZU620..5F ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48147-37G00 |
XZU620..5F |
2 | ||
| 48147-37D51 |
XZU620..5F |
2 | ||
| 48147-37A01 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-37130 |
XZU640..SCB..30T;BZU600,XZU600,620,630,650..(DM5,DM7,T3)..30T..(CBU,IV3) ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48284-37130 |
BZU600..IV5;XZU640..T3..6FC..IV3;BZU600,XZU620,630..30T;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
2 | ||
| 48284-0W060 |
XZU620,630,640,650..SCB..30T;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
XZU640..SCB..30T;BZU600,XZU600,620,630,650..(DM5,DM7,T3)..30T..(CBU,IV3) ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
6 | ||
| 48152-37J42 |
XZU620,630,640,650..SCB..30T;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
6 | ||
| 48253-3B440 |
BZU600..IV5;XZU640..T3..6FC..IV3;BZU600,XZU620,630..30T;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
6 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
XZU640..SCB..30T;BZU600,XZU600,620,630,650..(DM5,DM7,T3)..30T..(CBU,IV3) ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
6 | ||
| 48152-37J42 |
XZU620,630,640,650..SCB..30T;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
6 | ||
| 48253-3B440 |
BZU600..IV5;XZU640..T3..6FC..IV3;BZU600,XZU620,630..30T;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
6 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48253-3B440 |
XZU640..SCB..30T;BZU600,XZU600,620,630,650..(DM5,DM7,T3)..30T..(CBU,IV3) ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
6 | ||
| 48152-37J42 |
XZU620,630,640,650..SCB..30T;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
6 | ||
| 48253-3B440 |
BZU600..IV5;XZU640..T3..6FC..IV3;BZU600,XZU620,630..30T;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
6 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZU620,630,640,650..SCB..30T;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
8 | ||
| 48252-37670 |
BZU600..IV5;XZU640..T3..6FC..IV3;BZU600,XZU620,630..30T;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
8 | ||
| 48252-37670 |
XZU640..SCB..30T;BZU600,XZU600,620,630,650..(DM5,DM7,T3)..30T..(CBU,IV3) ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZU620,630,640,650..SCB..30T;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
8 | ||
| 48252-37670 |
BZU600..IV5;XZU640..T3..6FC..IV3;BZU600,XZU620,630..30T;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
8 | ||
| 48252-37670 |
XZU640..SCB..30T;BZU600,XZU600,620,630,650..(DM5,DM7,T3)..30T..(CBU,IV3) ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZU620,630,640,650..SCB..30T;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
8 | ||
| 48252-37670 |
BZU600..IV5;XZU640..T3..6FC..IV3;BZU600,XZU620,630..30T;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
8 | ||
| 48252-37670 |
XZU640..SCB..30T;BZU600,XZU600,620,630,650..(DM5,DM7,T3)..30T..(CBU,IV3) ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZU620,630,640,650..SCB..30T;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
8 | ||
| 48252-37670 |
BZU600..IV5;XZU640..T3..6FC..IV3;BZU600,XZU620,630..30T;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
8 | ||
| 48252-37670 |
XZU640..SCB..30T;BZU600,XZU600,620,630,650..(DM5,DM7,T3)..30T..(CBU,IV3) ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
8 | ||
| 48252D - SILENCER | ||||
| 48252-37380 |
XZU640..SCB..30T;BZU600,XZU600,620,630,650..(DM5,DM7,T3)..30T..(CBU,IV3) ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
8 | ||
| 48252-37380 |
BZU600..IV5;XZU640..T3..6FC..IV3;BZU600,XZU620,630..30T;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU600..SCB..(DM3,DM6,T3)..(20T,30T) |
8 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-37360 |
XZU620..5F NO.2 |
2 | ||
| 48253-3B122 |
XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;BZU600,XZU600,620,630..30T..(CBU,IV3,IV6) NO.1 & NO.3 |
4 | ||
| 48253-3B122 |
XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;BZU600,XZU600,620,630..(DM5,DM7,T3)..30T..(CBU,IV3) ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,NO.1 & NO.3 |
4 | ||
| 48115-37V40 |
XZU620..5F NO.1 & NO.2 |
4 | ||
| 48114-37J42 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,NO.1 & NO.3 |
4 | ||
| 48116-37V40 |
XZU620..5F NO.3 |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-37360 |
XZU620..5F NO.2 |
2 | ||
| 48253-3B122 |
XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;BZU600,XZU600,620,630..30T..(CBU,IV3,IV6) NO.1 & NO.3 |
4 | ||
| 48253-3B122 |
XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;BZU600,XZU600,620,630..(DM5,DM7,T3)..30T..(CBU,IV3) ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,NO.1 & NO.3 |
4 | ||
| 48115-37V40 |
XZU620..5F NO.1 & NO.2 |
4 | ||
| 48114-37J42 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,NO.1 & NO.3 |
4 | ||
| 48116-37V40 |
XZU620..5F NO.3 |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-37360 |
XZU620..5F NO.2 |
2 | ||
| 48253-3B122 |
XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;TRU600,XZU640..T4..5F..IV3;BZU600,XZU600,620,630..30T..(CBU,IV3,IV6) NO.1 & NO.3 |
4 | ||
| 48253-3B122 |
XZU640..T4..5F..IV3;XZU640..T3..6FC..IV3;XZU640..SCB..30T..DCRTK;BZU600,XZU600,620,630..(DM5,DM7,T3)..30T..(CBU,IV3) ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,NO.1 & NO.3 |
4 | ||
| 48115-37V40 |
XZU620..5F NO.1 & NO.2 |
4 | ||
| 48114-37J42 |
XZU620,630..5F..30T ﾌﾛﾝﾄ ｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,NO.1 & NO.3 |
4 | ||
| 48116-37V40 |
XZU620..5F NO.3 |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
