XZU620D-TWMQC (2011)
Toyota Dyna/Toyoace
(1107- )XZC610,630,675,XZU610,620,630,675,685,695..5F..DCRTJ,DCRTK

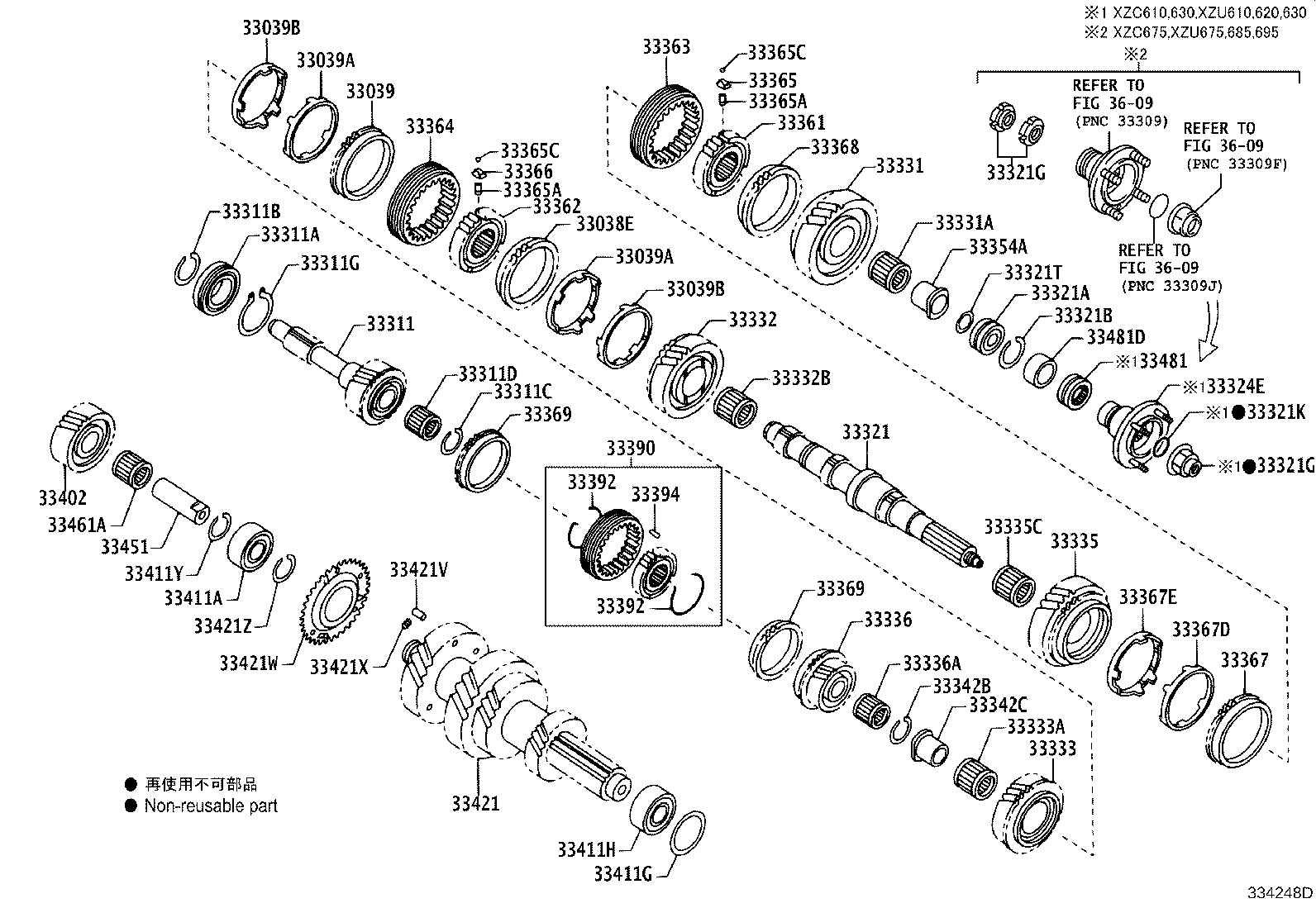

MYY5A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33038E - RING SET, SYNCHRONIZER, NO.2 | ||||
| SU002-00184 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33039 - RING SET, SYNCHRONIZER, NO.3 | ||||
| SU002-00184 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33039A - RING, OUTSIDE, 3RD & 2ND | ||||
| SU002-00225 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
2 | ||
| 33039A - RING, OUTSIDE, 3RD & 2ND | ||||
| SU002-00225 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
2 | ||
| 33039B - RING, INSIDE, 3RD & 2ND | ||||
| SU002-00226 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
2 | ||
| 33039B - RING, INSIDE, 3RD & 2ND | ||||
| SU002-00226 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
2 | ||
| 33311 - SHAFT, INPUT | ||||
| SU002-00320 |
XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| SU002-00179 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| SU002-00198 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER) | ||||
| SU002-00180 |
XZU650..35T;XZU620,630..5F;XZC610,630,XZU600,610,640..(DM5,DM7,T3)..MTM..(20T,40T) |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| SU002-00222 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| SU002-00200 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| SU002-00189 |
XZC610,630,XZU610,620,630..5F |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| SU002-00221 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| SU002-00219 |
XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| SU002-00938 |
XZU650..35T;XZU620,630..5F;XZC610,630,XZU600,610,640..(DM5,DM7,T3)..MTM..(20T,40T) |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| SU002-00938 |
XZU650..35T;XZU620,630..5F;XZC610,630,XZU600,610,640..(DM5,DM7,T3)..MTM..(20T,40T) |
1 | ||
| 33321K - RING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NU | ||||
| SU002-00873 |
XZU650..35T;XZU620,630..5F;XZC610,630,XZU600,610,640..(DM5,DM7,T3)..MTM..(20T,40T) |
1 | ||
| 33321T - SPACER (FOR OUTPUT SHAFT) | ||||
| SU002-00201 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33324E - DRIVE ASSY, COUPLING | ||||
| SU002-00975 |
XZU650..35T;XZU620,630..5F;XZC610,630,XZU600,610,640..(DM5,DM7,T3)..MTM..(20T,40T) |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| SU002-00186 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33331A - BEARING (FOR REVERSE GEAR) | ||||
| SU002-00223 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33332 - GEAR, 2ND | ||||
| SU002-00185 |
XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| SU002-00223 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33333 - GEAR, 3RD | ||||
| SU002-00183 |
XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| SU002-00223 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33335 - GEAR, 1ST | ||||
| SU002-00515 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| SU002-00223 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33336 - GEAR, 5TH | ||||
| SU002-00235 |
XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| SU002-00238 |
XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33342B - RING, SHAFT SNAP (FOR GEAR THRUST WASHER) | ||||
| SU002-00182 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33342C - WASHER, 3RD GEAR THRUST | ||||
| SU002-00227 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33354A - RACE, REVERSE GEAR BEARING, INNER | ||||
| SU002-00227 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| SU002-00231 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| SU002-00231 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| SU002-00544 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| SU002-01088 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| SU002-01088 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| SU002-00544 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| SU002-00181 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
3 | ||
| 33365A - SPRING, COMPRESSION | ||||
| SU002-00232 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
6 | ||
| 33365A - SPRING, COMPRESSION | ||||
| SU002-00232 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
6 | ||
| 33365C - BALL(FOR SYNCHROMESH SHIFTING KEY) | ||||
| SU002-00233 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
6 | ||
| 33365C - BALL(FOR SYNCHROMESH SHIFTING KEY) | ||||
| SU002-00233 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
6 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| SU002-00181 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| SU002-00184 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33367D - RING, OUTSIDE LOW & REVERSE | ||||
| SU002-00225 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33367E - RING, INSIDE LOW & REVERSE | ||||
| SU002-00226 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| SU002-00362 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| SU002-00237 |
XZC610,630,675,XZU610,620,630,675,685,695..5F |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| SU002-00237 |
XZC610,630,675,XZU610,620,630,675,685,695..5F |
2 | ||
| 33390 - SLEEVE & HUB ASSY, TOP-O/D | ||||
| SU002-00236 |
XZC610,630,XZU610,620,630..5F |
1 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| SU002-00224 |
XZC610,630,XZU610,620,630..5F |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| SU002-00224 |
XZC610,630,XZU610,620,630..5F |
2 | ||
| 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| SU002-00204 |
XZC610,630,675,XZU610,620,630,675,685,695..5F |
3 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| SU002-00196 |
XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| SU002-00228 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33411G - SHIM(FOR COUNTER GEAR SHAFT BEARING SETTING) | ||||
| SU002-00209 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F 内径=62.7 厚さ=2.65 |
1 | ||
| SU002-00213 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F 内径=62.7 厚さ=2.89 |
1 | ||
| SU002-00215 |
XZC610,630,XZU610,620,630..5F 内径=62.7 厚さ=3.01 |
1 | ||
| SU002-00212 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F 内径=62.7 厚さ=2.83 |
1 | ||
| SU002-00214 |
XZC610,630,XZU610,620,630..5F 内径=62.7 厚さ=2.95 |
1 | ||
| SU002-00208 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F 内径=62.7 厚さ=2.59 |
1 | ||
| SU002-00210 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F 内径=62.7 厚さ=2.71 |
1 | ||
| SU002-00207 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F 内径=62.7 厚さ=2.53 |
1 | ||
| SU002-00206 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F 内径=62.7 厚さ=2.47 |
1 | ||
| SU002-00205 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F 内径=62.7 厚さ=2.41 |
1 | ||
| SU002-00218 |
XZC610,630,XZU610,620,630..5F 内径=62.7 厚さ=3.19 |
1 | ||
| SU002-00211 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F 内径=62.7 厚さ=2.77 |
1 | ||
| SU002-00217 |
XZC610,630,XZU610,620,630..5F 内径=62.7 厚さ=3.13 |
1 | ||
| SU002-00216 |
XZC610,630,XZU610,620,630..5F 内径=62.7 厚さ=3.07 |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| SU002-00228 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33411Y - RING, SNAP, BAG, COUNTERSHAFT | ||||
| SU002-00190 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F 内径=30.7 厚さ=1.9 |
1 | ||
| SU002-00191 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F 内径=30.7 厚さ=2.1 |
1 | ||
| SU002-00192 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F 内径=30.7 厚さ=2.3 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| SU002-00919 |
XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33421V - PIN, ANTI-LASH PLATE | ||||
| SU002-00229 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
3 | ||
| 33421W - PLATE, ANTI-LASH | ||||
| SU002-00199 |
XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33421X - SPRING, ANTI-LASH PLATE | ||||
| SU002-00081 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
3 | ||
| 33421Z - RING, SNAP, ANTI-LASH | ||||
| SU002-00230 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| SU002-00195 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33461A - BEARING, REVERSE IDLER GEAR | ||||
| SU002-00203 |
XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| SU002-00188 |
XZU650..35T;XZU620,630..5F;XZC610,630,XZU600,610,640..(DM5,DM7,T3)..MTM..(20T,40T) 歯数=4 |
1 | ||
| 33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR) | ||||
| SU002-00234 |
XZC610,630,XZU610,620,630..5F |
1 | ||
| Linked diagrams | ||||
| 3609 | ||||
