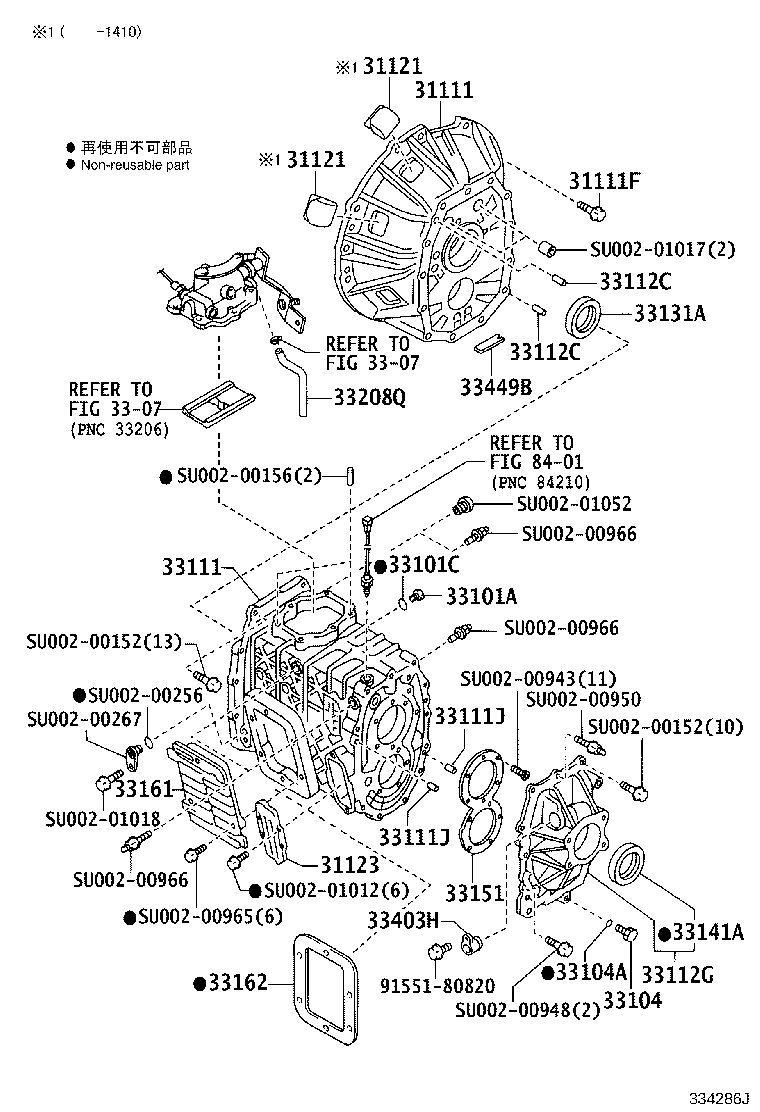

Toyota Dyna/toyoace XZU610 CLUTCH HOUSING & TRANSMISSION CASE (MTM)

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
SU002-00667	XZU620,630;XZU650..35T;XZC610,630,XZU600,610,640..(DM5,DM7,T3)..MTM..(20T,40T)	07/2011 - 09/2014	1
SU002-01091	XZU650..35T;XZU620,630..5F;XZC610,630,XZU600,610,640..(DM5,DM7,T3)..MTM..(20T,40T)	09/2014 - 05/2017	1
31111F - BOLT(FOR CLUTCH HOUSING & ENGINE SETTING)
90119-10898	XZU640..MTM..DCRTK;XZU640..T4..5F..IV3;XZU650..MTM..(20T,35T);XZU650..T3..5F..30T..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620,630,645,655..(03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5)..MTM	07/2011 - 05/2017	12
31121 - COVER, CLUTCH HOUSING, NO.1
31121-28041	XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 10/2014	2
31121 - COVER, CLUTCH HOUSING, NO.1
31121-28041	XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 10/2014	2
31123 - COVER, CLUTCH HOUSING, NO.2
SU002-00158	XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
SU002-00162	XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
SU002-00149	XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
SU002-00945	XZC610,630,XZU610,620,630..5F	02/2017 - 05/2017	1
SU002-00164	XZC610,630,XZU610,620,630..5F	07/2011 - 02/2017	1
33104A - GASKET, DRAIN PLUG(MTM)
SU002-00149	XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
33111 - CASE, MANUAL TRANSMISSION
SU002-00714	XZC610,630,XZU610,620,630..5F	07/2011 - 05/2017	1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
SU002-00155	XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
SU002-00155	XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	2
33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER)
SU002-00155	XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	2
33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER)
SU002-00155	XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	2
33112G - CASE, TRANSMISSION, REAR
SU002-00874	XZC610,630,XZU610,620,630..5F	07/2011 - 05/2017	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
SU002-00148	XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)
SU002-00154	XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
SU002-00168	XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF
SU002-00150	XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER
SU002-00147	XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
33208Q - HOSE, BREATHER
SU002-00265	XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
33403H - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33482-37130	XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
33449B - MAGNET, TRANSMISSION
SU002-00157	XZU600,640,650..6F;XZC610,630,675,XZU610,620,630,675,685,695..5F	07/2011 - 05/2017	1
Common parts
91551-80820
SU002-00152
SU002-00156
SU002-00256
SU002-00267
SU002-00943
SU002-00948
SU002-00950
SU002-00965
SU002-00966
SU002-01012
SU002-01017
SU002-01018
SU002-01052
Linked diagrams
3307
8401

XZU610D-TWMMB3 (2011)

(1107- )XZC610,630,XZU610,620,630..5F
