8719 - HEATING & AIR CONDITIONING - COMPRESSOR

XZU605A-TYFMX5 (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999

Engine N04C

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

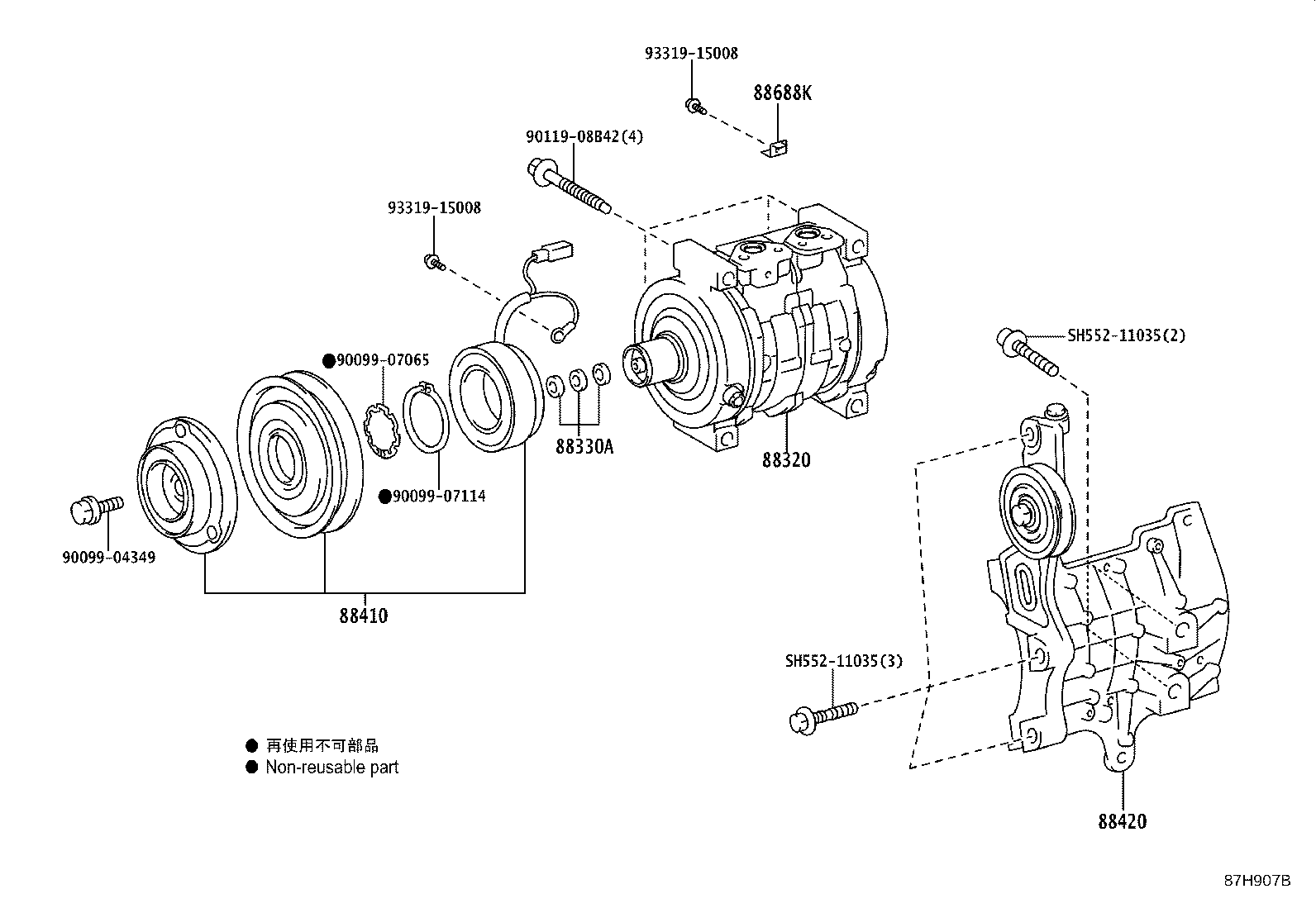

ILLUST NO. 1 OF 2(1107- )XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..DCRTH,DCRTJ,DCRTK,DCR

Click highlighted areas on diagram

ｺﾝﾌﾟﾚｯｻ

diagram

Part #	Description	Period	Qty	Price
88320 - COMPRESSOR ASSY, COOLER
88320-37110	XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO	05/2019 - 12/2999	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
88410 - CLUTCH ASSY, MAGNET
88410-17100	XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO	05/2019 - 12/2999	1
88420 - PULLEY ASSY, IDLE, W/BRACKET
88420-37320	XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO	05/2019 - 12/2999	1
88688K - BRACKET, COOLER COMPRESSOR
88688-3V580	XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO	05/2019 - 12/2999	1
Common parts
90099-04306
90099-04349
90099-07065
90099-07114
90119-08B42
93319-15008
SH552-11035

ILLUST NO. 1 OF 2(1905- )XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO

Click highlighted areas on diagram

ｺﾝﾌﾟﾚｯｻ

diagram

Part #	Description	Period	Qty	Price
88320 - COMPRESSOR ASSY, COOLER
88320-37110	XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO	05/2019 - 12/2999	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
88410 - CLUTCH ASSY, MAGNET
88410-17100	XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO	05/2019 - 12/2999	1
88420 - PULLEY ASSY, IDLE, W/BRACKET
88420-37320	XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO	05/2019 - 12/2999	1
88688K - BRACKET, COOLER COMPRESSOR
88688-3V580	XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO	05/2019 - 12/2999	1
Common parts
90099-04349
90099-07065
90099-07114
90119-08B42
93319-15008
SH552-11035

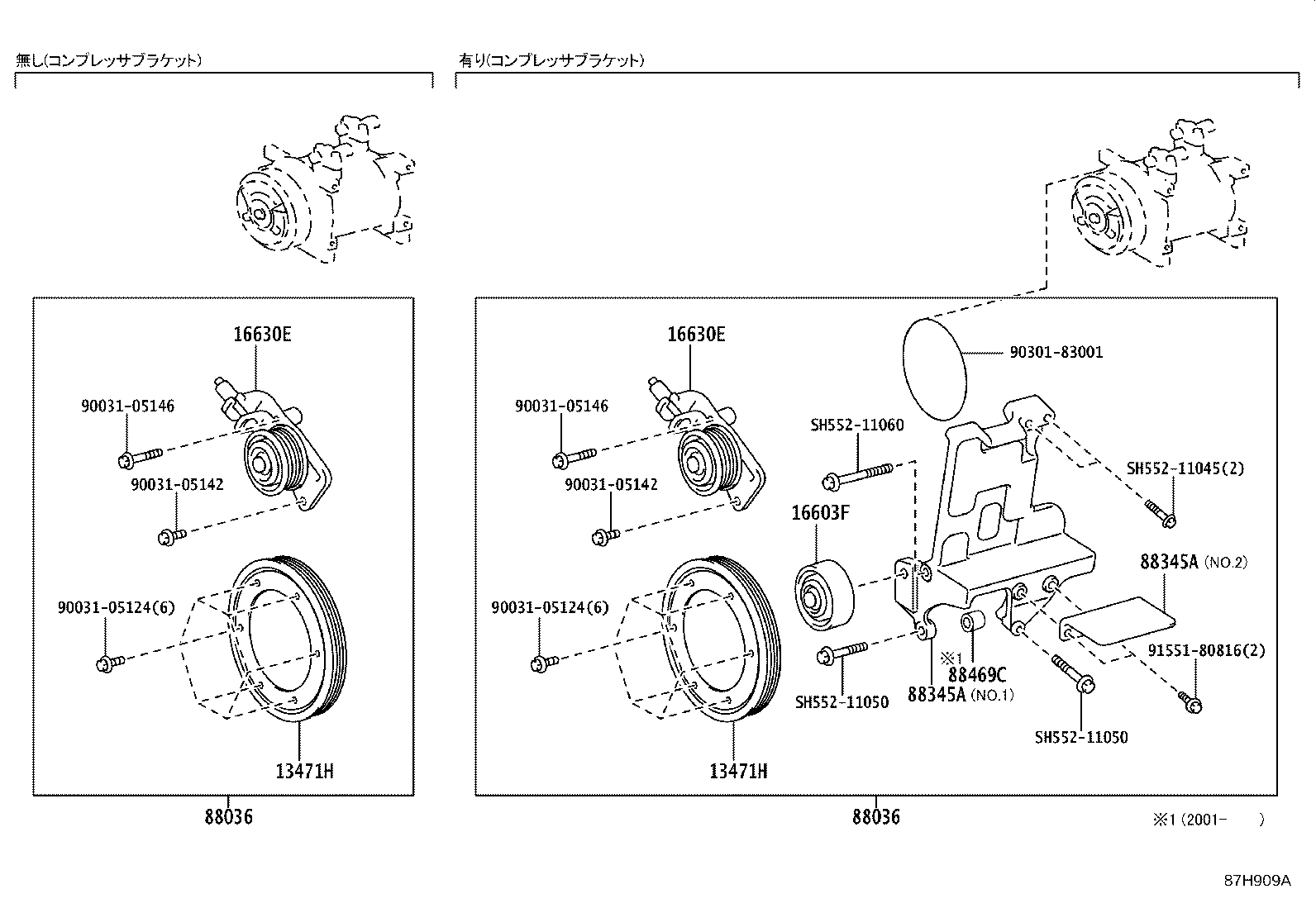

ILLUST NO. 2 OF 2(1905- )DCRWD,DCVTO

Click highlighted areas on diagram

ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ(ﾚｲﾄｳｺﾝﾌﾟﾚｯｻ)

diagram

Part #	Description	Period	Qty	Price
Common parts
90031-05124
90031-05142
90031-05146
90301-83001
91551-80816
SH552-11045
SH552-11050
SH552-11060
