Toyota Dyna/toyoace XZU605 LANE-KEEPING ASSIST

Part #	Description	Period	Qty
86464 - SENSOR, LANE RECOGNITION CAMERA
86464-37030	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7)	05/2020 - 09/2020	1
86464-37031	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し	10/2020 - 12/2999	1
86464-37031	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7)	10/2020 - 12/2999	1
86464-37020	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7)	05/2019 - 05/2020	1
86464-37030	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し	05/2020 - 09/2020	1
86464-37020	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し	05/2019 - 05/2020	1
86465 - BRACKET, LANE RECOGNITION
86465-37020	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7)	05/2019 - 05/2020	1
86465-37040	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し	05/2020 - 12/2999	1
86465-37020	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し	05/2019 - 05/2020	1
86465-37040	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7)	05/2020 - 12/2999	1
86466 - COVER, LANE DEPARTURE WARNING CAMERA, NO.1
86466-37021	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し	05/2020 - 12/2999	1
86466-37020	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7)	05/2019 - 05/2020	1
86466-37021	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7)	05/2020 - 12/2999	1
86466-37020	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し	05/2019 - 05/2020	1
Common parts
94151-80600

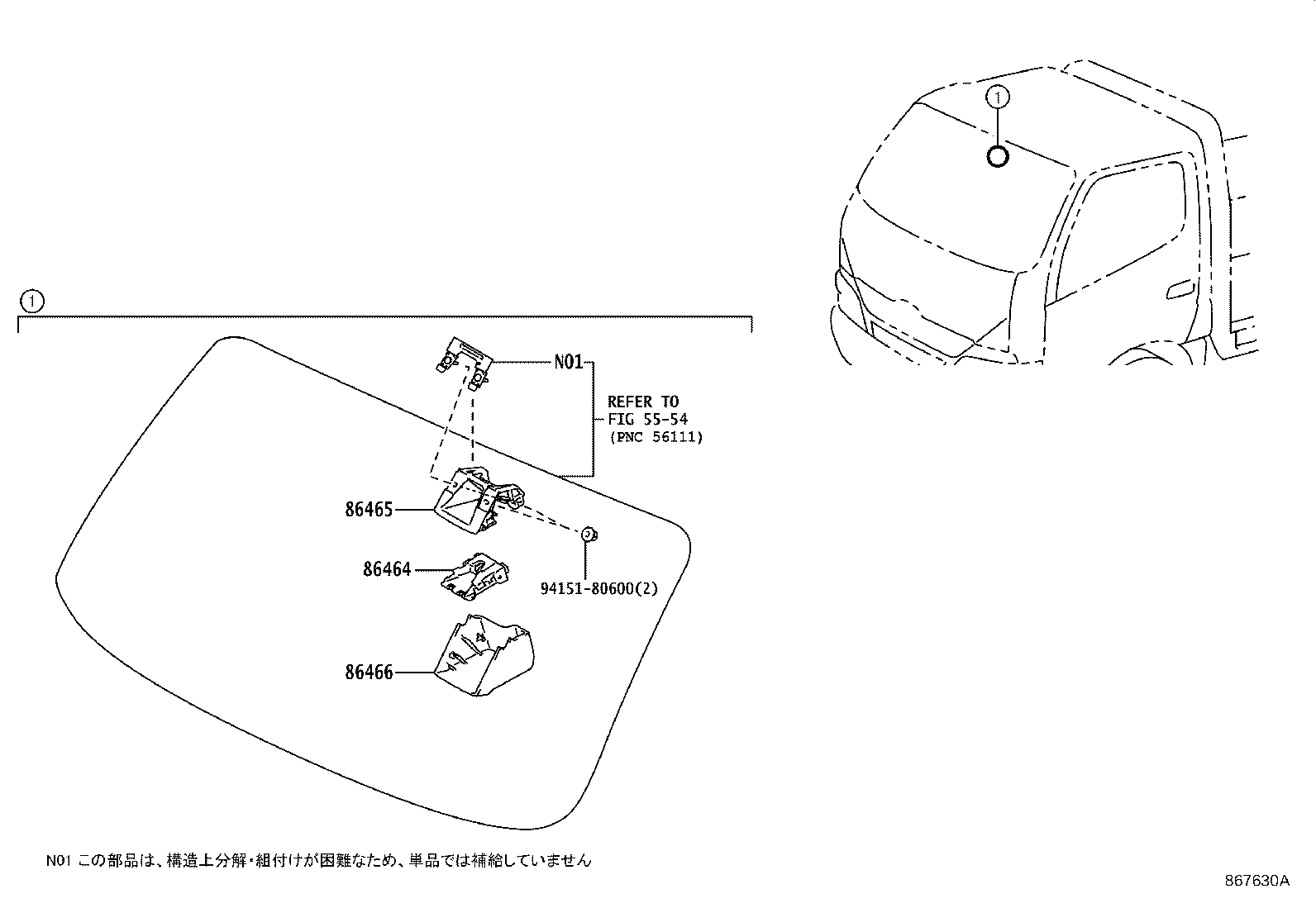

Linked diagrams
5554

XZU605A-TYFMX5 (2019)

(1905- )DCRWD,DCVTO
