XZU605A-TYFMX5 (2019)
Toyota Dyna/Toyoace

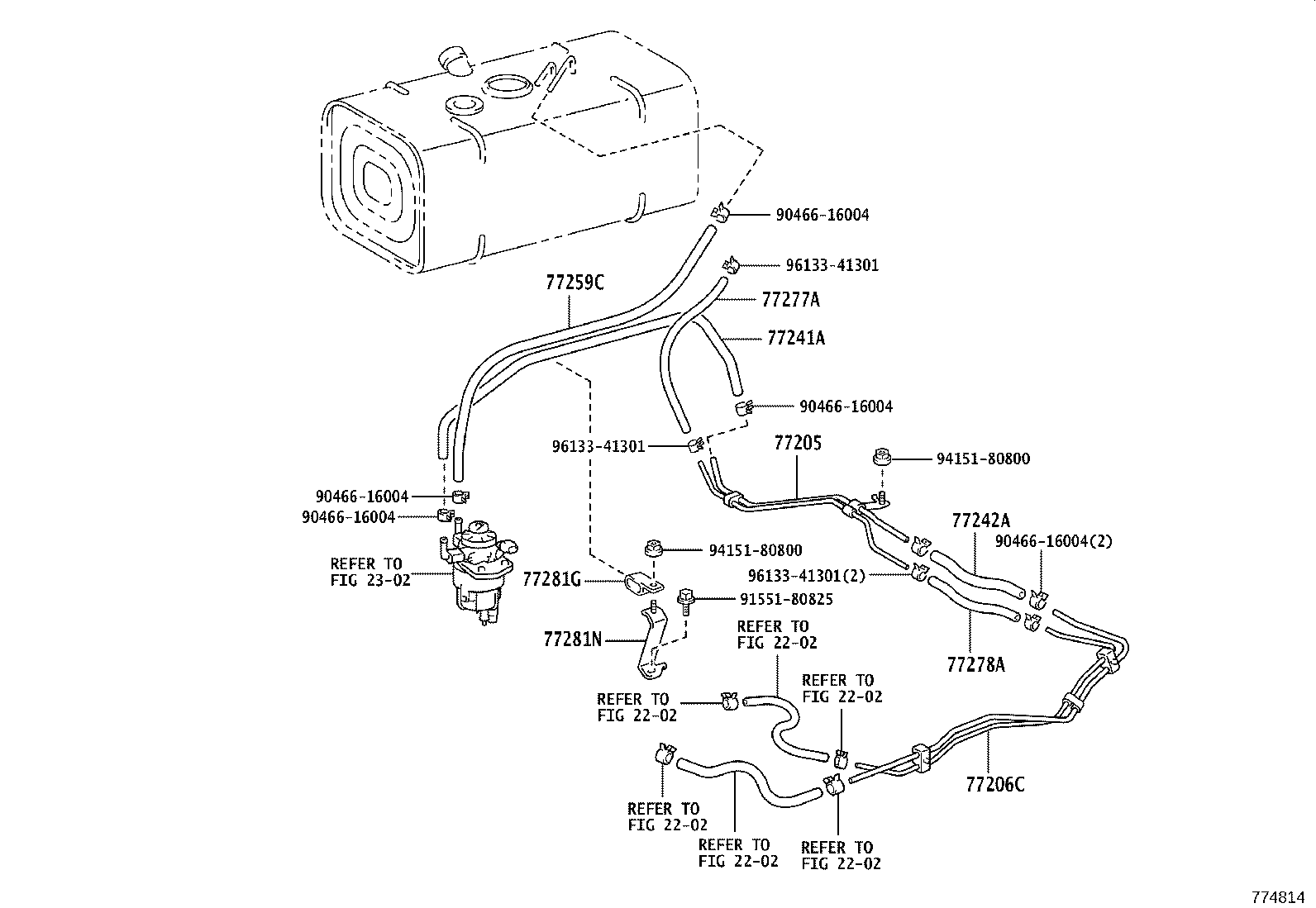

ILLUST NO. 2 OF 2(1905- )XZU605..IV5 ; (1905- )XZU605..SCB..T4..6FC..20T..DCRWD..IV3
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37K50 |
XZU650..DCVTO..IV3;XZU640,642,650,652..DCRWD..(CBU,IV3);XZC60#,645,655,XZU60#,645,655..SCB..(DCRWD,DCVTO) |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37N01 |
XZU605..IV5 |
1 | ||
| 77206-37N02 |
XZU605..IV5 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 77259-37A91 |
XZU605..IV5 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| SM331-10030 |
XZU605..IV5 長さ=160 |
1 | ||
| 77259C - HOSE, FUEL | ||||
| SM331-10100 |
XZU605,685..DCB..20T..DCRWD;XZC675,XZU605,675..(DM5,DM6)..DCRWD |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 77279-37630 |
XZU605..IV5 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08020 |
XZU650..DCVTO..IV3;XZU640,642,650,652..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU60#,630,645,655..SCB..(DCRWD,DCVTO) 長さ=160 |
1 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| SZ461-17002 |
XZU605,655..DCB..DCRWD;XZU650..DCVTO..(CBU,IV6);XZU605,652..(DM6,T3)..DCRWD..(IV5,IV6);XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3,IV6);XZC675,XZU640,642..(T3,T4)..(20T,40T)..(DCRWD,DCVTO) |
1 | ||
| 77281N - CLAMP, FUEL HOSE | ||||
| 77281-37680 |
XZU605..IV5 |
1 | ||
| Common parts | ||||
| 90466-16004 | ||||
| 91551-80825 | ||||
| 94151-80800 | ||||
| 96133-41301 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||

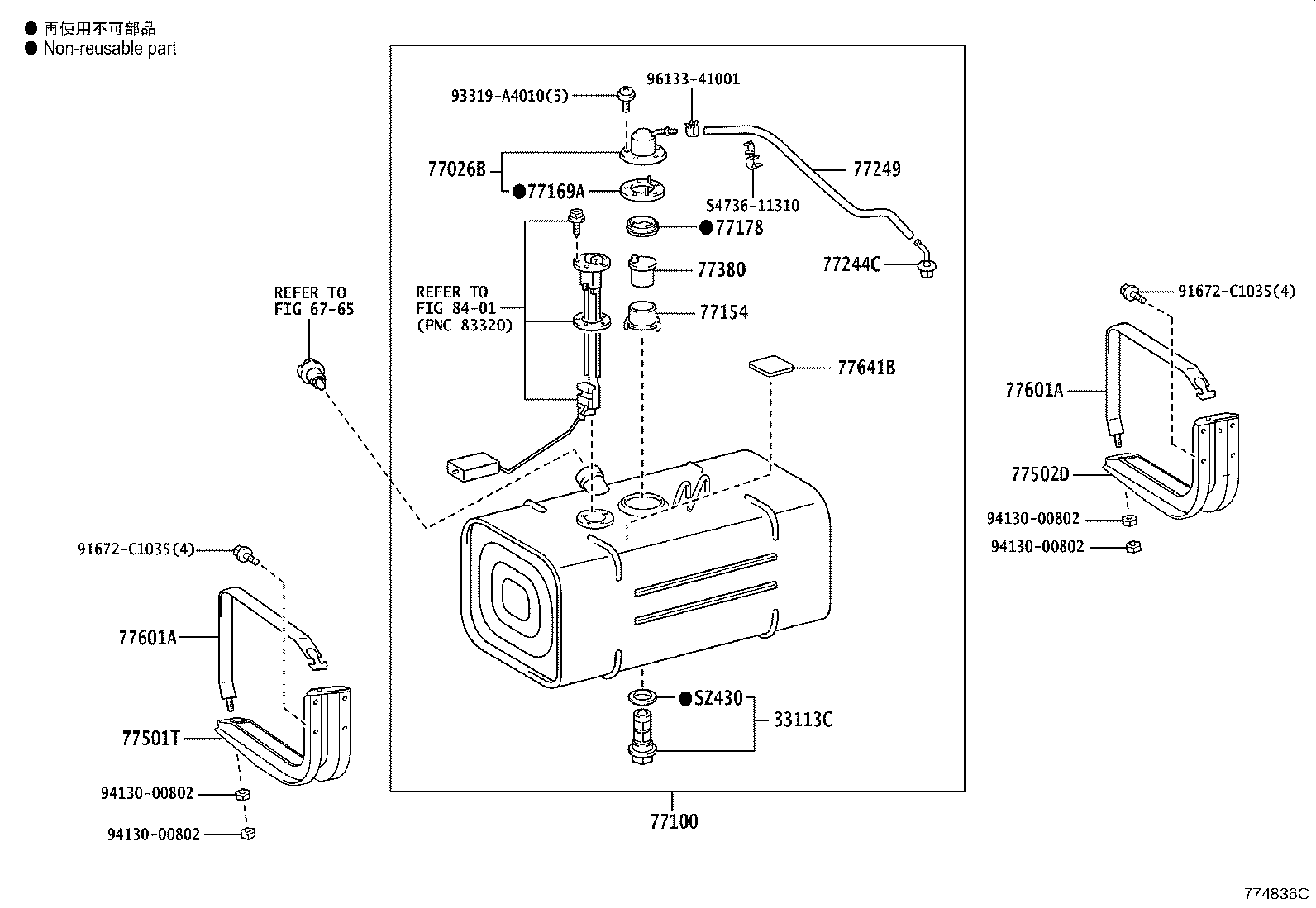

ILLUST NO. 1 OF 2(1905- )XZU605..IV5
ﾌｭｰｴﾙﾀﾝｸ & ﾌｭｰｴﾙﾀﾝｸｽﾃｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33113C - PLUG, DRAIN | ||||
| 33113-37130 |
XZC675,XZU602,675..(DM5,T3)..DCRWD;XZU600,605..(DCRWD,DCVTO)..(IV5,IV6) |
1 | ||
| 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-37A91 |
XZU60#..(DCRWD,DCVTO)..(IV5,IV6) |
1 | ||
| 77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT | ||||
| 77154-25010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-44010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77244C - JOINT, FUEL TUBE, NO.2 | ||||
| 77244-37030 |
XZU685..DCRWD..IV4;XZU605,685..SCB..DCRWD;XZC60#,630,645,655,675,XZU600,602,630,64#,65#,675,695..DCRWD,DCVTO |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-37520 |
XZU650..DCVTO..IV3;XZU600,605..(DCRWD,DCVTO)..(IV5,IV6);XZC645,655,XZU602,640,645,650,655..SCB..DCRWD;XZC675,XZU652,675..(DM5,T3)..DCRWD..(CBU,IV3) |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37790 |
XZU605..IV5 |
1 | ||
| 77502D - BRACKET SUB-ASSY, FUEL TANK, REAR | ||||
| 77501-37780 |
XZU605..IV5 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37111 |
XZC675,XZU602,675..(DM5,T3)..DCRWD;XZU600,605..(DCRWD,DCVTO)..(IV5,IV6) |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-37111 |
XZC675,XZU602,675..(DM5,T3)..DCRWD;XZU600,605..(DCRWD,DCVTO)..(IV5,IV6) |
2 | ||
| 77641B - COVER, FUEL TANK | ||||
| 77641-37100 |
XZC675,XZU602,675..(DM5,T3)..DCRWD;XZU600,605..(DCRWD,DCVTO)..(IV5,IV6) |
1 | ||
| SZ430 - WASHER, SOFT, NO.1 | ||||
| SZ430-30004 |
XZC675,XZU602,675..(DM5,T3)..DCRWD;XZU600,605..(DCRWD,DCVTO)..(IV5,IV6) |
1 | ||
| Common parts | ||||
| 91672-C1035 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 96133-41001 | ||||
| S4736-11310 | ||||
| Linked diagrams | ||||
| 6765 | ||||
| 8401 | ||||
