Toyota Dyna/toyoace XZU605 BATTERY CARRIER

XZU605A-TYFMX5 (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999

Engine N04C

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(1905- )DCRWD,DCVTO..CBU,IV3,IV5,IV6,IV7

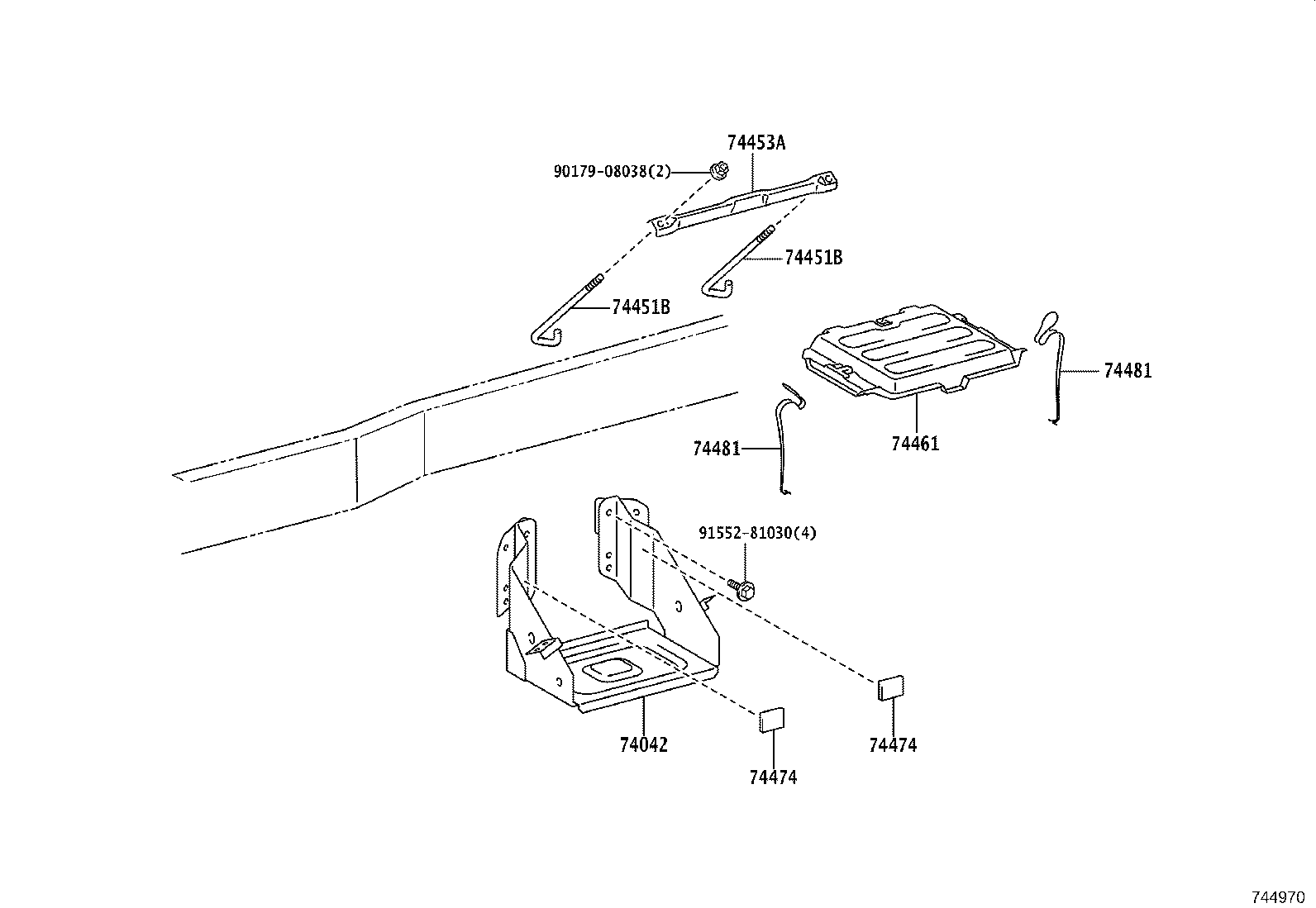

Click highlighted areas on diagram

ﾊﾞｯﾃﾘﾄｳｻｲｲﾁ=ﾐｷﾞｶﾞﾜ

Part #	Description	Period	Qty
74042 - BRACKET SUB-ASSY, BATTERY
74042-37390	XZU650..T3..DCRWD..CBU;XZU605,655..DCB..DCRWD..CBU;XZU605..20T..DCRWD..(IV3,IV5,IV6);XZC605,655,XZU605,655..(T3,T5)..20T..DCRWD..CBU;XZU605,640,652,655..(30T,35T)..DCRWD..(CBU,IV3,IV5);XZC605,645,655,XZU642,650,655..(20T,40T)..(DCRWD,DCVTO)..IV3;XZC600,630,675,XZU600,602,630,645,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV6,IV7)	05/2019 - 12/2999	1
74042 - BRACKET SUB-ASSY, BATTERY
74042-37390	XZU650..T3..DCRWD..CBU;XZU605,655..DCB..DCRWD..CBU;XZU605..20T..DCRWD..(IV3,IV5,IV6);XZC605,655,XZU605,655..(T3,T5)..20T..DCRWD..CBU;XZU605,640,652,655..(30T,35T)..DCRWD..(CBU,IV3,IV5);XZC605,645,655,XZU642,650,655..(20T,40T)..(DCRWD,DCVTO)..IV3;XZC600,630,675,XZU600,602,630,645,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV6,IV7)	05/2019 - 12/2999	1
74451B - BOLT, BATTERY CLAMP
74451-37022	XZU650..T3..DCRWD..CBU;XZU605,655..DCB..DCRWD..CBU;XZC605,655,XZU605,655..(T3,T5)..20T..DCRWD..CBU;XZC600,630,675,XZU600,602,630,645,675,685,695..DCRWD,DCVTO;XZU605,640,642,652,655..(30T,35T,40T)..DCRWD..(CBU,IV3,IV4,IV5);XZC605,645,655,XZU605,650,655..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV5,IV6)	05/2019 - 12/2999	2
74451B - BOLT, BATTERY CLAMP
74451-37022	XZU650..T3..DCRWD..CBU;XZU605,655..DCB..DCRWD..CBU;XZC605,655,XZU605,655..(T3,T5)..20T..DCRWD..CBU;XZC600,630,675,XZU600,602,630,645,675,685,695..DCRWD,DCVTO;XZU605,640,642,652,655..(30T,35T,40T)..DCRWD..(CBU,IV3,IV4,IV5);XZC605,645,655,XZU605,650,655..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV5,IV6)	05/2019 - 12/2999	2
74451B - BOLT, BATTERY CLAMP
74451-37022	XZU650..T3..DCRWD..CBU;XZU605,655..DCB..DCRWD..CBU;XZC605,655,XZU605,655..(T3,T5)..20T..DCRWD..CBU;XZC600,630,675,XZU600,602,630,645,675,685,695..DCRWD,DCVTO;XZU605,640,642,652,655..(30T,35T,40T)..DCRWD..(CBU,IV3,IV4,IV5);XZC605,645,655,XZU605,650,655..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV5,IV6)	05/2019 - 12/2999	2
74451B - BOLT, BATTERY CLAMP
74451-37022	XZU650..T3..DCRWD..CBU;XZU605,655..DCB..DCRWD..CBU;XZC605,655,XZU605,655..(T3,T5)..20T..DCRWD..CBU;XZC600,630,675,XZU600,602,630,645,675,685,695..DCRWD,DCVTO;XZU605,640,642,652,655..(30T,35T,40T)..DCRWD..(CBU,IV3,IV4,IV5);XZC605,645,655,XZU605,650,655..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV5,IV6)	05/2019 - 12/2999	2
74453A - BAR, BATTERY SET PLATE
74453-36070	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
74453A - BAR, BATTERY SET PLATE
74453-36070	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
74461 - COVER, BATTERY
74461-37040	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO)	05/2019 - 12/2999	1
74461 - COVER, BATTERY
74461-37040	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO)	05/2019 - 12/2999	1
74481 - CLAMP, BATTERY HOLD DOWN
74481-36030	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO)	05/2019 - 12/2999	2
74481 - CLAMP, BATTERY HOLD DOWN
74481-36030	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO)	05/2019 - 12/2999	2
Common parts
90179-08038
91552-81030
94151-81000

(1905- )DCRWD,DCVTO..CBU,IV3,IV5,IV6,IV7

Click highlighted areas on diagram

ﾊﾞｯﾃﾘﾄｳｻｲｲﾁ=ﾋﾀﾞﾘｶﾞﾜ

Part #	Description	Period	Qty
74042 - BRACKET SUB-ASSY, BATTERY
74042-37390	XZU650..T3..DCRWD..CBU;XZU605,655..DCB..DCRWD..CBU;XZU605..20T..DCRWD..(IV3,IV5,IV6);XZC605,655,XZU605,655..(T3,T5)..20T..DCRWD..CBU;XZU605,640,652,655..(30T,35T)..DCRWD..(CBU,IV3,IV5);XZC605,645,655,XZU642,650,655..(20T,40T)..(DCRWD,DCVTO)..IV3;XZC600,630,675,XZU600,602,630,645,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV6,IV7)	05/2019 - 12/2999	1
74451B - BOLT, BATTERY CLAMP
74451-37022	XZU650..T3..DCRWD..CBU;XZU605,655..DCB..DCRWD..CBU;XZC605,655,XZU605,655..(T3,T5)..20T..DCRWD..CBU;XZC600,630,675,XZU600,602,630,645,675,685,695..DCRWD,DCVTO;XZU605,640,642,652,655..(30T,35T,40T)..DCRWD..(CBU,IV3,IV4,IV5);XZC605,645,655,XZU605,650,655..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV5,IV6)	05/2019 - 12/2999	2
74451B - BOLT, BATTERY CLAMP
74451-37022	XZU650..T3..DCRWD..CBU;XZU605,655..DCB..DCRWD..CBU;XZC605,655,XZU605,655..(T3,T5)..20T..DCRWD..CBU;XZC600,630,675,XZU600,602,630,645,675,685,695..DCRWD,DCVTO;XZU605,640,642,652,655..(30T,35T,40T)..DCRWD..(CBU,IV3,IV4,IV5);XZC605,645,655,XZU605,650,655..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV5,IV6)	05/2019 - 12/2999	2
74453A - BAR, BATTERY SET PLATE
74453-36070	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO	05/2019 - 12/2999	1
74461 - COVER, BATTERY
74461-37040	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO)	05/2019 - 12/2999	1
74481 - CLAMP, BATTERY HOLD DOWN
74481-36030	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO)	05/2019 - 12/2999	2
74481 - CLAMP, BATTERY HOLD DOWN
74481-36030	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO)	05/2019 - 12/2999	2
Common parts
90179-08038
91552-81030
