XZU605A-TYFMX5 (2019)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(0610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90148-60049 | ||||
| 90148-80027 | ||||
| 90159-40202 | ||||
| 90162-50008 | ||||
| 90189-05003 | ||||
| 91551-80612 | ||||
| 91651-40612 | ||||
(1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69110 - ACTUATOR ASSY, FRONT DOOR LOCK, RH | ||||
| 69110-37110 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV7) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH | ||||
| 69120-37060 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-37010B1 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO GRAY,TRIM1# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-37010B1 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO GRAY,TRIM1# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 塗装不要 |
1 | ||
| 69210-37030 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV7) 塗装不要,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 塗装不要 |
1 | ||
| 69210-37030 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV7) 塗装不要,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04015 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
4 | ||
| 90541-04015 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−無し |
2 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04015 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
4 | ||
| 90541-04015 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−無し |
2 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 塗装不要 |
1 | ||
| 69240-37010 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV7) 塗装不要,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69220-37030 |
XZU605..IV5 塗装不要,ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−無し |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 右側 |
1 | ||
| 69293-12060 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 左側 |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 右側 |
1 | ||
| 69293-12060 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 左側 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-37070 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV7) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69310-37070 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−無し |
1 | ||
| 69310-37090 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-37070 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV7) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69310-37070 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−無し |
1 | ||
| 69310-37090 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 69310D - SCREW, DOOR LOCK | ||||
| 90148-60082 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
6 | ||
| 90148-60082 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−無し |
3 | ||
| 69310D - SCREW, DOOR LOCK | ||||
| 90148-60082 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
6 | ||
| 90148-60082 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−無し |
3 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-37060 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 69320-37160 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV7) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69320-37090 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−無し |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-37020 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−無し,左側 |
1 | ||
| 69410-20110 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 69410-20110 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−無し,右側 |
1 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-37041 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 69712-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 69710-37010 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 69741B - KNOB, FRONT DOOR LOCK CONTROL | ||||
| 69741-12040C0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO BLACK,TRIM1# |
2 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-12070 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 69749-12070 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
3 | ||
| 69759K - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-20040 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 左側,ｲｴﾛｰ |
1 | ||
| 69759-24020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 左側,ﾌﾞﾙｰ |
1 | ||
| 69759-20050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 右側,ﾌﾞﾗｳﾝ |
1 | ||
| 69759-24010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 右側,ｼﾛ |
1 | ||
| 69759K - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-20040 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 左側,ｲｴﾛｰ |
1 | ||
| 69759-24020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 左側,ﾌﾞﾙｰ |
1 | ||
| 69759-20050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 右側,ﾌﾞﾗｳﾝ |
1 | ||
| 69759-24010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 右側,ｼﾛ |
1 | ||
| 69759K - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-20040 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 左側,ｲｴﾛｰ |
1 | ||
| 69759-24020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 左側,ﾌﾞﾙｰ |
1 | ||
| 69759-20050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 右側,ﾌﾞﾗｳﾝ |
1 | ||
| 69759-24010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 右側,ｼﾛ |
1 | ||
| 69759K - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-20040 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 左側,ｲｴﾛｰ |
1 | ||
| 69759-24020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 左側,ﾌﾞﾙｰ |
1 | ||
| 69759-20050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 右側,ﾌﾞﾗｳﾝ |
1 | ||
| 69759-24010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 右側,ｼﾛ |
1 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-22040 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 左側 |
1 | ||
| 69759-22050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 右側 |
1 | ||
| Common parts | ||||
| 90148-80027 | ||||
| 90159-40202 | ||||
| 90162-50008 | ||||
| 90189-05003 | ||||
| 91653-40612 | ||||
| Linked diagrams | ||||
| 8420 | ||||

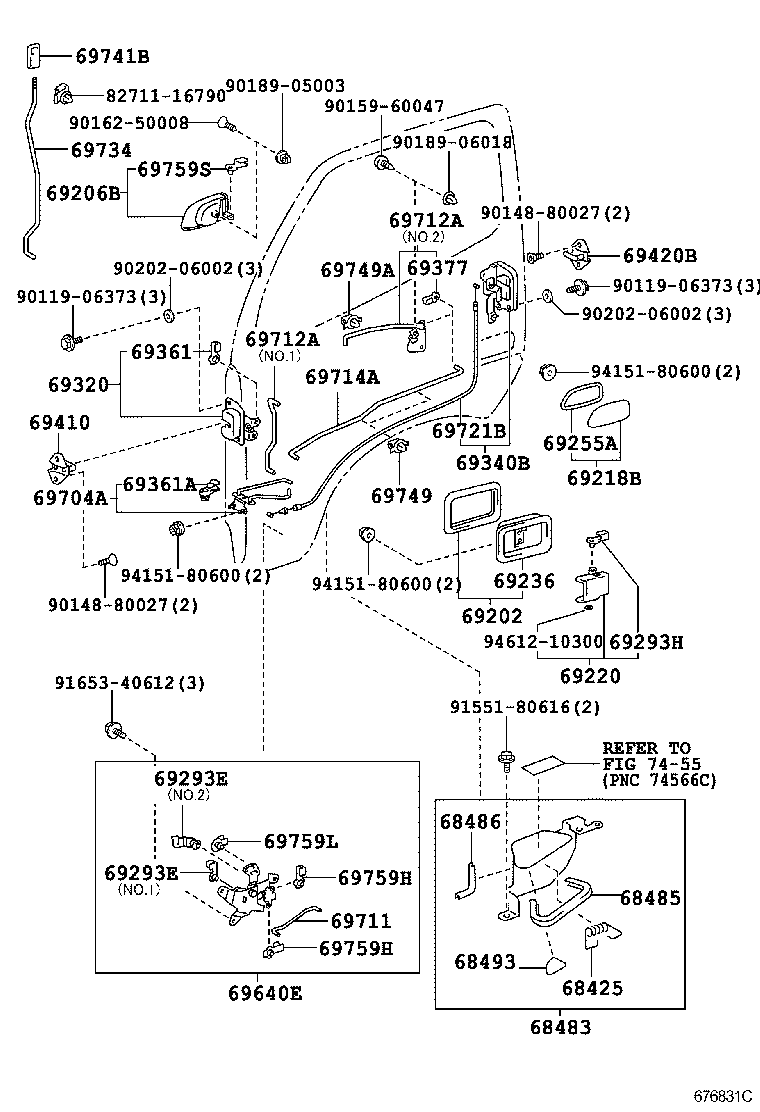

(1107- )IV5
ｽﾗｲﾄﾞｼｷ ｼﾞｮｼｭｾｷﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68425 - SPRING, FRONT SLIDE DOOR CATCH | ||||
| 68425-37010 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 68483 - GUARD, FRONT SLIDE DOOR ARM | ||||
| 68483-37010 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 68485 - PROTECTOR, FRONT SLIDE DOOR ARM GUARD | ||||
| 68485-37010 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 68486 - PROTECTOR, FRONT SLIDE DOOR BRACKET COVER | ||||
| 68486-37010 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 68493 - CUSHION, FRONT SLIDE DOOR ARM GUARD | ||||
| 68493-37010 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 69202 - HANDLE SUB-ASSY, DOOR OUTSIDE, LH | ||||
| 69202-37020 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−無し |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-37010B1 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO GRAY,TRIM1# |
1 | ||
| 69218B - COVER, SLIDE DOOR OUTSIDE HANDLE, LH | ||||
| 69218-37010 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−無し |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 塗装不要 |
1 | ||
| 69240-37010 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV7) 塗装不要,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69220-37030 |
XZU605..IV5 塗装不要,ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−無し |
1 | ||
| 69236 - BEZEL, FRONT SLIDE DOOR OUTSIDE HANDLE | ||||
| 69236-95402 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−無し |
1 | ||
| 69255A - PROTECTOR, FRONT SLIDE DOOR OUTSIDE HANDLE HOLE | ||||
| 69255-37010 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−無し |
1 | ||
| 69293E - SNAP, SLIDE DOOR LOCK CONTROL LINK | ||||
| 69293-12050 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 69293-12030 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 69293E - SNAP, SLIDE DOOR LOCK CONTROL LINK | ||||
| 69293-12050 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 69293-12030 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12050 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−無し |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-37060 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 69320-37160 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV7) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69320-37090 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−無し |
1 | ||
| 69340B - LOCK ASSY, SLIDE DOOR, LH | ||||
| 69340-37030 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−無し |
1 | ||
| 69361 - SNAP, DOOR LOCK CONNECTING ROD | ||||
| 69293-12060 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−無し |
1 | ||
| 69361A - SNAP, DOOR LOCK CONNECTING ROD(FOR FRONT DOOR) | ||||
| 69293-12050 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
2 | ||
| 69377 - SNAP, FRONT DOOR LOCK CONTROL ROD | ||||
| 69759-20050 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),ﾌﾞﾗｳﾝ |
1 | ||
| 69759-20100 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),ﾚｯﾄﾞ |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-37020 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−無し,左側 |
1 | ||
| 69410-20110 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 69410-20110 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−無し,右側 |
1 | ||
| 69420B - PLATE ASSY, DOOR LOCK STRIKER, REAR | ||||
| 69420-37010 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−無し |
1 | ||
| 69640E - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH | ||||
| 69640-37020 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 69704A - ROD SUB-ASSY, SLIDE DOOR LOCK CONTROL, LH | ||||
| 69704-37030 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 69711 - LINK, FRONT SLIDE DOOR KEY CYLINDER | ||||
| 69711-37030 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-37041 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 69712-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 69710-37010 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-37041 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 69712-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 69710-37010 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 69714A - LINK, DOOR LOCK REMOTE CONTROL, NO.2 LH | ||||
| 69714-37020 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 69721B - CABLE, FRONT SLIDE DOOR LOCK CONTROL | ||||
| 69721-37010 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−無し |
1 | ||
| 69734 - LINK, FRONT DOOR INSIDE LOCKING, LH | ||||
| 69734-37031 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 69741B - KNOB, FRONT DOOR LOCK CONTROL | ||||
| 69741-12040C0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO BLACK,TRIM1# |
2 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-12070 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 69749-12070 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
3 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-89101 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2 | ||||
| 69759-20060 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),ｸﾞﾚｰ |
1 | ||
| 69759-20050 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),ﾌﾞﾗｳﾝ |
1 | ||
| 69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2 | ||||
| 69759-20060 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),ｸﾞﾚｰ |
1 | ||
| 69759-20050 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側),ﾌﾞﾗｳﾝ |
1 | ||
| 69759L - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-95701 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-22040 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 左側 |
1 | ||
| 69759-22050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 右側 |
1 | ||
| Common parts | ||||
| 82711-16790 | ||||
| 90119-06373 | ||||
| 90148-80027 | ||||
| 90159-60047 | ||||
| 90162-50008 | ||||
| 90189-05003 | ||||
| 90189-06018 | ||||
| 90202-06002 | ||||
| 91551-80616 | ||||
| 91653-40612 | ||||
| 94151-80600 | ||||
| 94612-10300 | ||||
| Linked diagrams | ||||
| 7455 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
