XZU605A-TYFMX5 (2019)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(0610- )SCB
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(0610- )SCB
ｱﾘ (ﾙｰﾌ ｳｨﾝﾄﾞｳ ﾃﾞﾌﾚｸﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08676 | ||||
| 90170-08026 | ||||
| 90201-08055 | ||||
| 91111-50818 | ||||
| 91511-C0850 | ||||
| 91651-B0822 | ||||
| 91651-B0825 | ||||
| 93240-66016 | ||||
| Linked diagrams | ||||
| 7551 | ||||
ILLUST NO. 2 OF 2(0610- )SCB
ｱﾘ (ﾙｰﾌ ﾗｯｸ)
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 3 OF 3(1107- )SCB
ｴｱﾛﾙｰﾌﾗｯｸ
| Part # | Description | Qty | Price |
|---|

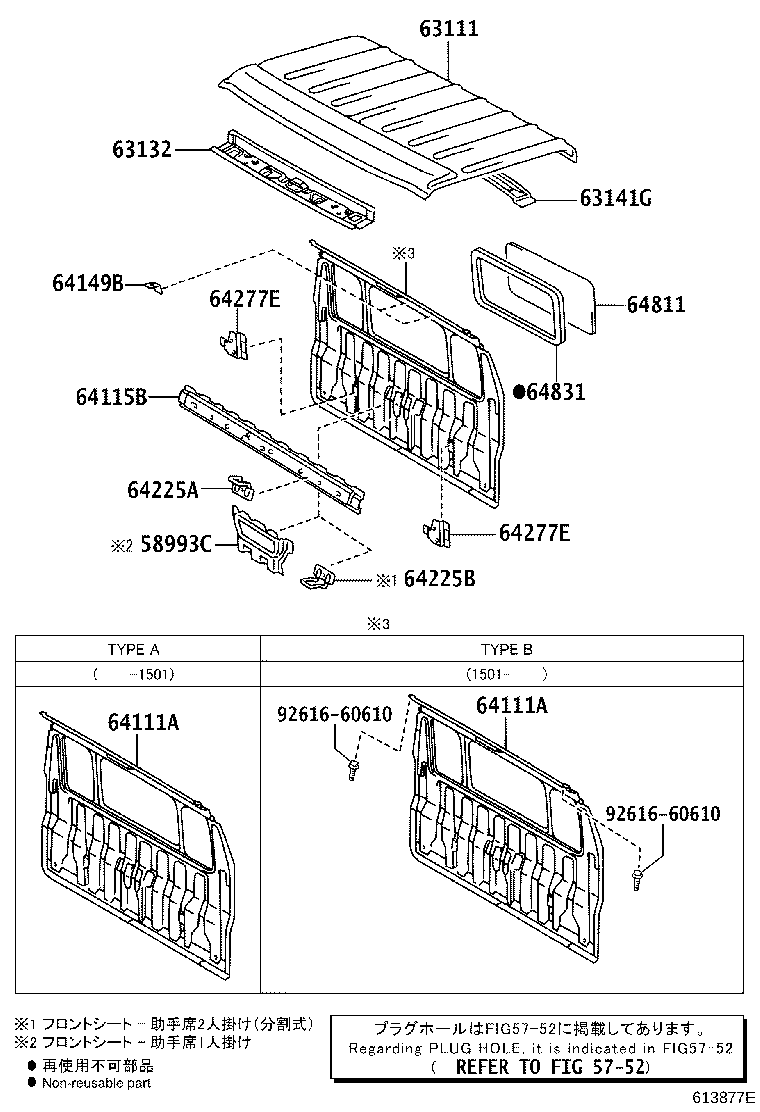

ILLUST NO. 1 OF 3(1107- )SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63111 - PANEL, ROOF | ||||
| 63111-37120 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 63111-37132 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-37085 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) |
1 | ||
| 63132-37074 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-37061 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 63141-37070 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) |
1 | ||
| 64111A - PANEL, BACK | ||||
| 64111-37376 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 64111-37376 |
XZU605..IV5 ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾﾝﾀ),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 64111-37376 |
XZU605..IV5 ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾﾝﾀ),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 64111-37376 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 64111A - PANEL, BACK | ||||
| 64111-37376 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 64111-37376 |
XZU605..IV5 ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾﾝﾀ),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 64111-37376 |
XZU605..IV5 ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾﾝﾀ),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 64111-37376 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 64115B - REINFORCEMENT, BACK PANEL | ||||
| 64115-25040 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 64115-25040 |
XZU605..IV5 ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾﾝﾀ) |
1 | ||
| 64115-25040 |
XZU605..IV5 ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾﾝﾀ) |
1 | ||
| 64149B - RETAINER, BACK PANEL HEADREST | ||||
| 64149-37010 |
XZU605..IV5 ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾﾝﾀ) |
2 | ||
| 64149-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
2 | ||
| 64149-37010 |
XZU605..IV5 ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾﾝﾀ) |
2 | ||
| 64225A - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64209-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 64225B - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64209-37030 |
XZU605..IV5 ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾﾝﾀ) |
1 | ||
| 64209-37030 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ) |
1 | ||
| 64277E - BRACKET, BACK PANEL TRIM, LOWER | ||||
| 64277-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
2 | ||
| 64277E - BRACKET, BACK PANEL TRIM, LOWER | ||||
| 64277-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
2 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-37120 |
XZU675..DM5..DCRWD..CBU;XZC600,630,XZU600,602,630,642..SCB..(DCRWD,DCVTO);XZC605,645,655,675,XZU605,640,645,65#,675,685,695..SCB..(DCRWD,DCVTO)..(IV3,IV5,IV6) |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64831-37041 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| Common parts | ||||
| 92616-60610 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 2 OF 3(1107- )SCB
ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08676 | ||||
| 90170-08026 | ||||
| 90201-08055 | ||||
| 91111-50820 | ||||
| 91511-C0850 | ||||
| 91635-A0616 | ||||
| 91651-B0822 | ||||
| 91651-B0825 | ||||
| 93240-66016 | ||||
| Linked diagrams | ||||
| 7551 | ||||
