XZU605A-TYFMX5 (2019)
Toyota Dyna/Toyoace

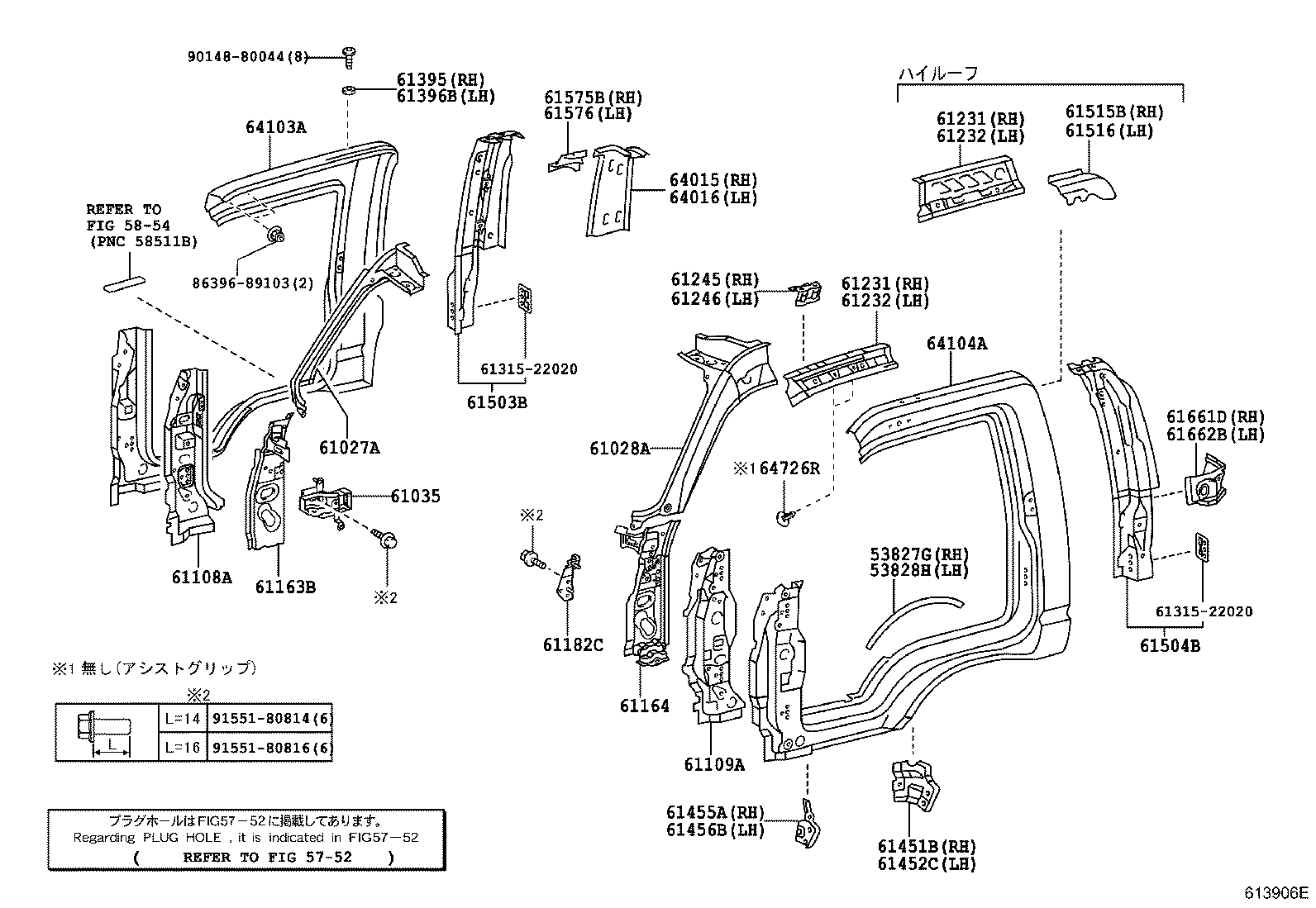

(0610- )SCB
ｳｲﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ=ｾｯﾁｬｸﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 61315-22020 | ||||
| 86396-89103 | ||||
| 90148-80044 | ||||
| Linked diagrams | ||||
| 5752 | ||||
(0610- )SCB
ｳｲﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ=ｳｪｻﾞｽﾄﾘｯﾌﾟ ｸﾐﾂｹ ﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 61315-22020 | ||||
| 90148-80044 | ||||
| 90179-04031 | ||||
| 91645-80816 | ||||
| Linked diagrams | ||||
| 5752 | ||||

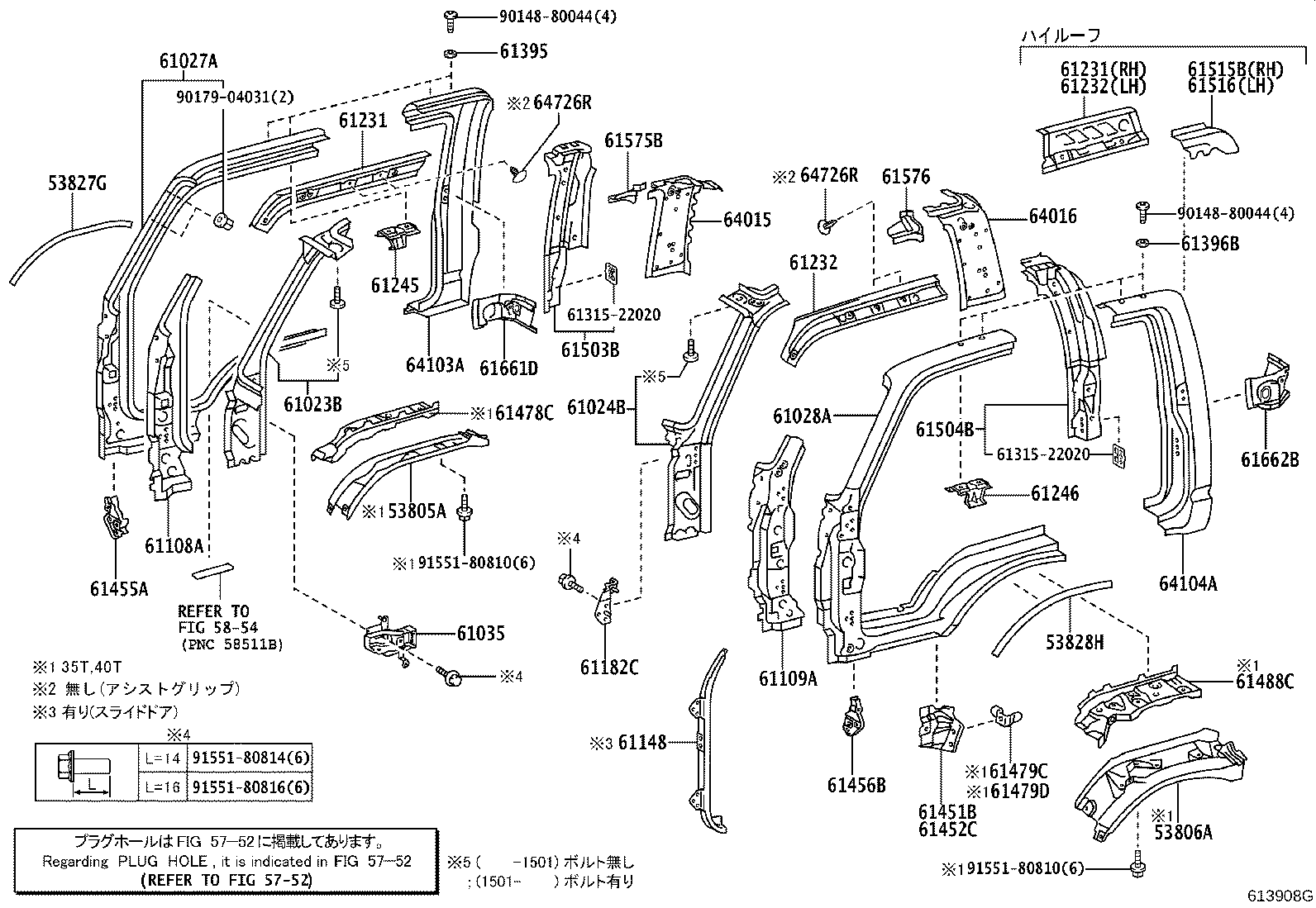

(1107- )SCB
ｳｲﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ=ｾｯﾁｬｸﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53827G - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 53828H - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53827-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-37120 |
XZU605..IV5;XZC645,655,XZU600,640,645,650,655,685,695..SCB..(T2,T3,T4)..DCRWD..(CBU,IV3,IV7) *WG(接着ﾀｲﾌﾟ) |
1 | ||
| 61027-37130 |
XZU600,605..(DM6,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..DCRWD..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ,*WG(接着ﾀｲﾌﾟ) |
1 | ||
| 61131-37063 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 61131-37073 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-37150 |
XZU605..IV5;XZC645,655,XZU600,640,645,650,655,685,695..SCB..(T2,T3,T4)..DCRWD..(CBU,IV3,IV7) *WG(接着ﾀｲﾌﾟ) |
1 | ||
| 61132-37073 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) |
1 | ||
| 61028-37160 |
XZU600,605..(DM6,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..DCRWD..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ,*WG(接着ﾀｲﾌﾟ) |
1 | ||
| 61132-37063 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 61132-37112 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH | ||||
| 61035-37070 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-37031 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 61108-37060 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-37050 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
1 | ||
| 61109-37031 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 61163B - PILLAR, FRONT BODY, LOWER INNER RH | ||||
| 61163-37906 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
1 | ||
| 61164 - PILLAR, FRONT BODY, INNER LH | ||||
| 61164-37906 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
1 | ||
| 61182C - BRACKET, INSTRUMENT SIDE, LH | ||||
| 61182-37040 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-37060 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 61231-89120 |
XZU600,605..(DM6,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..DCRWD..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 61231-89119 |
XZU605..IV5;XZC645,655,XZU600,640,645,650,655,685,695..SCB..(T2,T3,T4)..DCRWD..(CBU,IV3,IV7) |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-37060 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 61231-89120 |
XZU600,605..(DM6,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..DCRWD..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 61231-89119 |
XZU605..IV5;XZC645,655,XZU600,640,645,650,655,685,695..SCB..(T2,T3,T4)..DCRWD..(CBU,IV3,IV7) |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-89120 |
XZU600,605..(DM6,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..DCRWD..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 61232-89119 |
XZU605..IV5;XZC645,655,XZU600,640,645,650,655,685,695..SCB..(T2,T3,T4)..DCRWD..(CBU,IV3,IV7) |
1 | ||
| 61232-37060 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-89120 |
XZU600,605..(DM6,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..DCRWD..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 61232-89119 |
XZU605..IV5;XZC645,655,XZU600,640,645,650,655,685,695..SCB..(T2,T3,T4)..DCRWD..(CBU,IV3,IV7) |
1 | ||
| 61232-37060 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH | ||||
| 61245-37010 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 61245-37020 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61245-37010 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 61246-37010 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) |
1 | ||
| 61395 - SEAL, CENTER BODY PILLAR, RH | ||||
| 61395-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) |
4 | ||
| 61396B - SEAL, CENTER BODY PILLAR, LH | ||||
| 61395-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) |
4 | ||
| 61451B - PLATE, STEP, LOWER RH | ||||
| 61451-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 61452C - PLATE, STEP, LOWER LH | ||||
| 61452-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 61455A - RETAINER, FRONT STEP, RH | ||||
| 61455-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 61456B - RETAINER, FRONT STEP, LH | ||||
| 61456-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-37030 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) |
1 | ||
| 61503-37011 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61504-37020 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) |
1 | ||
| 61504-37040 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 61504-37011 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 61515B - EXTENSION, QUARTER LOCK PILLAR, RH | ||||
| 61515-37010 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) |
1 | ||
| 61516 - EXTENSION, QUARTER LOCK PILLAR, LH | ||||
| 61516-37010 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) |
1 | ||
| 61575B - PLATE, CAB REAR PILLAR, UPPER RH | ||||
| 61575-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 61576 - PLATE, CAB REAR PILLAR, UPPER LH | ||||
| 61576-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 61661D - EXTENSION, QUARTER PANEL TO UPPER BACK, RH | ||||
| 61661-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 61662B - EXTENSION, QUARTER PANEL TO UPPER BACK, LH | ||||
| 61662-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 64015 - PANEL SUB-ASSY, BACK CORNER, INNER RH | ||||
| 61531-37022 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 64016 - PANEL SUB-ASSY, BACK CORNER, INNER LH | ||||
| 61532-37012 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 64103A - PANEL SUB-ASSY, BACK CORNER, OUTER RH | ||||
| 61111-37340 |
XZU600,605..(DM6,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..DCRWD..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ,*WG(接着ﾀｲﾌﾟ) |
1 | ||
| 61611-37152 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) |
1 | ||
| 61611-37142 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 61111-37350 |
XZU605..IV5;XZC645,655,XZU600,640,645,650,655,685,695..SCB..(T2,T3,T4)..DCRWD..(CBU,IV3,IV7) *WG(接着ﾀｲﾌﾟ) |
1 | ||
| 61111-37320 |
XZU600,605..(DM6,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..DCRWD..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ,*WG(接着ﾀｲﾌﾟ) |
1 | ||
| 61111-37310 |
XZU605..IV5;XZC645,655,XZU600,640,645,650,655,685,695..SCB..(T2,T3,T4)..DCRWD..(CBU,IV3,IV7) *WG(接着ﾀｲﾌﾟ) |
1 | ||
| 64104A - PANEL SUB-ASSY, BACK CORNER, OUTER LH | ||||
| 61112-37430 |
XZU600,605..(DM6,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..DCRWD..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ,*WG(接着ﾀｲﾌﾟ) |
1 | ||
| 61612-37122 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) |
1 | ||
| 61112-37420 |
XZU605..IV5;XZC645,655,XZU600,640,645,650,655,685,695..SCB..(T2,T3,T4)..DCRWD..(CBU,IV3,IV7) *WG(接着ﾀｲﾌﾟ) |
1 | ||
| 61612-37112 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 64726R - CLIP, ROOF SIDE PANEL | ||||
| 90467-06048B9 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) MD.CHARCOAL,TRIM1# |
4 | ||
| 90467-06048B9 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) ｱｼｽﾄｸﾞﾘｯﾌﾟ−有り(運転席:1,助手席:2),MD.CHARCOAL,TRIM1# |
2 | ||
| Common parts | ||||
| 61315-22020 | ||||
| 86396-89103 | ||||
| 90148-80044 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 5854 | ||||
(1107- )SCB
ｳｲﾝﾄﾞｼｰﾙﾄﾞｶﾞﾗｽ=ｳｪｻﾞｽﾄﾘｯﾌﾟｸﾐﾂｹﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53827G - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 53828H - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53827-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-37051 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-37131 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-37120 |
XZU605..IV5;XZC645,655,XZU600,640,645,650,655,685,695..SCB..(T2,T3,T4)..DCRWD..(CBU,IV3,IV7) *WG(接着ﾀｲﾌﾟ) |
1 | ||
| 61027-37130 |
XZU600,605..(DM6,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..DCRWD..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ,*WG(接着ﾀｲﾌﾟ) |
1 | ||
| 61131-37063 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 61131-37073 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-37150 |
XZU605..IV5;XZC645,655,XZU600,640,645,650,655,685,695..SCB..(T2,T3,T4)..DCRWD..(CBU,IV3,IV7) *WG(接着ﾀｲﾌﾟ) |
1 | ||
| 61132-37073 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) |
1 | ||
| 61028-37160 |
XZU600,605..(DM6,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..DCRWD..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ,*WG(接着ﾀｲﾌﾟ) |
1 | ||
| 61132-37063 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 61132-37112 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH | ||||
| 61035-37070 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-37031 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 61108-37060 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-37050 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
1 | ||
| 61109-37031 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 61148 - EXTENSION, FRONT BODY PILLAR, OUTER LH | ||||
| 61148-37040 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 61182C - BRACKET, INSTRUMENT SIDE, LH | ||||
| 61182-37040 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-37060 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 61231-89120 |
XZU600,605..(DM6,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..DCRWD..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 61231-89119 |
XZU605..IV5;XZC645,655,XZU600,640,645,650,655,685,695..SCB..(T2,T3,T4)..DCRWD..(CBU,IV3,IV7) |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-37060 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 61231-89120 |
XZU600,605..(DM6,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..DCRWD..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 61231-89119 |
XZU605..IV5;XZC645,655,XZU600,640,645,650,655,685,695..SCB..(T2,T3,T4)..DCRWD..(CBU,IV3,IV7) |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-89120 |
XZU600,605..(DM6,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..DCRWD..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 61232-89119 |
XZU605..IV5;XZC645,655,XZU600,640,645,650,655,685,695..SCB..(T2,T3,T4)..DCRWD..(CBU,IV3,IV7) |
1 | ||
| 61232-37060 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-89120 |
XZU600,605..(DM6,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..DCRWD..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 61232-89119 |
XZU605..IV5;XZC645,655,XZU600,640,645,650,655,685,695..SCB..(T2,T3,T4)..DCRWD..(CBU,IV3,IV7) |
1 | ||
| 61232-37060 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH | ||||
| 61245-37010 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 61245-37020 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61245-37010 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 61246-37010 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) |
1 | ||
| 61395 - SEAL, CENTER BODY PILLAR, RH | ||||
| 61395-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) |
4 | ||
| 61396B - SEAL, CENTER BODY PILLAR, LH | ||||
| 61395-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) |
4 | ||
| 61451B - PLATE, STEP, LOWER RH | ||||
| 61451-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 61452C - PLATE, STEP, LOWER LH | ||||
| 61452-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 61455A - RETAINER, FRONT STEP, RH | ||||
| 61455-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 61456B - RETAINER, FRONT STEP, LH | ||||
| 61456-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-37030 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) |
1 | ||
| 61503-37011 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61504-37020 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) |
1 | ||
| 61504-37040 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 61504-37011 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 61515B - EXTENSION, QUARTER LOCK PILLAR, RH | ||||
| 61515-37010 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) |
1 | ||
| 61516 - EXTENSION, QUARTER LOCK PILLAR, LH | ||||
| 61516-37010 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) |
1 | ||
| 61575B - PLATE, CAB REAR PILLAR, UPPER RH | ||||
| 61575-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 61576 - PLATE, CAB REAR PILLAR, UPPER LH | ||||
| 61576-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 61661D - EXTENSION, QUARTER PANEL TO UPPER BACK, RH | ||||
| 61661-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 61662B - EXTENSION, QUARTER PANEL TO UPPER BACK, LH | ||||
| 61662-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 64015 - PANEL SUB-ASSY, BACK CORNER, INNER RH | ||||
| 61531-37022 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 64016 - PANEL SUB-ASSY, BACK CORNER, INNER LH | ||||
| 61532-37012 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 64103A - PANEL SUB-ASSY, BACK CORNER, OUTER RH | ||||
| 61111-37340 |
XZU600,605..(DM6,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..DCRWD..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ,*WG(接着ﾀｲﾌﾟ) |
1 | ||
| 61611-37152 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) |
1 | ||
| 61611-37142 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 61111-37350 |
XZU605..IV5;XZC645,655,XZU600,640,645,650,655,685,695..SCB..(T2,T3,T4)..DCRWD..(CBU,IV3,IV7) *WG(接着ﾀｲﾌﾟ) |
1 | ||
| 61111-37320 |
XZU600,605..(DM6,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..DCRWD..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ,*WG(接着ﾀｲﾌﾟ) |
1 | ||
| 61111-37310 |
XZU605..IV5;XZC645,655,XZU600,640,645,650,655,685,695..SCB..(T2,T3,T4)..DCRWD..(CBU,IV3,IV7) *WG(接着ﾀｲﾌﾟ) |
1 | ||
| 64104A - PANEL SUB-ASSY, BACK CORNER, OUTER LH | ||||
| 61112-37430 |
XZU600,605..(DM6,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..DCRWD..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ,*WG(接着ﾀｲﾌﾟ) |
1 | ||
| 61612-37122 |
XZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(DCRWD,DCVTO)..(CBU,IV3,IV7) |
1 | ||
| 61112-37420 |
XZU605..IV5;XZC645,655,XZU600,640,645,650,655,685,695..SCB..(T2,T3,T4)..DCRWD..(CBU,IV3,IV7) *WG(接着ﾀｲﾌﾟ) |
1 | ||
| 61612-37112 |
XZU600,605,642,652..(DM6,DM7,T3)..DCRWD..(IV3,IV5,IV7);XZC645,655,XZU640,645,650,655,685,695..SCB..(DCRWD,DCVTO)..IV3 ｷｬﾌﾞﾀｲﾌﾟ−標準ﾙｰﾌ |
1 | ||
| 64726R - CLIP, ROOF SIDE PANEL | ||||
| 90467-06048B9 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) MD.CHARCOAL,TRIM1# |
4 | ||
| 90467-06048B9 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) ｱｼｽﾄｸﾞﾘｯﾌﾟ−有り(運転席:1,助手席:2),MD.CHARCOAL,TRIM1# |
2 | ||
| 64726R - CLIP, ROOF SIDE PANEL | ||||
| 90467-06048B9 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) MD.CHARCOAL,TRIM1# |
4 | ||
| 90467-06048B9 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) ｱｼｽﾄｸﾞﾘｯﾌﾟ−有り(運転席:1,助手席:2),MD.CHARCOAL,TRIM1# |
2 | ||
| Common parts | ||||
| 61315-22020 | ||||
| 90148-80044 | ||||
| 90179-04031 | ||||
| 91551-80810 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 5854 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
