XZU605A-TYFMX5 (2019)
Toyota Dyna/Toyoace
ILLUST NO. 2 OF 2(0610- )SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08233 | ||||
| 90467-06046C0 | ||||
| 91551-A0814 | ||||
| 91651-60816 | ||||
| 91651-B0616 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 1 OF 2(1107- )BZU600,TRC600,TRU600,XZC60#,610,630,645,655,XZU60#,610,620,630,64#,65#..
ﾌﾛｱﾊﾟﾝ & ﾊﾞｯｸﾌﾚｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51771E - PLATE, STEP, RH | ||||
| 51771-37330 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..DCRWD |
1 | ||
| 51772D - PLATE, STEP, LH | ||||
| 51084-37060 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..DCRWD |
1 | ||
| 51773A - CLIP, STEP PLATE COVER | ||||
| 90467-06133C0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 寒冷地仕様,BLACK |
8 | ||
| 51773C - COVER, STEP PLATE, RH | ||||
| 51773-37101 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 塗装不要,寒冷地仕様 |
1 | ||
| 51773-37100 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 寒冷地仕様 |
1 | ||
| 51774C - COVER, STEP PLATE, LH | ||||
| 51774-37050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 寒冷地仕様 |
1 | ||
| 51774-37051 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 塗装不要,寒冷地仕様 |
1 | ||
| 53701H - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-37070 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 53701H - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-37070 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 53701H - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-37070 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 53717E - APRON, FRONT FENDER, NO.2 RH | ||||
| 53717-37130 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 53717E - APRON, FRONT FENDER, NO.2 RH | ||||
| 53717-37130 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 53718C - APRON, FRONT FENDER, NO.2 LH | ||||
| 53718-37110 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 53718C - APRON, FRONT FENDER, NO.2 LH | ||||
| 53718-37110 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 53721B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53721-37130 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 53721B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53721-37130 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 53722B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53722-37110 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 53722B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53722-37110 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 54908 - BRACKET SUB-ASSY, TILT CAB GRIP | ||||
| 54908-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 57013B - MEMBER SUB-ASSY, FLOOR, FRONT RH | ||||
| 57013-37240 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 57014 - MEMBER SUB-ASSY, FLOOR, FRONT LH | ||||
| 57014-37070 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) |
1 | ||
| 57125 - BRACKET, FRONT SIDE MEMBER, RH | ||||
| 57125-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 57126 - BRACKET, FRONT SIDE MEMBER, LH | ||||
| 57126-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 57156 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH | ||||
| 57156-37021 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 57157 - REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH | ||||
| 57157-37030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 57158 - REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH | ||||
| 57158-37030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 57169 - MEMBER, FRONT FLOOR, FRONT RH | ||||
| 57169-37082 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 57169-37081 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 57169A - MEMBER, FRONT FLOOR, FRONT LH | ||||
| 57179-37071 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) |
1 | ||
| 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-37580 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 57467A - BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH | ||||
| 57467-37011 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 57486A - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH | ||||
| 57486-37050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 57517A - RETAINER, FRONT FLOOR REINFORCEMENT, REAR | ||||
| 57517-37011 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58043-37060 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58044-37070 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-37534 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO) |
1 | ||
| 58115B - PANEL, FRONT FLOOR, REAR | ||||
| 58115-37341 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO) |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58107-37010 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO) |
1 | ||
| 58181A - RETAINER, SEAT RAIL, FRONT | ||||
| 58181-37030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 58182B - RETAINER, SEAT RAIL, FRONT LH | ||||
| 58182-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 58183F - REINFORCEMENT, REAR MOUNTING, RH | ||||
| 58183-37063 |
XZU685..DCRWD..IV4;XZU605,655,685,695..SCB..DCRWD;XZC60#,630,645,655,675,XZU600,602,630,64#,650,652,675..DCRWD,DCVTO |
1 | ||
| 58184E - REINFORCEMENT, REAR MOUNTING, LH | ||||
| 58184-37075 |
XZU685..DCRWD..IV4;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 58192B - PLATE, FRONT FLOOR, REAR | ||||
| 58192-37020 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO) |
4 | ||
| 58204A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH | ||||
| 58204-37010 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 58236F - BRACKET, CLUTCH TUBE | ||||
| 58236-95J01 |
XZU652..6F..DCRWD..IV6;XZU602,605,650..(DCRWD,DCVTO)..(IV5,IV6);XZU600,64#..(DM6,DM7,T3)..6F..(DCRWD,DCVTO)..(IV3,IV6) ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 58251B - BRACE, FLOOR PANEL, FRONT | ||||
| 58251-37032 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 58252B - BRACE, FLOOR PANEL, FRONT LH | ||||
| 58252-37031 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 58256D - BRACKET, FRONT FLOOR HARNESS | ||||
| 58256-37010 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV7) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 58295C - BRACKET, FLOOR SHIFT LEVER, NO.1 | ||||
| 58295-37060 |
XZU685,695..DCB..DCRWD;XZC60#,630,645,655,XZU60#,630,64#,65#..DCRWD,DCVTO |
1 | ||
| 58298A - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH | ||||
| 58298-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 58299B - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH | ||||
| 58298-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 58319F - BRACKET, REAR FLOOR SIDE PANEL | ||||
| 58319-37110 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO) |
1 | ||
| 58335C - PLATE, FLOOR SIDE, FRONT RH | ||||
| 58335-37041 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 58335-37080 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 58336C - PLATE, FLOOR SIDE, FRONT LH | ||||
| 58336-37032 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 58412B - REINFORCEMENT, ENGINE SUB COVER | ||||
| 58412-37032 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO) |
1 | ||
| 58848A - COVER, SHIFT LEVER HOLE | ||||
| 58840-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 58853A - PACKING, SHIFT LEVER HOLE | ||||
| 58853-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 61335F - RETAINER, SEAT BELT ANCHOR | ||||
| 61335-37010 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB..(DCRWD,DCVTO) |
1 | ||
| 61825H - PAD, NOISE SHUTTER, NO.2 | ||||
| 61825-34010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
2 | ||
| 61825H - PAD, NOISE SHUTTER, NO.2 | ||||
| 61825-34010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
2 | ||
| 64018 - BAR SUB-ASSY, BODY | ||||
| 64018-37071 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 64025A - BRACKET SUB-ASSY, REAR MOUNTING, RH | ||||
| 64171-37013 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 64026B - BRACKET SUB-ASSY, REAR MOUNTING, LH | ||||
| 64172-37023 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 64151 - FRAME, BACK | ||||
| 64151-37432 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 64153D - REINFORCEMENT, BACK FRAME | ||||
| 52123-32040 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 64156C - PLATE, BACK FRAME, LH | ||||
| 64156-37060 |
XZU605..IV5 ﾌﾛﾝﾄﾄﾞｱ−ｽﾗｲﾄﾞ式(助手席側) |
1 | ||
| 64177A - STOPPER, REAR MOUNTING BRACKET, RH | ||||
| 64177-37031 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 64178A - STOPPER, REAR MOUNTING BRACKET, LH | ||||
| 64178-37031 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| Common parts | ||||
| 90105-08347 | ||||
| 90105-11036 | ||||
| 90105-11041 | ||||
| 90119-06801 | ||||
| 90159-60430 | ||||
| 90297-03007 | ||||
| 91551-A0814 | ||||
| 91642-81030 | ||||
| Linked diagrams | ||||
| 5752 | ||||

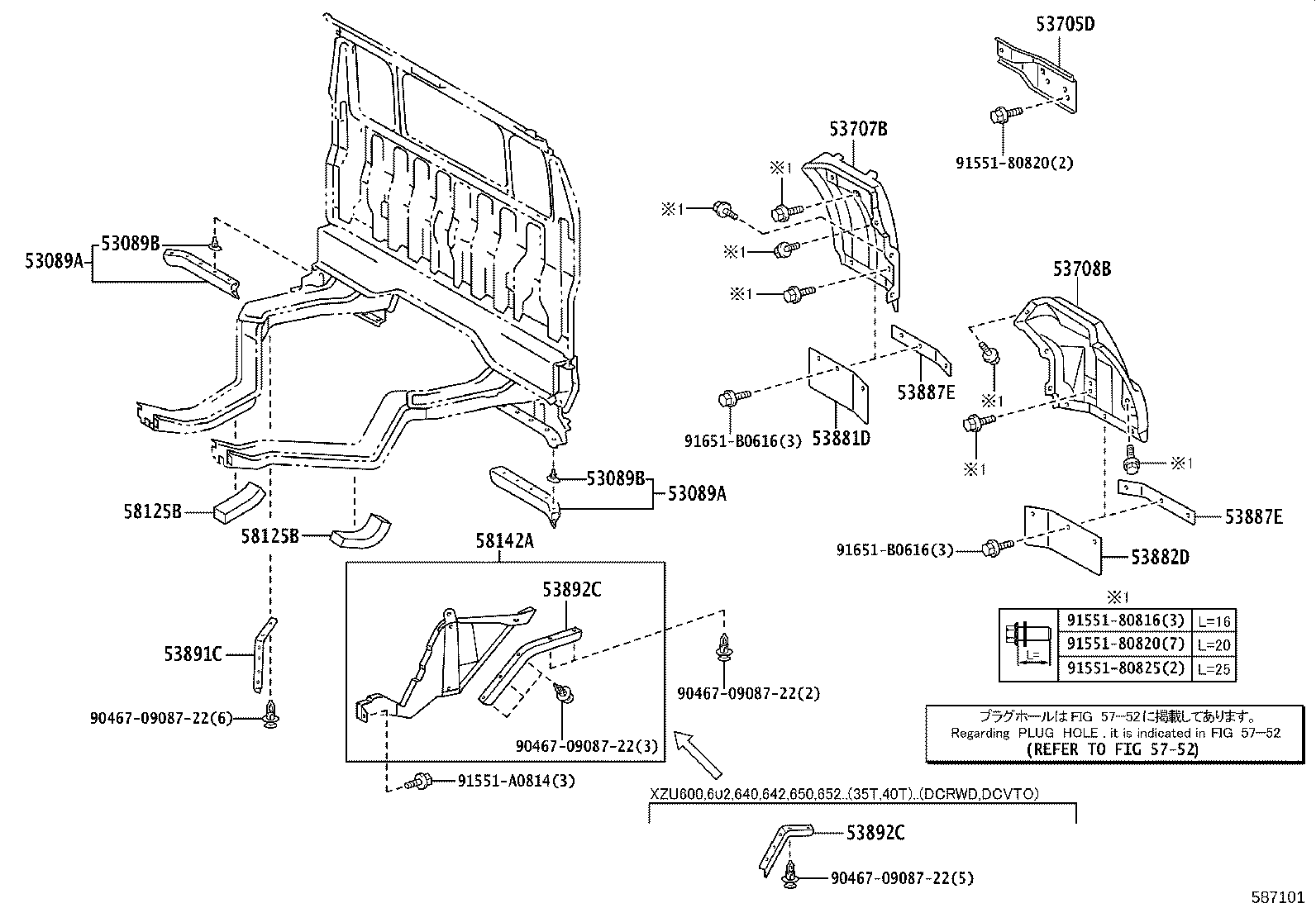

ILLUST NO. 2 OF 2(1905- )SCB..DCRWD,DCVTO
ﾏｯﾄﾞｶﾞｰﾄﾞ & ﾌｪﾝﾀﾞｴﾌﾟﾛﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53089A - MUDGUARD SUB-ASSY, FRONT | ||||
| 53089-25010 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
2 | ||
| 53089-37031 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
2 | ||
| 53089A - MUDGUARD SUB-ASSY, FRONT | ||||
| 53089-25010 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
2 | ||
| 53089-37031 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
2 | ||
| 53089B - CLIP, FRONT MUDGUARD | ||||
| 67868-95401 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
10 | ||
| 67867-12150 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
10 | ||
| 67867-12150 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
6 | ||
| 53089B - CLIP, FRONT MUDGUARD | ||||
| 67868-95401 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
10 | ||
| 67867-12150 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
10 | ||
| 67867-12150 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
6 | ||
| 53705D - BRACE SUB-ASSY, FENDER APRON, RH | ||||
| 53705-37030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53715-37310 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53716-37320 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
1 | ||
| 53881D - MUDGUARD, FRONT RH | ||||
| 53881-37150 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
1 | ||
| 53882D - MUDGUARD, FRONT LH | ||||
| 53881-37150 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
1 | ||
| 53887E - PLATE, FRONT MUDGUARD | ||||
| 53887-37030 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
2 | ||
| 53887E - PLATE, FRONT MUDGUARD | ||||
| 53887-37030 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..SCB..DCRWD |
2 | ||
| 53891C - SEAL, FRONT FENDER SPLASH SHEILD, FRONT | ||||
| 53891-37032 |
XZU600,640..SCB..(DCRWD,DCVTO);XZC60#,630,645,655,675,XZU602,605,630,642,645,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 53892C - SEAL, FRONT FENDER SPLASH SHIELD, FRONT LH | ||||
| 53892-37031 |
XZU685,695..SCB..DCRWD;XZC605,645,655,675,XZU605,645,655,675..DCRWD |
1 | ||
| 53892C - SEAL, FRONT FENDER SPLASH SHIELD, FRONT LH | ||||
| 53892-37031 |
XZU685,695..SCB..DCRWD;XZC605,645,655,675,XZU605,645,655,675..DCRWD |
1 | ||
| 58125B - SEAL, FRONT FLOOR TO FRAME | ||||
| 58125-37021 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 58125B - SEAL, FRONT FLOOR TO FRAME | ||||
| 58125-37021 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 58142A - APRON, FRONT FLOOR SIDE, NO.1 LH | ||||
| 53708-37180 |
XZU685,695..SCB..DCRWD;XZC605,645,655,675,XZU605,645,655,675..DCRWD |
1 | ||
| Common parts | ||||
| 90467-0908722 | ||||
| 91551-80816 | ||||
| 91551-80820 | ||||
| 91551-80825 | ||||
| 91551-A0814 | ||||
| 91651-B0616 | ||||
| Linked diagrams | ||||
| 5752 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
